SP-6558
•Fanless and quiet design
•HDD easy maintenance
•Three independent displays (HDMI® / DVI-D / LVDS)
•Multiple I/O ports (2 x LAN with PoE / 3 x USB 3.0 / 2 x COM / I²C)
•Expansion slot (2 x full-sized Mini PCIe / SD slot / 2 x SIM slot)
•Wide-ranged voltage DC In (9~36V)
•Wide-ranged temperature (w/ E3950)
•Front panel IP65 design
•Aluminum front bezel
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
•Supports high brightness LCD sunlight readable (optional)
•TPM module (optional)
|
System |
||
| CPU Type |
Intel® Celeron® J3455 4C, 2.3GHz Intel® Atom® x7 E3950 4C, 1.8GHz |
|
| Chipset | Intel® SoC | |
| Memory Support |
1 x DDR3L 1600/1867MHz SO-DIMM socket (up to 8GB) |
|
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Storage |
1 x 2.5" SATA HDD or SSD
|
|
| Front Bezel | Aluminum | |
| IP65 | Yes (for front panel only) | |
| Power Input | DC In 9~36V | |
| Operating System |
Windows 10 IoT Enterprise LTSB 2016 64bit / Ubuntu 16.04 LTS |
|
| Dimensions (W x H x D) | 395.8 x 328.2 x 74.5 mm | |
| System Weight | 2.5 kg | |
| Mounting Support | Wall mount / VESA 100 / Panel mount | |
| Certifications | FCC / CE | |
| I/O Ports | ||
| Display | 1 x HDMI® up to 4K, 1 x DVI-D | |
| USB | 3 x USB 3.0 | |
| Audio | 1 x Line Out / 1 x Mic In | |
| LAN |
2 x LAN (PoE IEEE 802.3af optional), Wake-On-LAN, PXE LAN 1: Intel® I210IT LAN 2: Intel® I210IT |
|
| Serial Ports |
COM 1/2 for RS232/422/485 (selectable under BIOS), RI/5V/12V selectable by jumper |
|
| Storage | 1 x 2.5" SATA III HDD or SSD drive space | |
| Expansion Slots |
1 x full-sized Mini PCIe (with mSATA or 3G/4G card with USB 2.0 signal) 1 x full-sized Mini PCIe (with PCIe or 3G/4G card with USB 2.0 signal) 1 x SD slot 2 x SIM slot |
|
| Antenna Hole |
4 x antenna holes |
|
| Power On/Off |
1 x power button 1 x remote switch |
|
| LED | 2 x PoE LED | |
| I²C | 1 x I²C port | |
| Display | ||
| LCD |
8.4" TFT LCD (LED) resolution SVGA 800 x 600, 600 nits
|
|
| Touchscreen |
5-wire resistive touchscreen or projected capacitive touchscreen (USB interface) |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
HDD: 0°C~40°C (32°F~104°F) SSD: 0°C~50°C (32°F~122°F) 0°C~50°C (32°F~122°F) (w/ N3350) Wide-ranged temperature: -20°C~50°C (-4°F~122°F) (w/ E3950) |
|
| Storage Temp. |
-20°C~80°C (-4°F~176°F) |
|
| Humidity | 20%~90% | |

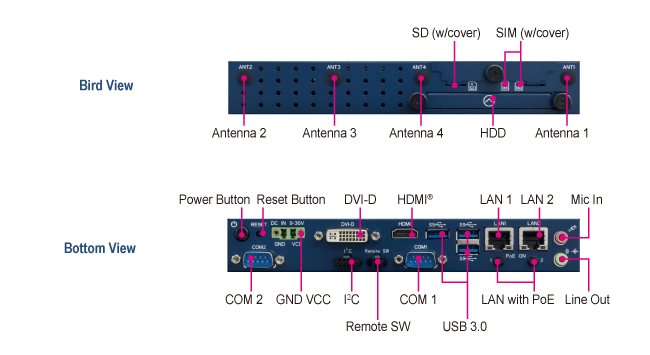

SP-6558 IO

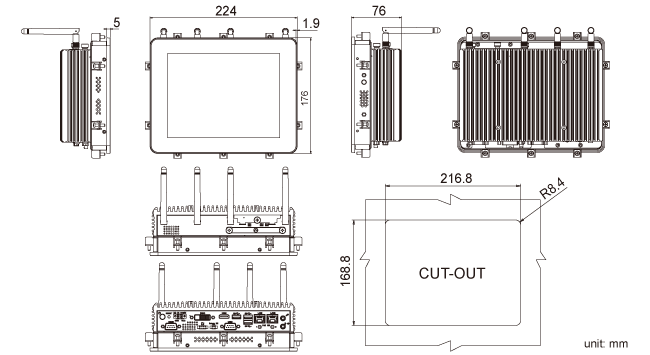

SP-6558 Dimensions
| SP-6558 |
Intel® Atom® / Celeron® Processor Fanless and Low Power 8.4" Panel PC |
