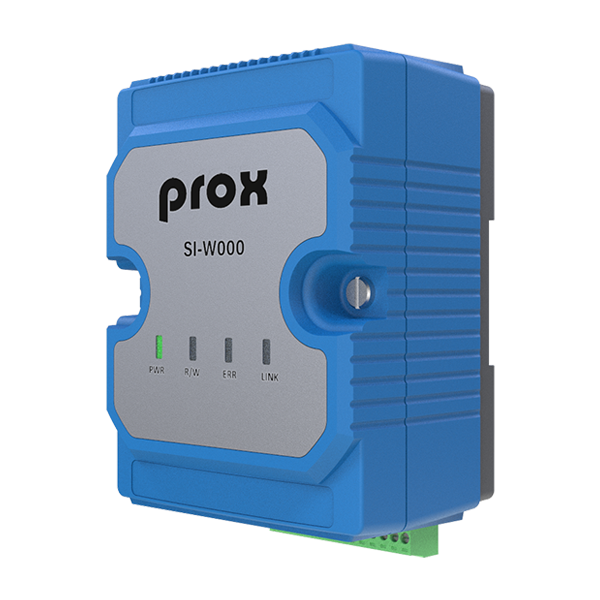

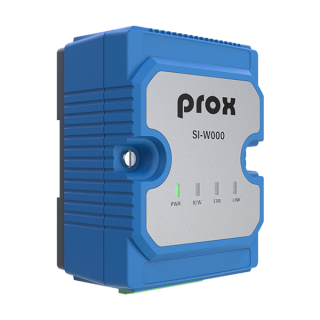

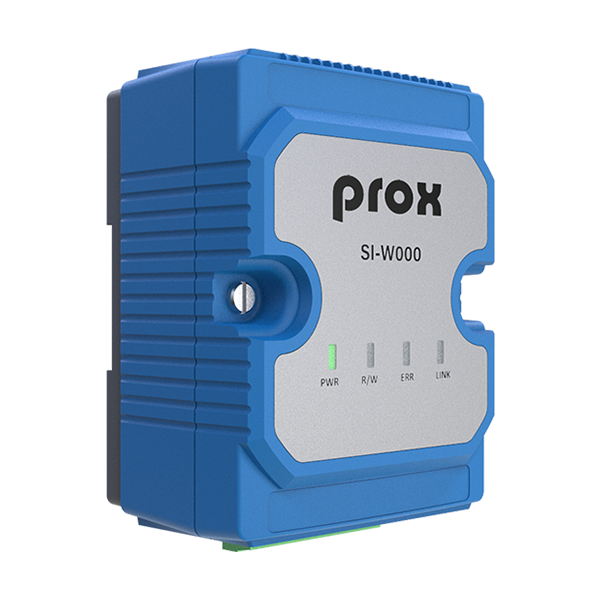

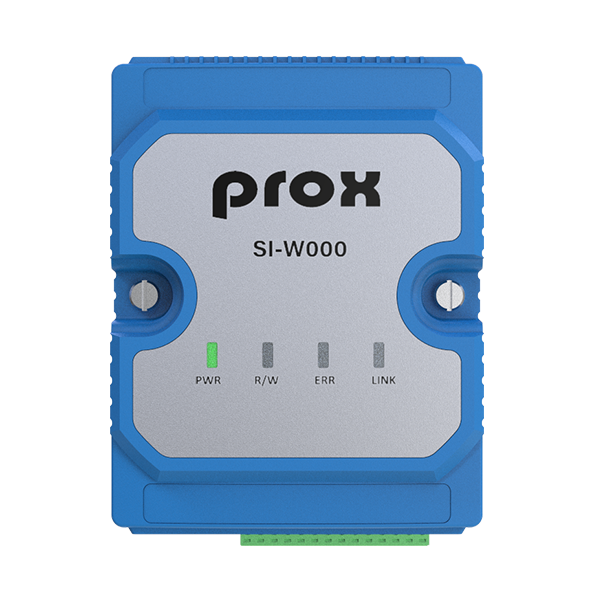

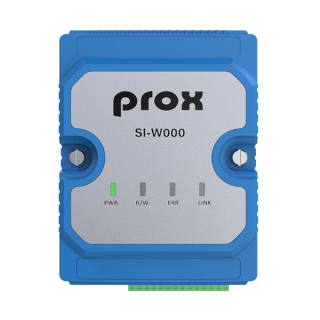

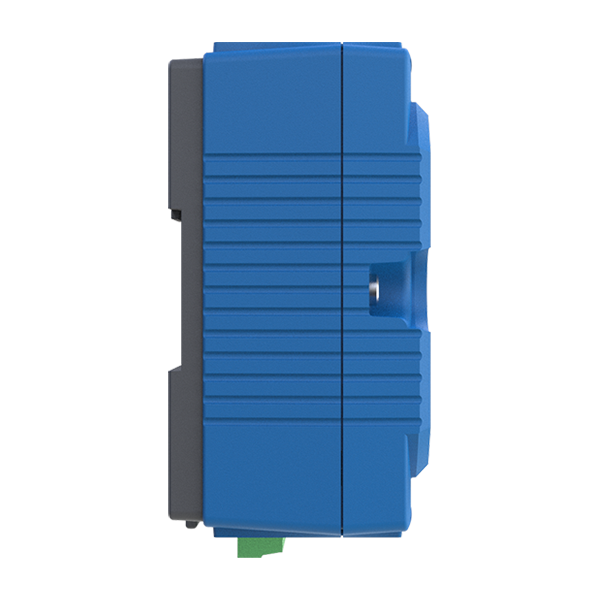

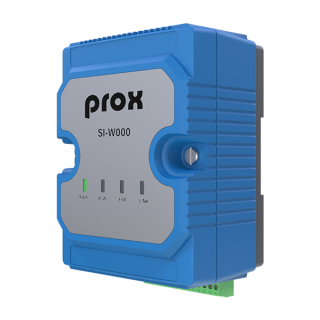

SI-W000

IIoT Edge Controller

•32-bit ARM RISC Processor
•Support Local I/O Board Expansion
•Support Remote I/O Module with Industrial Modbus Protocol
•Web pages for logic editing control and system configuration
•Built-in Timer and Schedule Function
•Built-in Intelligent Rule operation
•Data Logger ability
•Support Modbus TCP/RTU, MQTT, OPC UA, CGI Protocol
•Built-in Temperature and Humidity Sensor Module
•Expansion Slot for Wireless Module

Tech Spec
Product Info
Download

System Specifications
CPU Support		32-bit ARM RISC
Storage Support		8GB eMMC on board
Communication Interface		COM 1/2 for RS-232 (TxD, RxD, GND), non-isolated COM 3 for RS-485 (Data+, Data-), non-isloated COM 4 for RS-485 (Data+, Data-, GND.ISO), 3000 VDC isolation
microSD Expansion		1x microSD Card slot
Expansion Slot		1 x full-sized Mini PCIe with USB 2.0 signal
LED Indicator		Power LED, Green R/W LED, Orange Error LED, Red Modbus LED, Green
I²C Interface		Temperature / Humidity sensor module
Power Supply		9~50V DC In from terminal block
Mounting Type		DIN-Rail / Wall Mount
System Weight		285 g
Dimensions (W x H x D)		115 x 90 x 39 mm
Certification		FCC / CE
I/O Specifications
I/O Module Support & I/O Ports
Local I/O Module		1 x Local I/O Board with RS-232 signals
Remote I/O Module		COM 3 for Modbus RTU Slave modules COM 4 for Modbus RTU Slave modules LAN for Modbus TCP modules
USB		1 x USB 2.0 Type A
LAN		1 x RJ45 10/100/1000 Base-T
Display		1 x VGA
Antenna		1 x antenna hole
Environment
Operating Temp. (Ambient with airflow)		-25°C~75°C (-13°F~167°F)
Storage Temp.		-40°C~85°C(-40°F~185°F)
Humidity		20%~90%

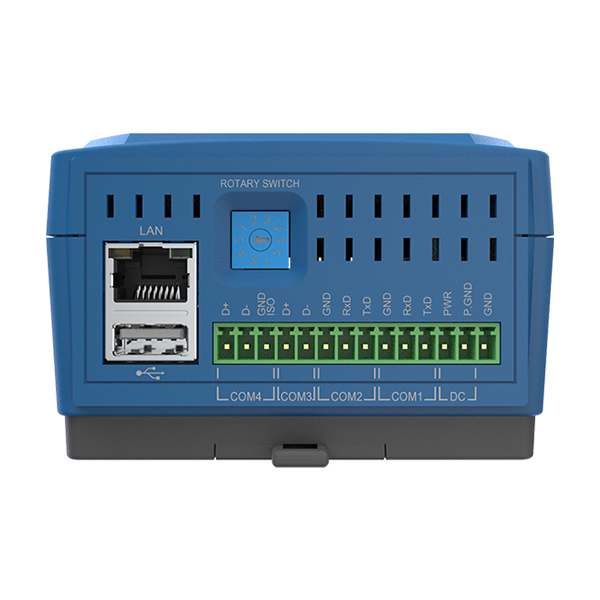

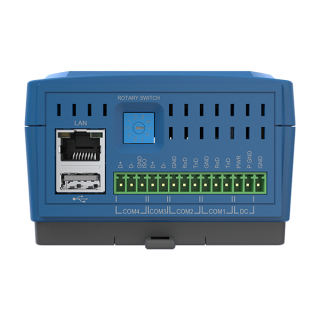

SI-W000 I/O Panel

SI-W709	8 Channels Differential Analog Input I/O Module
File type	File Download
EDM	SI-W000_EDM.PDF
Pictures	SI-W000_Pictures.ZIP
