SG-S192

Intel® Celeron® J6412 / Atom® x6425RE Processor Fanless and All-around IP66 / IP69K Stainless 19" Panel PC

•Intel® Celeron® J6412/Atom® x6425RE processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66/IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen
•Easy Maintenance and key parts installation

Tech Spec
Product Info
Download

System
CPU Support		Intel^® Celeron^® J6412 processor Intel^® Atom^® x6425RE processor
Chipset		Intel® SoC
Memory Support		1 x DDR4 3200MHz SO-DIMM socket (up to 32GB) (non-ECC)
Enclosure		Stainless SUS304
IP Rating		IP66/IP69K
Power Input		DC In 12V/24V
Watchdog		1~255 second watchdog timer selectable
Operating System		Windows 11, Windows 10 IoT LTSC 64bit, Ubuntu 20.04 (Kernel 5.4)
Dimensions (W x H x D)		488 x 416 x 95.3 mm (w/o Stand) 488 x 464 x 160 mm (with Stand)
System Weight		16 kg
Mounting Support		Wall mount/VESA 100/Stand
Certification		FCC / CE
I/O Ports
Power Input		1 x M12 waterproof connector, supporting 12V/24V DC
USB		2 x USB 2.0 M12 waterproof connectors (4 x USB ports)
Serial Port		2 x COM M12 waterproof connectors, with RS-232/422/485
LAN		2 x 2.5 GbE LANs with M12 waterproof connector, Intel® I255-IT; supports Wake-On-LAN
Storage		1 x 2.5" SATA III SSD 1 x M.2 slot for NVMe SSD (size 2280, PCIeX2)
Expansion Slot		1 x full-sized Mini PCIe slot
Display
LCD		19" TFT LCD (LED) resolution 1280 x 1024
Touchscreen		5-wire resistive touchscreen
Environment
Operating Temp. (Ambient with airflow)		0°C~50°C (32°F~122°F)
Storage Temp.		-20°C~80°C (-4°F~176°F)
Humidity		20%~90%

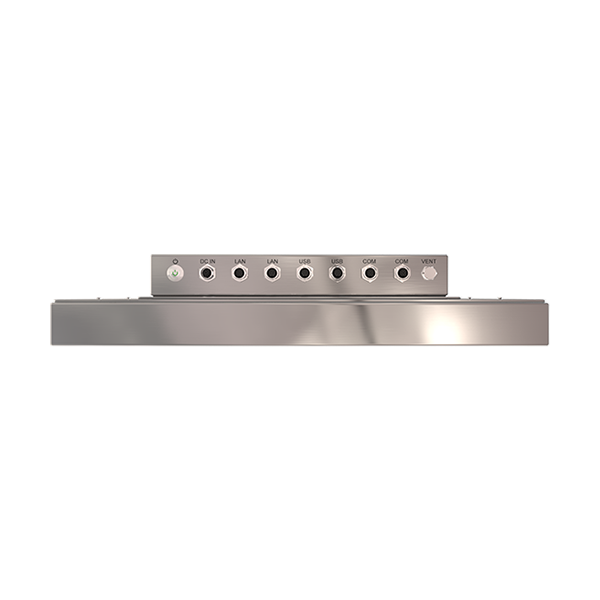

SG-S192 IO

SG-S192 Dimensions
