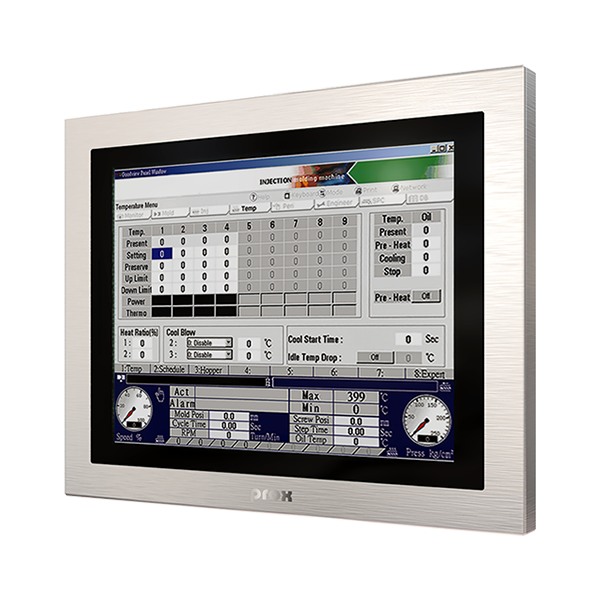

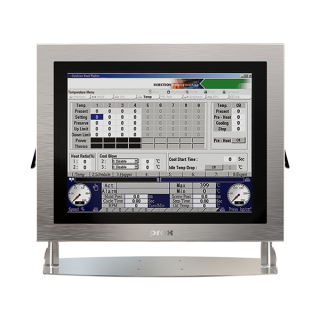

SG-S176

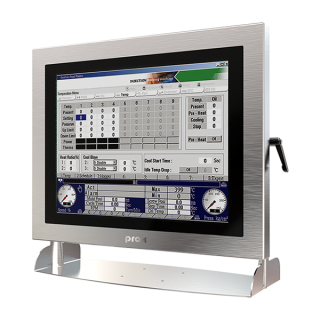

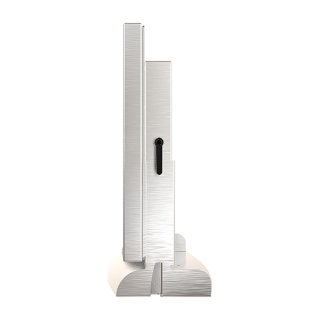

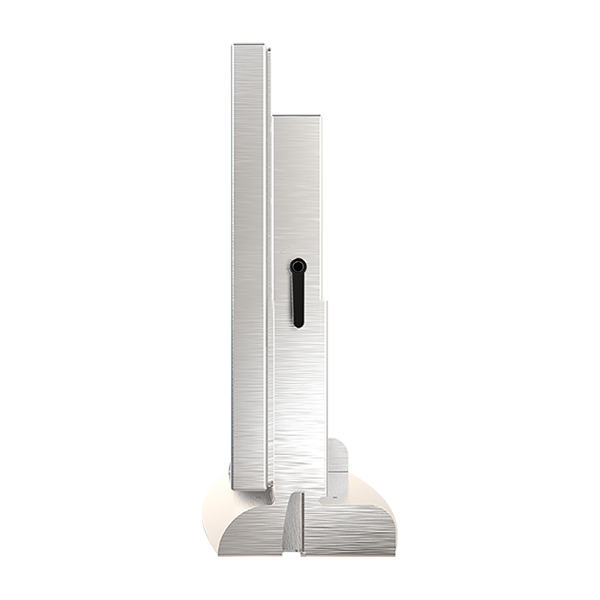

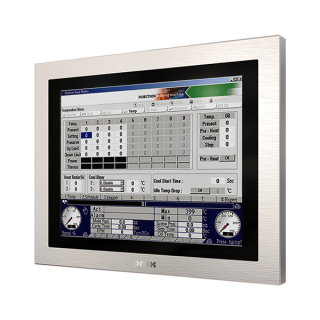

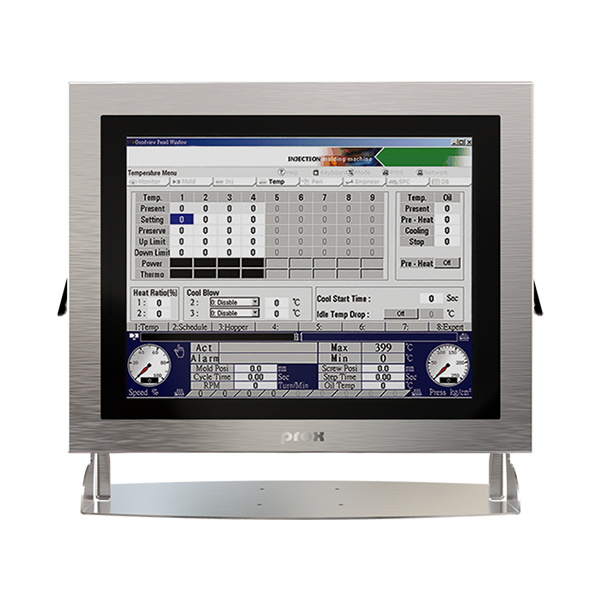

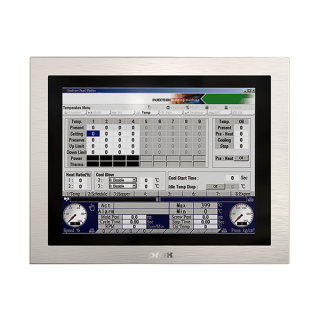

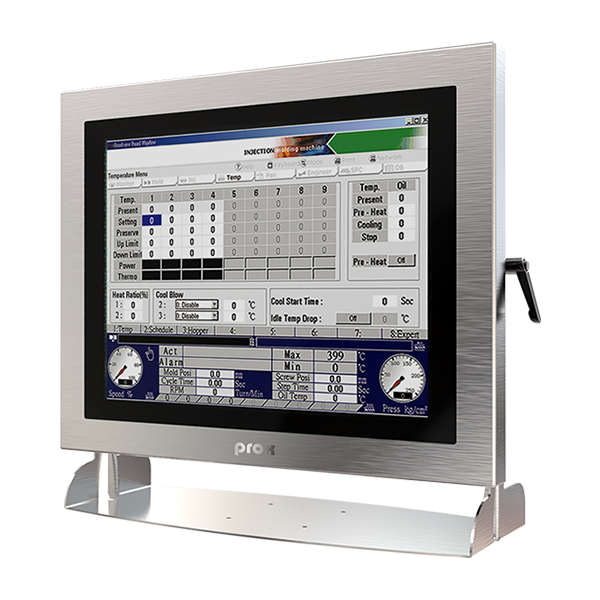

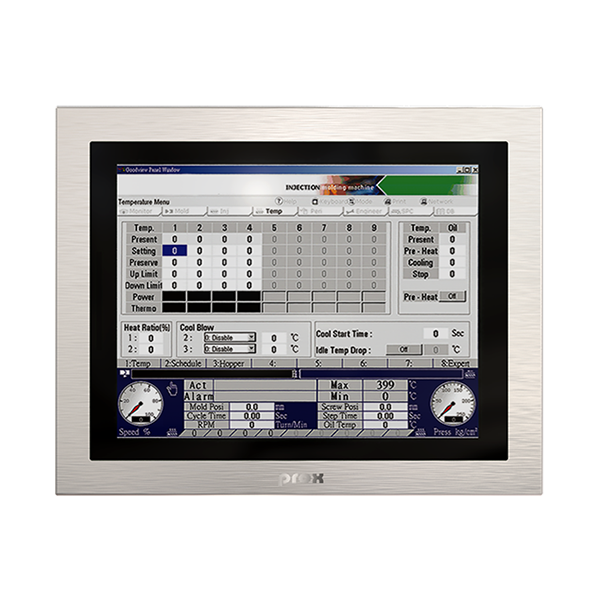

Intel® 7th Gen. Core™ i5-7300U / i3-7100U Processor Fanless and All-around IP66 / IP69K Stainless 17" Panel PC

•Intel® 7th Gen. Core™ i5-7300U / i3-7100U processor on board
•Fanless and quiet design
•Stainless steel SUS304 / SUS316
•All-around IP66 / IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen

Tech Spec
Product Info
Download

System
CPU Support		Intel® 7th Gen. Core™ i5-7300U / i3-7100U processor
Chipset		Intel® SoC
Memory Support		1 x DDR4 2133MHz SO-DIMM socket (up to 16G) (non-ECC)
Enclosure		Stainless SUS304/SUS316
Power Input		DC In 12V/24V
IP Rating		IP66/IP69K
Watchdog		1~255 second watchdog timer selectable
Operating System		Windows 10 IoT LTSC 2019 / Ubuntu 16.04
Dimensions (W x H x D)		450 x 381 x 70 mm
System Weight		11.5 kg
Mounting Support		Wall mount / VESA 100 / Stand / Table
Certification		FCC / CE
I/O Ports
Power Input		1 x M12 waterproof connector, supporting 12V/24V DC
USB		4 x USB 2.0 from two M12 waterproof connectors
Serial Ports		1 x COM port with M12 waterproof connector COM1 for RS-232/422/485
LAN		2 x GbE LANs with M12 waterproof connector Supports Wake-On-LAN
Storage		1 x 2.5" SATA III HDD or SSD
Expansion Slot		1 x full-sized Mini PCIe slot (Mini PCIe and USB signal)
Display
LCD		17" TFT LCD (LED) resolution 1280 x 1024
Touchscreen		5-wire resistive touchscreen or projected capacitive touchscreen (USB interface)
Environment
Operating Temp. (Ambient with airflow)		HDD: 0°C~40°C (32°F~104°F) SSD: 0°C~50°C (32°F~122°F)
Storage Temp.		-20°C~80°C (-4°F~176°F)
Humidity		20%~90%

SG-S176 IO

SG-S176 Dimensions

SG-S176	Intel^® 7th Gen. Core™ i5-7300U / i3-7100U Processor Fanless and All-around IP66 / IP69K Stainless 17" Panel PC
