SG-S172
Intel® Elkhart Lake Processor Fanless and All-around IP66 / IP69K Stainless 17" Panel PC
•Intel® Celeron® J6412 / Atom® x6425RE processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66 / IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touch screen
•Easy Maintenance and key parts installation
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66 / IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touch screen
•Easy Maintenance and key parts installation
| System | ||
| CPU Support |
Intel® Celeron®J6412 processor Intel®Atom® x6425RE processor |
|
| Chipset |
Intel® SoC |
|
| Memory Support | 1 x DDR4 3200MHz SO-DIMM socket (up to 32 GB) (non-ECC) | |
| Enclosure | Stainless SUS304 | |
| IP Rating | IP66/IP69K | |
| Power Input | DC In 12V/24V | |
| Watchdog | 1~255 second watchdog timer selectable | |
| Operating System | Windows 10 IoT LTSC 64bit, Ubuntu 20.04, Windows 11 | |
| Dimensions (W x H x D) |
450 x 381 x 95mm (w/o Stand) 450 x 433.5 x 160mm (with Stand) |
|
| System Weight |
15 kg |
|
| Mounting Support |
Wall mount / VESA 100 / Stand |
|
| Certification |
FCC/CE |
|
|
I/O Ports |
||
| Power Input |
1 x M12 waterproof connector, supporting 12V/24V DC |
|
| USB |
2 x USB 2.0 waterproof connectors (4 x USB ports) |
|
| Serial Ports |
2 x COM waterproof connectors COM 1 for RS-232/422/485
|
|
| LAN |
2 x 2.5 GbE LANs with M12 waterproof connector, Intel® I255-IT; supports Wake-On-LAN |
|
| Storage |
1 x 2.5" SATA III SSD 1 x M.2 slot for NVMe SSD (size 2280, PCIeX2) |
|
| Expansion Slot |
1 x full-sized Mini PCIe slot
|
|
| Display | ||
| LCD |
17" TFT LCD (LED) resolution 1280 x 1024 |
|
| Touchscreen |
5-wire resistive touchscreen or projected capacitive touchscreen (USB interface) |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
0°C~50°C(32°F~122°F)
|
|
| Storage Temp. |
-20°C~80°C(-4°F~176°F)
|
|
| Humidity | 20%~90% | |

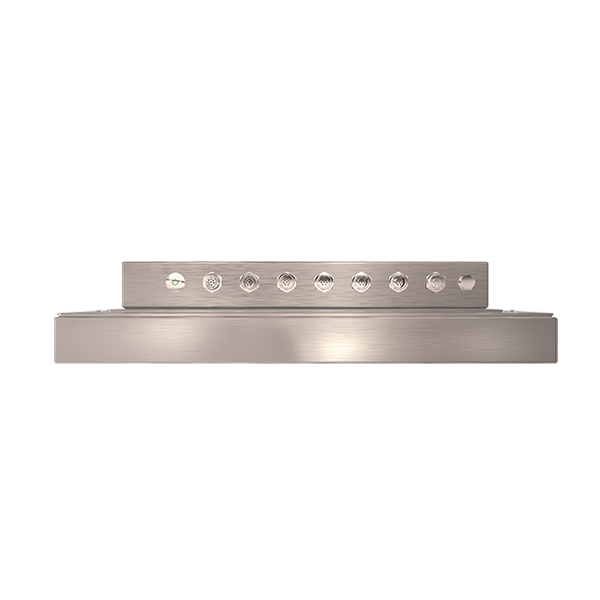

SG-S172 IO
SG-S172 Dimensions
SG-S172 Dimensions
