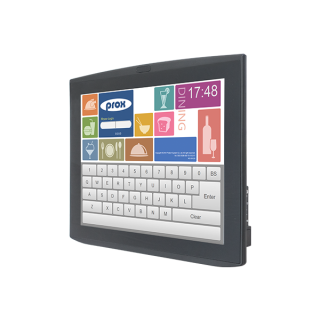

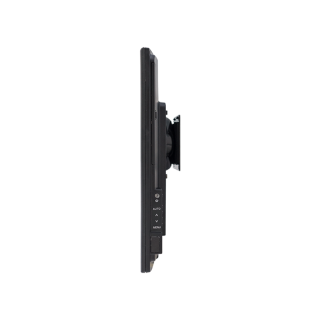

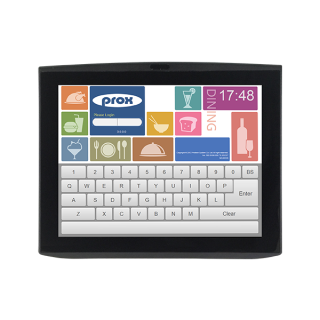

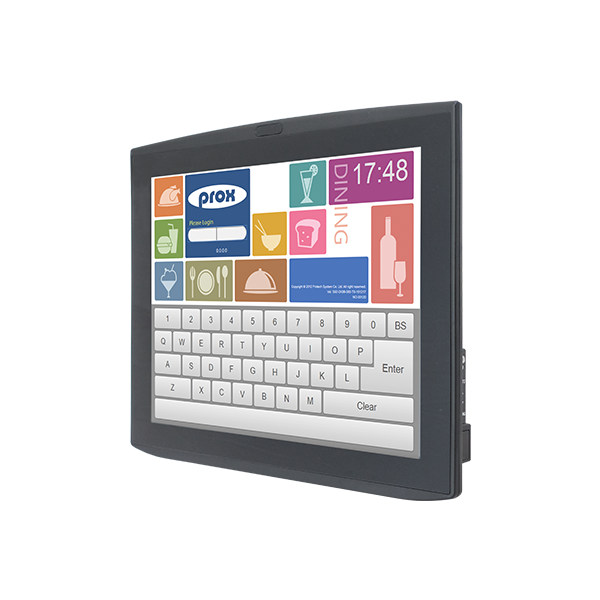

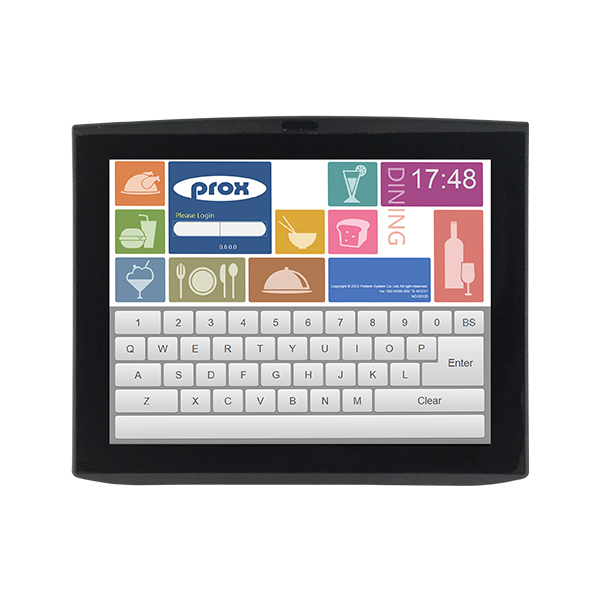

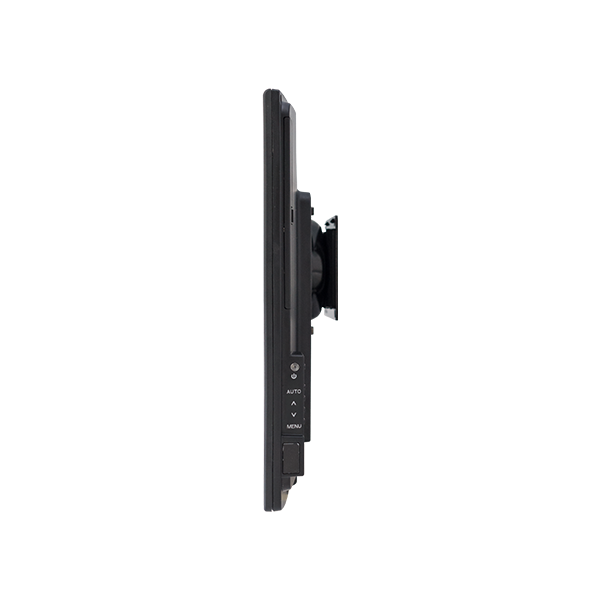

MP-4815
Wall Mount Display
•Ultra-thin LCD panel
•15" backlight LCD display
•P54 front display
•On-screen display easy to use
•Support resistive & PCAP touch
•Built-in 2W speaker (Optional)
•Audio available for IPC applied computer (Optional)
•5M pixel USB camera module (Optional)
•2D barcode scanner module (Optional)
•MSR / RFID / Fingerprint USB interface (Optional)

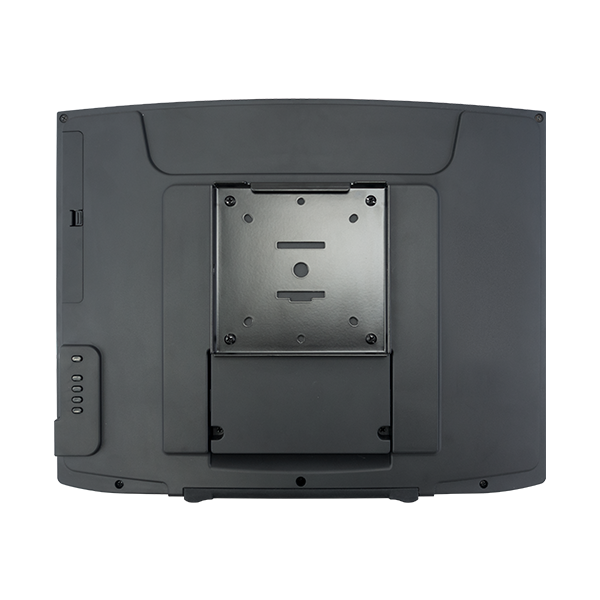

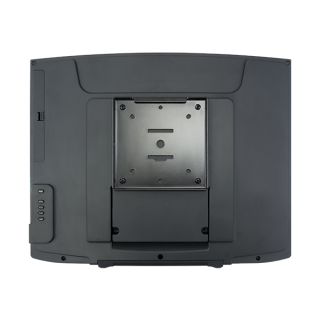

•VESA mount kit selectable (Optional)
(VESA 100 x 100 & 75 x 75 selectable)
•15" backlight LCD display
•P54 front display
•On-screen display easy to use
•Support resistive & PCAP touch
•Built-in 2W speaker (Optional)
•Audio available for IPC applied computer (Optional)
•5M pixel USB camera module (Optional)
•2D barcode scanner module (Optional)
•MSR / RFID / Fingerprint USB interface (Optional)
•VESA mount kit selectable (Optional)
(VESA 100 x 100 & 75 x 75 selectable)
Customer(2nd) Display |
15” XGA LCD (250 cd/m²) |
|
Display Resolution |
1024 x 768 (XGA) |
|
Font Size |
367(W) x 37.8 mm
|
|
Dimensions (Panel) |
367 x 37.8 x 299.3 mm (W x H x D) |
|
Viewing Angle | Horizontal 80°, Vertical 70° | |
Add-ons |
Max. 4-USB device support
|
|
I/O Ports |
VGA
|
|
DVI-I cable (support DVI-D signal only)
|
||
USB
|
||
Line In (for Audio & Speaker) | ||
Language | English, French, Deutsch, Italiano, Spanish, Japanese, Chinese (Traditional)…etc. | |
Power Supply | DC12V power jack (9-16V power input) | |
Environment | ||
EMC & Safety | CE / FCC | |
Operating Temp. |
0°C~40°C (32°F~104°F)
|
|
Storage Temp. | -20°C~60°C (-4°F~140°F) | |
Humidity | 20%~90% |
MP-4815 Dimensions
MP-4815 Dimensions
MP-4815 |
Wall Mount Display |
File type | File Download |
EDM | MP-4815_EDM.PDF |
Pictures | MP-4815_Pictures.PDF |
Manual | MP-4815_Manual.PDF |
QuickGuide | MP-4815_QuickGuide.PDF |
README | MP-4815_README.PDF |
BIOS | MP-4815_BIOS.ZIP |
Device | MP-4815_Device.ZIP |
Platform | MP-4815_Platform.ZIP |
Other | MP-4815_Other.ZIP |
