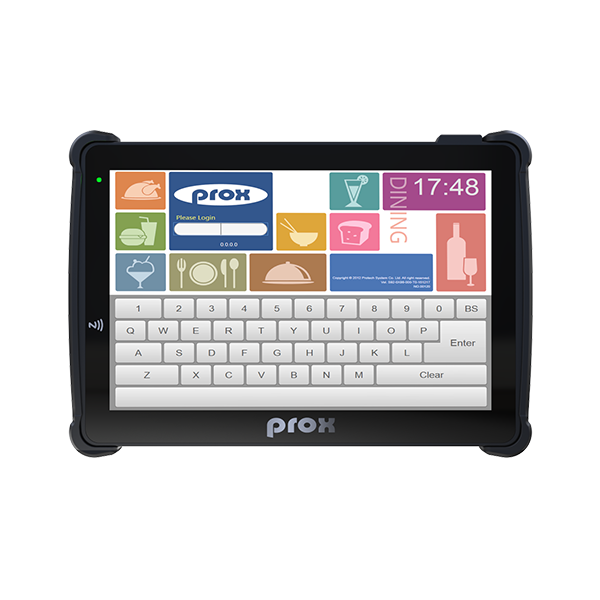

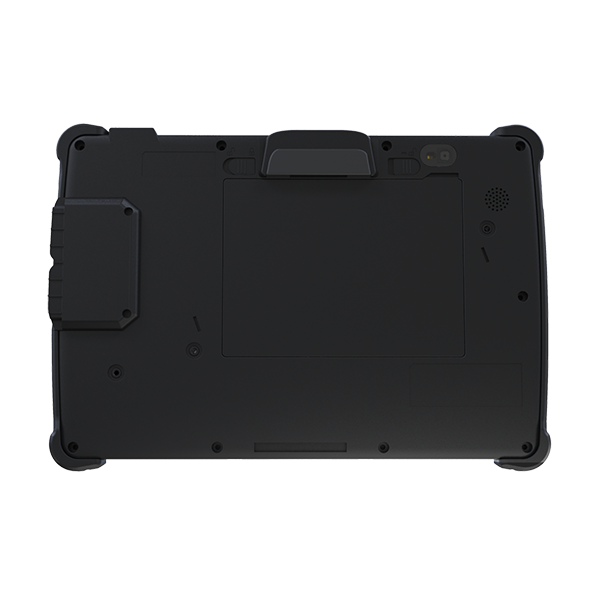

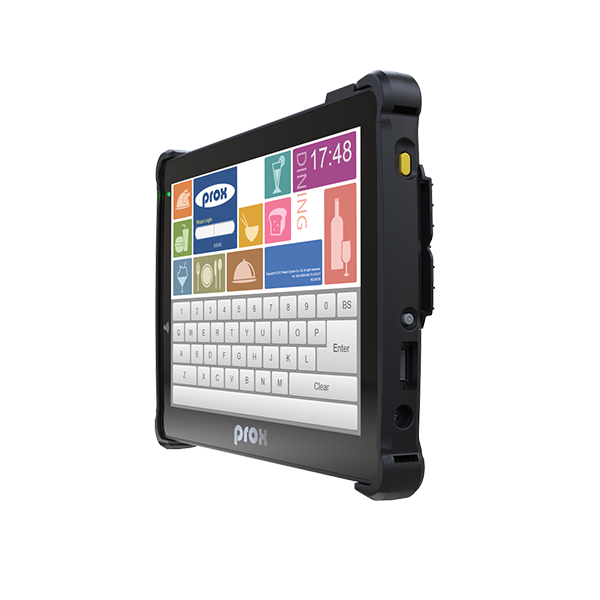

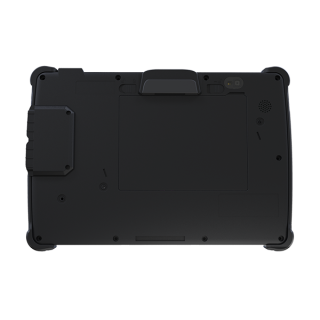

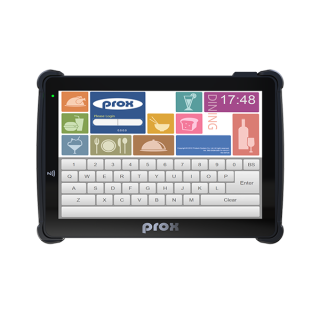

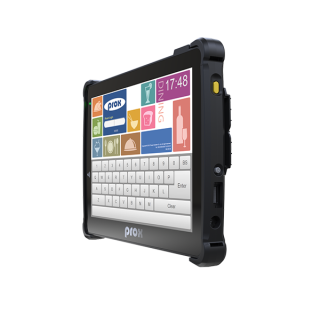

MH-5102
10.1" Windows Tablet with Intel® Atom® x5-Z8550 Quad Core™ 2.4 GHz Processor
•Stylish ID design
•High performance and low power consumption design with Intel® Atom® x5-Z8550 Quad CoreTM CPU
(1.44GHz up to 2.4GHz) / 2GB or 4GB LPDDR3 / 32GB or 64GB eMMC
•High capacity (8 hours) and removable battery design
•10.1" LCD panel with P-Cap touch 1920 x 1200 resolution / 30,000 hours lifetime
•Multi-function applications (supports 2D barcode scanner / rear or front camera 5M / Wi-Fi / GPS / LTE / Bluetooth® / NFC) / MSR / smart card reader with EMV level 1 & 2 / fingerprint reader
•Light weight design
•Drop test 1.2m & IP54 (front panel) design
•Windows 10 IoT (64 bits)
•High performance and low power consumption design with Intel® Atom® x5-Z8550 Quad CoreTM CPU
(1.44GHz up to 2.4GHz) / 2GB or 4GB LPDDR3 / 32GB or 64GB eMMC
•High capacity (8 hours) and removable battery design
•10.1" LCD panel with P-Cap touch 1920 x 1200 resolution / 30,000 hours lifetime
•Multi-function applications (supports 2D barcode scanner / rear or front camera 5M / Wi-Fi / GPS / LTE / Bluetooth® / NFC) / MSR / smart card reader with EMV level 1 & 2 / fingerprint reader
•Light weight design
•Drop test 1.2m & IP54 (front panel) design
•Windows 10 IoT (64 bits)
| CPU Support |
Intel® Atom® x5-Z8550 Quad CoreTM
|
|
| CPU Frequency | 1.44GHz up to 2.4GHz | |
| Display |
10.1" 1920 x 1200 |
|
| Touch | 450 cd/m2 | |
| O.S. Support | Windows 10 IoT Enterprise LTSC 2019 OS (64 bits) / Windows 10 IoT Enterprise LTSB 2016 OS (64 bits) | |
| Memory | 2GB / 4GB LPDDR3 | |
| Flash |
32GB / 64GB eMMC |
|
| Speaker | 1W | |
| Power Requirement | DC 12V / 24V | |
| G-Sensor | Yes | |
| Ambient Light Sensor | Yes | |
| Vibrator | Yes | |
| Dimensions (W x H x D) | 267.84 x 188.5 x 25.2 mm | |
| Weight | 838 g (Pad only) | |
| Certifications |
System: CE/ FCC/ IEC/EN62368-1 Battery Pack: UN38.3/ CE-EN62133/ CB-IEC62133/ UL/ PSE |
|
| Capacity | 3.7V, 7900mAh | |
| Battery Operation | Up to 8 hours (refer to JEITA battery run time measurement) | |
| WiFi + BT | 802.11 ac/a/b/g/n 2T2R for dual band, Bluetooth® 4.1 + EDR | |
| WWAN | Support LTE / UMTS / GSM | |
| GPS | GNSS:
GPS / GLONASS / BeiDou / Galileo / QZSS (Optional)
|
|
| Barcode Scanner | 2D barcode scanner (optional) | |
| Camera | Front camera 5M pixels (optional) Rear camera 5M pixels (optional) |
|
| NFC | NXP NPC300 (optional) | |
| MSR | SecureHead MSR (optional) | |
| Smart Card Reader | Smart card reader (optional) (meet ISO 7816 & EMV Level 1 & 2 certification) |
|
| Tablet I/O Ports | ||
| SD |
Micro SD up to 128GB
|
|
| USB | Standard USB 3.0 type A x 1 for external USB device | |
| Audio Jack | ϕ 3.5 mm, support earphone, microphone | |
| Cradle Connectors | POGO pin for USB x 1 / power x 1 | |
| DC Jack | DC 12V / 24V | |

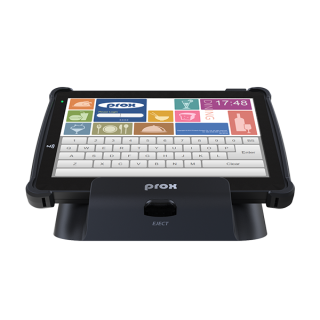

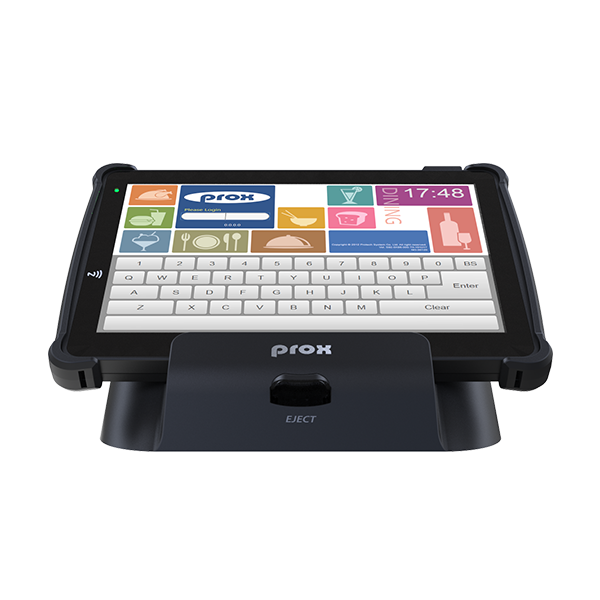

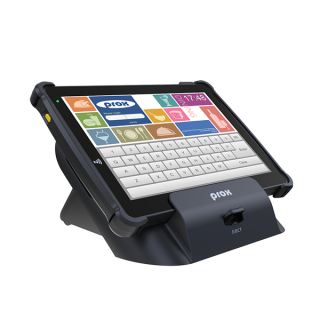

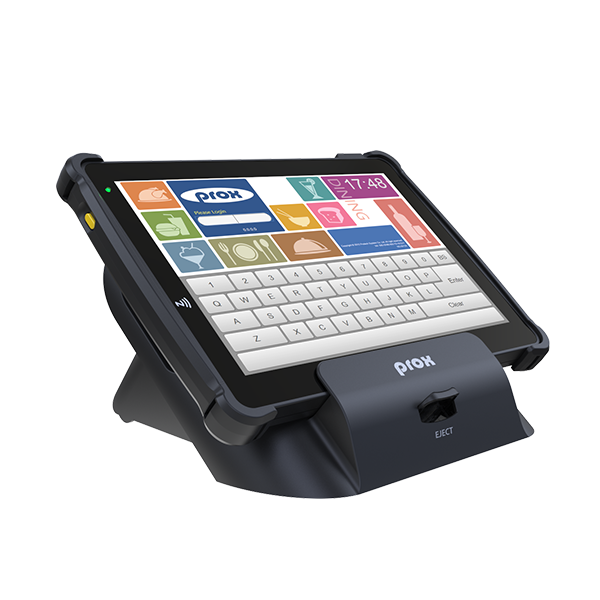

| Lite Cradle Specifications | ||
| Cradle Connector | POGO pins (1 x 10 pins) | |
| Kensington Security Lock Slot | Lock slot x 1 | |
| Lock Switch | Lock switch x 1 used to fix Integrated Pad and Lite Cradle | |
| AC Power Adapter | 12V/5A/60W AC power adapter | |
| Weight | 858 g | |
| Dimensions (W x H x D) | 220 x 131.65 x 217.23 mm | |
| Lite Cradle I/O Ports | ||
| DC In Jack | DC 12V IN (pin’s ϕ=2.5 mm) x 1 | |
| USB Ports | USB: Dual standard type A USB 2.0 ports | |
| Serial Ports | COM: RJ-45 with 12V/5V/RI x 1 COM: D-Sub 9 with 12V/5V/RI x 1 |
|
| LAN Port or Cash Drawer Port | LAN: 10/100 Mbps, RJ-45 x 1 DRW: RJ-11 with 12V/1A x 1 |
|
| Battery Charger Specifications | ||
| Cradle Connector | POGO pins (1 x 10 pins) x 2 | |
| DC In Jack | DC 12V IN (pin’s ϕ=2.5 mm) x 2 | |
| AC Power Adapter | 12V/3.3A/40W AC power adapter | |
| Weight | 292 g | |
| Dimensions (W x H x D) | 170 x 65 x 84 mm | |
| Environment | ||
| Operation Temp. | 0°C~40°C (32°F~104°F)
|
|
| Storage Temp. | -20°C~60°C (-4°F~140°F) | |
| Humidity | Operation humidity 10%~90% Storage humidity 10%~95% | |
MH-5102 Highlight
MH-5102 Dimensions
MH-5102 Highlight
MH-5102 Dimensions
| MH-5102 |
10.1" Windows Tablet with Intel® Atom® x5-Z8550 Quad Core™ 2.4 GHz Processor |
| File type | File Download |
| EDM | MH-5102_EDM.PDF |
| Pictures | MH-5102_Pictures.PDF |
| Manual | MH-5102_Manual.PDF |
| QuickGuide | MH-5102_QuickGuide.PDF |
| Driver README | MH-5102_README.PDF |
| BIOS | MH-5102_BIOS.ZIP |
| Device | MH-5102_Device.ZIP |
| Platform | MH-5102_Platform.ZIP |
| Other | MH-5102_Other.ZIP |
