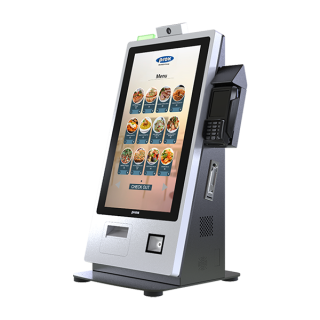

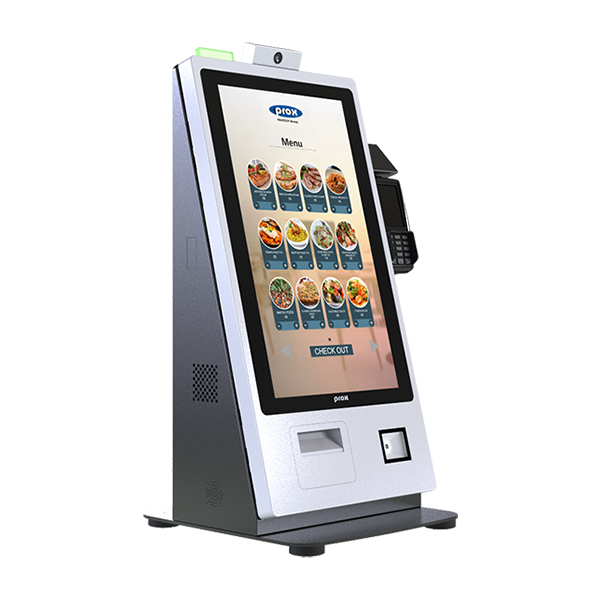

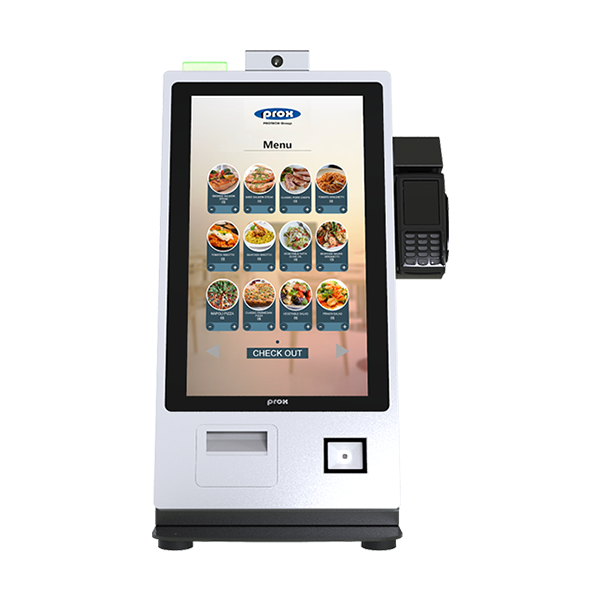

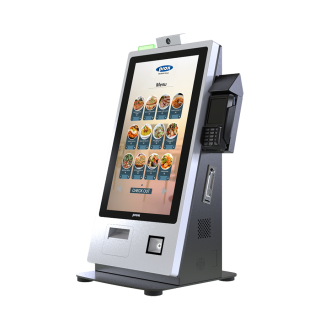

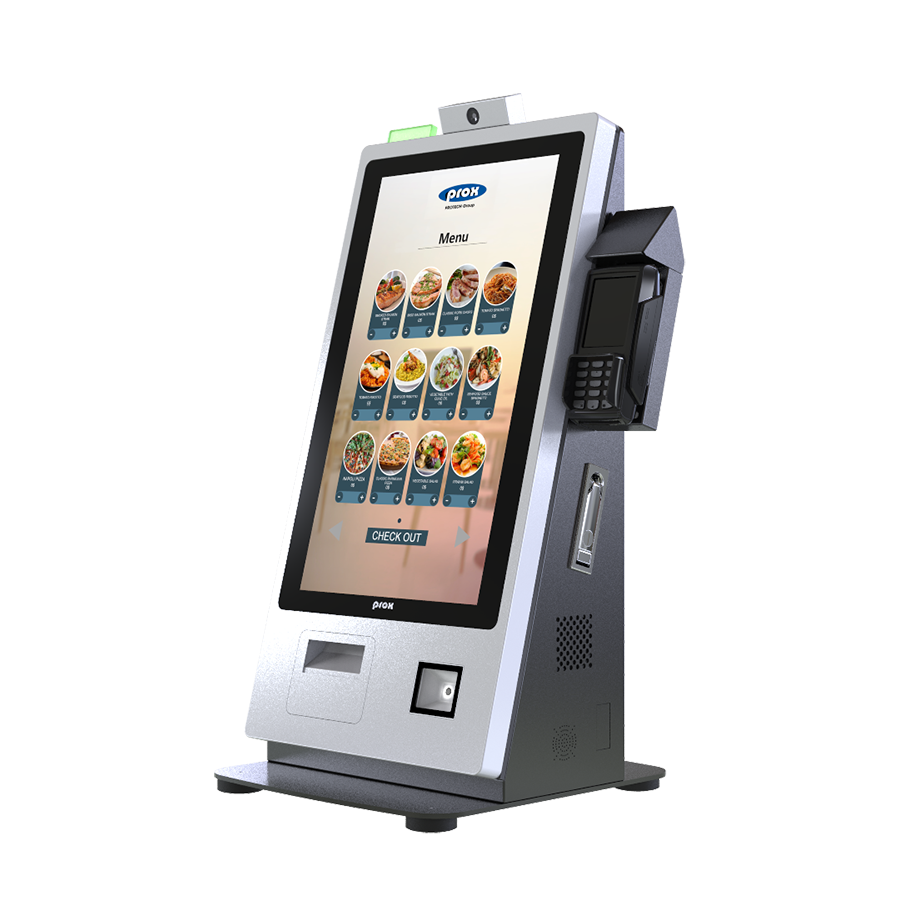

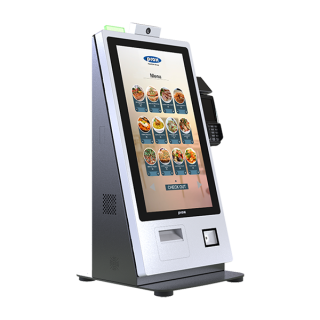

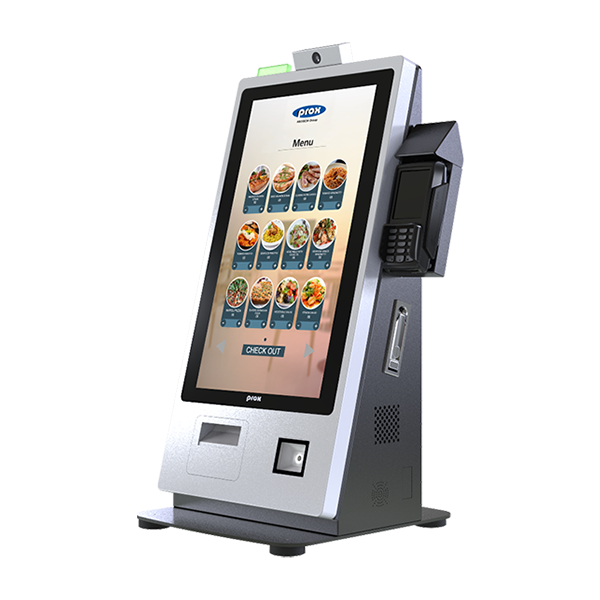

KS-Y121
21.5" Multi-Functional Self-Service Kiosk
•Powered by Intel® Core™ i5 / i3 / Celeron®
•Full HD display with P-Cap touch panel
•Ergonomic design for best user experience
•Capable of self-service & digital signage
•Stylish & ideal for all scenarios and applications
•Full HD display with P-Cap touch panel
•Ergonomic design for best user experience
•Capable of self-service & digital signage
•Stylish & ideal for all scenarios and applications
System |
||
CPU Support |
Intel® Core i5-1145G7E Intel® Core i3-1115G4E Intel® Celeron® 6305E |
|
Memory | 1 x DDR4 SO-DIMM slot (default 4GB) | |
HDD |
1 x M.2 2280 SATA III or NVME SSD (default 128GB) |
|
Network |
1 x 10/100/1000 Base-T Gigabit Ethernet (RJ45) 2 x RJ45 Reserved Connectors |
|
Power Supply | 100-240V available | |
System Weight | 35 kg | |

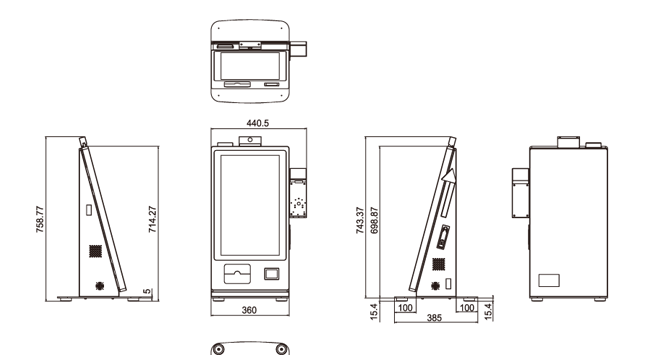

Dimensions (W x H x D) | 360 x 732 x 218 mm | |
O.S. Support | Windows 11 / Windows 10 | |
Operating Display | ||
LCD | 21.5" TFT LCD | |
Max. Resolution | 1920 x 1080 | |
Brightness | 250 cd/m² | |
Touchscreen | Projected capacitive touch | |
Viewing Angle | Horizontal: (R) 89°/ (L) 89°
Vertical: (U) 89°/ (L) 89°
|
|

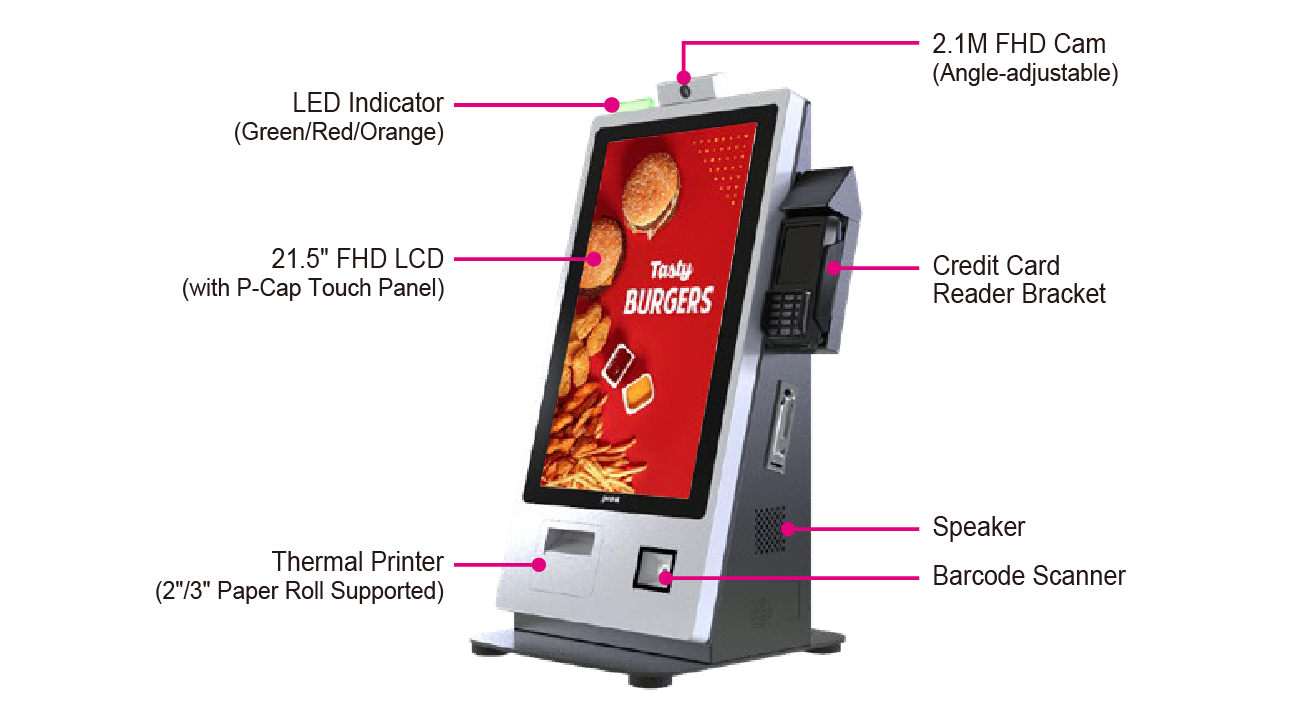

Add-ons |
||
Barcode Scanner |
1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
2D: PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One |
|
Thermal Printer |
HPRT TP-808 Resolution 203dpi,8dots/mm Print Speed 260mm/s WINPOS K837V Resolution 203dpi Print Speed 170mm/s |
|
Environment | ||
EMC & Safety | CE / FCC | |
Operating Temp | 0°C~40°C | |
Storage Temp. | 0°C~60°C | |
Humidity | 20%~85% (no condensation) |
