BU-2509
•Supports ECC memory (C236 SKU only)
•6 x COM, 2 x LAN, 10 x USB, 2 x PS/2
•1 x VGA, 1 x DVI-D, 1 x DP (internal)
•6 x SATA, supporting RAID 0/1/5/10
•1 x Mini PCIe slot
•1 x PCIe (x16), 2 x PCIe (x4), 1 x PCIe (x1)
| System | ||
| CPU Support |
LGA1151 socket for Intel® 7th / 6th Gen. Core™ i7 / i5 / i3 desktop CPU and Xeon® E3-1200 v6 / v5 server CPU
|
|
| CPU List |
Xeon®: E3-1275 v6, E3-1275 v5, E3-1225 v5, E3-1268 v5 7th Core™: i7-7700T(TE), i5-7500T(TE), i3-7100T(TE) 6th Core™: i7-6700(TE), i5-6500(TE), i3-6100(TE), Pentium®: G4400(TE) Celeron®: G3900(TE) |
|
| Chipset |
Intel® C236 (supports Xeon® / Core™ / Pentium® / Celeron® CPU) Intel® H110/Q170 (supports Core™ / Pentium® / Celeron® CPU) |
|
| Memory Support |
4 x DIMM sockets, supporting 1866/2133MHz DDR4 up to 64GB C236 SKU supports ECC memory (if CPU supports) H110 SKU supports only 2 x DIMM sockets(up to 32GB) |
|
| BIOS | AMI UEFI BIOS | |
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Power Supply |
Supports ATX power (24+4 pin) |
|
| Power Consumption |
+5V: 1.57A; +12V: 5.09A; +3.3V: 0.43A; +5VSB: 0.16A (CPU: i7 6700 3.4GHz) |
|
| Dimensions |
244 x 244 mm (9.6" x 9.6") |
|
| Certifications |
FCC / CE |
|
| O.S. Support |
Windows 10 64bit / Windows 8.1 64bit / Windows 7 32/64bit |
|
|
I/O Ports |
||
| SATA Interface |
6 x SATA 3.0 C236/Q170 SKU supports RAID 0/1/5/10/01 H110 SKU supports only 4 x SATA 3.0 |
|
| Expansion Bus |
Q170/C236 SKU: 1 x PCIe(x16), 2 x PCIe(x4),1 x PCIe(x1), 1 x mPCIe H110 SKU: 1 x PCIe(x16), 1 x PCIe(x4),1 x PCIe(x1), 1 x mPCIe |
|
| LPC |
1 x LPC (pin header) for optional TPM module
|
|
| Serial Ports |
6 x COM COM 1-6: RS-232, COM 2: RS-232/422/485 COM 3/4: supports 5V/12V |
|
| Keyboard/Mouse |
2 x PS/2 (rear I/O) |
|
| FAN |
1 x CPU fan, 2 x system fans (internal connector)
|
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) LAN 1: Intel® PHY 219 LM (GbE) LAN 2: Intel® LAN 210 AT (GbE) Supports Wake-On-LAN |
|
| Audio |
Mic In / Line In / Line Out (rear I/O) |
|
| Digital I/O |
8 in / 8 out (pin header) |
|
| USB |
10 ports 4 x USB 3.0 (rear I/O) 4 x USB 2.0 (internal wafer) 2 x USB 3.0 (box header) for only C236 / Q170 SKU |
|
|
Graphics |
||
| VGA |
1 x VGA (rear I/O) up to 1920 x 1200 @60Hz |
|
| DVI |
1 x DVI-D (rear I/O) up to 2560 x 1600 @60Hz |
|
| DisplayPort |
1 x DP (internal) up to 4096 x 2304 @60Hz |
|
|
Environment |
||
| Operating Temp. |
0°C~60°C (32°F~140°F) @humidity 20%~90% |
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |

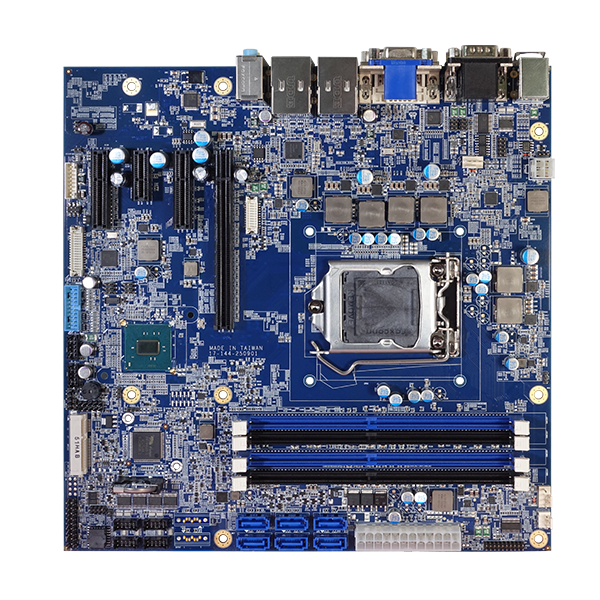

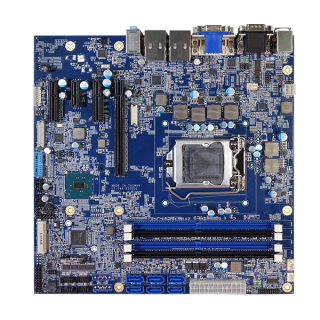

BU-2509 Highlight

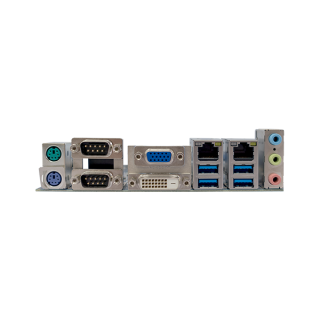

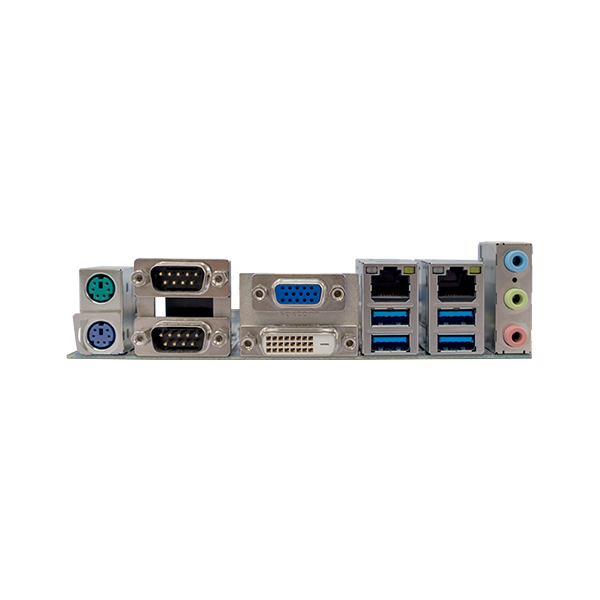

BU-2509 IO
