BS-E098
•Fanless and slim design
•2 x LAN, 6 x USB, 4 x COM, 1 x VGA, 1 x DP
•Supports 1 x 2.5" HDD, 1 x full-sized mSATA
| System | ||
| CPU Support |
Intel® Celeron® N3350: 6w, 2C, 2.4GHz Intel® Pentium® N4200: 6w, 4C, 2.5GHz |
|
| Memory Support |
1 x SO-DIMM socket, supporting 1600/1866MHz DDR3L memory up to 8G (non-ECC) |
|
| API/SW/FW |
Watchdog / HW monitor / fTPM |
|
| Storage Support |
1 x 2.5" 7mm SATAIII HDD or SSD drive space |
|
| Power Input |
DC 12V only
|
|
| Power Adapter |
60W adapter w/ lockable 3 pin terminal block (optional) |
|
| Operating System |
Windows 10 64bit / Ubuntu17.04 (kernel: 4.4) / Android (TBD) |
|
| Expansion Slots |
1 x full-sized mSATA slot (with SATA and USB signal) 1 x full-sized mPCIe slot (with PCIe and USB signal) |
|
| System Weight |
2 kg |
|
| Dimensions (W x H x D) |
218 x 45 x 148 mm |
|
| Certifications |
FCC / CE |
|
|

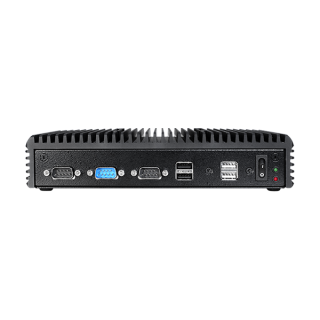

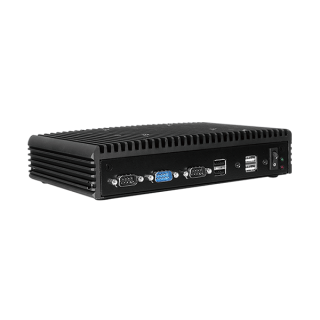

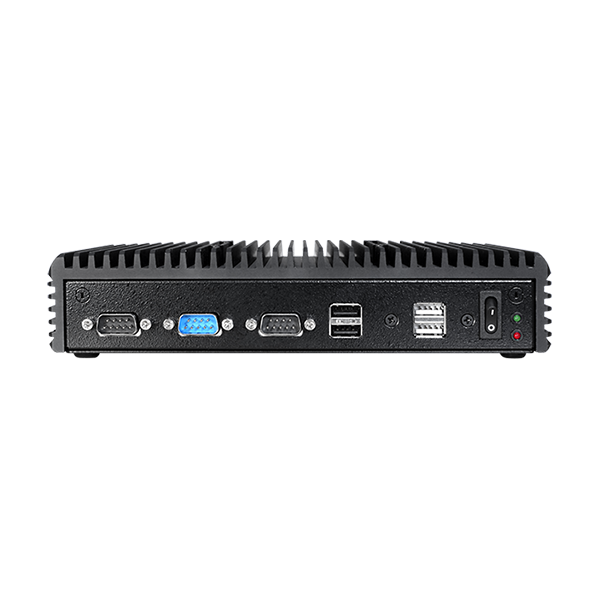

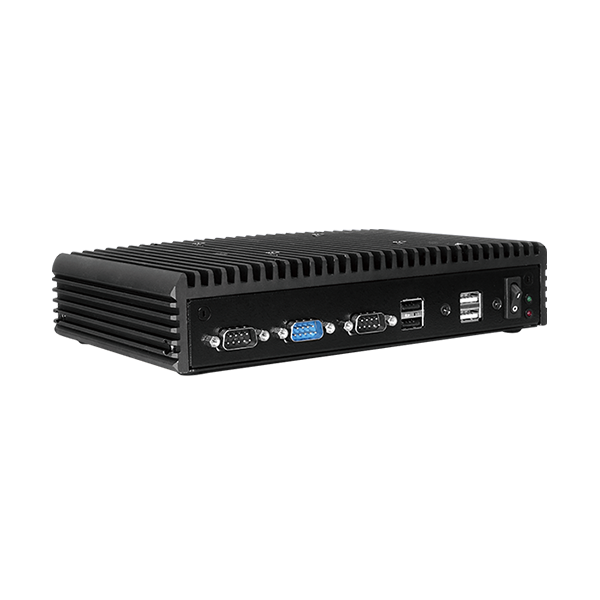

I/O Ports (Front side) |
||
| USB |
2 x USB 2.0 |
|
| Serial Ports |
COM 1: RS232 COM 2: RS232/422/485 (selectable under BIOS) COM 3: RS232 with RI/5V/12V selectable by jumper |
|
| LED |
1 x power LED, 1 x HDD LED |
|
| Antenna Hole |
2 x antenna holes (supports up to two optional antenna) |
|
| Power On/Off |
1 x power button |
|
|

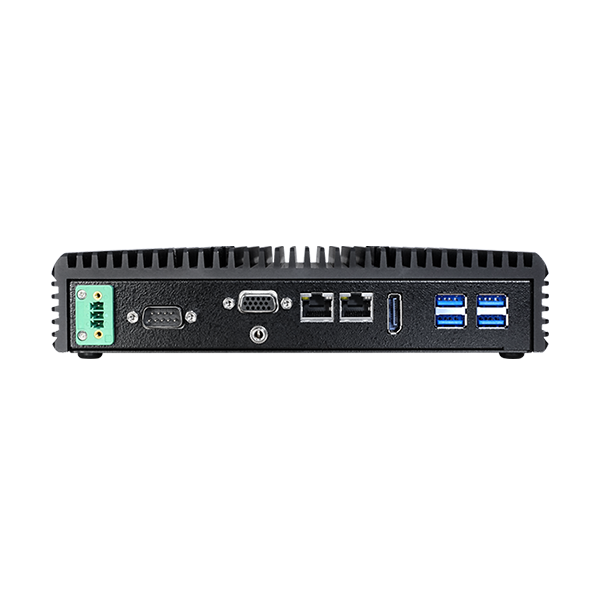

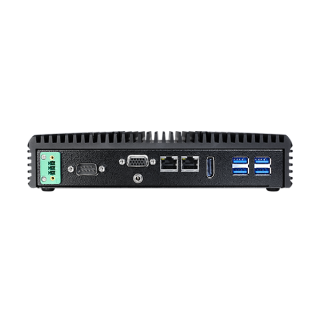

I/O Ports (Rear side) |
||
| Display |
1 x VGA, 1 x DP |
|
| USB |
4 x USB 3.0 |
|
| Serial Ports |
COM 4: RS232 with RI/5V/12V selectable by jumper |
|
| LAN |
2 x LANs (supports Wake-On-LAN) LAN 1: Intel® I210 LAN 2: Intel® I210 |
|
| Power Input |
3 pin DC In terminal block (lockable), supporting 12V DC In
|
|
| Audio |
1 x Line Out
|
|
|
Environment |
||
| Operating Temp.
(Ambient with airflow)
|
0°C~40°C (32°F~104°F)
|
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity |
20%~90% |
|
BS-E098 IO
| BS-E098 |
Fanless Embedded PC 12V / DP Intel® Atom™ / Celeron® N3350 / Pentium® N4200 |
