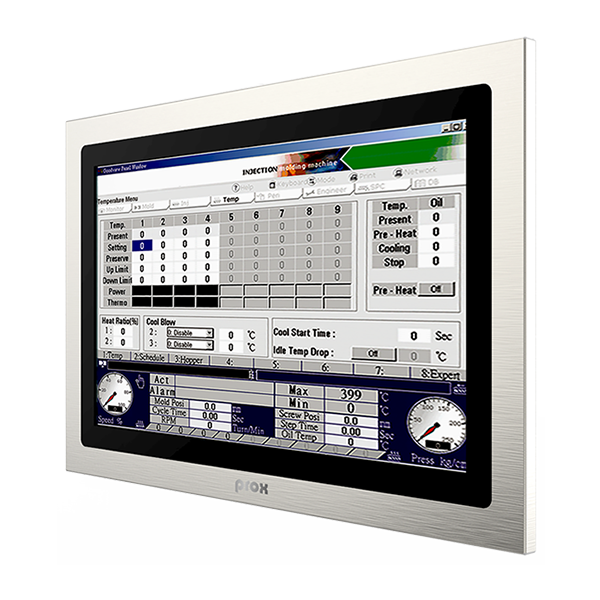

SP-S214
Intel® 7th Gen. Core™ High Performance 21.5" True-Flat Panel PC with Fan
•Intel® 7th Gen. Core™ i7 / i5 / i3 / Celeron®
•2 x DDR4 2133MHz SO-DIMM memory up to 32GB
•2 x 2.5" SATA III SSD with Software RAID 0,1 (Q170) / without Software RAID 0,1 (H110)
•1 x Mini PCIe slot & 1 x PCIe (x16) slot
•2 x GbE LAN, support Wake-On-LAN, PXE
•AC input ATX 250W
•Front panel IP65 protection
•Removable HDD / SSD Drive Bay
•2 x DDR4 2133MHz SO-DIMM memory up to 32GB
•2 x 2.5" SATA III SSD with Software RAID 0,1 (Q170) / without Software RAID 0,1 (H110)
•1 x Mini PCIe slot & 1 x PCIe (x16) slot
•2 x GbE LAN, support Wake-On-LAN, PXE
•AC input ATX 250W
•Front panel IP65 protection
•Removable HDD / SSD Drive Bay
|
System |
||
| CPU Type |
Core™ i7-7700T, Quad Core, 2.9GHz, 8M cache Core™ i5-7500T, Quad Core, 2.7GHz, 6M cache Core™ i3-7101TE, Dual Core, 3.4GHz, 3M cache Celeron® G3930TE, Dual Core, 2.7GHz, 2M cache |
|
| Chipset | Intel® Q170/H110 | |
| Memory Support |
2 x DDR4 2133MHz SO-DIMM sockets (up to 32GB) |
|
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Storage |
2 x 2.5" SATA III HDD/SSD (support RAID 0/1 in Q170 SKU only)
|
|
| Front Bezel | Stainless steel | |
| IP65 | Yes (for front panel only) | |
| Power Input | AC input ATX 250W | |
| Operating System |
Windows 10 IoT Enterprise (64bit)
|
|
| Dimensions (W x H x D) | 585 x 377 x 107.15 mm | |
| System Weight | 11.8 kg | |
| Mounting Support | Wall mount / VESA 75 / VESA 100 / Panel mount | |
| Certifications | FCC / CE | |
| I/O Ports | ||
| Display | 2 x DVI-D | |
| USB |
4 x USB 3.0 4 x USB 2.0 |
|
| Audio | 1 x Line In / 1 x Line Out / 1 x Mic In | |
| LAN |
2 x RJ45 ports LAN1: Intel® PHYI 219LM (10/100/1000 Mbps) LAN2: Intel® LAN 210AT (10/100/1000 Mbps) Support Wake-On-LAN, PXE |
|
| Serial Ports |
4 COM ports COM 1 for RS-232/422/485 COM 2/COM 3/COM 4 for RS-232 COM 1/COM 2/COM 4 support +5V/+12V/RI selectable |
|
| Expansion Slots |
1 x PCIe (x16) 1 x half-sized Mini PCIe |
|
| Antenna Hole |
2 x antenna holes |
|
| Power On/Off |
1 x power button switch 1 x 2 pin connector for remote power button |
|
| Parallel Port | 1 x parallel port (SPP/EPP/ECP) | |
| Display | ||
| LCD |
21.5" TFT LCD (LED) resolution FHD (16:9) 1920 x 1080
|
|
| Touchscreen |
Projected capacitive touchscreen (USB interface) |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
HDD: 0°C~45°C (32°F~113°F) SSD: 0°C~50°C (32°F~122°F) |
|
| Storage Temp. |
-20°C~80°C (-4°F~176°F) |
|
| Humidity | 20~90% RH (no condensation) | |

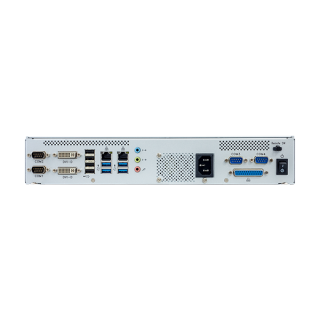

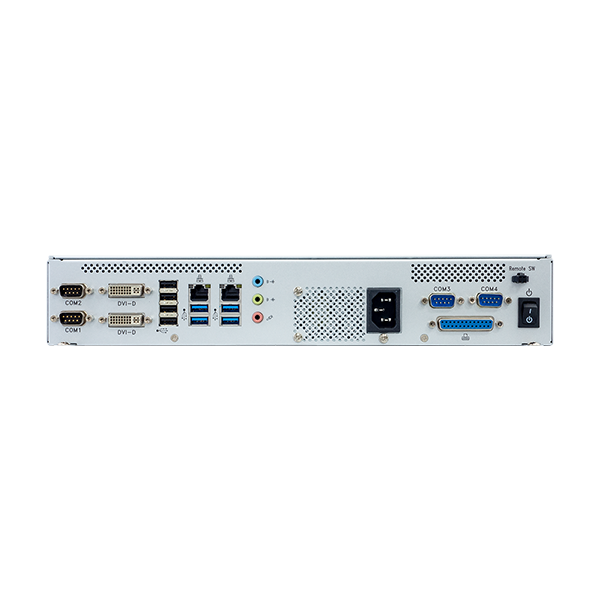

SP-S214 IO
SP-S214 Dimensions
