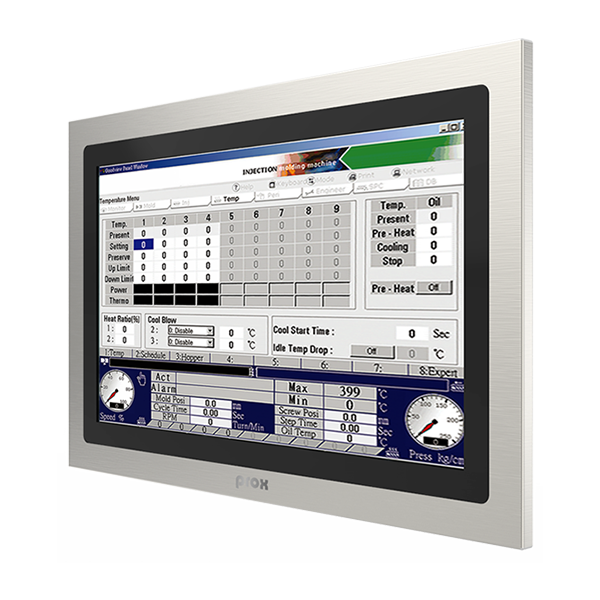

SP-S211

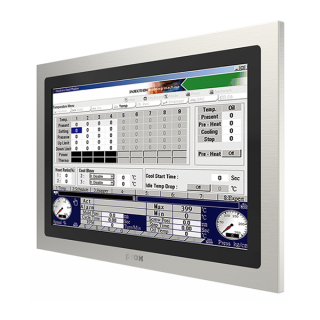

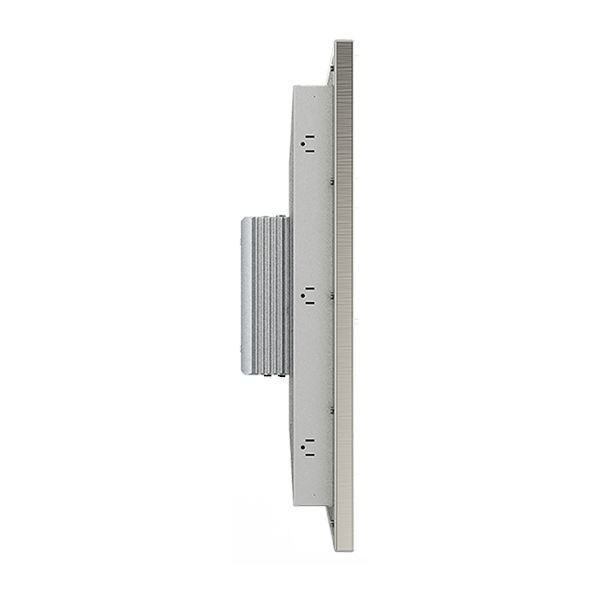

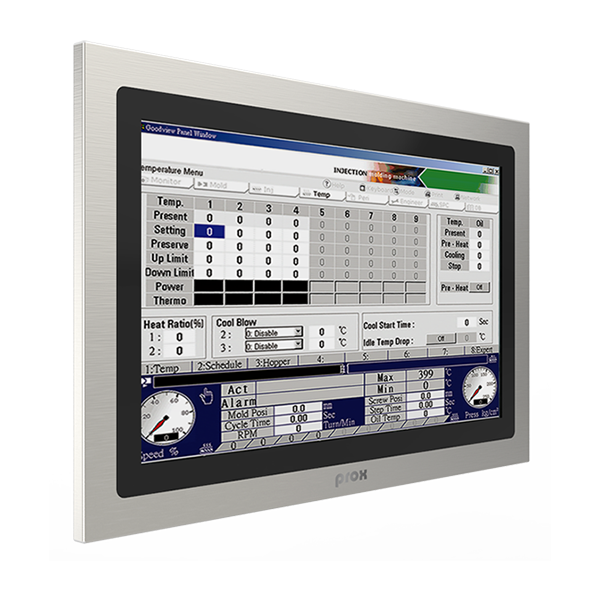

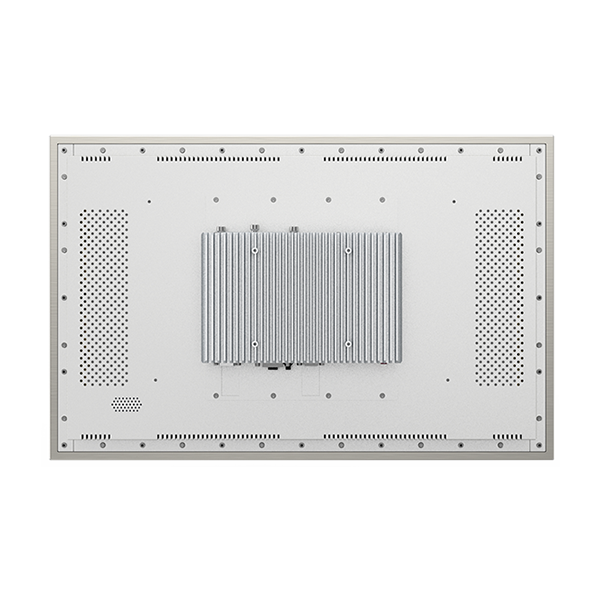

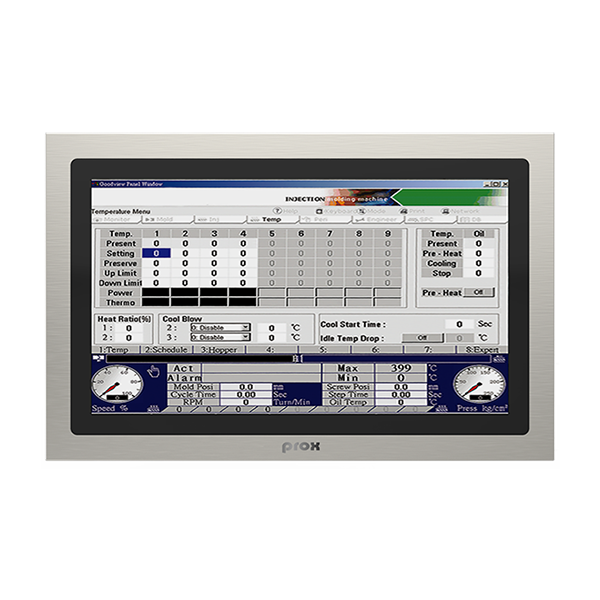

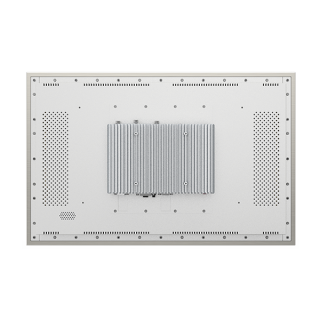

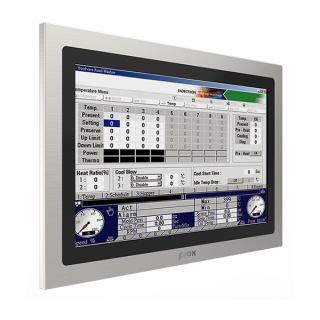

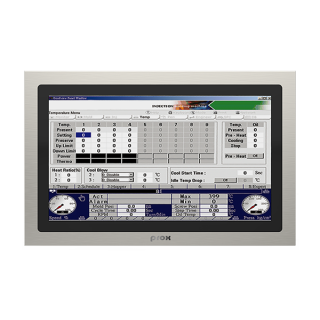

Intel® Celeron® Processor Fanless and Low Power 21.5" Stainless Steel Panel PC
•Intel® Celeron® J3455
•Support 4K display (HDMI)
•Fanless and quiet design
•HDD easy maintenance
•Three independent displays (HDMI / DVI-D / LVDS)
•Multiple I/O ports (2 x LAN with PoE / 3 x USB 3.0 / 2 x COM / I²C)
•Expansion slots (2 x full-sized Mini PCIe / SD slot / 2 x SIM slot)
•Wide-ranged voltage DC In (9~36V)
•Front panel IP65 design
•Stainless steel front bezel & True Flat
•Support high brightness LCD / sunlight readable (optional)
•TPM module (optional)
•Support 4K display (HDMI)
•Fanless and quiet design
•HDD easy maintenance
•Three independent displays (HDMI / DVI-D / LVDS)
•Multiple I/O ports (2 x LAN with PoE / 3 x USB 3.0 / 2 x COM / I²C)
•Expansion slots (2 x full-sized Mini PCIe / SD slot / 2 x SIM slot)
•Wide-ranged voltage DC In (9~36V)
•Front panel IP65 design
•Stainless steel front bezel & True Flat
•Support high brightness LCD / sunlight readable (optional)
•TPM module (optional)
|
System |
||
| CPU Type | Intel® Celeron® J3455 4C, 2.3GHz | |
| Chipset | Intel® SoC | |
| Memory Support |
1 x DDR3L 1600/1867MHz SO-DIMM socket (up to 8GB) |
|
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Storage | 1 x 2.5" SATA HDD or SSD | |
| Front Bezel | Stainless steel (SUS 304) | |
| IP65 | Yes (for front panel only) | |
| Power Input | DC In 9~36V | |
| Operating System | Windows 10 IoT Enterprise LTSC 2019 / LTSB 2016 64bit / Ubuntu 16.04 LTS | |
| Dimensions (W x H x D) | 585 x 377 x 91.6 mm | |
| System Weight | 10 kg | |
| Mounting Support | Wall mount / VESA 100 / Panel mount | |
| Certifications | FCC / CE | |
| I/O Ports | ||
| Display | 1 x HDMI up to 4K, 1 x DVI-D | |
| USB | 3 x USB 3.0 | |
| Audio | 1 x Line Out / 1 x Mic In | |
| LAN | 2 x LAN (PoE IEEE 802.3af optional), Wake-On-LAN, PXE
LAN 1: Intel® I210IT LAN 2: Intel®I210IT |
|
| Serial Ports | COM 1/2 for RS232/422/485 (selectable under BIOS),
RI/5V/12V selectable by jumper
|
|
| Storage | 1 x 2.5" SATA III HDD or SSD drive space | |
| Expansion Slots | 1 x full-sized Mini PCIe (with mSATA or3G/4G card with USB 2.0 signal)
1 x full-sized Mini PCIe (with PCIe or 3G/4G card with USB 2.0 signal)
1 x SD slot 2 x SIM slot |
|
| Antenna Holes | 4 x antenna holes | |
| Power On/Off | 1 x power button
1 x remote switch
|
|
| LED | 2 x PoE LED | |
| I²C | 1 x I²C port | |
| Display | ||
| LCD | 21.5” Flat TFT LCD (LED) resolution FHD (16:9) 1920 x 1080 | |
| Touchscreen | Projected capacitive touchscreen (USB interface) | |
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
HDD: 0°C~40°C (32°F~104°F)
SSD: 0°C~50°C (32°F~122°F)
|
|
| Storage Temp. | -20°C~80°C (-4°F~176°F) | |
| Humidity | 20%~90% | |

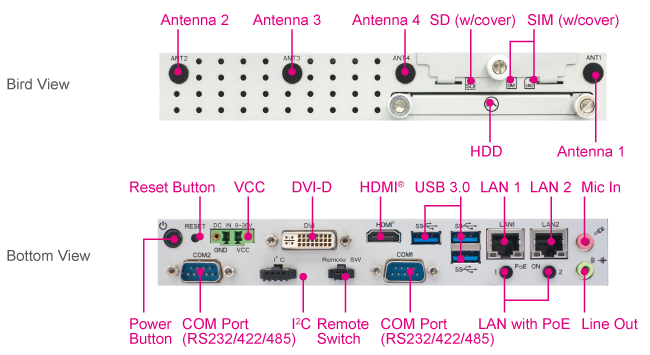

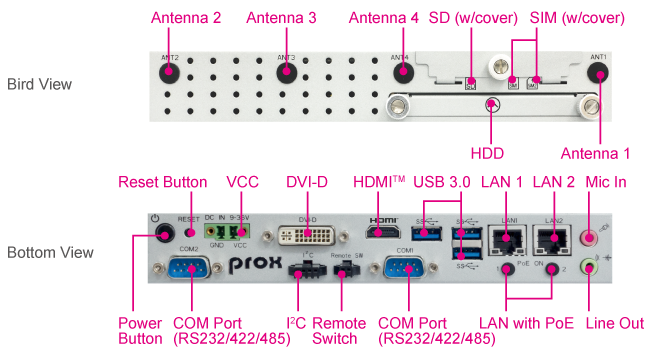

SP-S211 IO

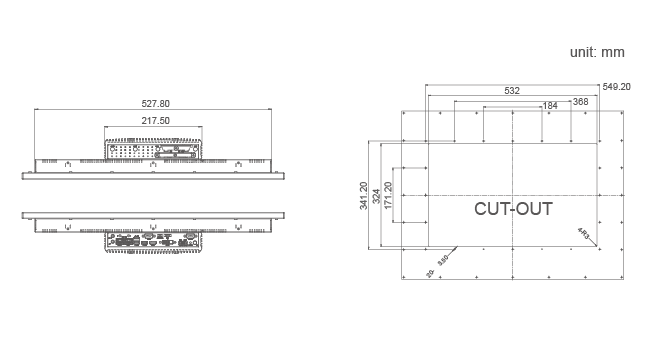

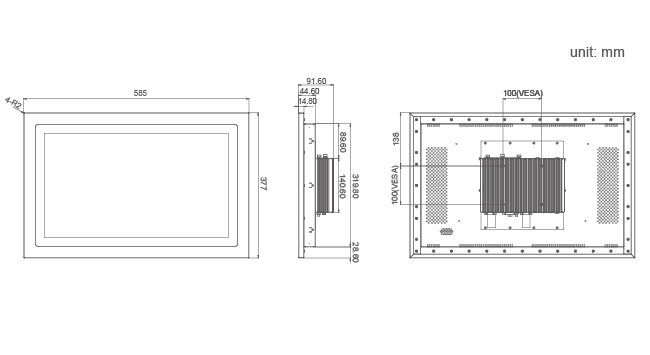

SP-S211 Dimensions
SP-S211 Dimensions
| SP-S211 |
Intel® Celeron® Processor Fanless and Low Power 21.5" Stainless Steel Panel PC |
| File type | File Download |
| EDM | SP-S211_EDM.PDF |
| Pictures | SP-S211_Pictures.ZIP |
| Manual | SP-S211_Manual.PDF |
| QuickGuide | SP-S211_QuickGuide.PDF |
