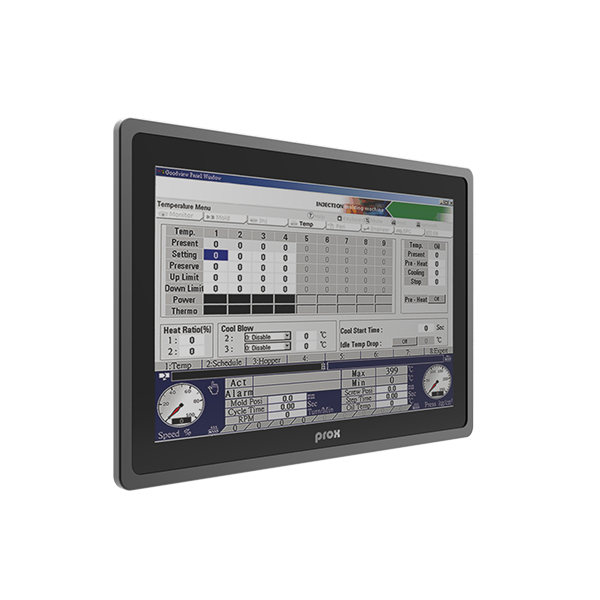

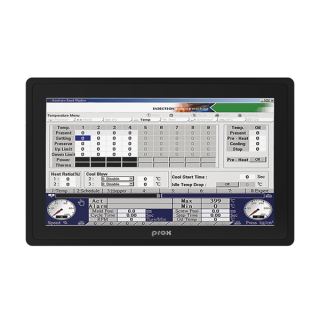

SP-F213
21.5” Intel ® Atom® Processors Fanless Configurable Panel PC
•Intel Celeron® J6412 / Atom® x6425RE / x6212RE Processor

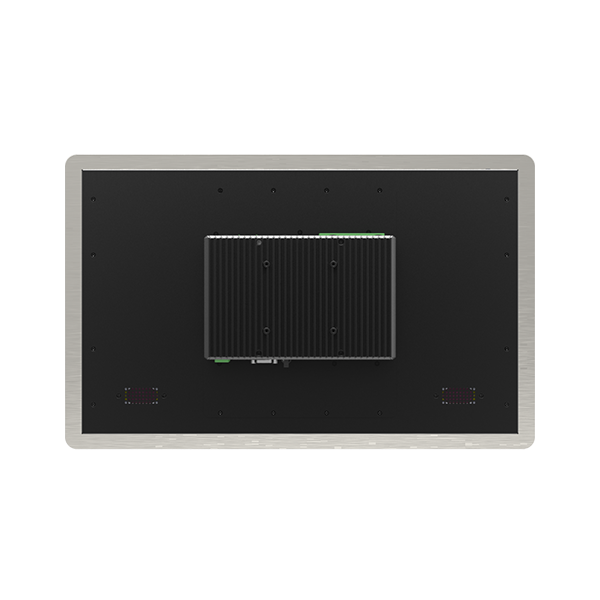

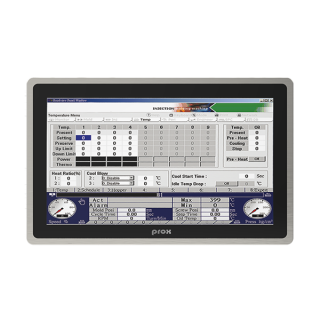

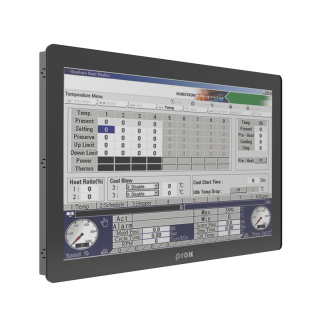

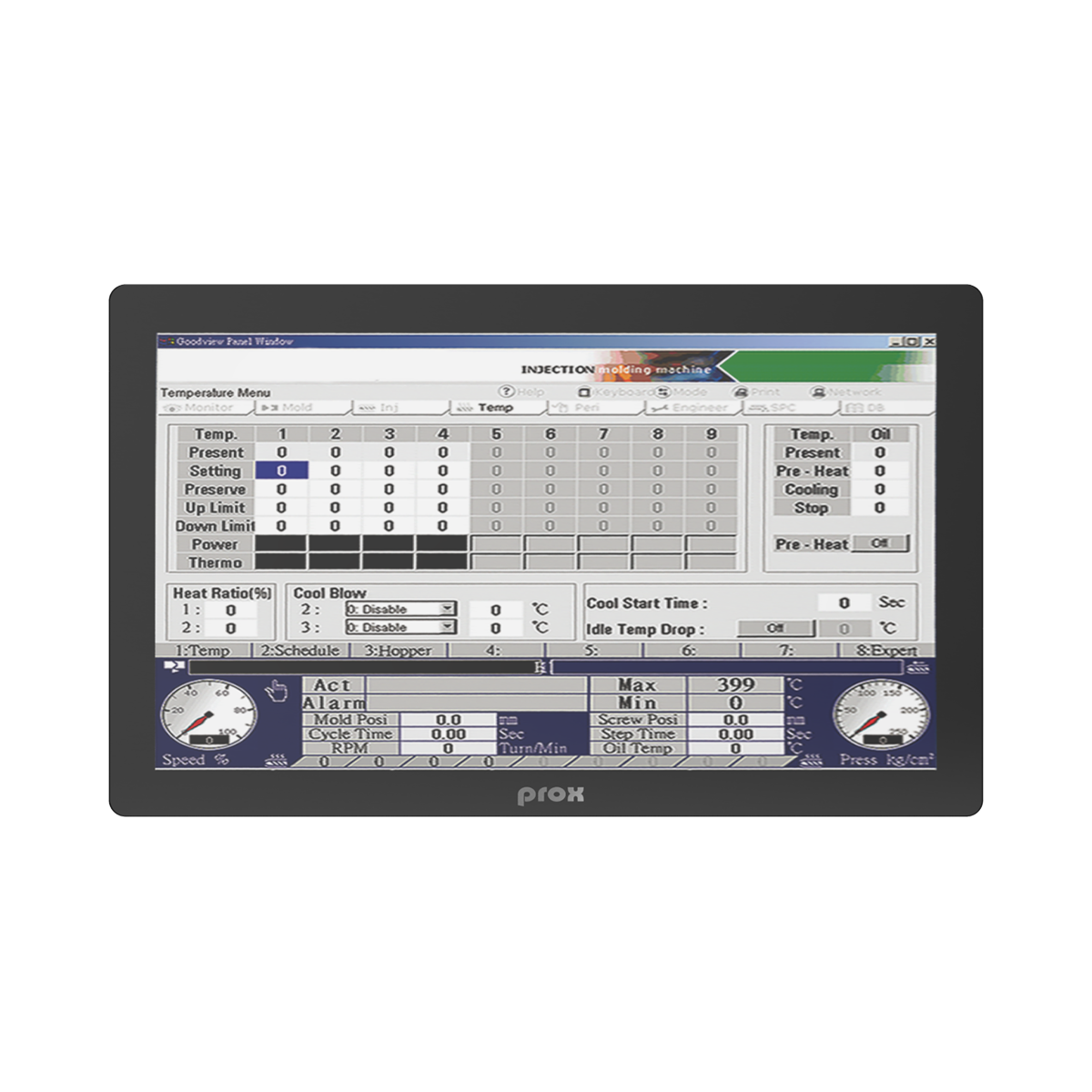

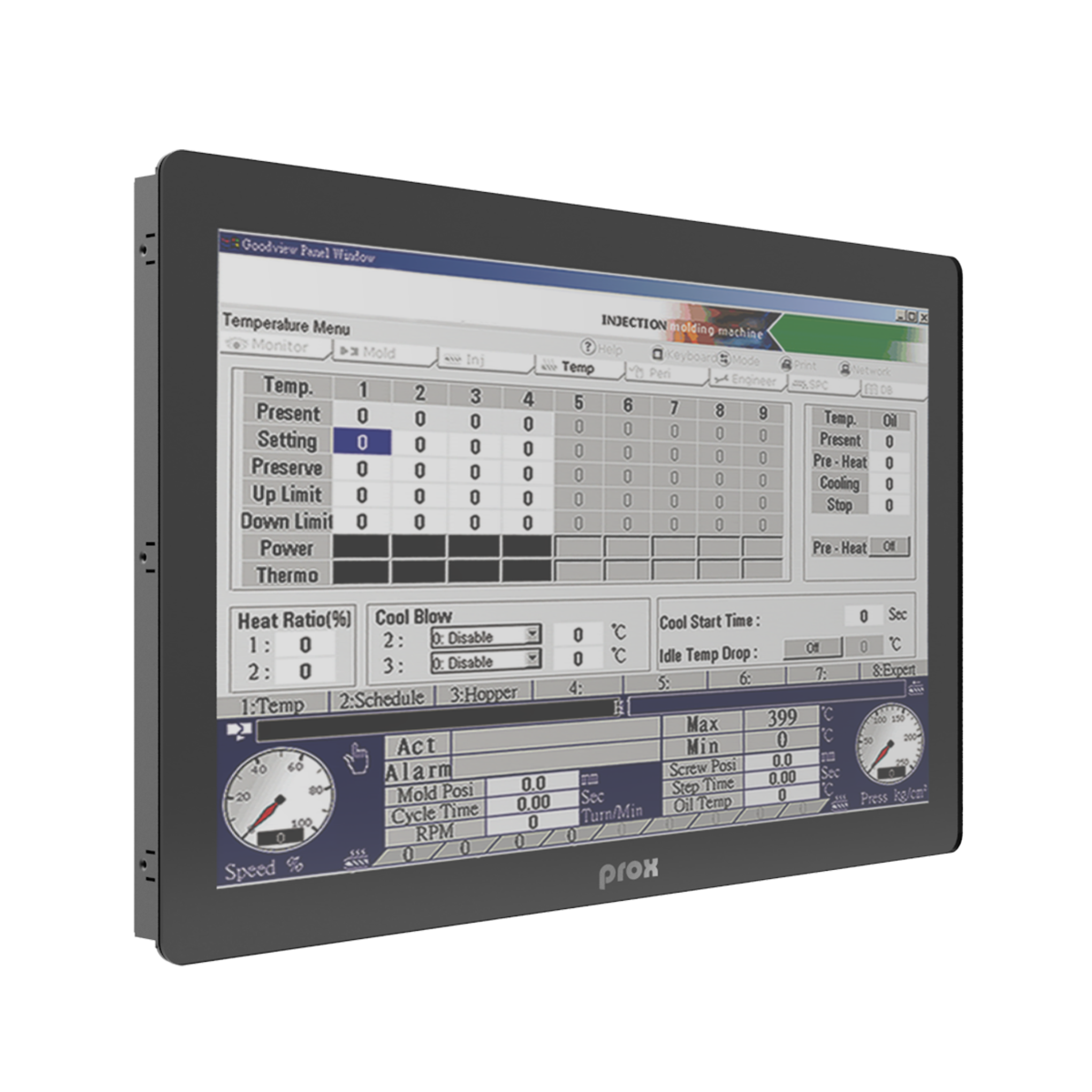

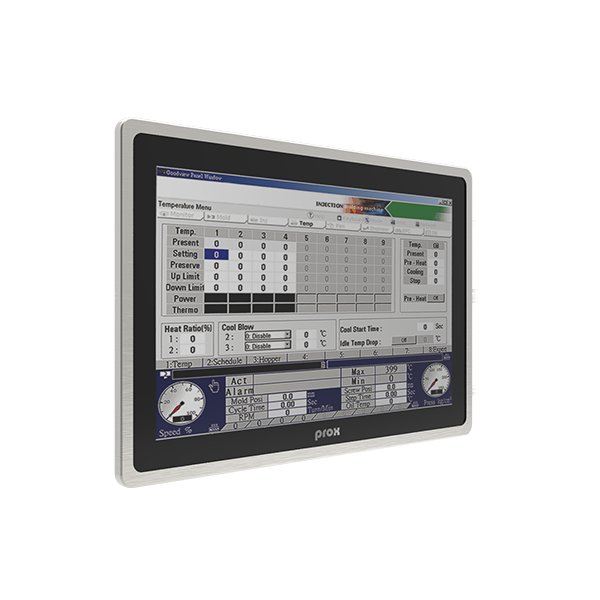

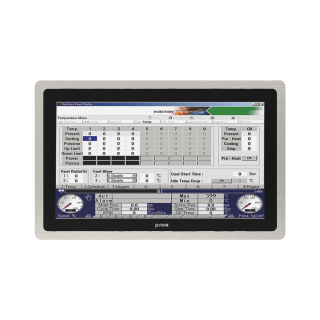

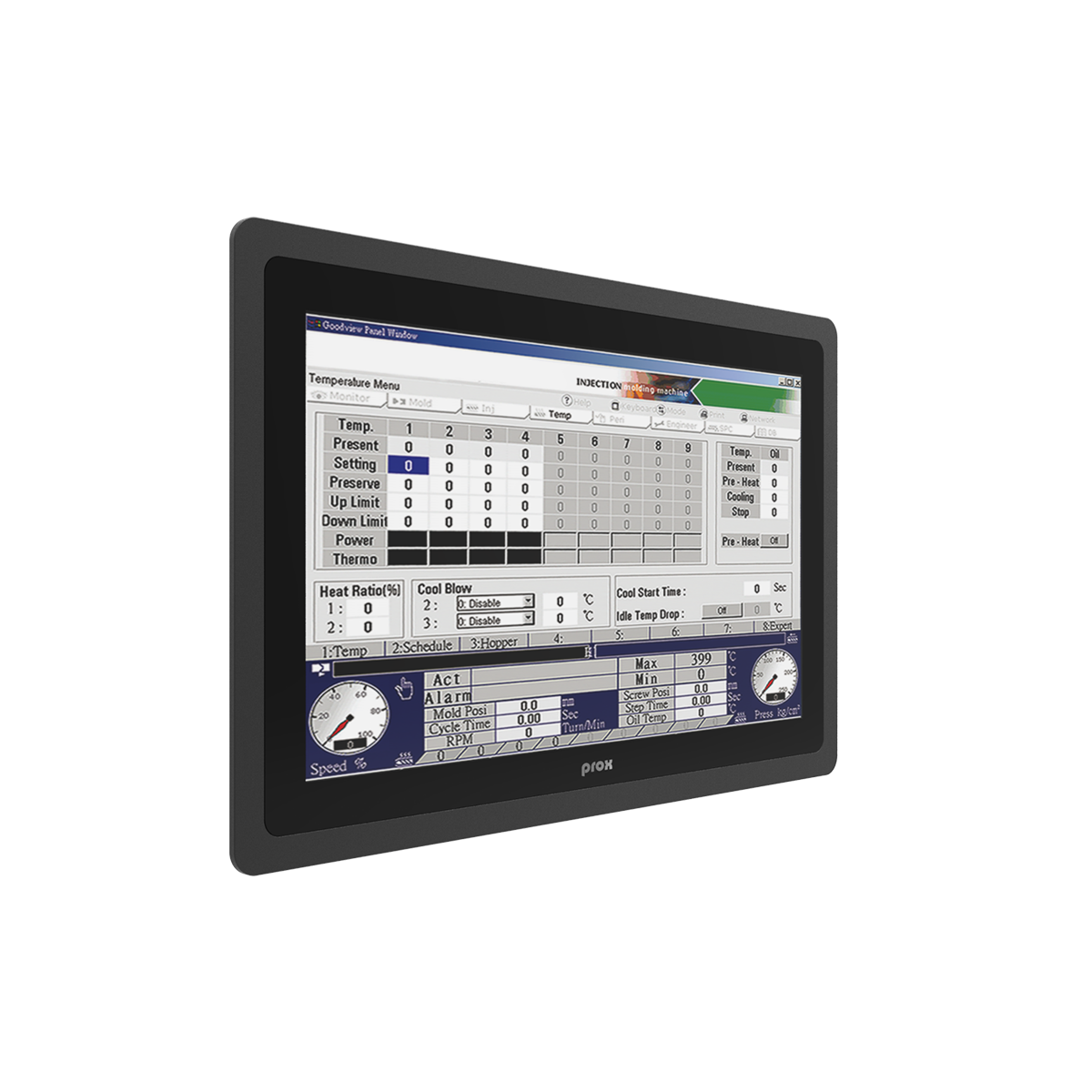

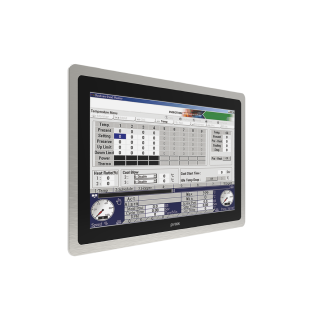

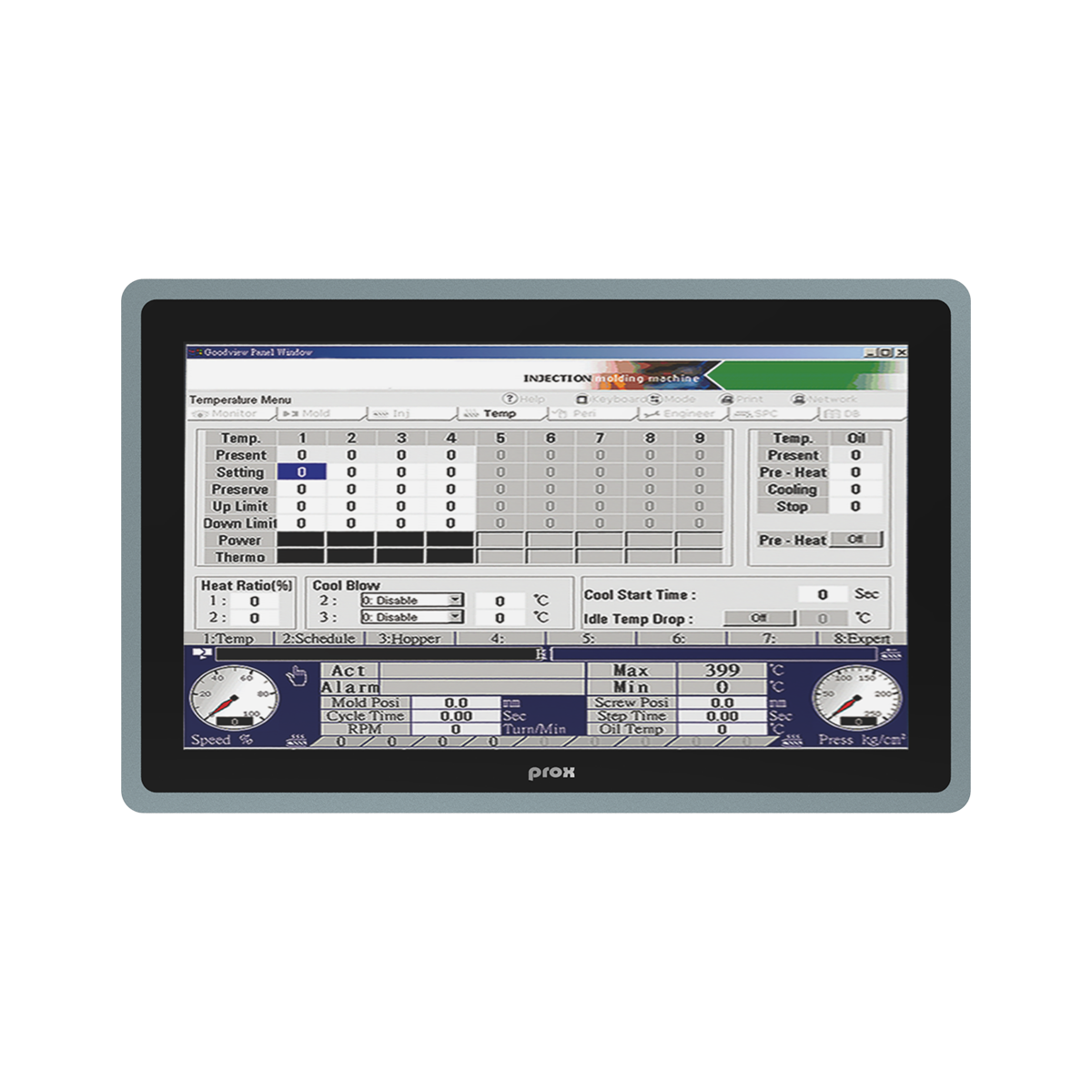

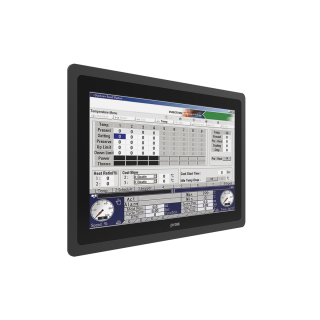

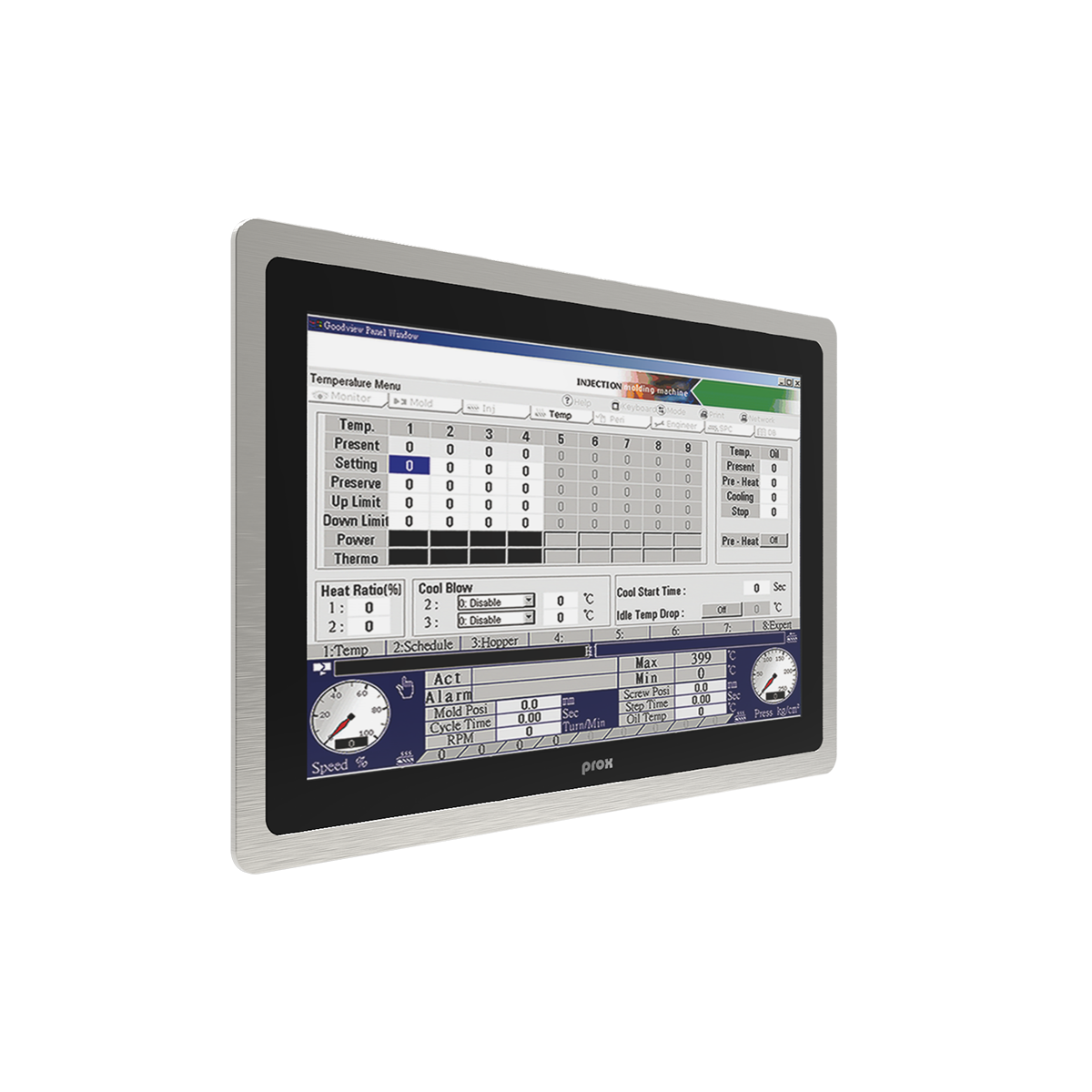

•Selectable in Open Frame mode or with Stainless Steel / Aluminum Front Bezel
•IP65-rated Front Panel
•Solid Fanless System
•Two external 4K displays output via 1 x HDMI® and 1 x DP
•Multiple I/O ports: Up to 4 x LAN / 5 x USB / 2 x COM
•High brightness LCD (optional)
•TPM module (optional)
•Selectable in Open Frame mode or with Stainless Steel / Aluminum Front Bezel
•IP65-rated Front Panel
•Solid Fanless System
•Two external 4K displays output via 1 x HDMI® and 1 x DP
•Multiple I/O ports: Up to 4 x LAN / 5 x USB / 2 x COM
•High brightness LCD (optional)
•TPM module (optional)
|
System
|
||
| CPU |
Intel® Celeron® J6412: 10w, 4C, 2.0GHz
Intel® Atom® x6425RE: 12w, 4C, 1.9GHz Intel®Atom®x6212RE: 6w, 2C, 1.2GHz |
|
| Chipset | Intel® SoC | |
| Memory | 1 x DDR4 3200MHz SO-DIMM socket (up to 32GB) non-ECC | |
| Storage |
1 x 2.5" SATA III SSD/HDD 1 x M.2 2280 NVMe SSD
|
|
| Front Bezel |
Open Frame / Stainless Steel / Aluminum |
|
| IP Rating | IP65 (for front panel only) | |
| Power |
DC In 24V |
|
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Operating System | Windows 11 IoT Enterprise LTSC 2024
Windows 10 IoT Enterprise LTSC 2021
|
|
| Dimensions (W x H x D) | 562.7 x 354.2 x 84.3mm with Stainless Steel or Aluminum bezel | |
| Weight | 9.5kg | |
| Mount Type | Wall mount / VESA 75 / Panel mount | |
| Certification | CE, FCC | |
|
Display |
||
| LCD | 21.5" Flat TFT LCD (LED) resolution 1920 x 1080 | |
| Touchscreen | Projected Capacitive / 5-wire analog resistive | |
| I/O Ports | ||
| Display |
1 x HDMI® (up to 4K) 1 x DP (up to 4K) |
|
| USB |
2 x USB 3.0 3 x USB 2.0 |
|
| Serial Ports | 2 x COM (RS232/422/485) | |
| LAN |
LAN1 / LAN2: Intel® I225IT (Wake-on-LAN, PXE) LAN3 / LAN4: Intel® I211AT (Optional with PoE) |
|
| Expansion Slot | 1 x mPCle (Only accessible when LAN3 / LAN4 is disabled) | |
| Audio | 1 x Line Out | |
| Power On/Off |
1 x Power Button 1 x Remote Switch |
|
| Environment | ||
|
Operating Temperature (Ambient with airflow) |
-20°C~50°C (-4°F~122°F) with Atom Processor and Wide-Ranged Temperature SSD 0°C~40°C (32°F~122°F) with Celeron Processor |
|
| Storage Temperature | -40°C~80°C (-40°F~185°F) | |
| Storage Humidity | 20%~90% | |

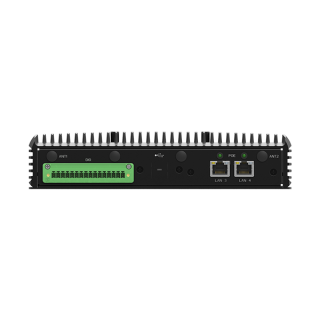

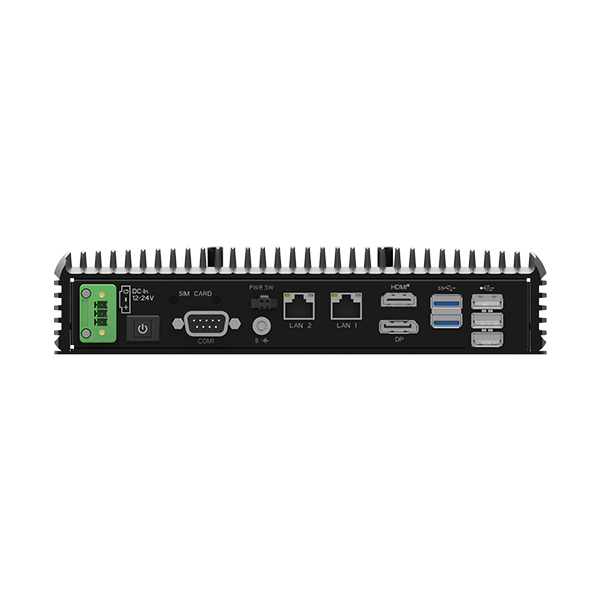

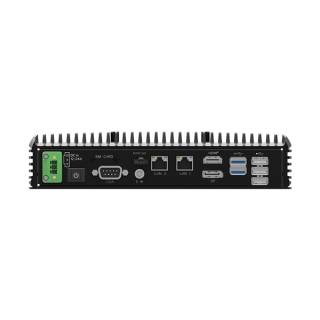

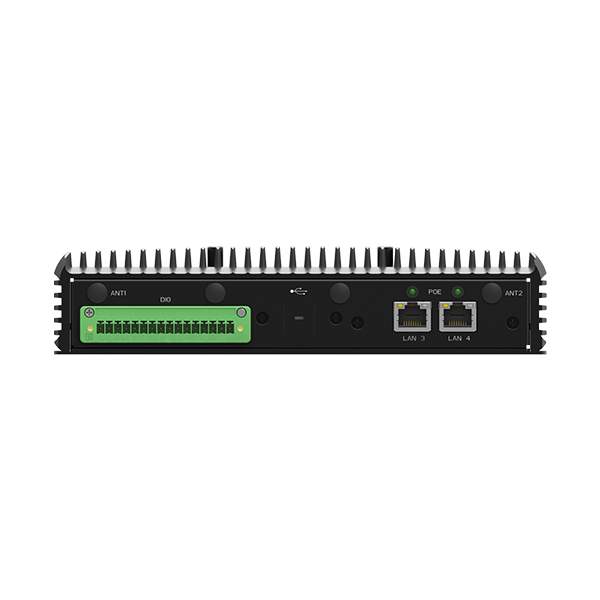

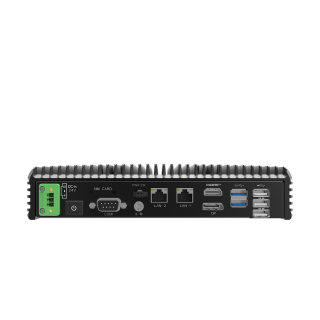

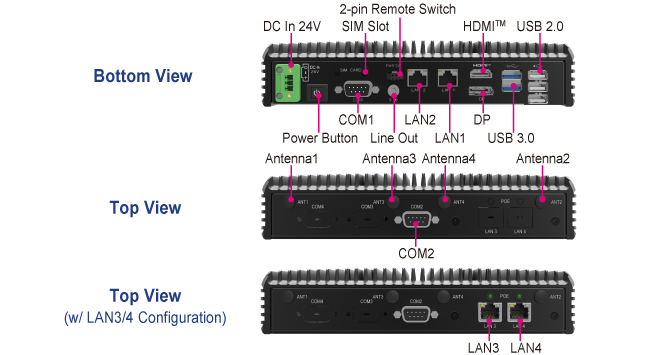

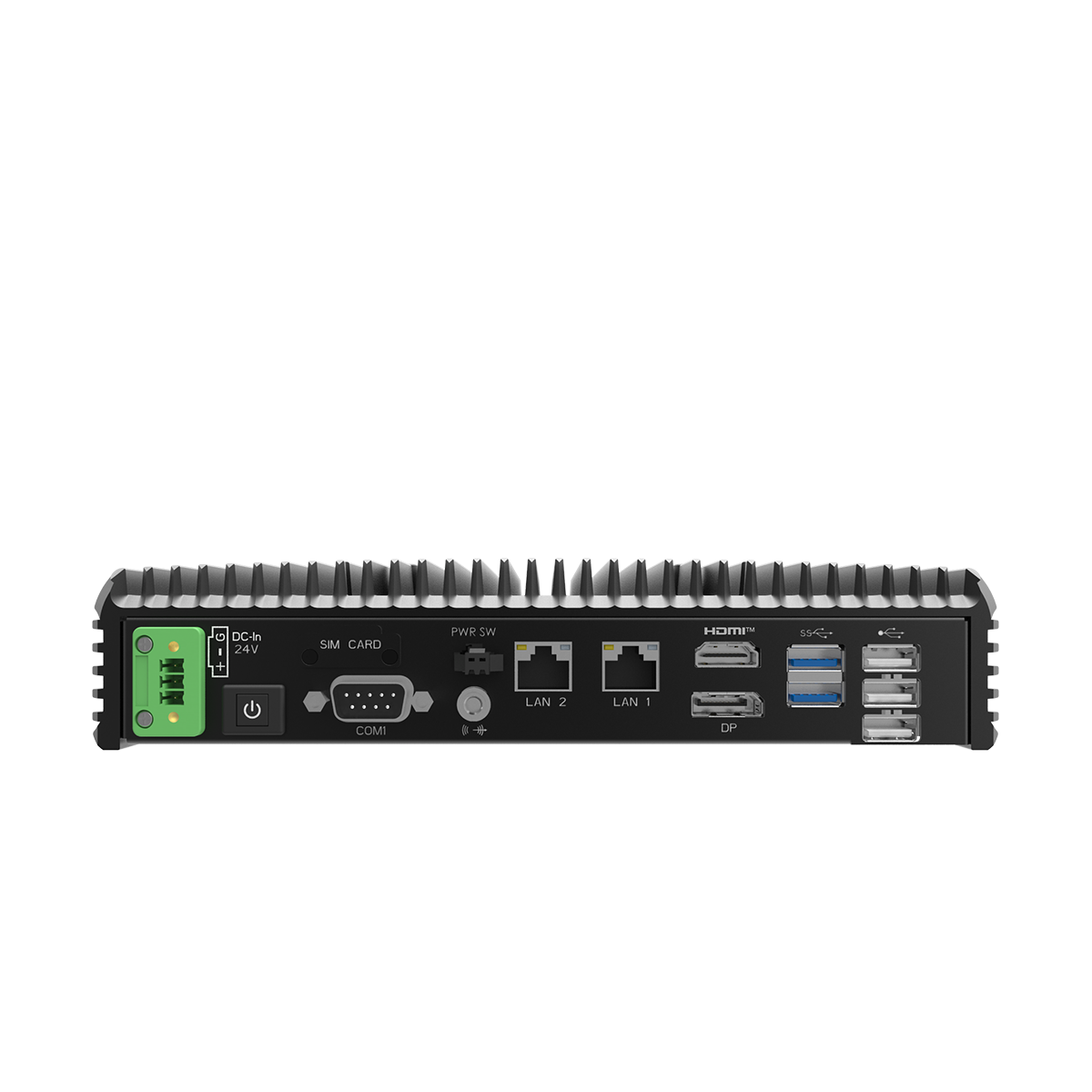

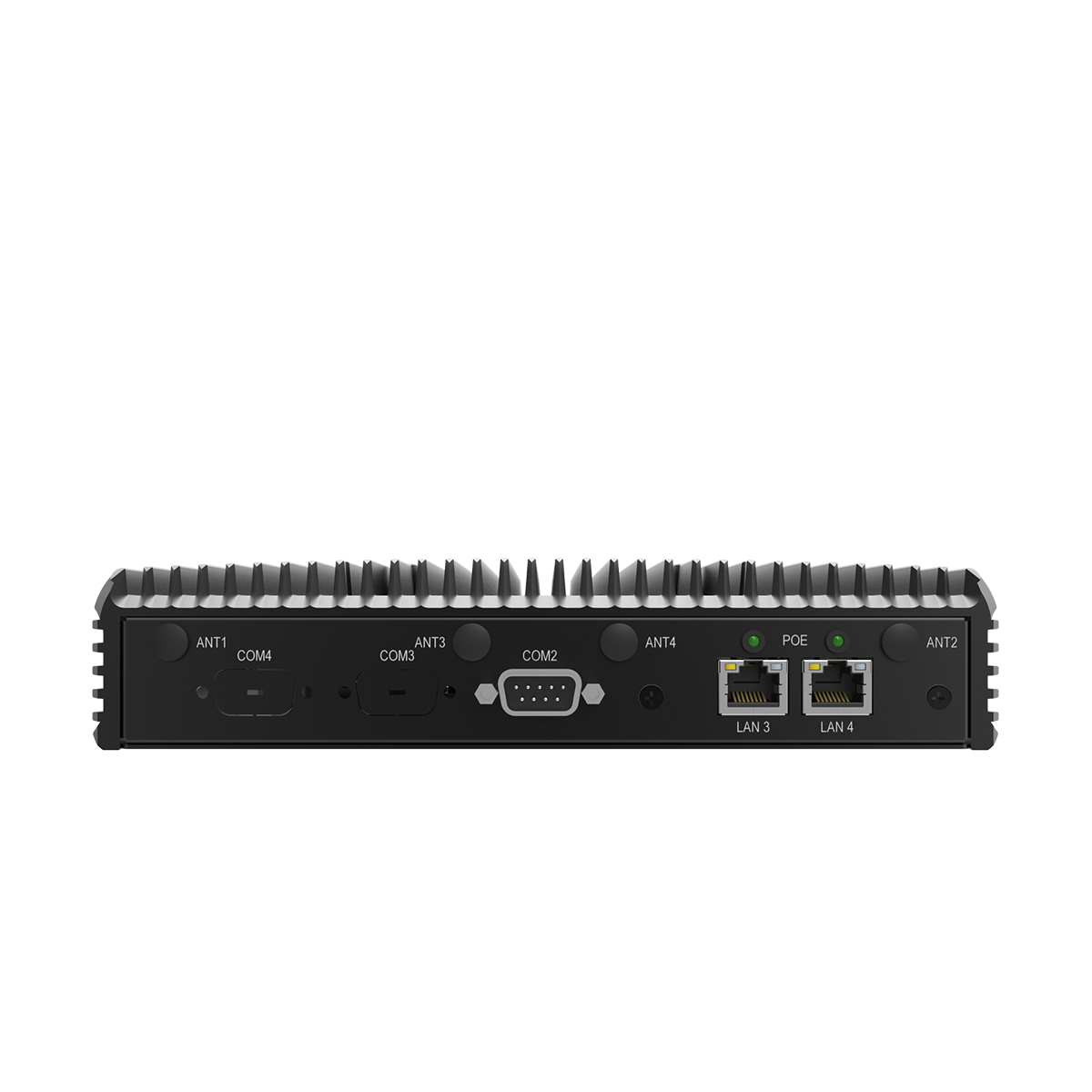

SP-F213 IO

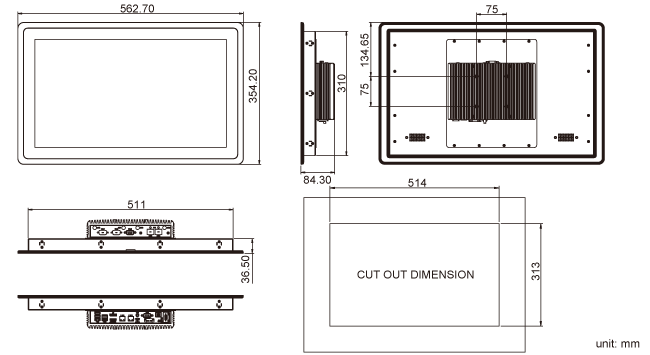

SP-F213 Dimensions
| SP-F213 |
21.5” Intel® Atom® Processors Fanless Configurable Panel PC
|
