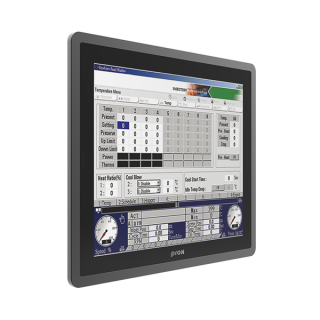

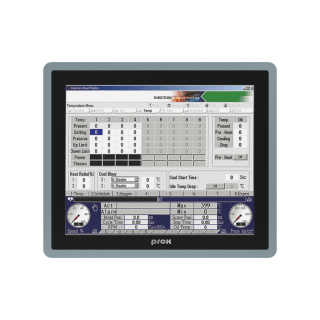

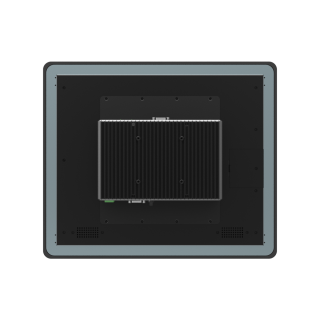

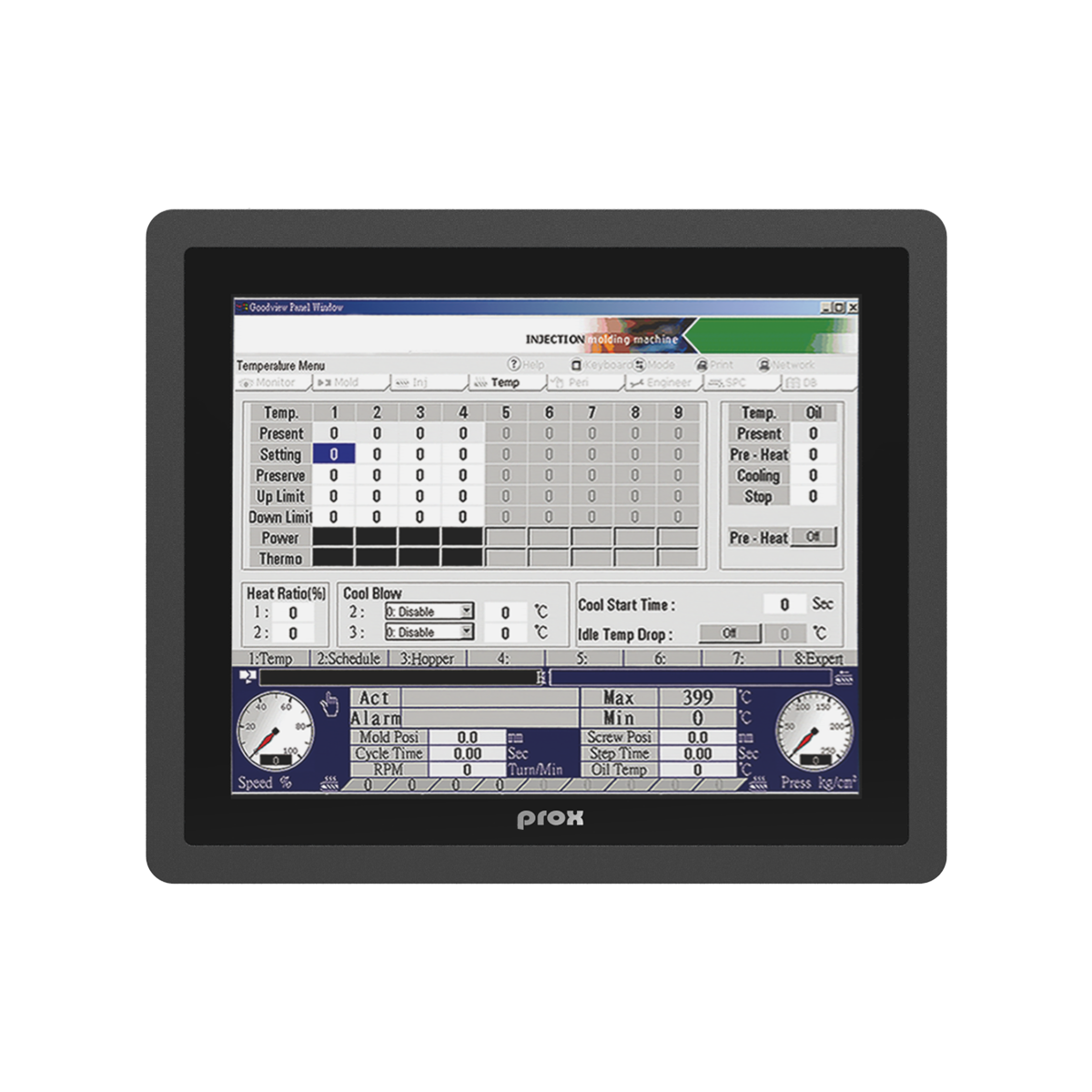

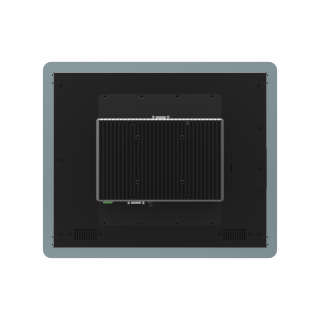

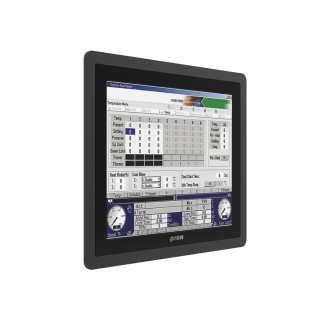

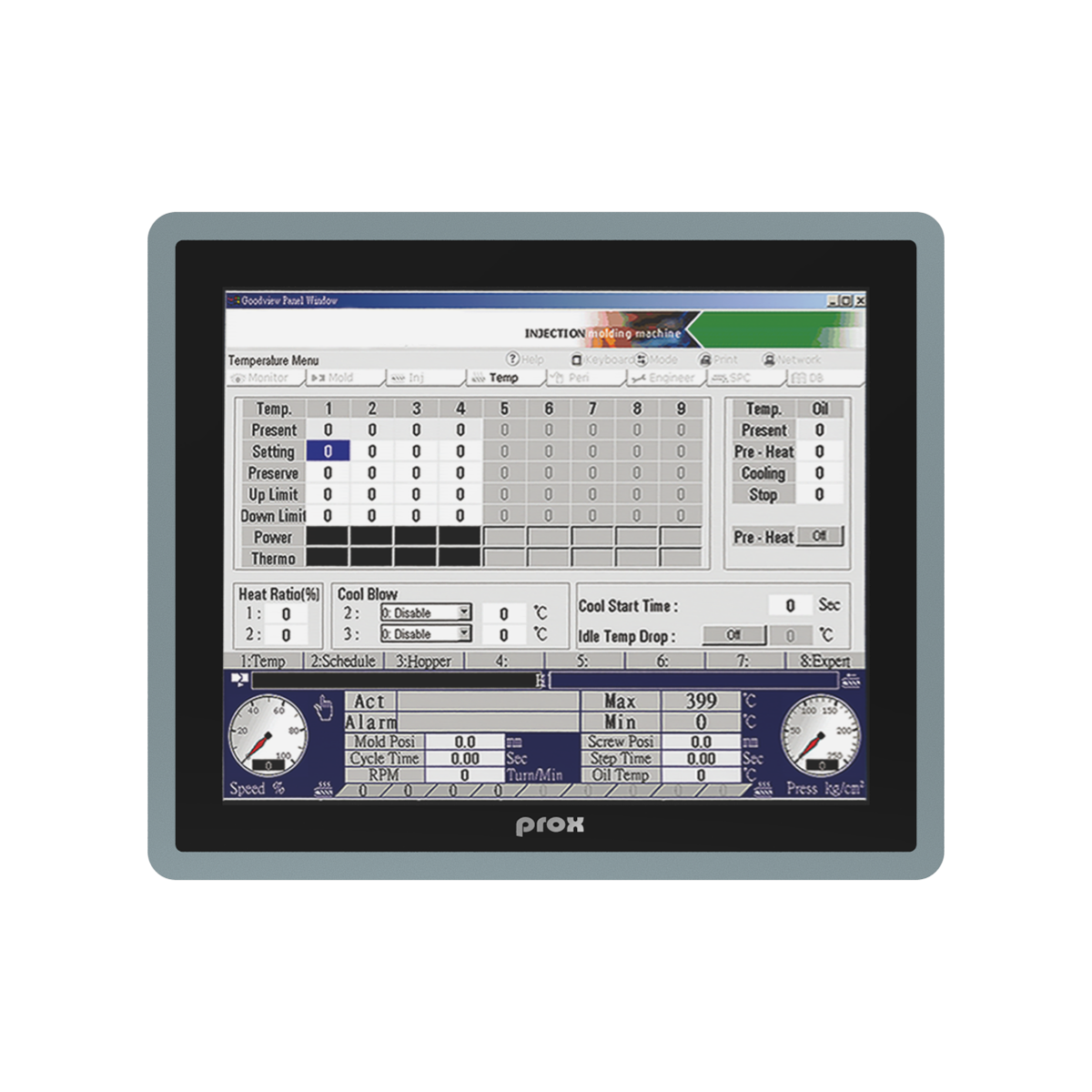

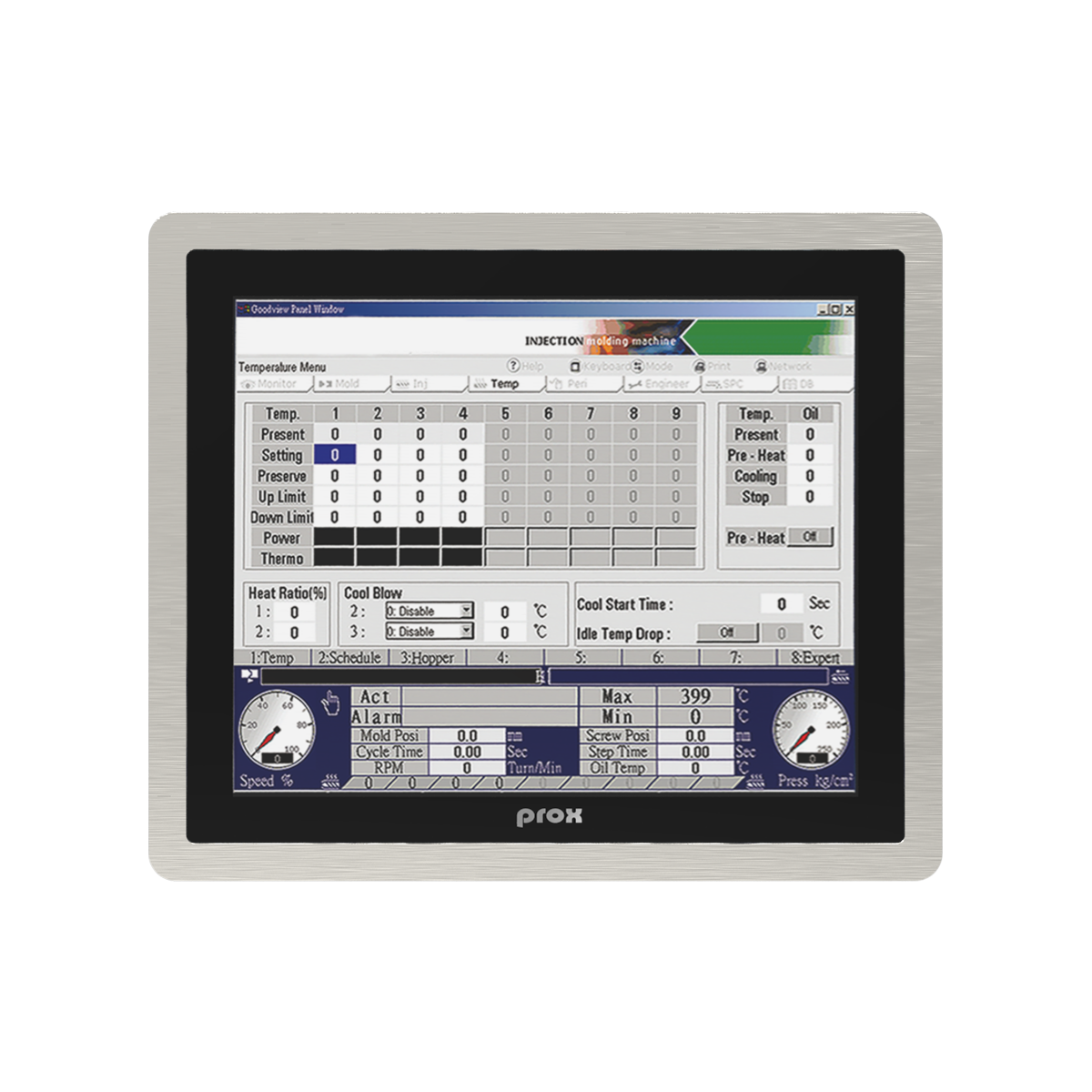

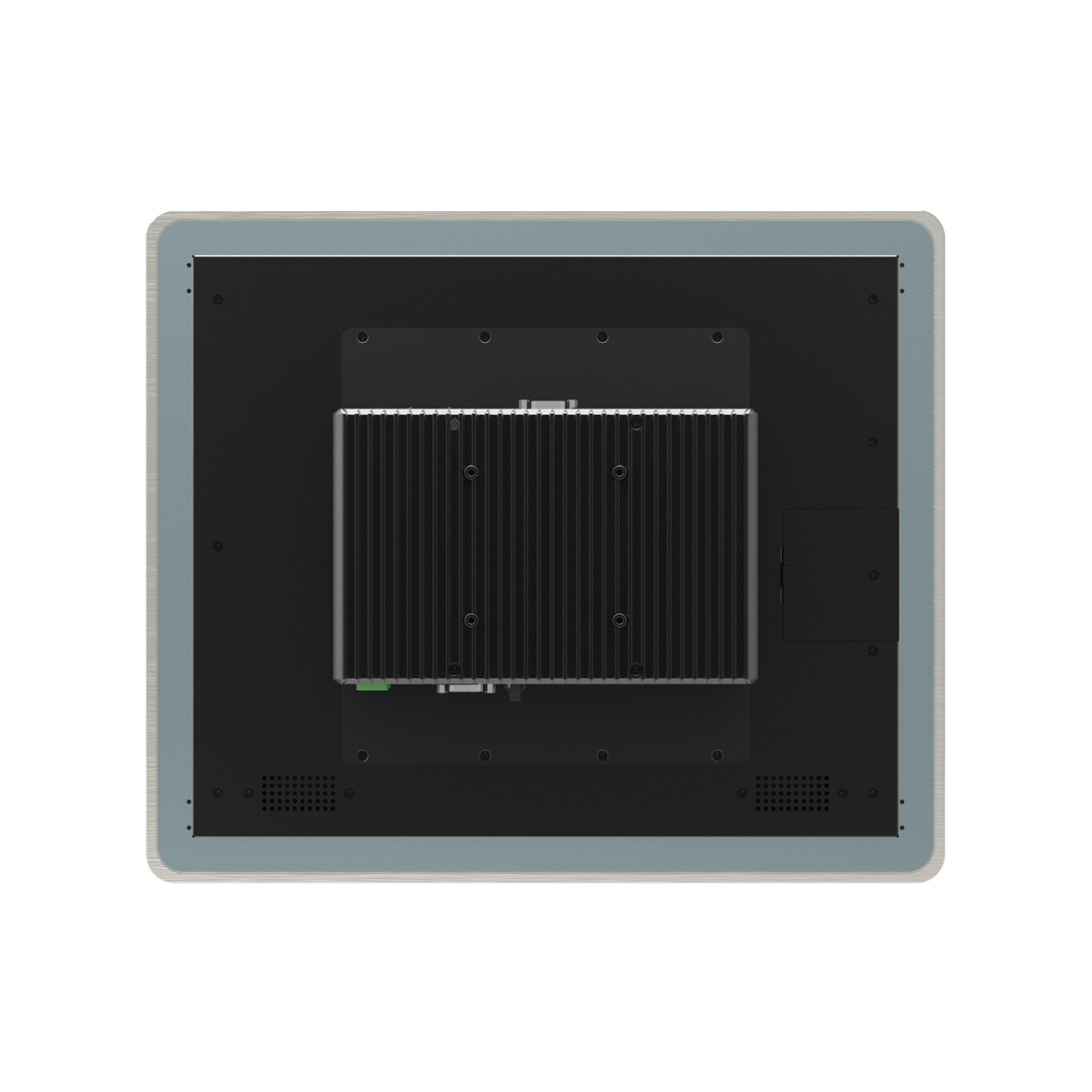

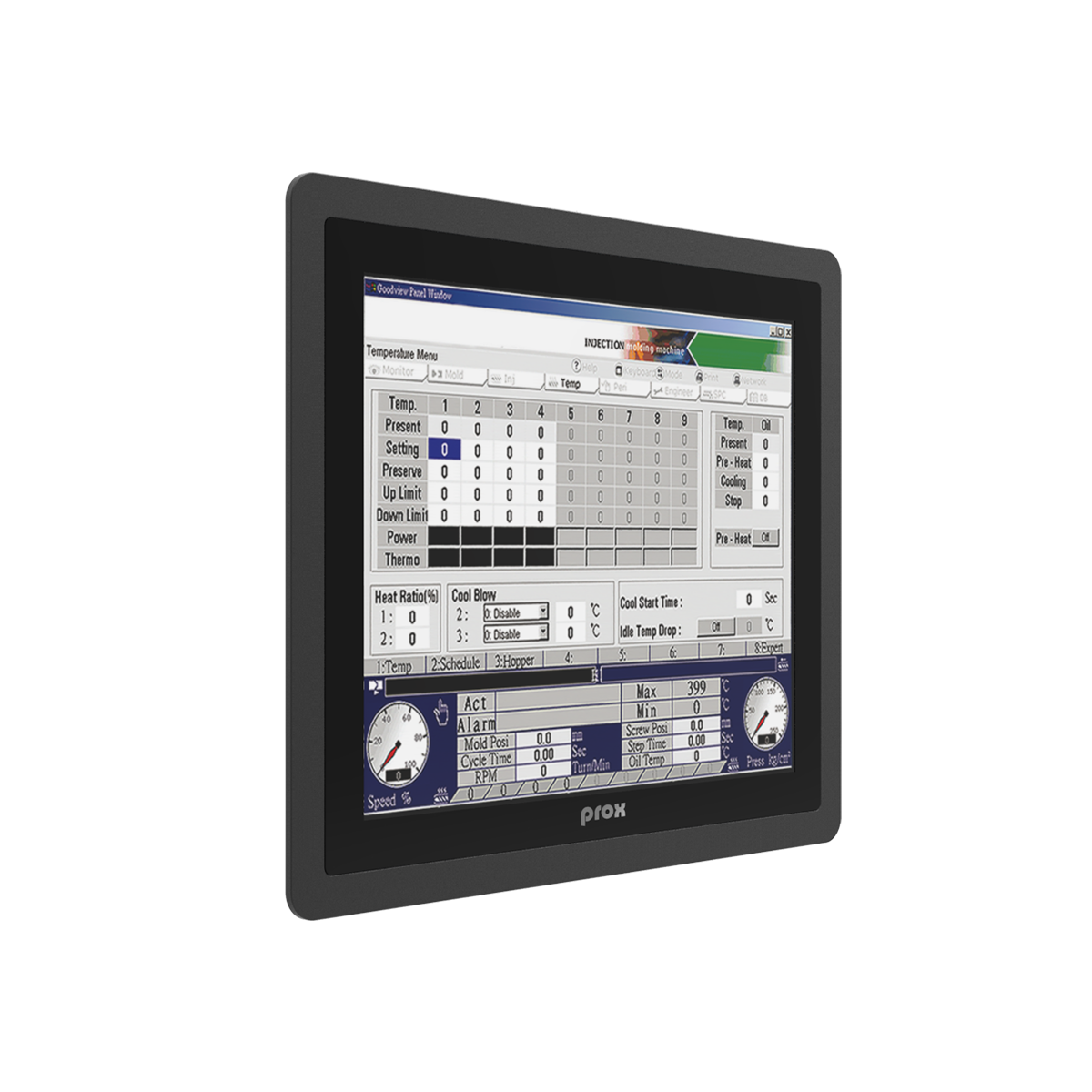

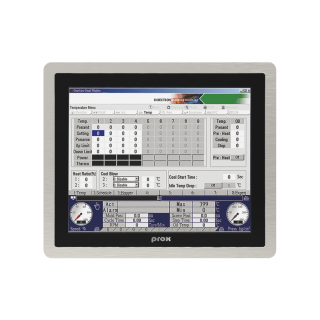

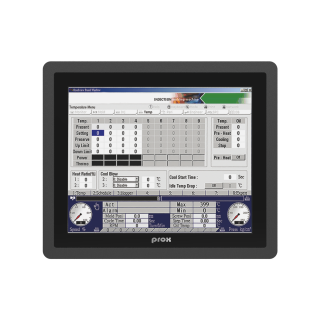

SP-F173

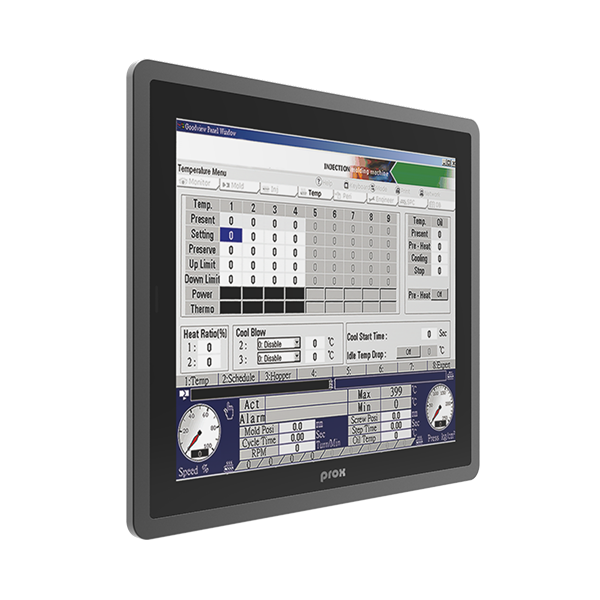

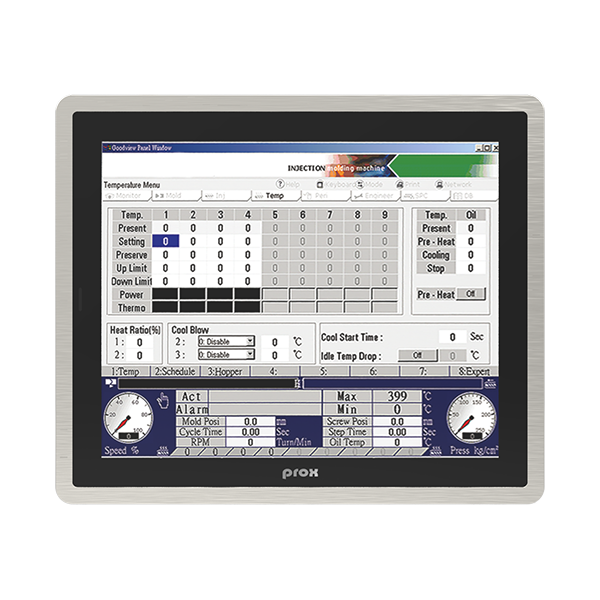

17” Intel ® Atom® Processors Fanless Configurable Panel PC
•Intel Celeron® J6412 / Atom® x6425RE / x6212RE Processor
•Selectable in Open Frame mode or with Stainless Steel / Aluminum Front Bezel
•Front Panel IP Rating: IP65
•Solid Fanless System
•Two external 4K displays output via 1 x HDMI® and 1 x DP
•Multiple I/O ports: Up to 4 x LAN / 5 x USB / 2 x COM
•High brightness LCD (optional)
•TPM module (optional)

 Support
 CPU
 Intel® Celeron® J6412: 10w, 4C, 2.0GHz

 Intel® Atom® x6425RE: 12w, 4C, 1.9GHz

 Intel®Atom®x6212RE: 6w, 2C, 1.2GHz
 Chipset  Intel® SoC
 Memory

 1 x DDR4 3200MHz SO-DIMM socket (up to 32GB) non-ECC
 Storage

 1 x 2.5" SATA III SSD/HDD

 1 x M.2 2280 NVMe SSD
 Front Bezel  Open Frame / Stainless Steel / Aluminum
 IP Rating
 IP65 (for front panel only)
 Power  DC In 24V
 Watchdog  1~255 seconds watchdog timer selectable
 Operating System  Windows 11 IoT Enterprise LTSC 2024
 Windows 10 IoT Enterprise LTSC 2021
 Dimensions (W x H x D)  418.6 x 351 x 81mm with Stainless Steel or Aluminum bezel
 Weight   7.2kg
 Mount Type  Wall mount / VESA 75 / Panel mount
 Certification  CE, FCC
 Display
 LCD  17" Flat TFT LCD (LED) resolution 1280 x 1024
 Touchscreen  Projected Capacitive / 5-wire analog resistive

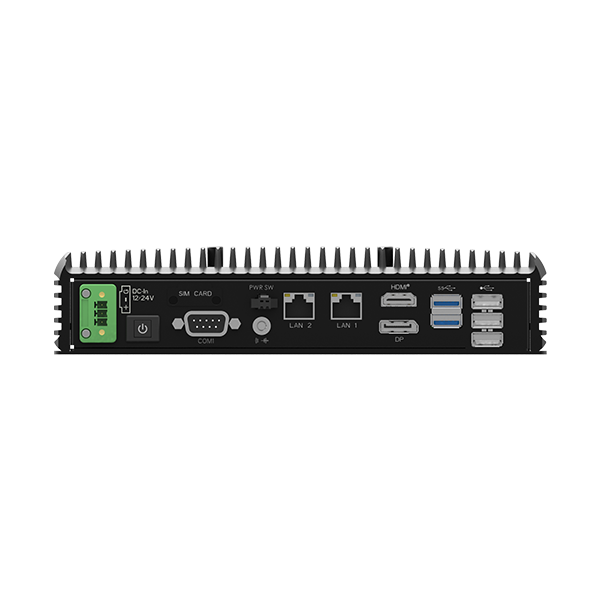

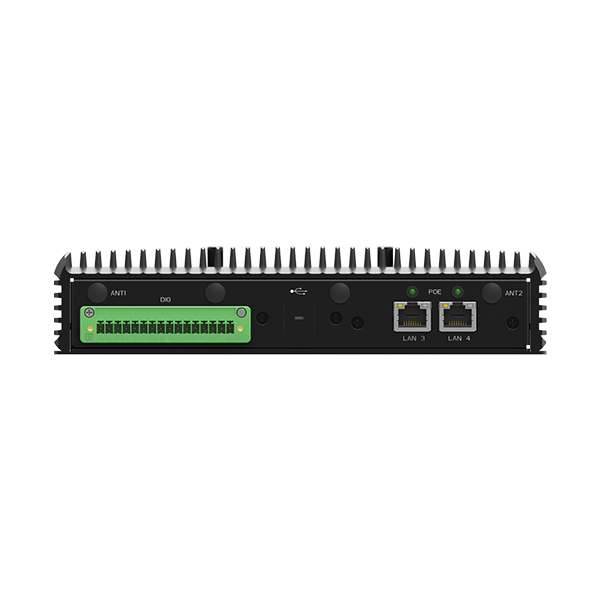

 I/O Ports
 Video

 1 x HDMI® (up to 4K)

 1 x DP (up to 4K)
 USB  2 x USB 3.0
 3 x USB 2.0
 Serial Ports  2 x COM (RS232/422/485)
 LAN

 LAN1 / LAN2: Intel® I225IT (Wake-on-LAN, PXE)

 LAN3 / LAN4: Intel® I211AT (Optional with PoE)
 Expansion Slot  1 x mPCle (Only accessible when LAN3 / LAN4 is disabled)
 Audio  1 x Line Out
 Power On/Off

 1 x Power Button

 1 x Remote Switch
 Environment
 Operating Temperature
(Ambient with airflow)
  -20°C~50°C (-4°F~122°F) with Atom Processor and Wide-Ranged Temperature SSD
 0°C~40°C (32°F~122°F) with Celeron Processor
 Storage Temperature  -40°C~80°C (-40°F~185°F)
 Storage Humidity   20%~90%

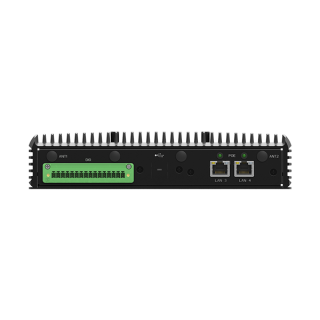

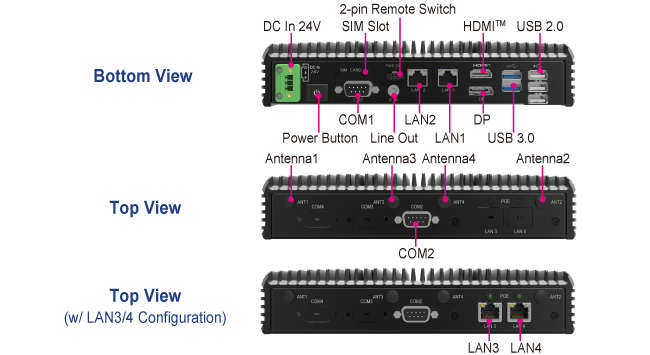

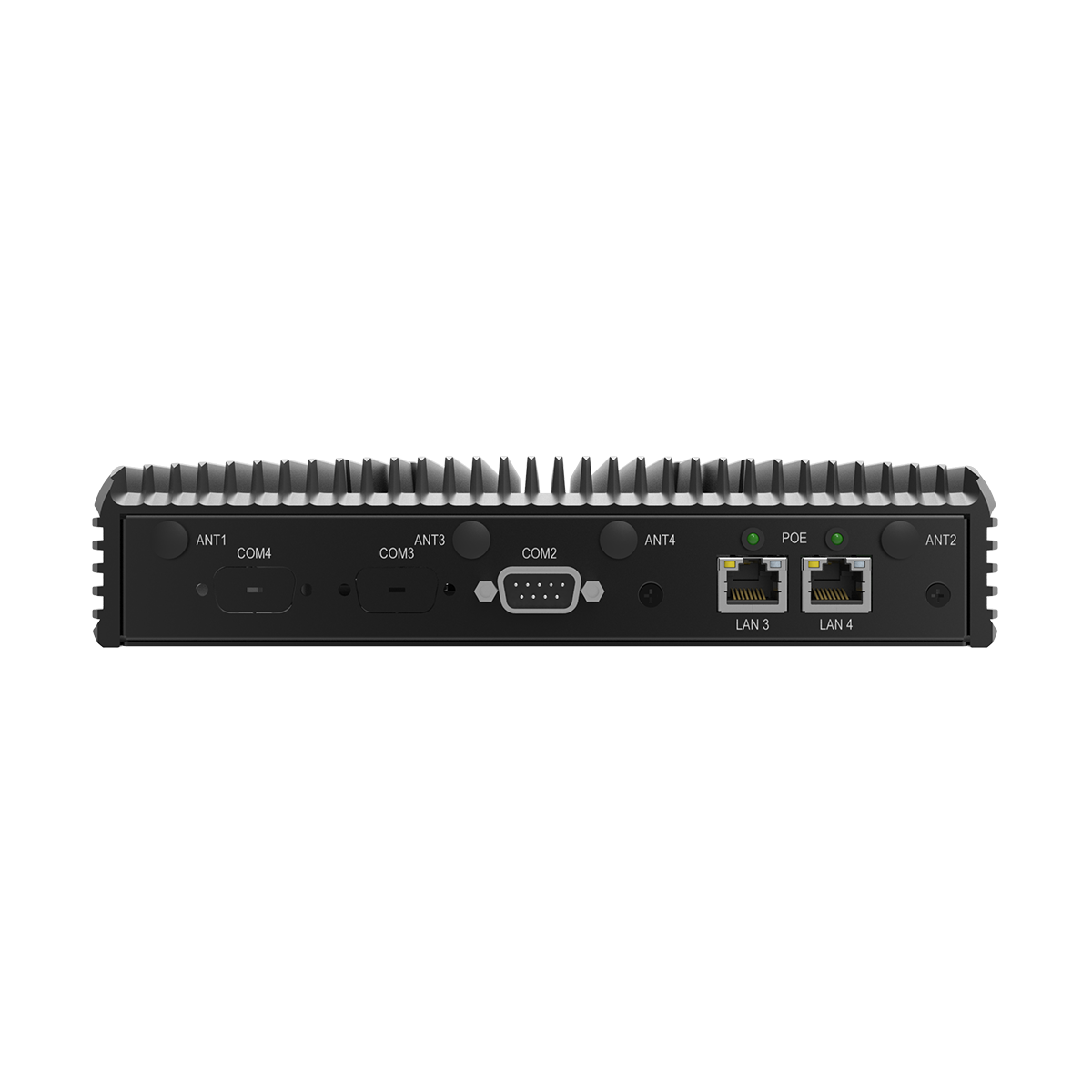

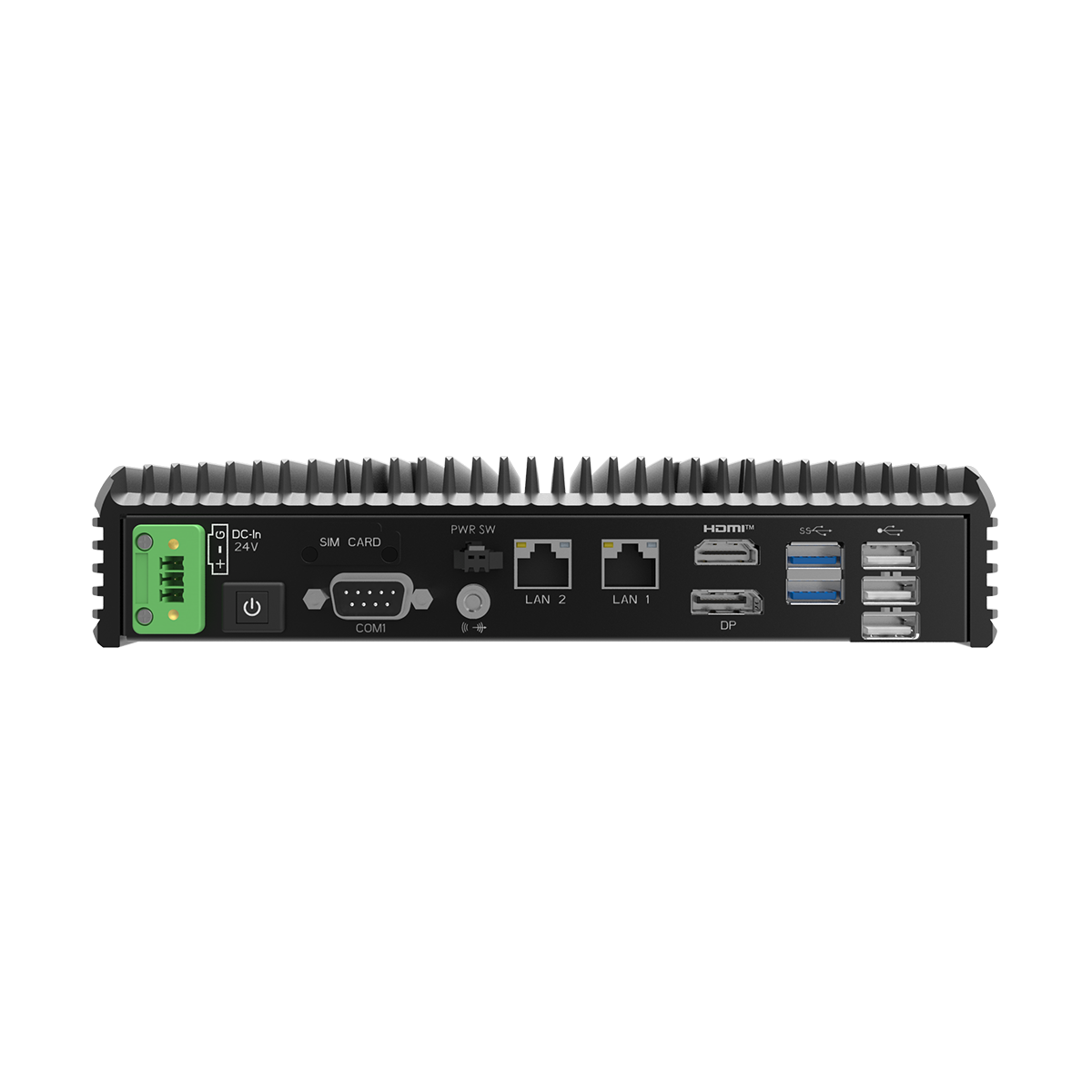

SP-F173_IO-650-355

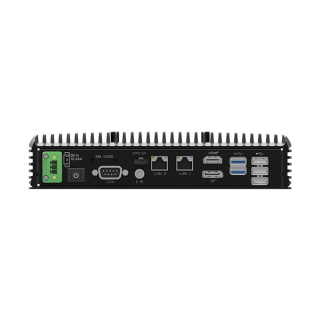

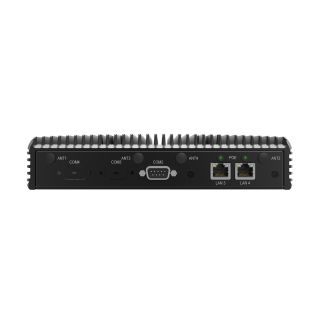

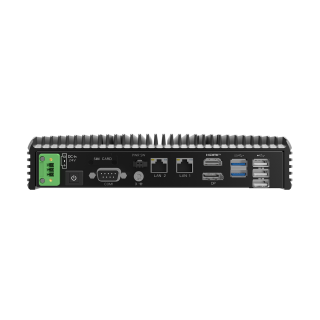

SP-F173 IO

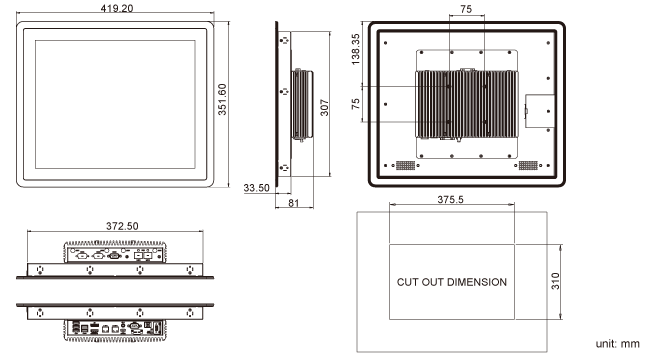

SP-F173_Dimension-650-355

SP-F173 Dimensions


 SP-F173

17” Intel ® Atom® Processors Fanless Configurable Panel PC
 File type File Download
 EDM SP-F173_EDM.PDF
 Pictures SP-F173_Pictures.ZIP
