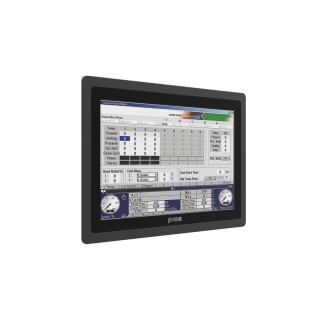

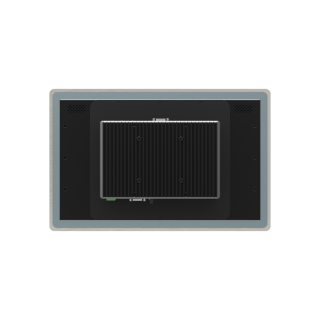

SP-F163

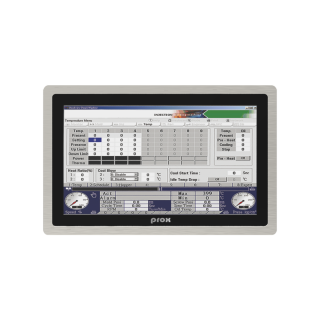

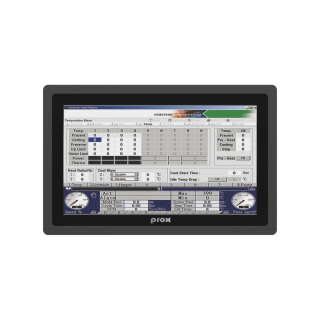

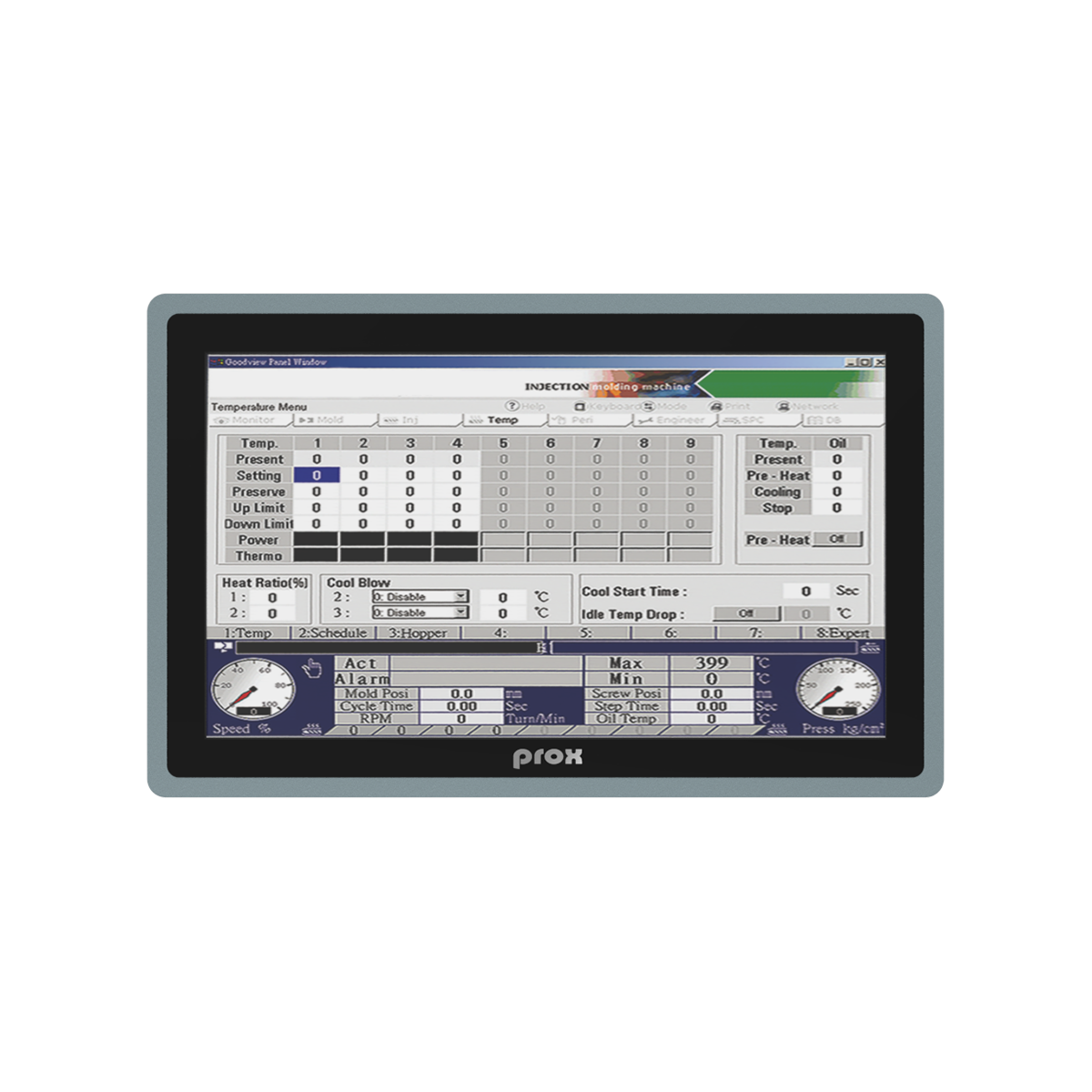

15.6” Intel ® Atom® Processors Fanless Configurable Panel PC
•Intel Celeron® J6412 / Atom® x6425RE / x6212RE Processor

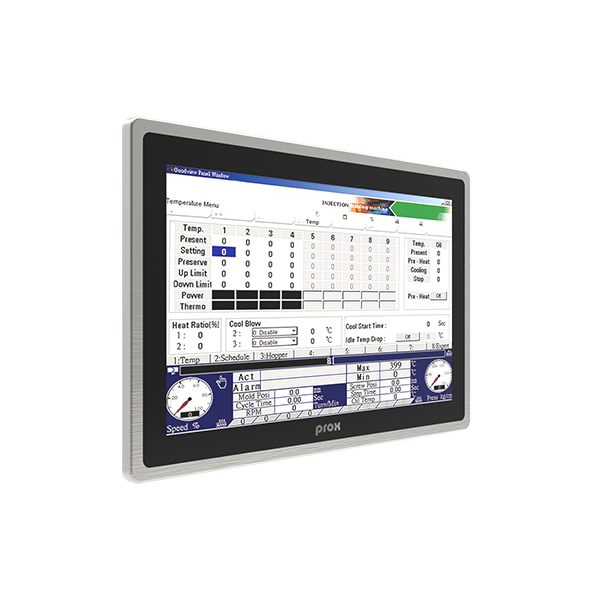

•Selectable in Open Frame mode or with Stainless Steel / Aluminum Front Bezel
•Front Panel IP Rating: IP65
•Solid Fanless System
•Two external 4K displays output via 1 x HDMI® and 1 x DP
•Multiple I/O ports: Up to 4 x LAN / 5 x USB / 2 x COM
•High brightness LCD (optional)
•TPM module (optional)

 Support
 CPU

Intel® Celeron®J6412: 10w, 4C, 2.0GHz

Intel® Atom® x6425RE: 12w, 4C, 1.9GHz

Intel®Atom®x6212RE: 6w, 2C, 1.2GHz
 Chipset Intel® SoC
 Memory

1 x DDR4 3200MHz SO-DIMM socket (up to 32GB) non-ECC
 Storage

1 x 2.5" SATA III SSD/HDD

1 x M.2 2280 NVMe SSD
 Front Bezel Open Frame / Stainless Steel / Aluminum
 IP Rating

IP65 (for front panel only)
 Power DC In 24V
 Watchdog 1~255 seconds watchdog timer selectable
 Operating System Windows 11 IoT Enterprise LTSC 2024
Windows 10 IoT Enterprise LTSC 2021
 Dimensions (W x H x D) 408 x 258 x 78.5mm with Stainless Steel or Aluminum bezel
 Weight 5.4kg
 Mount Type Wall mount / VESA 75 / Panel mount
 Certification CE, FCC
 Display
 LCD 15.6" Flat TFT LCD (LED) resolution 1920 x 1080
 Touchscreen Projected Capacitive / 5-wire analog resistive

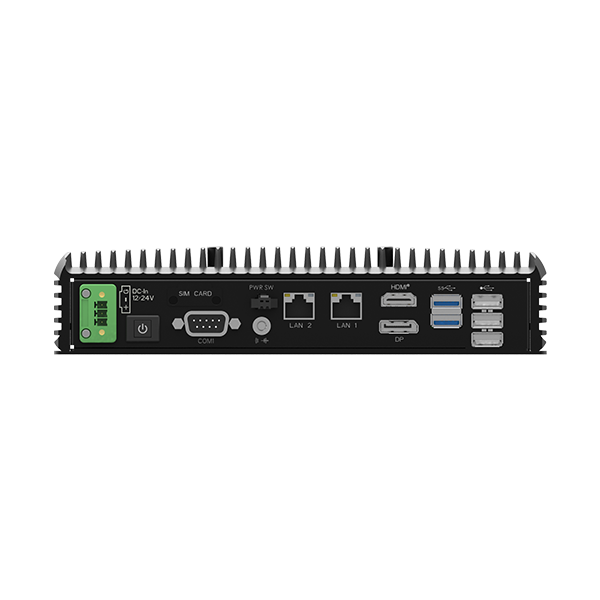

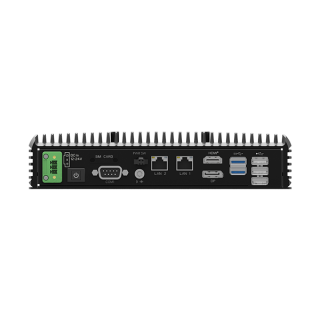

 I/O Ports
 Video
1 x HDMI® (up to 4K)
1 x DP (up to 4K)
 USB

2 x USB 3.0

3 x USB 2.0
 Serial Ports 2 x COM (RS232/422/485)
 LAN

LAN1 / LAN2: Intel® I225IT (Wake-on-LAN, PXE)

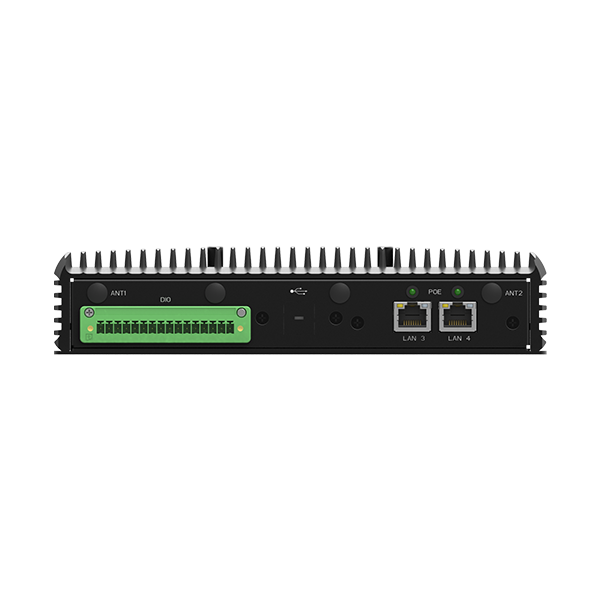

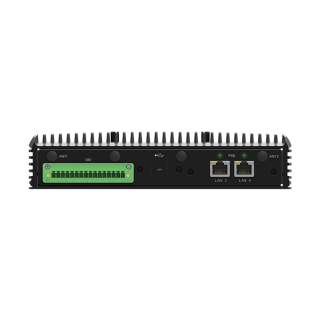

LAN3 / LAN4: Intel® I211AT (Optional with PoE)
 Expansion Slot 1 x mPCle (Only accessible when LAN3 / LAN4 is disabled)
 Audio 1 x Line Out
 Power On/Off

1 x Power Button

1 x Remote Switch
 Environment
 Operating Temperature
(Ambient with airflow)

-20°C~50°C (-4°F~122°F) with Atom Processor and Wide-Ranged Temperature SSD

0°C~40°C (32°F~122°F) with Celeron Processor
 Storage Temperature -40°C~80°C (-40°F~185°F)
 Storage Humidity 20%~90%

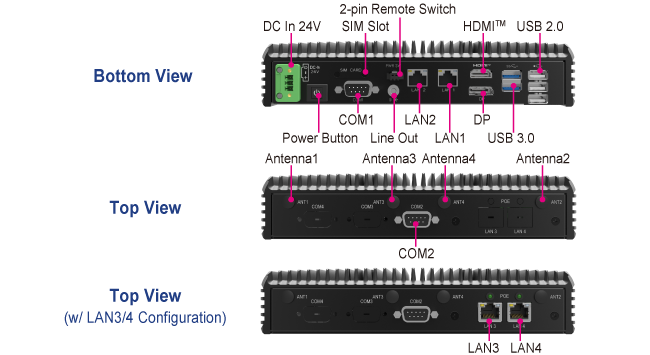

SP-F163_IO-650-355

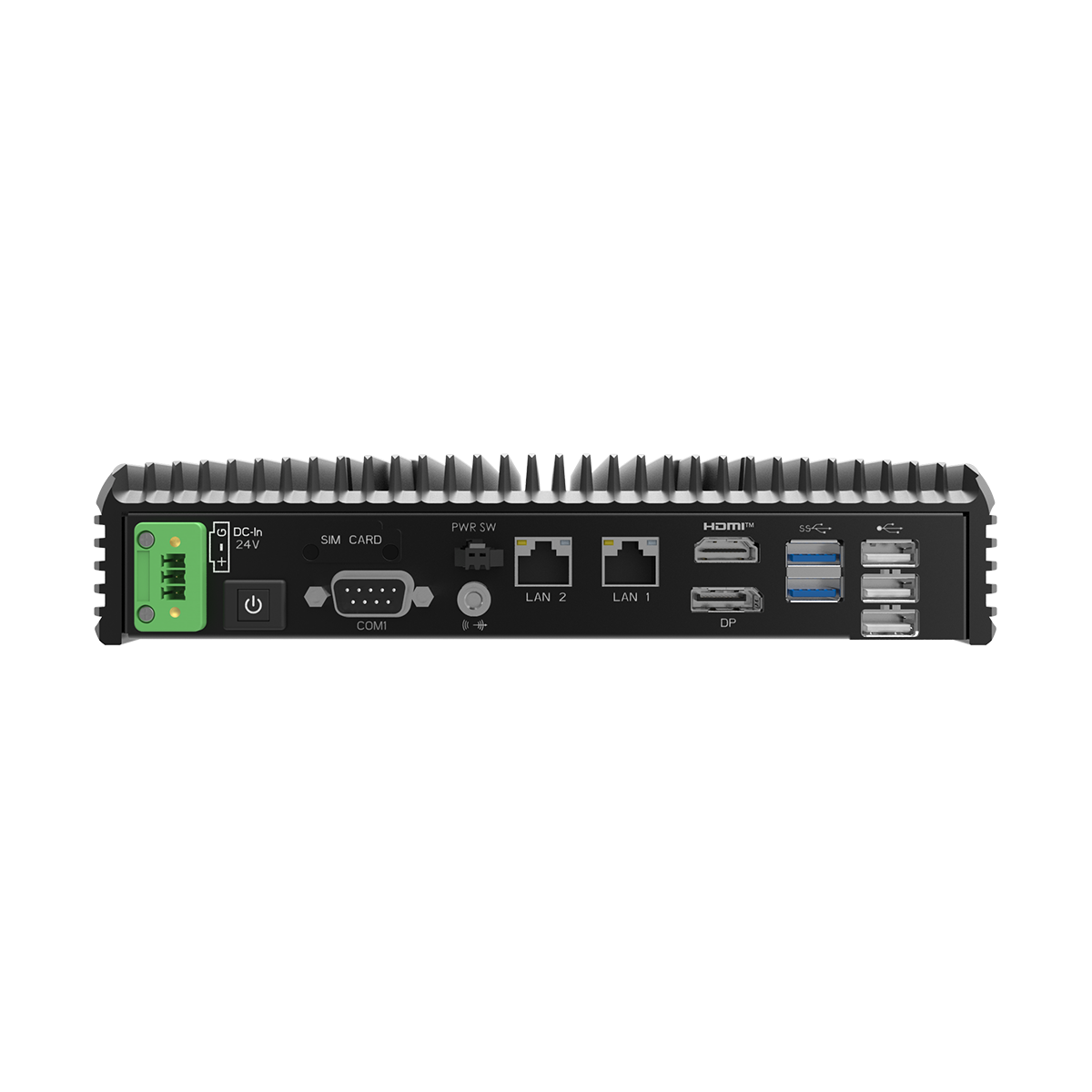

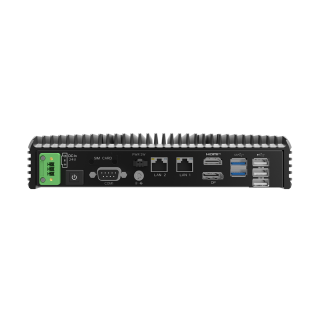

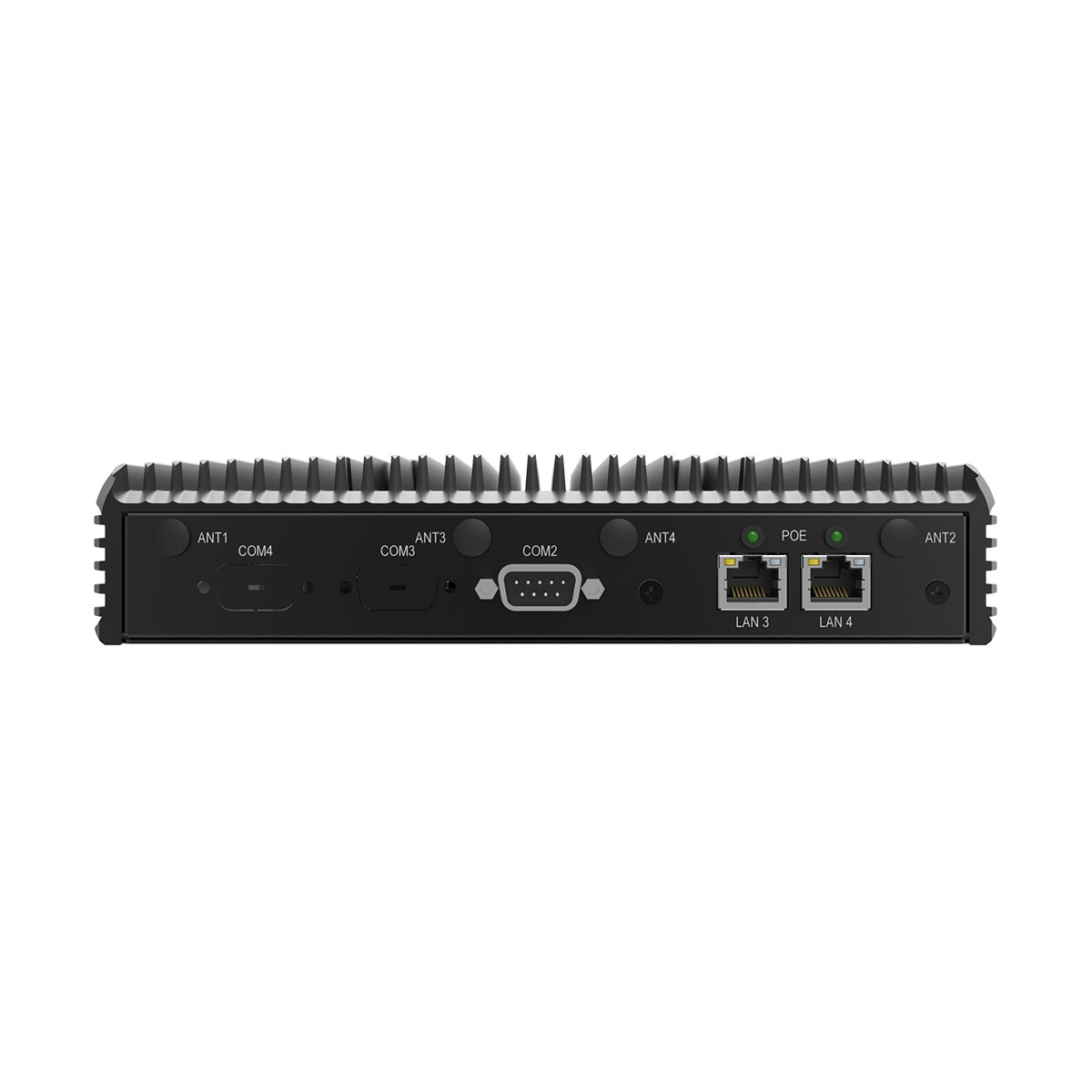

SP-F163 IO

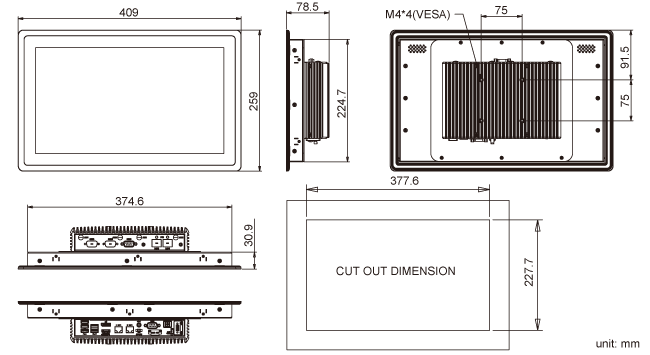

SP-F163_Dimension-650-355

SP-F163 Dimensions


 SP-F163

15.6” Intel® Atom® Processors Fanless Configurable Panel PC
 File type File Download
 EDM SP-F163_EDM.PDF
 Pictures SP-F163_Pictures.ZIP
