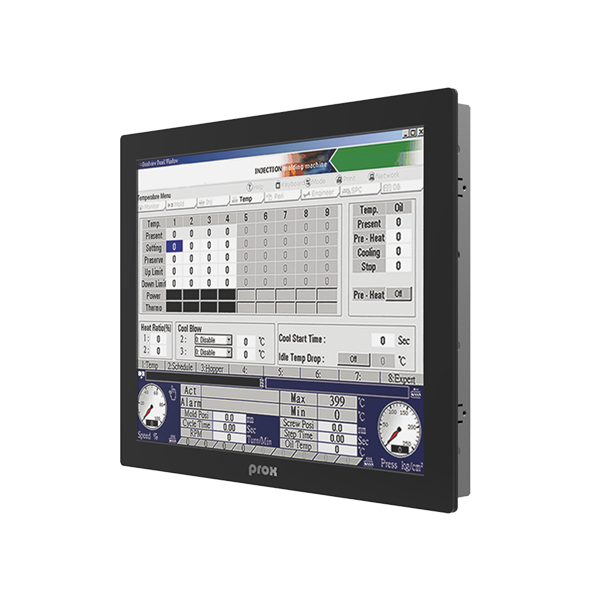

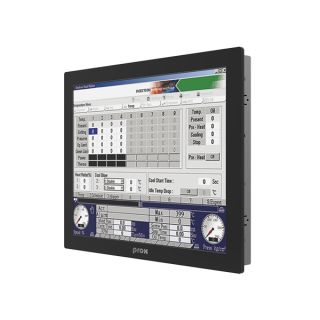

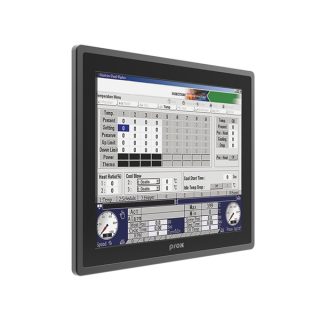

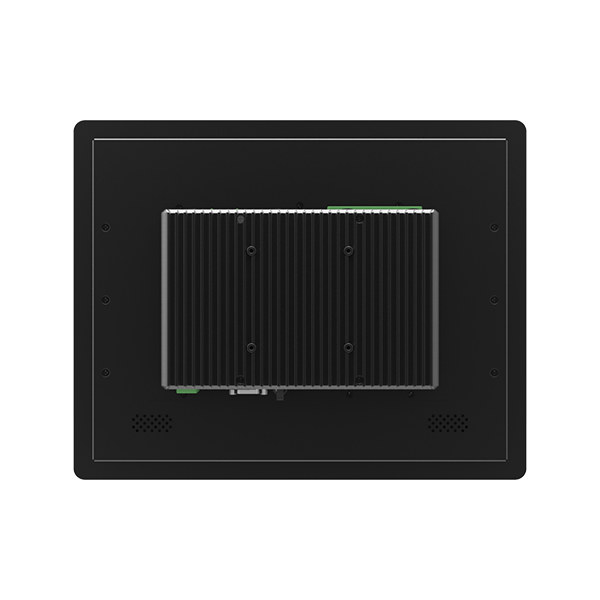

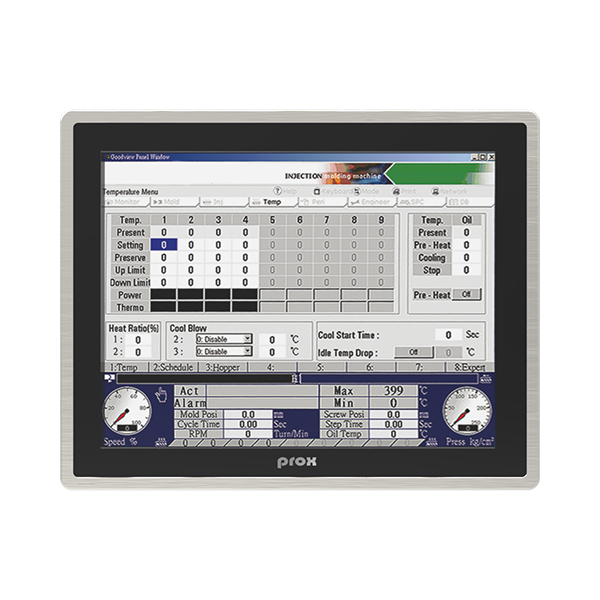

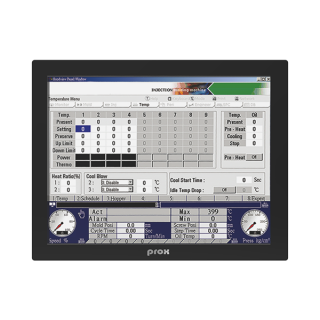

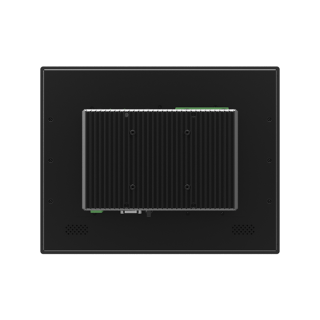

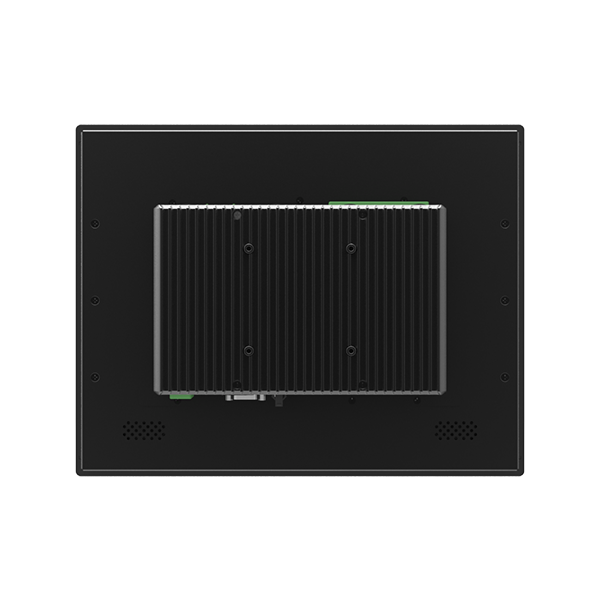

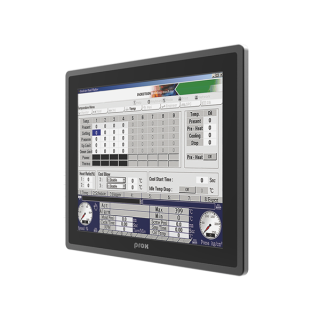

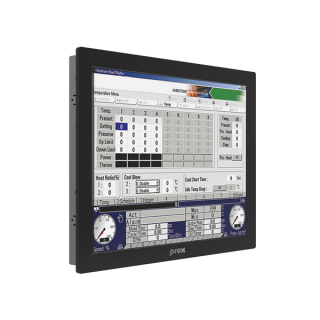

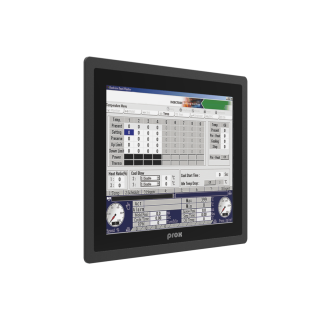

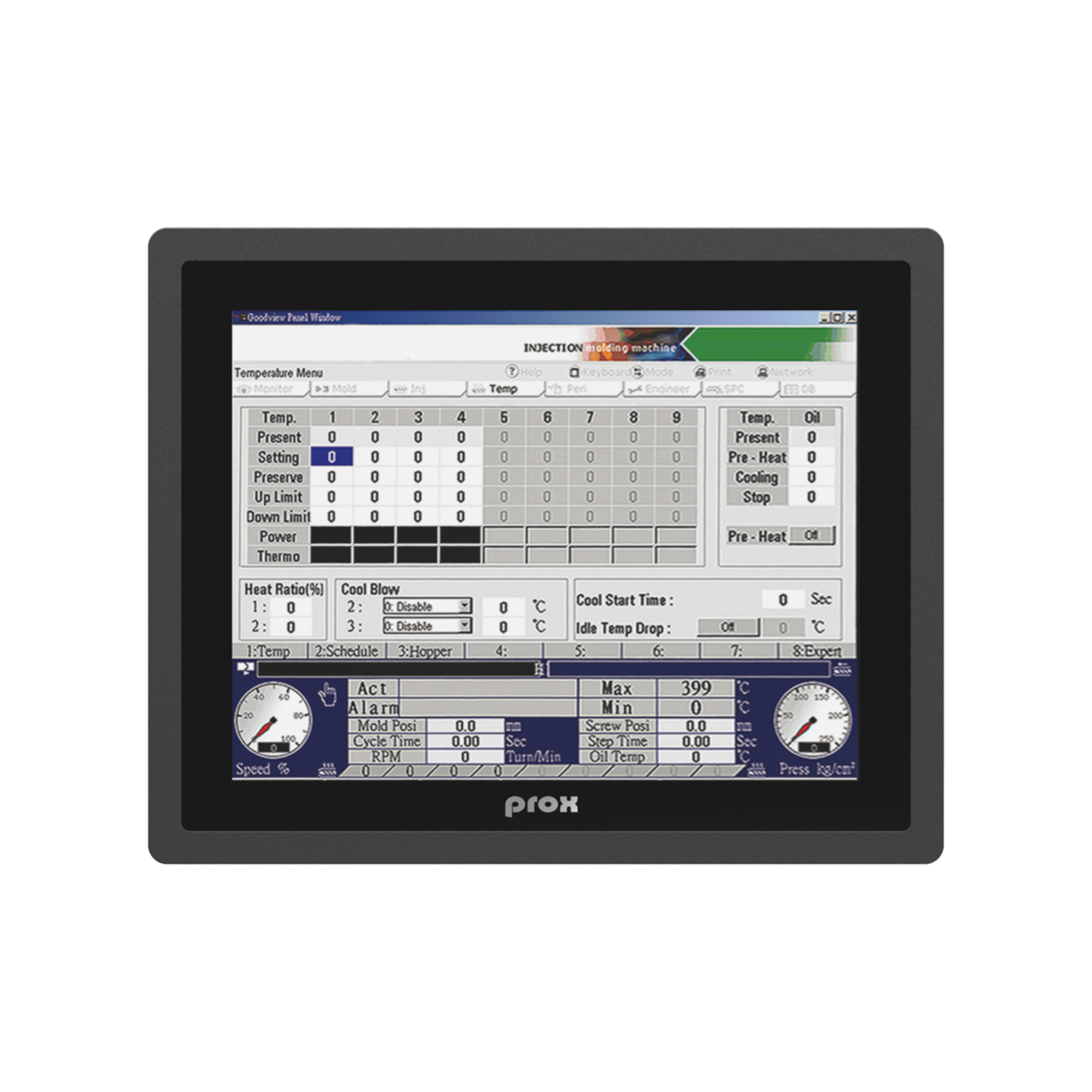

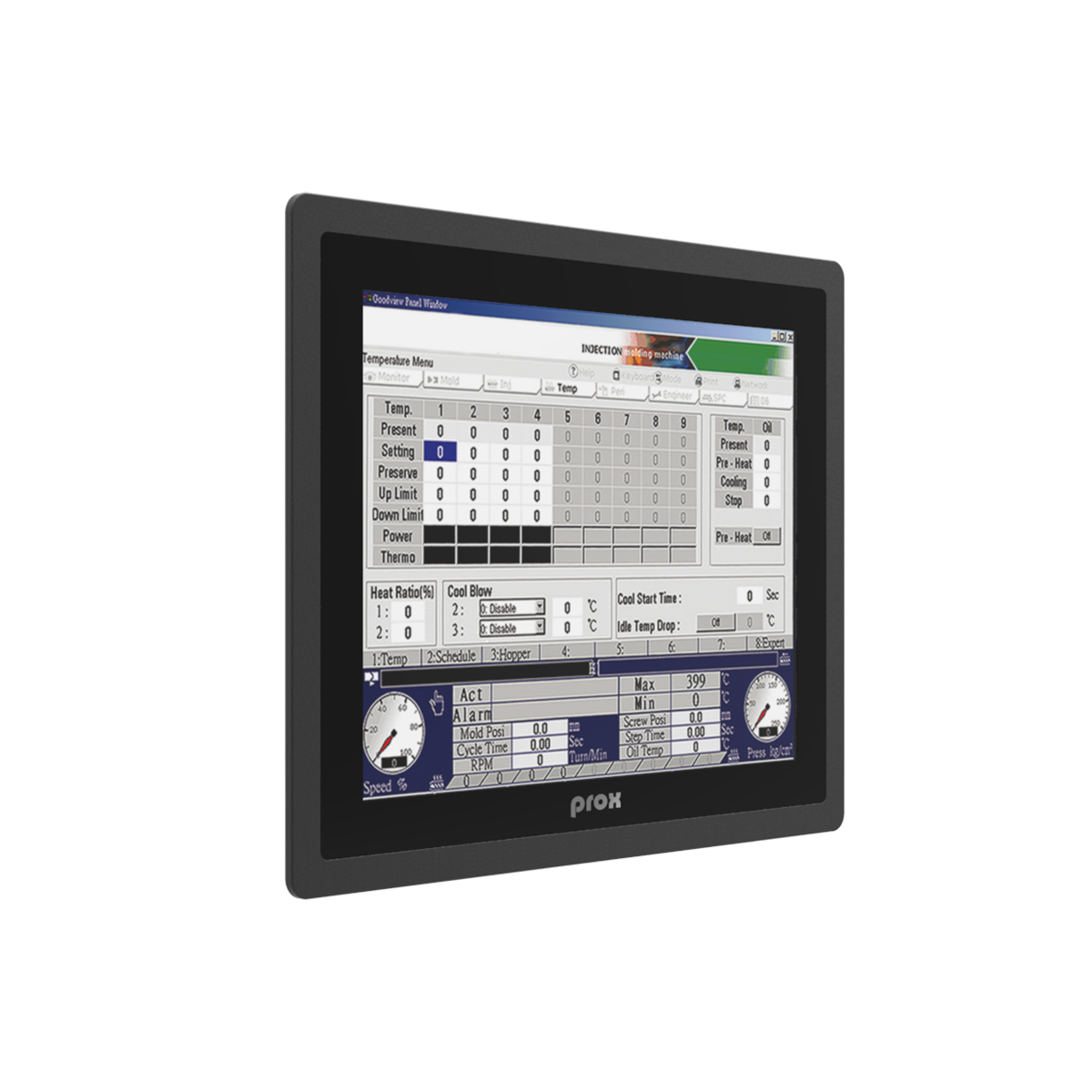

SP-F153

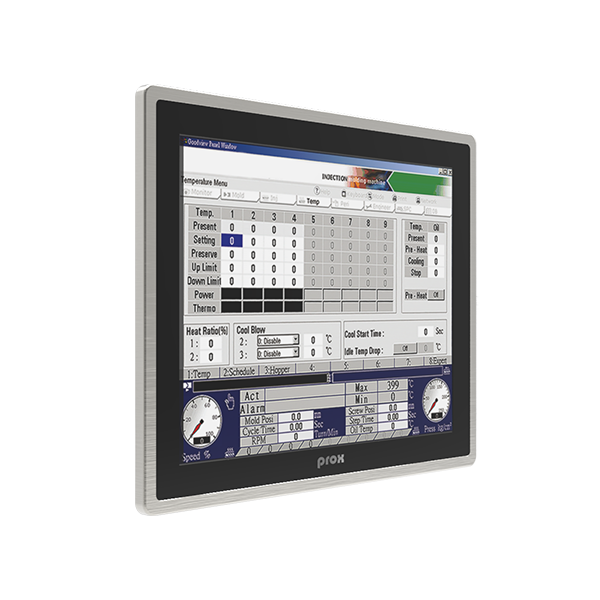

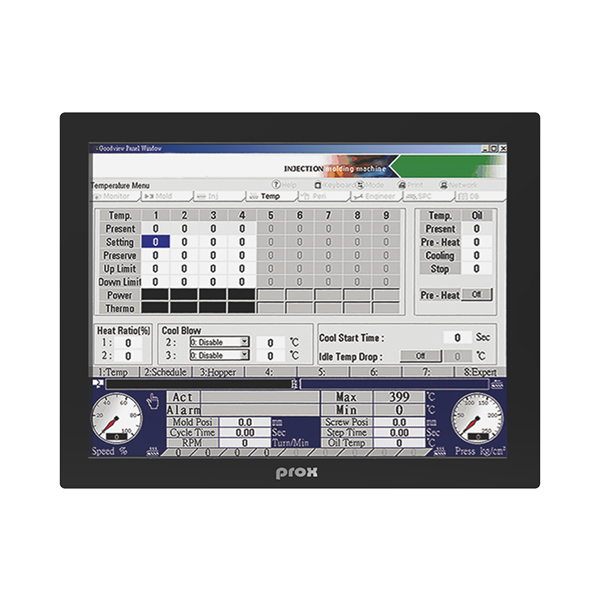

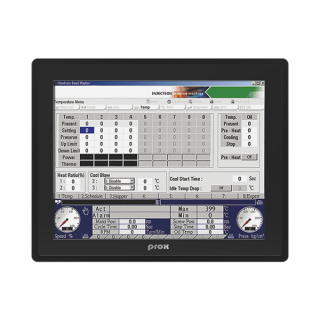

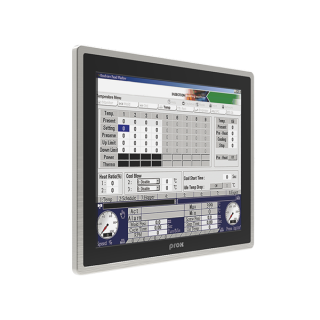

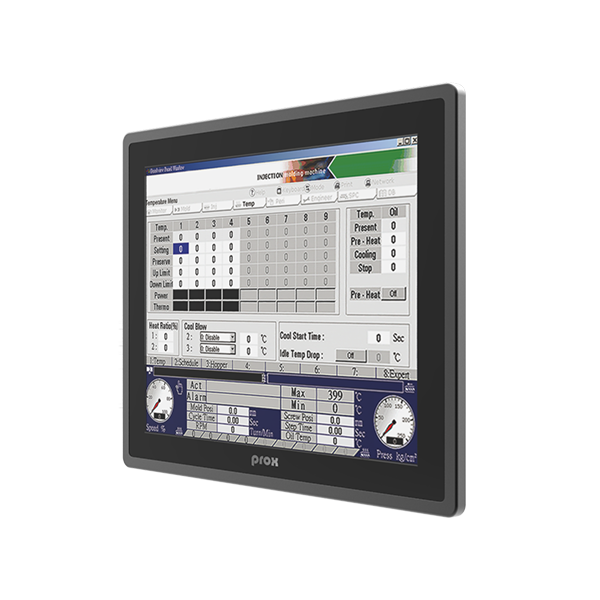

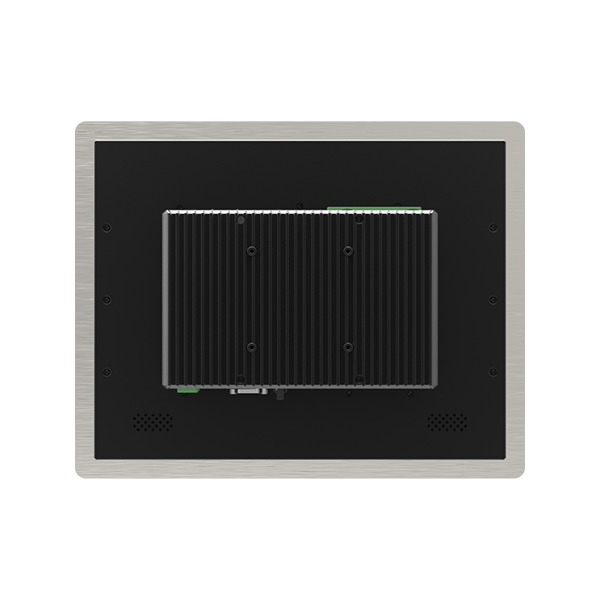

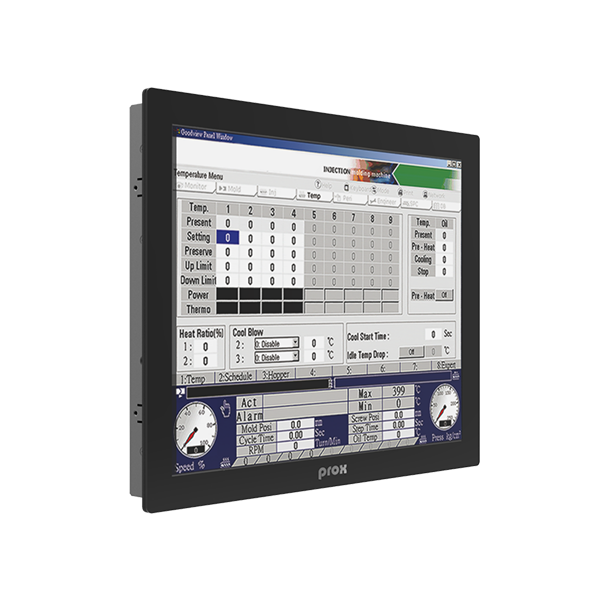

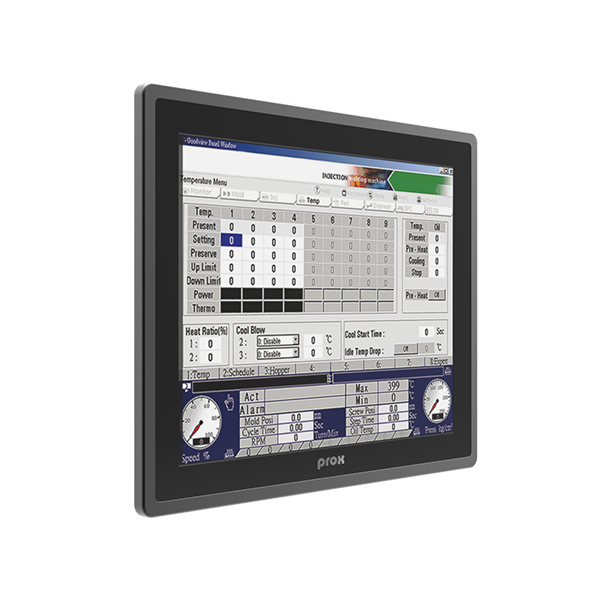

15" Intel® Atom® Processors Fanless Configurable Panel PC
•Intel Celeron® J6412 / Atom® X6425RE/X6212RE Processor
•Selectable in Open Frame mode or with Stainless Steel / Aluminum Front Bezel
•IP65-rated Front Panel
•Solid Fanless System
•Two external 4K displays outputted by 1 x HDMI® and 1 x DP
•Multiple I/O ports: up to 4 x LAN / 5 x USB / 2 x COM
•High brightness LCD (Optional)
•TPM module (Optional)
•Selectable in Open Frame mode or with Stainless Steel / Aluminum Front Bezel
•IP65-rated Front Panel
•Solid Fanless System
•Two external 4K displays outputted by 1 x HDMI® and 1 x DP
•Multiple I/O ports: up to 4 x LAN / 5 x USB / 2 x COM
•High brightness LCD (Optional)
•TPM module (Optional)
|
System |
||
| CPU |
Intel® Celeron® J6412: 10w, 4C, 2.0GHz Intel® Atom® x6212RE: 6w, 2C, 1.2GHz Intel®Atom® x6425RE: 12w, 4C, 1.9GHz |
|
| Chipset | Intel® SoC | |
| Memory |
1 x DDR4 3200MHz SO-DIMM socket (up to 32GB) non-ECC
|
|
| Storage |
1 x 2.5" SATA III SSD/HDD 1 x M.2 2280 NVMe SSD |
|

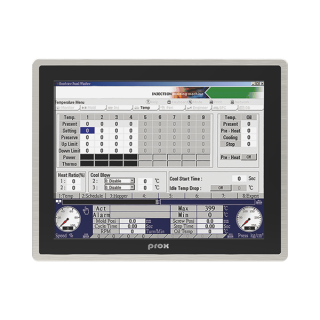

| Front Bezel | Open Frame / Stainless Steel / Aluminum | |
| IP Rating |
IP65 (for front panel only) |
|
| Power | DC In 24V | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Operating System | Windows 11 IoT Enterprise LTSC 2024
Windows 10 IoT Enterprise LTSC 2021
|
|
| Dimensions (W x H x D) | 375.4 x 298.1 x 79mm (w/ Stainless Steel or Aluminum bezel) | |
| Weight | 5.5kg | |
| Mount Type | Wall mount / VESA 75 / Panel mount | |
| Certification | CE, FCC | |
| Display | ||
| LCD | 15" Flat TFT LCD (LED) resolution 1024 x 768 | |
| Touchscreen | Projected capacitive / 5-wire analog resistive | |
| I/O Ports | ||
| Video |
1 x HDMI® (up to 4K) 1 x DP (up to 4K) |
|
| USB |
2 x USB 3.0 3 x USB 2.0 |
|
| Serial Port | 2 x COM (RS232/422/485) | |
| LAN |
LAN1/2: Intel® I225IT (Wake on LAN, PXE) LAN3/4: Intel® I211AT (Optional with PoE) |
|
| Expansion Slot | 1 x mPCle (Only accessible when LAN3/4 are disabled) | |
| Audio | 1 x Line Out | |
| Power On/Off | 1 x Power Button
1 x Remote Switch
|
|
| Environment | ||
| Operating Temperature
(Ambient with airflow)
|
-20°C~50°C (-4°F~122°F) with Atom Processor and Wide Temperature SSD |
|
| Storage Temperature | -40°C~80°C(-40°F~185°F) | |
| Storage Humidity | 20%~90% | |

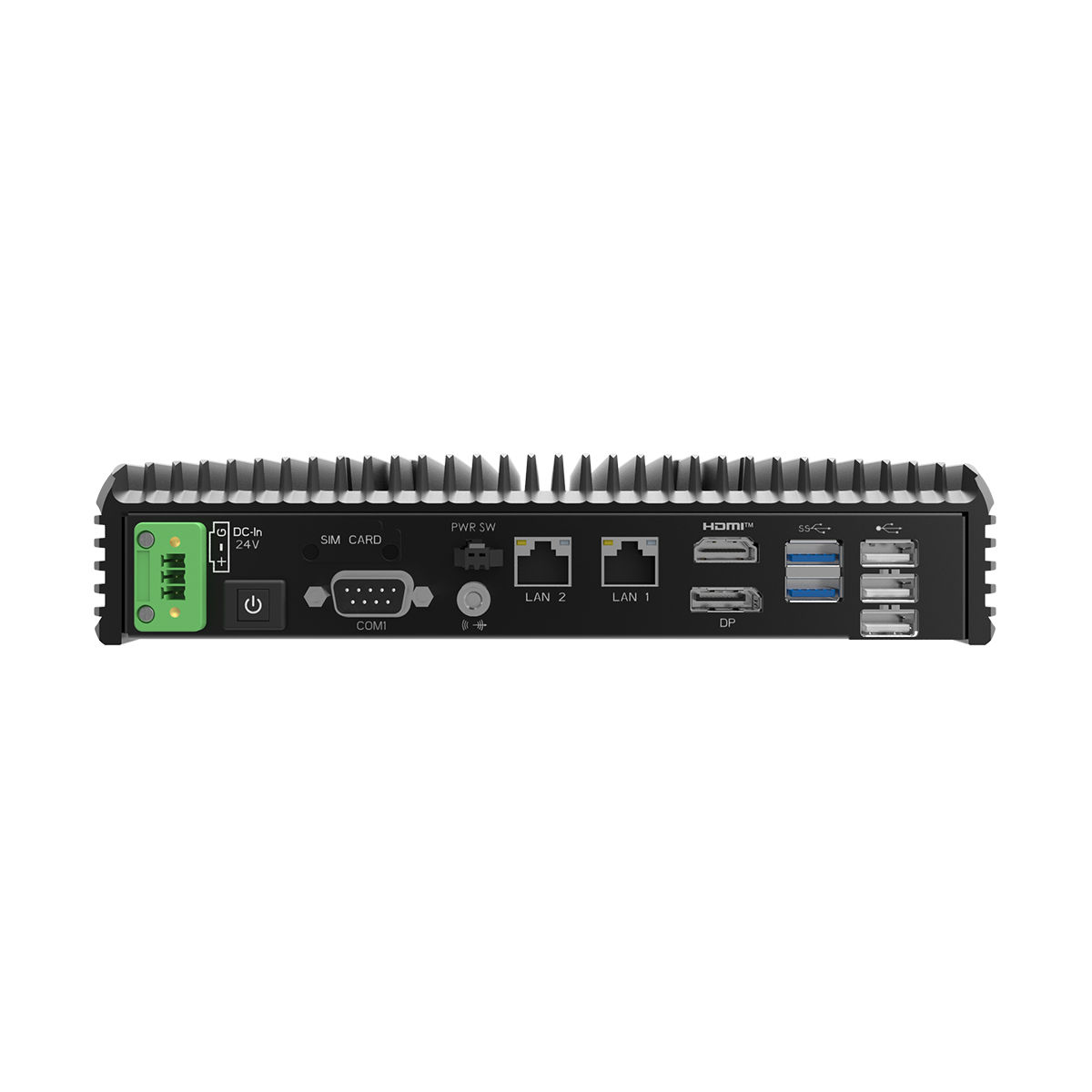

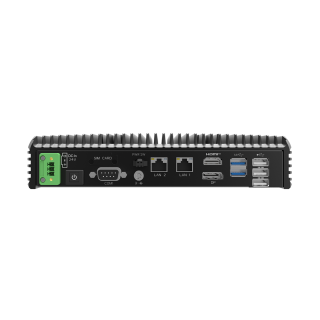

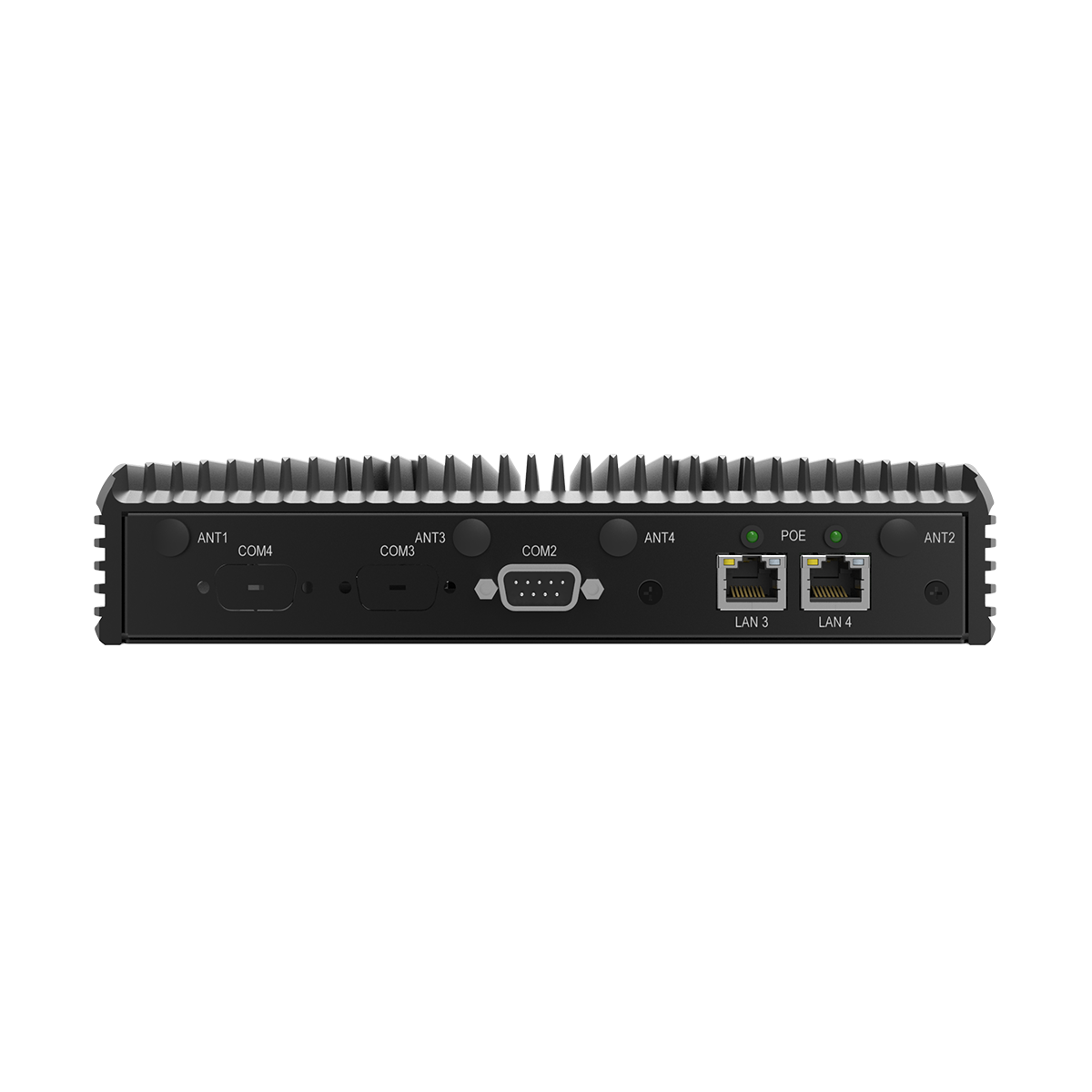

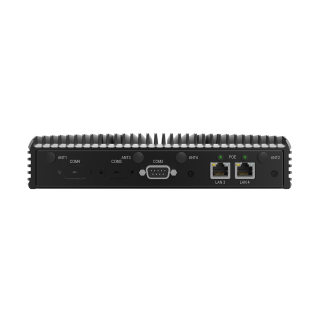

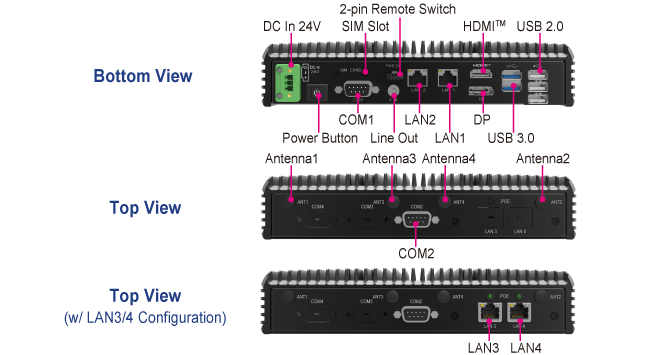

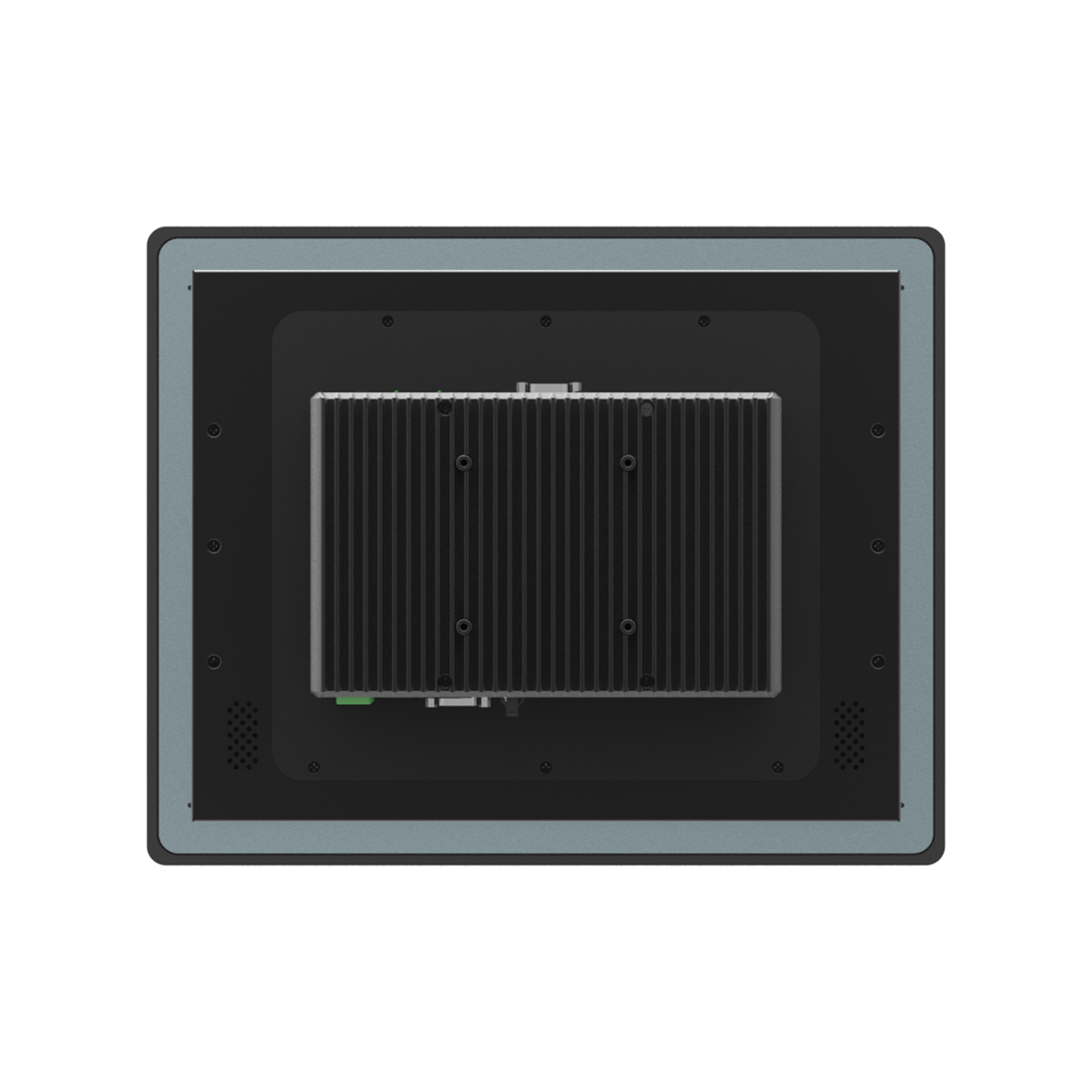

SP-F153 IO

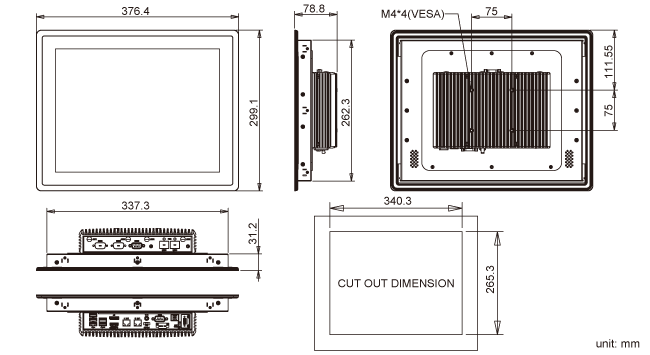

SP-F153 Dimensions
| SP-F153 |
15" Intel® Atom® Processors Fanless Configurable Panel PC |
| File type | File Download |
| EDM | SP-F153_EDM.PDF |
| Pictures | SP-F153_Pictures.ZIP |
