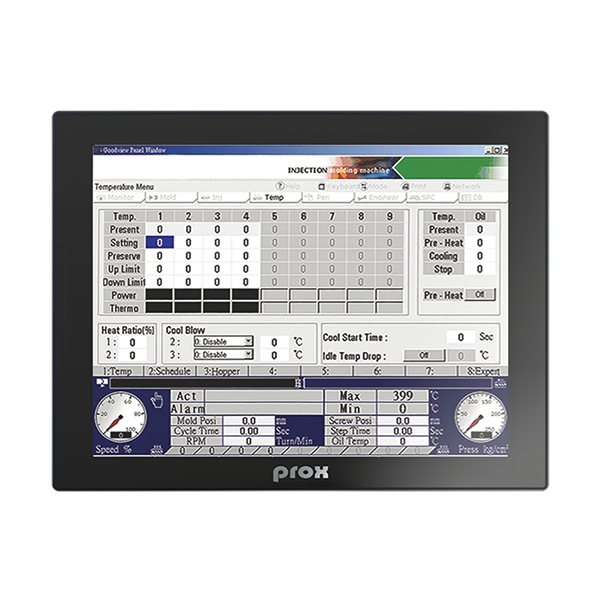

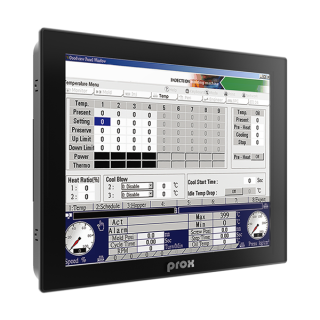

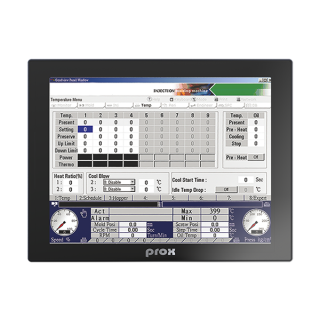

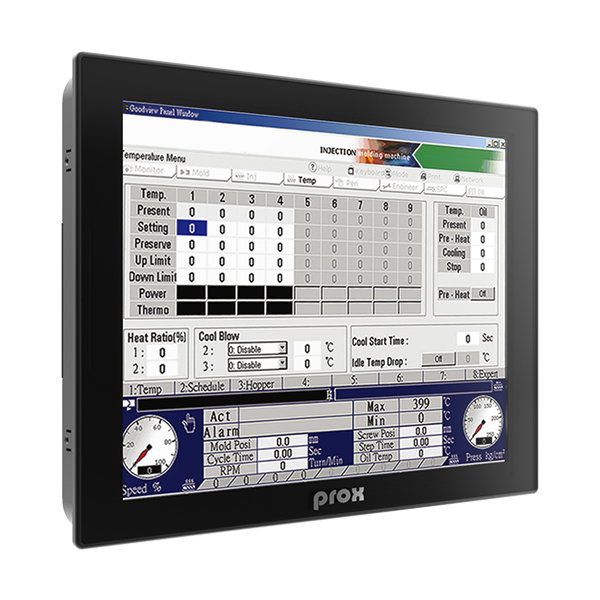

SP-C152
Intel® Atom® / Celeron® X6425RE / X6212RE / J6412 Processor Fanless 15" Panel PC
•Intel® Atom® / Celeron® X6425RE / X6212RE / J6412 processor on board
•Fanless and quiet design
•2 x GbE LANs, supports Wake-On-LAN & PXE
•Supports DC12/24V power input
•Supports Wide-ranged temperature
•Aluminum front bezel and IP65 design
•Supports projected capacitive touchscreen or 5-wire resistive touchscreen
•Fanless and quiet design
•2 x GbE LANs, supports Wake-On-LAN & PXE
•Supports DC12/24V power input
•Supports Wide-ranged temperature
•Aluminum front bezel and IP65 design
•Supports projected capacitive touchscreen or 5-wire resistive touchscreen
| System | ||
| CPU Support |
Intel® Atom® X6425RE processor
Intel® Atom® X6212RE processor Intel® Celeron® J6412 processor |
|
| Chipset |
Intel® SoC |
|
| Memory Support | 1 x DDR4 SO-DIMM, 3200MT/s up to 32GB (non-ECC) | |
| Front Bezel | Aluminum | |
| IP65 | Yes (for front panel only) | |
| Power Input | DC 12V/24V input | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Operating System | Windows® 11, Windows® 10 IoT Enterprise | |
| Dimensions (W x H x D) |
365.29 x 279.74 x 76.3 mm |
|
| System Weight |
4.8 kg |
|
| Mounting Support |
Panel Mount, VESA 75 |
|
| Certification |
FCC / CE |
|
|
I/O Ports |
||
| Power Input |
Support DC12V/24V input |
|
| Power On/Off |
1 x power button with Power LED |
|
| USB |
2 x USB 3.0 (rear I/O) 3 x USB 2.0 (rear I/O) |
|
| Audio |
1 x Line-Out |
|
| Digital I/O |
6 in / 6 out (including 2x5V & 2xGND) |
|
| Serial Ports |
2 x COM ports COM 1&2: RS-232/422/485, support 5V/12V by jumper setting (COM2 for COM SKU only) |
|
| LAN |
Dual LAN Intel® LAN i225 (GbE), supports Wake-On-LAN & PXE |
|
| PoE |
2 x PoE with GbE LAN (PoE SKU only) |
|
| Storage |
1 x 2.5" SATA 3.0 SSD |
|
| Expansion Slots |
1 x Mini PCIe (for COM2 SKU only) 1 x M.2 slot NVMe (PCIeX2), supports 2280 size only |
|
| Display | ||
| LCD |
15" TFT LCD (LED) resolution XGA 1024 x 768 |
|
| Touchscreen |
Projected capacitive touchscreen 5-wire resistive touchscreen |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
-20°C~50°C (-4°F~122°F) for Atom SKU 0°C~40°C (32°F~104°F) for other SKUs |
|
| Storage Temp. |
-40°C~85°C (-40°F~185°F)
|
|
| Humidity | 20%~90% | |

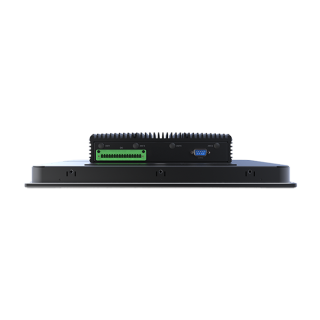

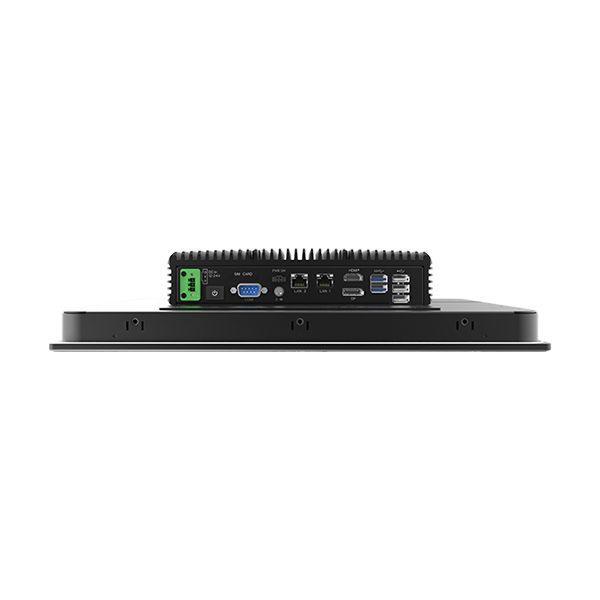

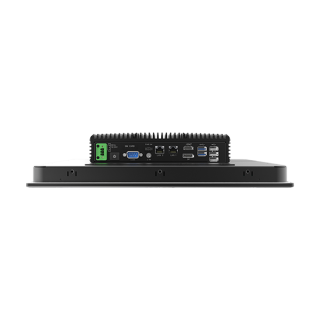

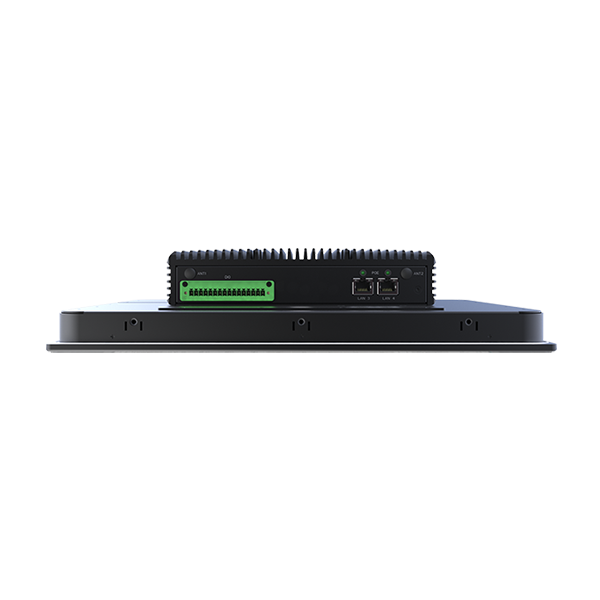

SP-C152 IO
