SP-C121
Intel® Apollo Lake Platform SoC Fanless and Low Power 12.1" Flat Touch Panel PC
•Intel® Celeron® J3455 / N3350 / Atom® x5-E3940 processor on board
•Fanless and quiet design
•Aluminum front bezel
•Supports 5-wire resistive touchscreen
•Optional Wireless LAN module
•Optional mSATA module
•Fanless and quiet design
•Aluminum front bezel
•Supports 5-wire resistive touchscreen
•Optional Wireless LAN module
•Optional mSATA module
| System | |
| CPU Support |
Intel® Celeron® J3455, N3350 processor Intel® Atom® x5-E3940 processor |
| Chipset | Intel® SoC |
| Memory Support | 1 x DDR3L 1600/1866 memory up to 8GB (non-ECC) |
| Storage | 1 x 2.5" SATA III HDD or SSD |
| Expansion Slot |
1 x full-sized mSATA slot (with SATA and USB signal) 1 x full-sized mPCIe slot (with PCIe and USB signal) |
| Front Bezel | Aluminum |
| IP65 | Yes (for front panel only) |
| Power Input | DC In 12V only |
| Watchdog | 1~255 second watchdog timer selectable |
| Operating System | Windows 10 64bit / Ubuntu17.04 (kernel: 4.4) |
| Dimensions (W x H x D) | 324 x 253 x 71 mm (12.75" x 9.96" x 2.8") |
| System Weight | 3.55 kg |
| Mounting Support | VESA 75 |
| Certification | FCC / CE |
| I/O Ports | |
| USB |
2 x USB 3.0 |
| Audio | 1 x Line-out |
| DP Port | 1 x DP1.2, resolution: up to 4096 x 2160 @60Hz |
| LAN | 1 x GbE LAN (supports Wake-On-LAN) |
| Serial Port |
2 x COM ports COM 1: RS232 COM 2: RS232/422/485 (selectable under BIOS) |
| Display | |
| LCD | 12.1" TFT LCD (LED) resolution 1024 x 768 |
| Touchscreen | 5-wire Analog resistive (USB interface) |
| Environment | |
| Operating Temp. (Ambient with airflow) |
HDD: 0°C~45°C (32°F~113°F) SSD: 0°C~55°C (32°F~131°F) |
| Storage Temp. |
-20°C~80°C (-4°F~176°F)
|
| Humidity | 20%~90% |

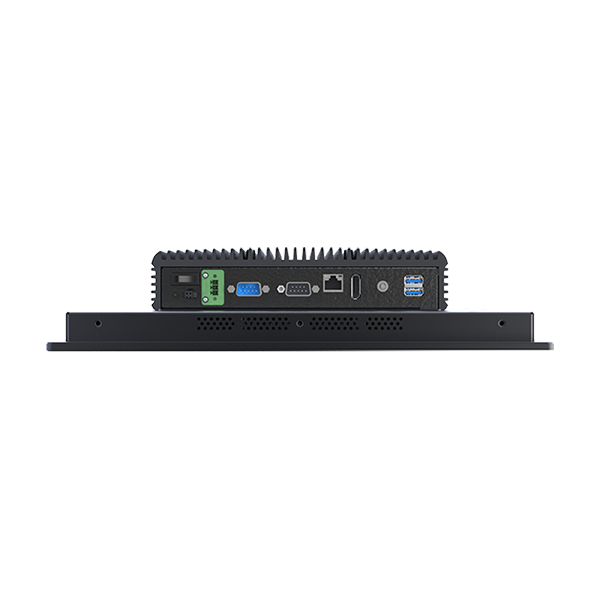

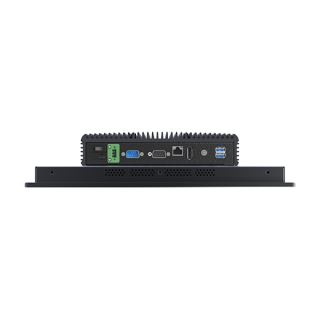

SP-C121 IO
SP-C121 Dimensions
| SP-C121 |
Intel® Apollo Lake Platform SoC Fanless and Low Power 12.1" Flat Touch Panel PC |
| File type | File Download |
| EDM | SP-C121_EDM |
| Pictures | SP-C121_Pictures.ZIP |
| Manual | SP-C121_Manual.PDF |
| QuickGuide | SP-C121_QuickGuide.PDF |
| Driver README | SP-C121_README.PDF |
| BIOS | SP-C121_BIOS.ZIP |
| Device | |
| Platform | SP-C121_Platform.ZIP |
| Other | SP-C121_Other.ZIP |
