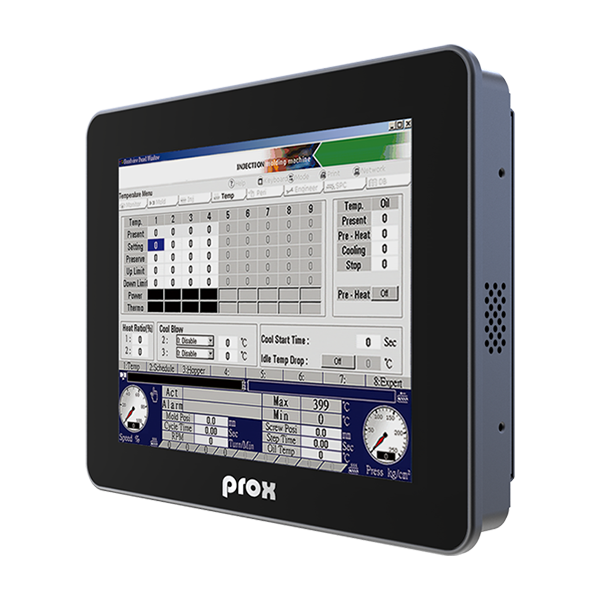

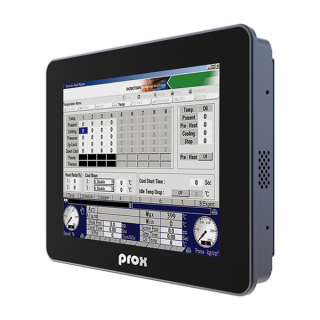

  • SP-C085_front_45

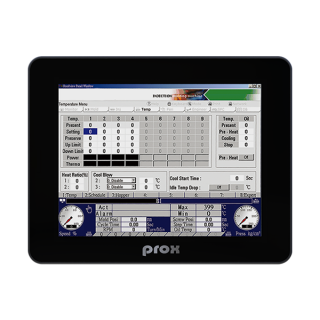

  • SP-C085_front

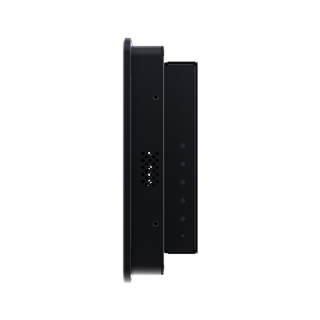

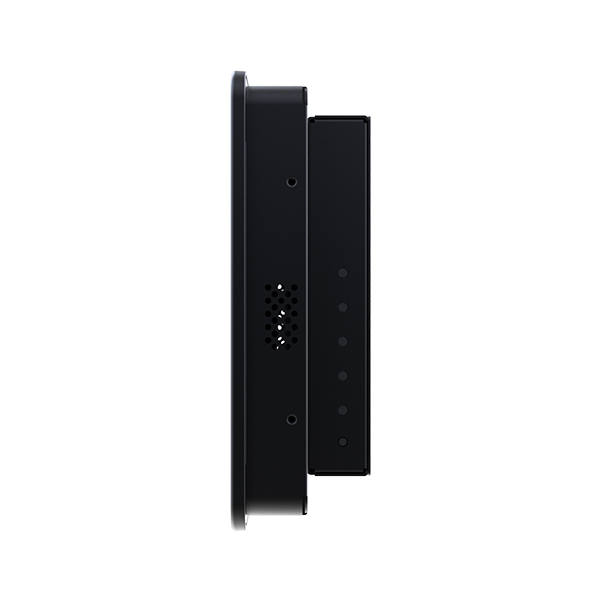

  • SP-C085_side

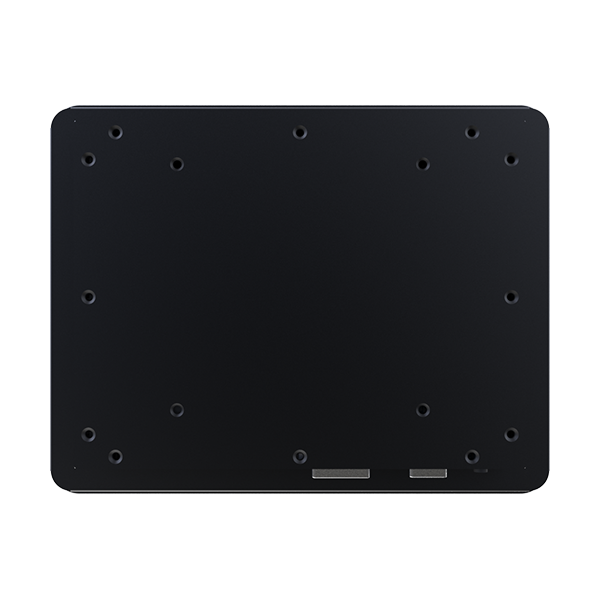

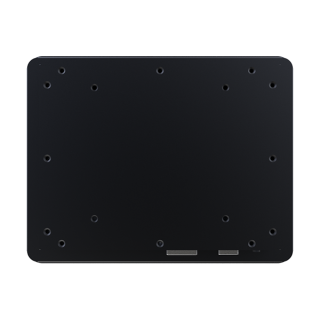

  • SP-C085_back

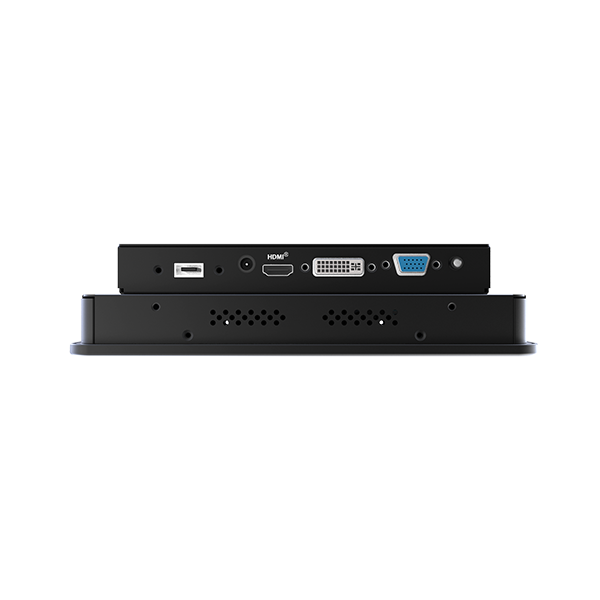

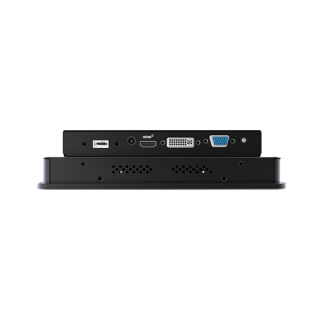

  • SP-C085_IO
  • SP-C085_front_45
  • SP-C085_front
  • SP-C085_side
  • SP-C085_back
  • SP-C085_IO
SP-C085_front_45 SP-C085_front SP-C085_side SP-C085_back SP-C085_IO

SP-C085

8.4" VESA Mount / Wall Mount Standalone Touch Monitor
•IP65 (front) with Aluminum bezel
•Operating temperature -20°C~60°C
•Modularized I/O: VGA + DVI-D + HDMI®
•Wall mount / VESA 100 mounting
 Customer (2nd) Display 8.4" SVGA LCD (600 cd/m²)
 Display Resolution
800 x 600 (SVGA)
 Dimensions (Panel)

225 x 177 x 49 mm (W x H x D)
 Viewing Angle Horizontal -80°~80°, Vertical -80°~70°
  I/O Ports VGA
DVI-I cable (support DVI-D signal only)
HDMI®
USB (touch connection)
 Power Supply
 Type DC12V/3.3A/40W/ϕ 2.5 power adapter
 AC Input 90~264 Vac, 47-63 Hz
 Environment
 EMC & Safety  CE
 Operating Temp.  -20°C~60°C (-4°F~140°F)
 Storage Temp  -30°C~70°C (-22°F~158°F)
 Humidity  5%~95%

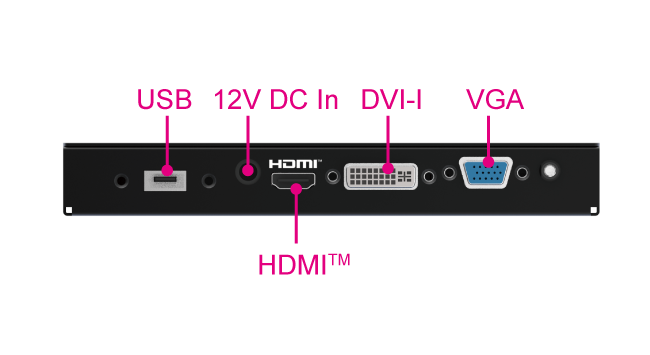

SP-C085 IO

SP-C085 IO

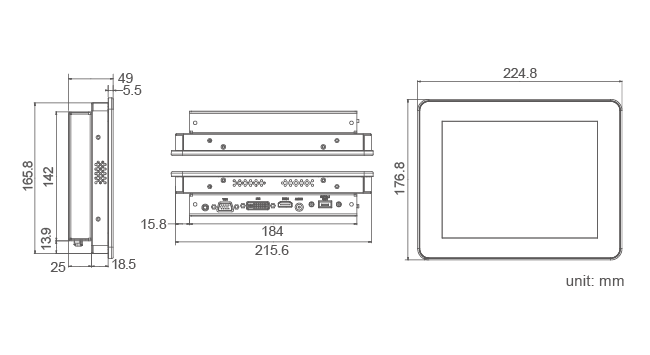

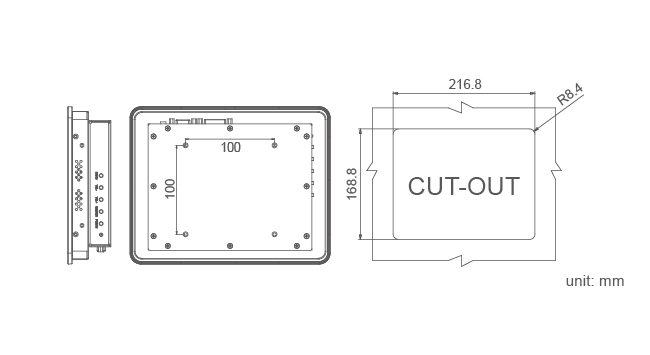

SP-C085 Dimensions
