SP-7256

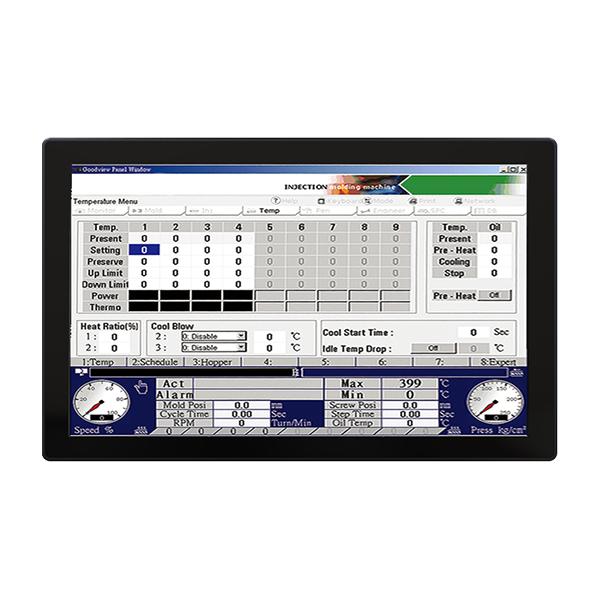

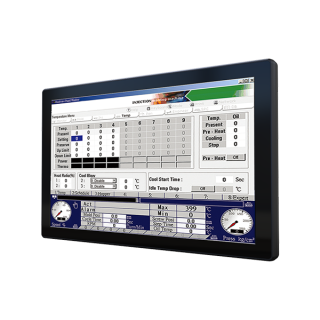

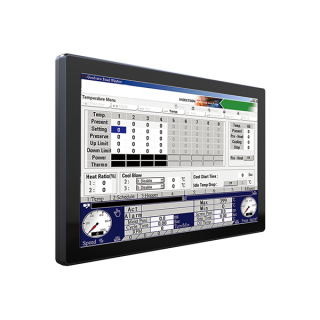

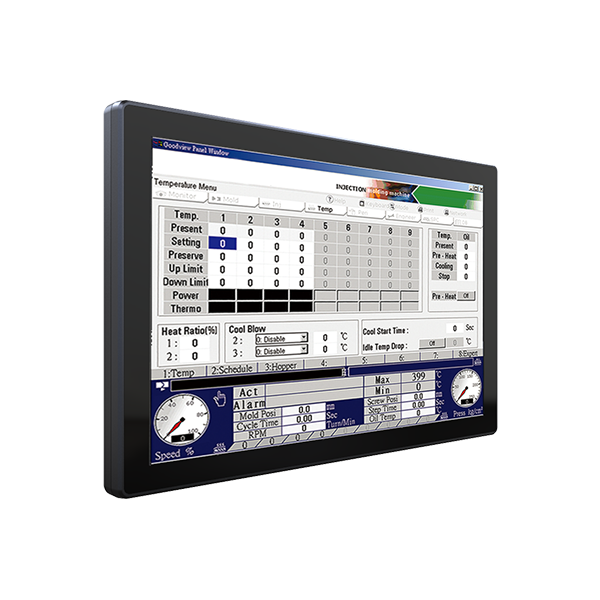

Intel® Pentium® N4200 / Celeron® N3350 / J3455 Slim and Fanless 15.6" Panel PC

•Intel® Pentium® N4200 / Celeron® N3350 / J3455 processor
•Slim and fanless design
•Aluminum die casting back cover
•15.6" wide display and true flat touchscreen
•HDD easy maintenance design

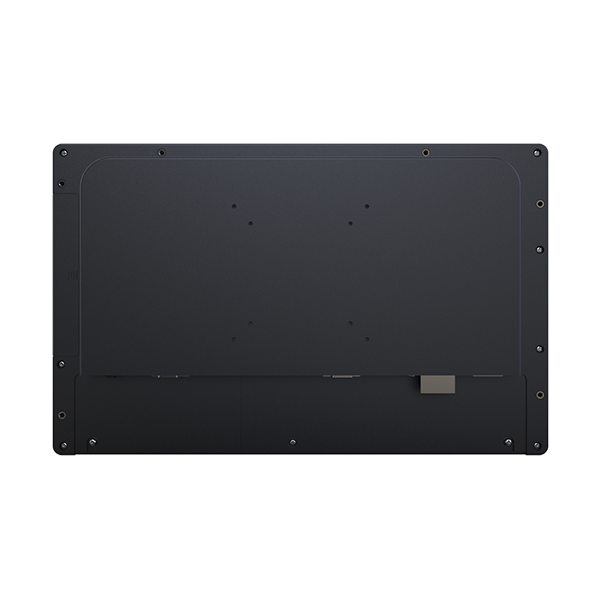

•Wall mountable VESA 75 x 75 / 100 x 100 standard
•Optional MSR

Tech Spec
Product Info
Download

System
CPU Support		Intel® Pentium® N4200 processor Intel® Celeron® N3350 processor Intel® Celeron® J3455 processor
Chipset		Intel® SoC
Memory Support		1 x DDR3L 1600/1867MHz SO-DIMM socket (up to 8G) (non-ECC)
Front Bezel		Plastic
Power Input		DC In 12V / 16~24V
Power Adapter		24V, 60W
Watchdog		1~255 seconds watchdog timer selectable
Operating System		Windows 10 IoT LTSB 2016 / Ubuntu 16.04
Dimensions (W x H x D)		391 x 250 x 48 mm
System Weight		3.2 kg
Mounting Support		Wall mount / VESA 75 / VESA 100 / Panel mount
Certification		FCC / CE
I/O Ports
Power Input		4 pin DC power jack, supporting 12V/24V DC In

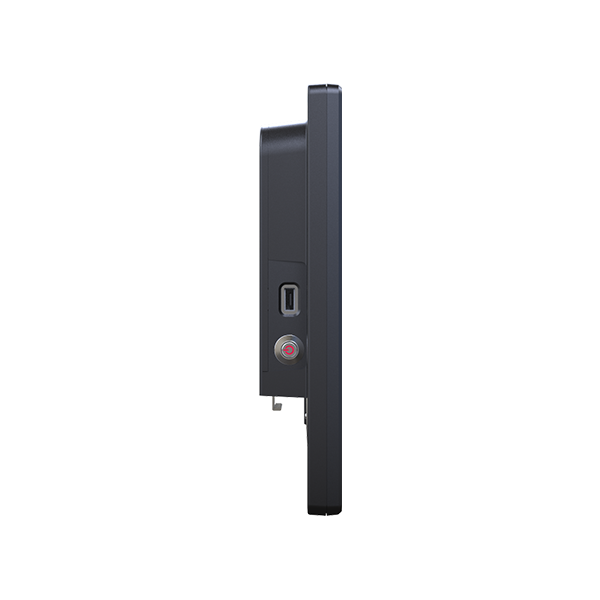

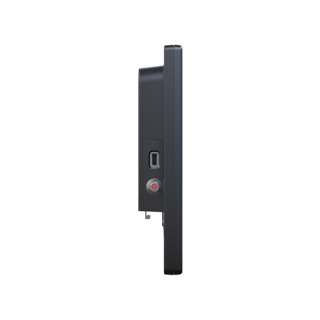

Power On/Off		1 x power on/off button on side bezel
USB		1 x USB 2.0 on side bezel 4 x USB 3.0
Audio		1 x Line Out / 1 x Mic In
Serial Port		1 x COM port COM 1 for RS232
DIO		4 in / 4 out
LAN		2 x GbE LANs supports Wake-On-LAN LAN 1: Intel® I210IT LAN 2: Intel® I210IT
Display		1 x HDMI®
Storage		1 x 2.5" SATA III HDD
Expansion Slot		1 x full-sized Mini PCIe slot (Mini PCIe and USB signal)
Display
LCD		15.6" TFT LCD (LED) resolution WXGA 1366 x 768
Touchscreen		Projected capacitive touchscreen (USB interface)
Environment
Operating Temp. (Ambient with airflow)		0°C~40°C (32°F~104°F)
Storage Temp.		-20°C~80°C (-4°F~176°F)
Humidity		20%~90%

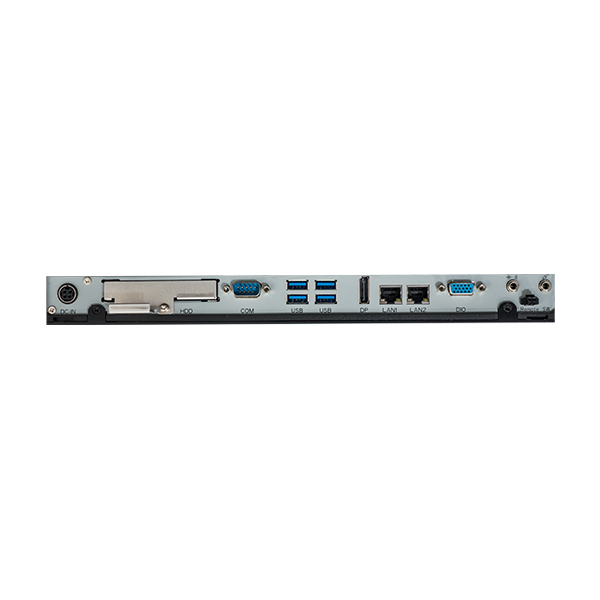

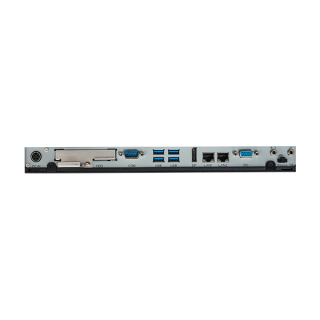

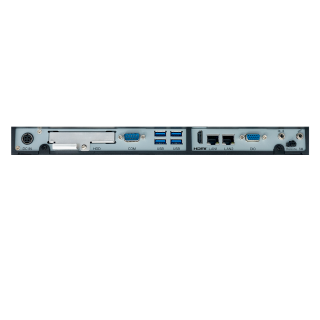

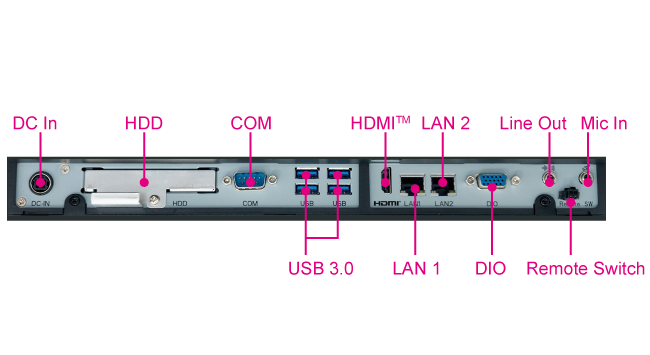

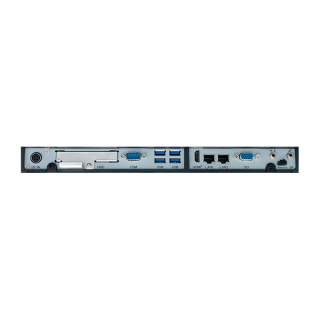

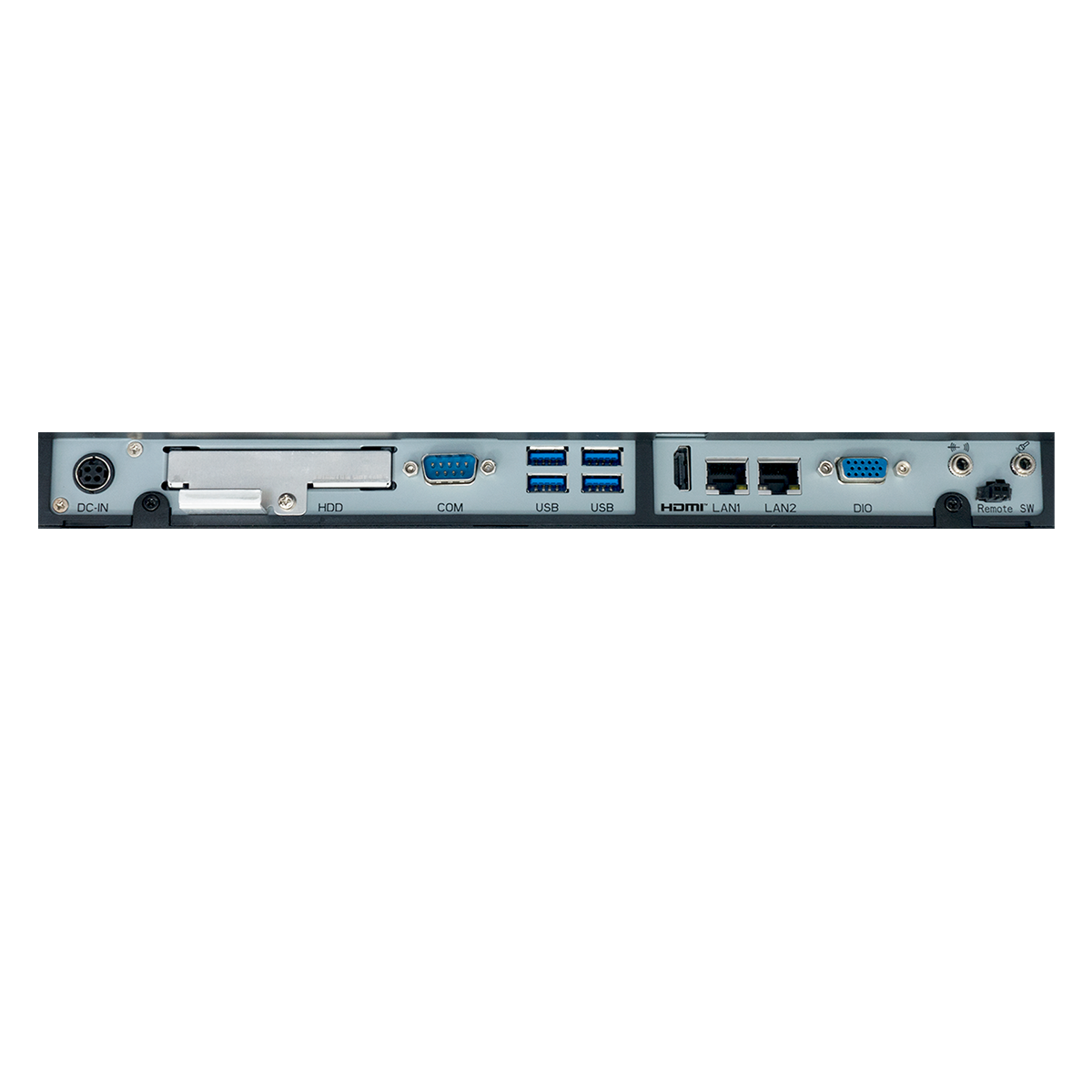

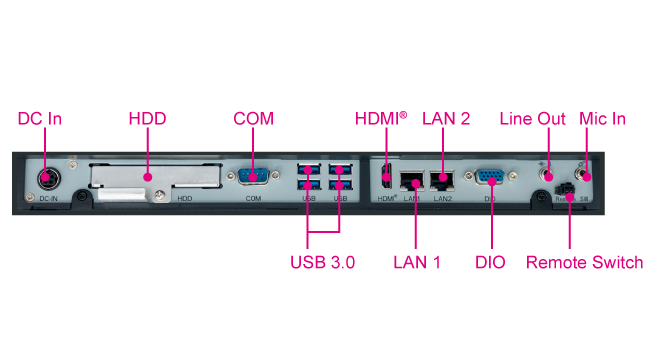

SP-7256 IO

SP-7256 Dimensions

SP-7256	Intel^®Pentium^® N4200 / Celeron^® N3350 / J3455 Slim and Fanless 15.6" Panel PC
File type	File Download
EDM	SP-7256_EDM.PDF
Pictures	SP-7256_Pictures.ZIP
Manual	SP-7256_Manual.PDF
QuickGuide	SP-7256_QuickGuide.PDF
Driver README	SP-7256_README.PDF
BIOS	SP-7256_BIOS.ZIP
Device	SP-7256_Device.ZIP
Platform	SP-7256_Platform.ZIP
Other	SP-7256_Other.ZIP
