SP-6565
•2 x DDR4 2133MHz SO-DIMM memory up to 32GB
•2 x 2.5" SATA III HDD/SSD with RAID 0/1 (Q170)
•2 x Mini PCIe slots, 1 x PCIe (x4) slot (Q170)
•2 x GbE LAN, PoE as option
•Wide-ranged voltage DC In 9~36V
•Front panel IP65 design
•Aluminum front bezel
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
|
System |
||
| CPU Type |
Core™ i7-6700TE, Quad Core, 2.4GHz, 8M cache Core™ i5-6500TE, Quad Core, 2.3GHz, 6M cache Core™ i3-6100TE, Quad Core, 2.7GHz, 4M cache Pentium® G4400TE, Dual Core, 2.4GHz, 3M cache Celeron® G3900TE, Dual Core, 2.3GHz, 2M cache |
|
| Chipset | Intel® Q170/H110 | |
| Memory Support |
2 x DDR4 2133MHz SO-DIMM sockets (up to 32GB) |
|
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Storage |
2 x 2.5" SATA HDD/SSD (support RAID 0/1 in Q170 SKU only)
|
|
| Front Bezel | Aluminum | |
| IP65 | Yes (for front panel only) | |
| Power Input | DC In 9~36V | |
| Operating System | Windows 10 IoT Enterprise LTSB 2016 64bit / Windows 8.1 (64bit) / Windows 7 (64bit) / Ubuntu 16.04 LTS / Linux Ubuntu 14.04 (64bit) | |
| Dimensions (W x H x D) | 364.43 x 278.88 x 117.80 mm | |
| System Weight | 10 kg | |
| Mounting Support | Wall mount / VESA 100 / Panel mount | |
| Certifications | FCC / CE | |
| I/O Ports | ||
| Display | 1 x DVI-I (DVI-D+VGA) | |
| USB | 4 x USB 3.0 | |
| Audio | 1 x Line In / 1 x Line Out / 1 x Mic In | |
| LAN |
2 x LAN (PoE IEEE 802.3af optional), Wake-On-LAN, PXE LAN 1: Intel® PHY 219LM (10/100/1000 Mbps) LAN 2: Intel® LAN 210AT (10/100/1000 Mbps) |
|
| Serial Ports |
COM 3/4 for RS232 COM 1/2 for RS232/422/485 (selectable under BIOS) [COM 1/2 for +5V/+12V/RI selectable by jumper] |
|
| Storage |
2 x 2.5" SATA III HDD/SSD drive space |
|
| Digital I/O Port | 8 in / 8 out, DSUB-25 type or 16 pin terminal block (optional) | |
| Expansion Slots |
1 x full-sized Mini PCIe (Mini PCIe, USB and SIM signal) 1 x half-sized Mini PCIe (Mini PCIe and USB signal) 1 x SIM card slot 1 x CFast slot |
|
| Antenna Hole |
3 x antenna holes |
|
| Power On/Off |
1 x power button 1 x remote switch |
|
| LED | 2 x PoE active LED (optional) | |
| I²C Bus | 1 x I²C Bus port (optional) | |
| Display | ||
| LCD |
15" TFT LCD (LED) resolution XGA 1024 x 768
|
|
| Touchscreen |
5-wire resistive touchscreen or projected capacitive touchscreen (USB interface) |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
SSD: (w/o PoE) 0°C~45°C (32°F~113°F) (with PoE) 0°C~40°C (32°F~104°F) |
|
| Storage Temp. |
-20°C~80°C (-4°F~176°F) |
|
| Humidity | 20%~90% | |
SP-6565 IO

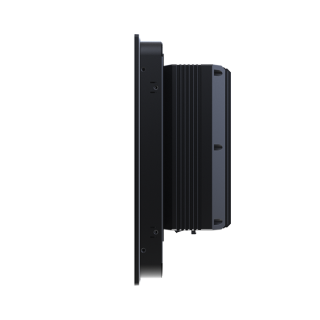

SP-6565 Dimensions
| SP-6565 |

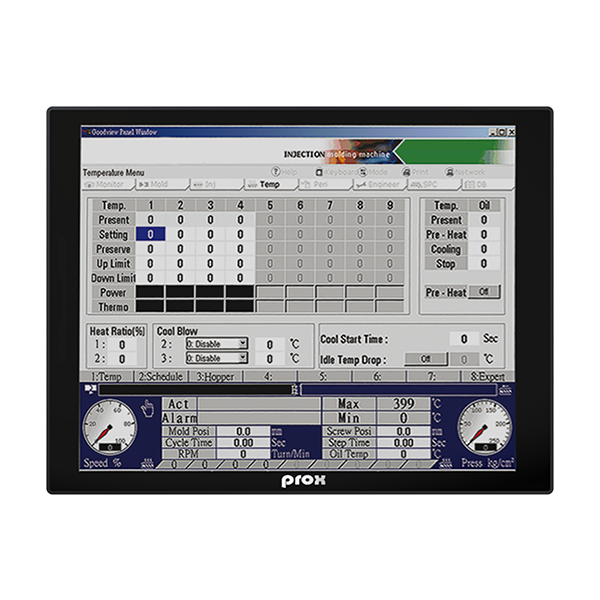

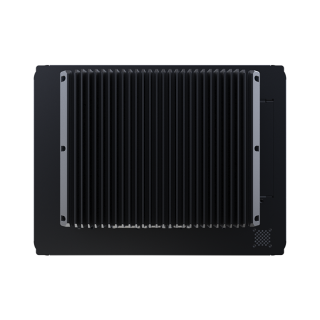

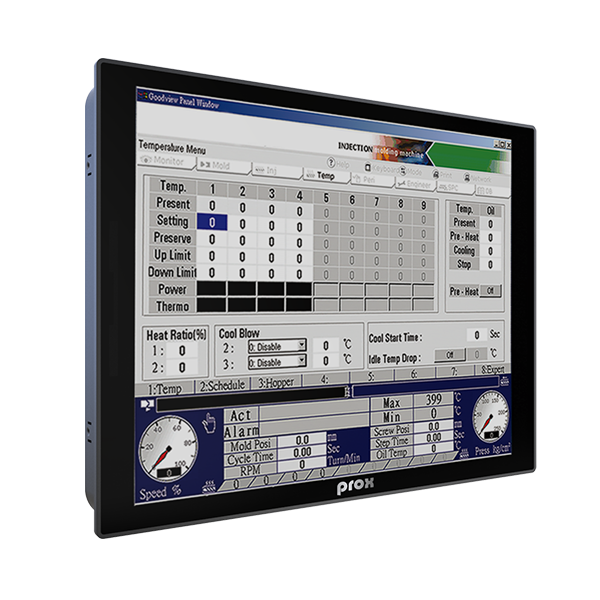

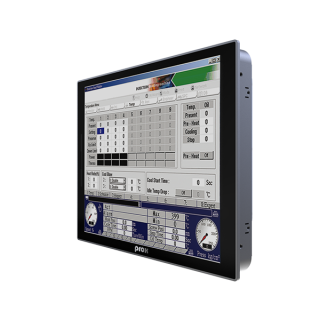

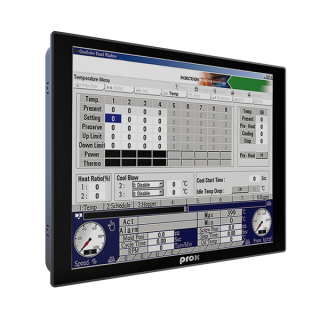

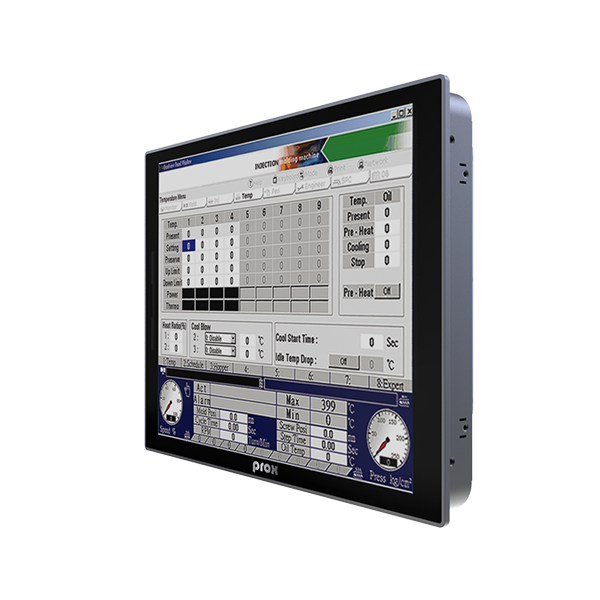

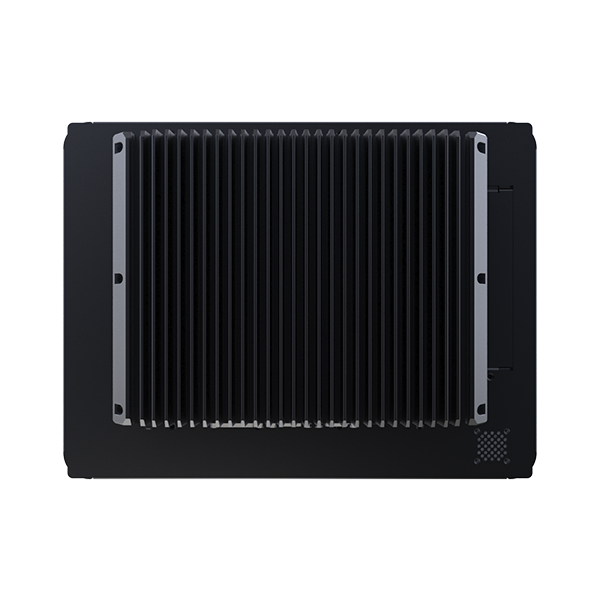

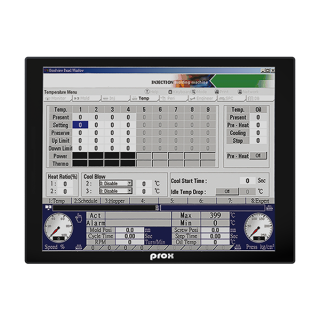

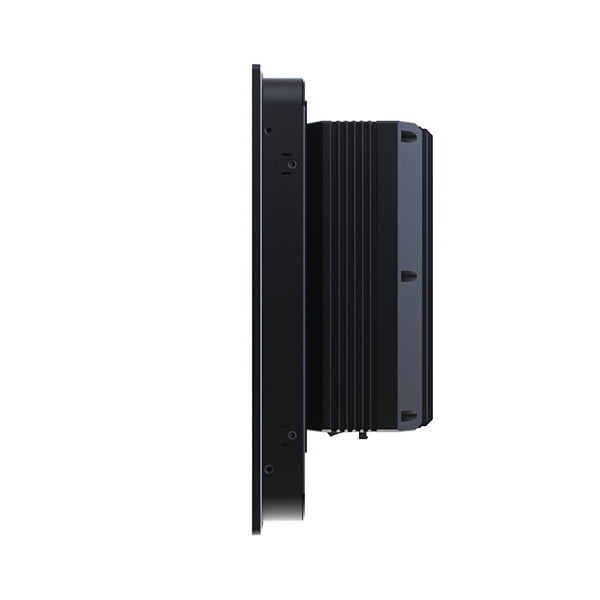

Intel® 7th / 6th Gen. Core™ Fanless and High Performance 15” Flat Panel PC |
| File type | File Download |
| EDM | SP-6565_EDM.PDF |
| Pictures | SP-6565_Pictures.ZIP |
| Manual | |
| QuickGuide | |
| Driver README | |
| BIOS | SP-6565_BIOS.ZIP |
| Device | |
| Platform | |
| Other | SP-6565_Other.ZIP |
