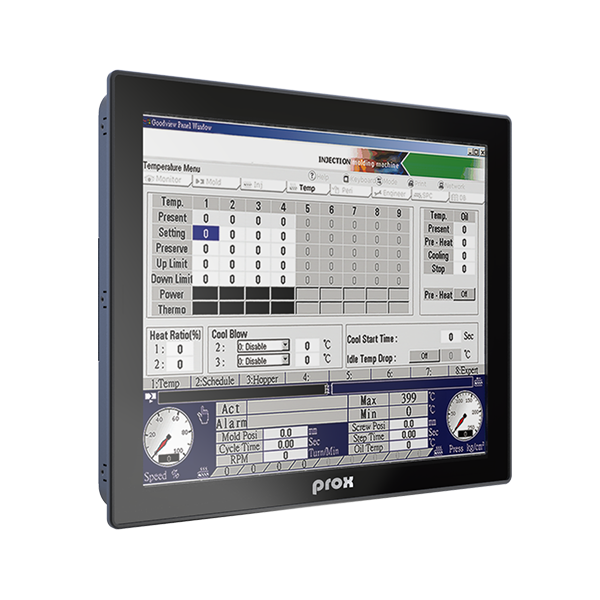

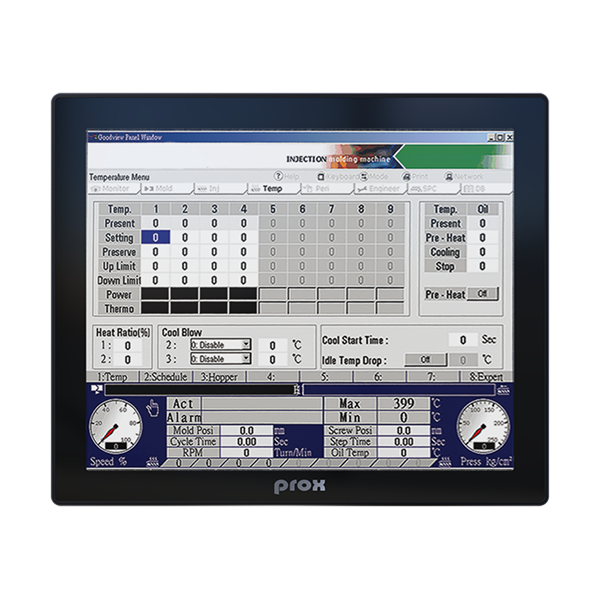

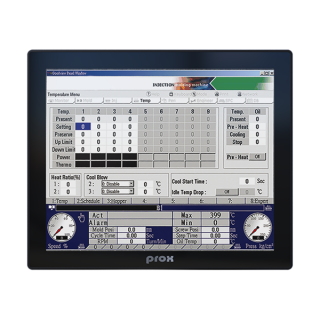

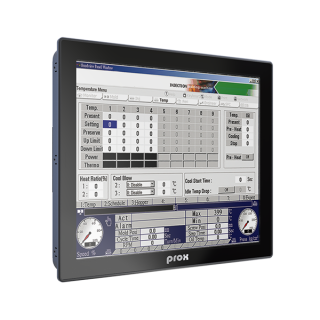

SP-6557-R
17" Intel® Celeron Fanless Panel PC
•Intel® Celeron® J3455
•Fanless and quiet design
•Two or four LAN ports (2 x GIGA LAN with optional 2 x (PoE) GIGA LAN)
•Supports DC 12V and 16~24V power input
•Aluminum front bezel and IP65 design
•5-wire resistive or projected capacitive touchscreen
•Fanless and quiet design
•Two or four LAN ports (2 x GIGA LAN with optional 2 x (PoE) GIGA LAN)
•Supports DC 12V and 16~24V power input
•Aluminum front bezel and IP65 design
•5-wire resistive or projected capacitive touchscreen
|
System |
||
| CPU Type |
Intel® Celeron® J3455 4C, 2.3GHz |
|
| Chipset | Intel® SoC | |
| Memory Support |
1 x DDR3L SO-DIMM socket (up to 8GB) |
|
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Storage |
1 x 2.5" SATA HDD or SSD
|
|
| Front Bezel | Aluminum | |
| Waterproof | IP65 (for front panel only) | |
| Power Input | Supports DC 12V and 16~24V power input | |
| Operating System |
Windows 10 IoT LTSC 2019 64bit / Ubuntu 16.04 LTSB |
|
| Dimensions (W x H x D) | 396 x 329 x 75 mm | |
| System Weight | 7 kg | |
| Mounting Support | Wall mount / VESA 75 / Panel mount | |
| Certifications | FCC / CE | |

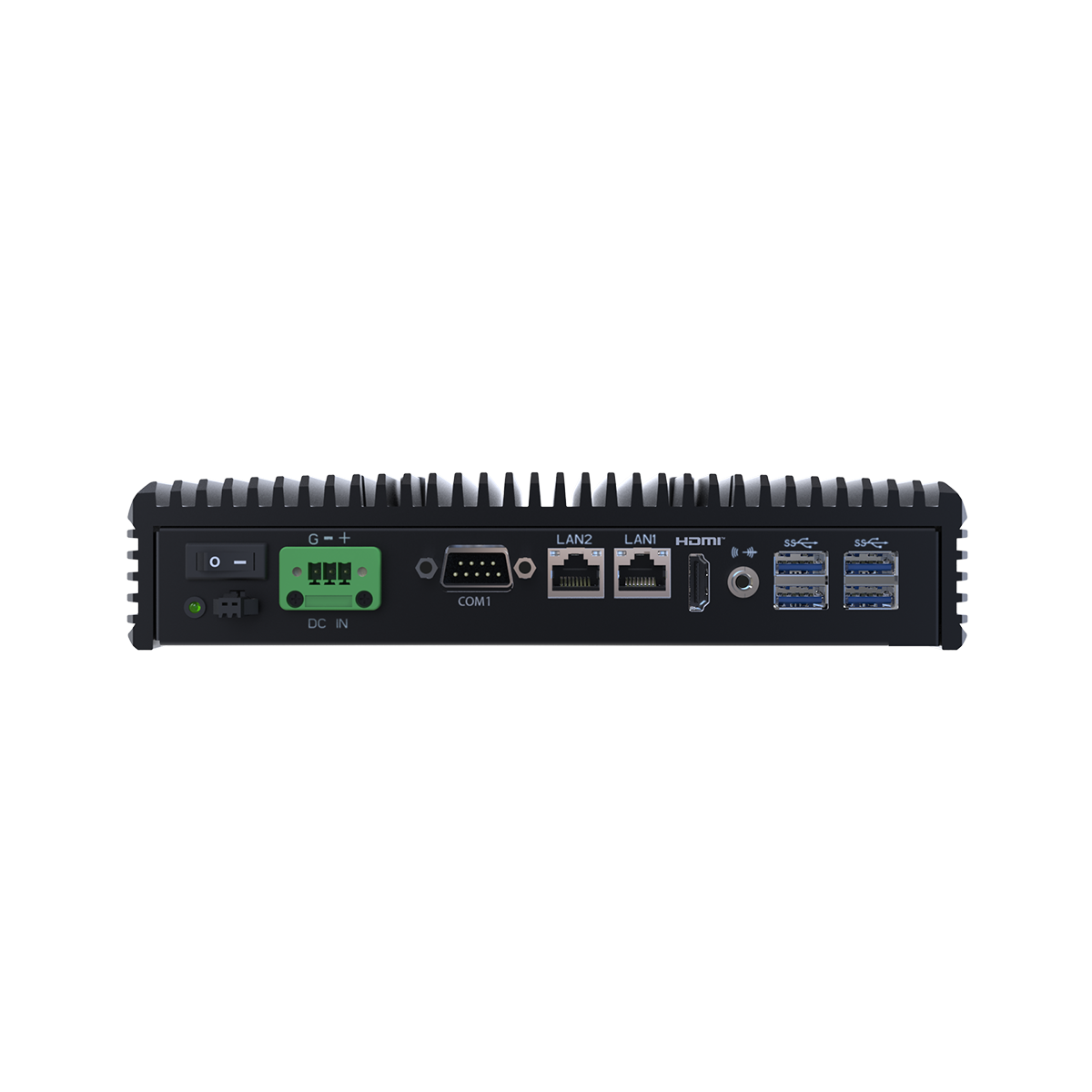

| I/O Ports | ||
| Display | 1 x HDMI® | |
| USB | 4 x USB 3.0 | |
| Audio | N/A | |
| LAN |
Dual LAN (2 x RJ45 on Rear I/O) Supports Wake-On-LAN Controller: 2 x Intel I210-IT ( MAC+PHY, PCIe interface ) |
|
| Serial Ports |
4 ports (internal pin header) COM 1: RS-232 COM 2: RS-232/422/485 selectable under BIOS (Default: RS-232) COM 3: RS-232 w/ RI/5V/12V (Default jumper setting: RI) COM 4: RS-232 w/ RI/5V/12V (Default jumper setting: RI) p/s COM 3/COM 4 current limit 1A @12V |
|
| Storage | 1 x 2.5" SATA III HDD or SSD drive space | |
| Expansion Slots |
1 x full-sized mSATA (with SATA and USB signal) 1 x full-sized mPCIe (with PCle and USB signal) |
|
| Antenna Hole |
4 x antenna holes (Optional Flat antenna) |
|
| Power On/Off |
1 x power button |
|
| LED |
1 x HDD (pin header) 1 x power LED (pin header) |
|
| Display | ||
| LCD |
17" 300nits SXGA TFT LCD (LED)
|
|
| Touchscreen |
5-wire resistive touchscreen / Projected capacitive touchscreen |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
0°C~60°C (32°F~140°F)
|
|
| Storage Temp. |
-40°C~85°C (-40°F~185°F) |
|
| Humidity | 10%~90% | |

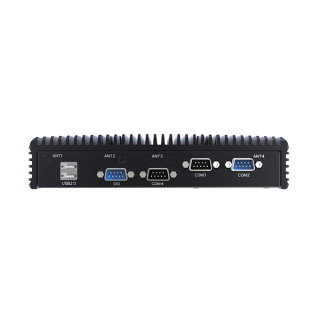

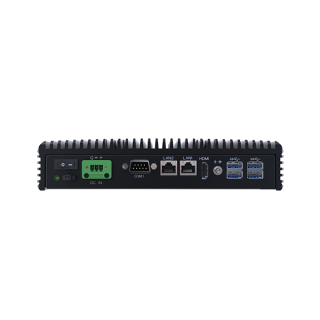

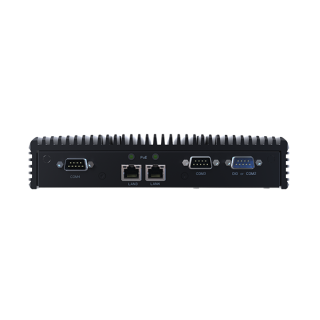

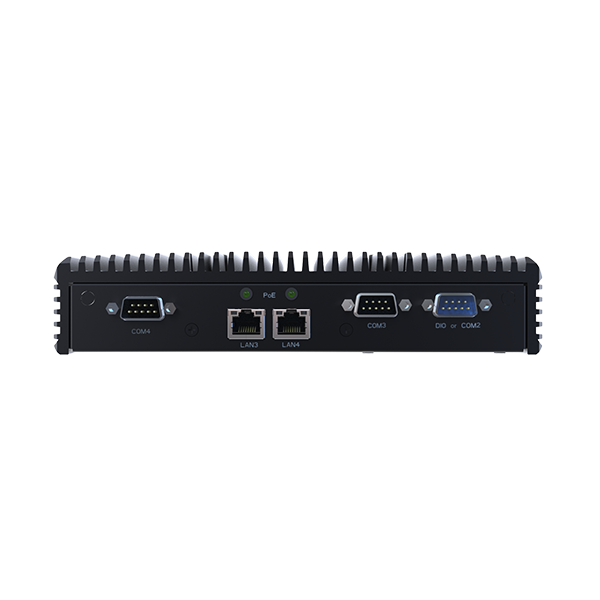

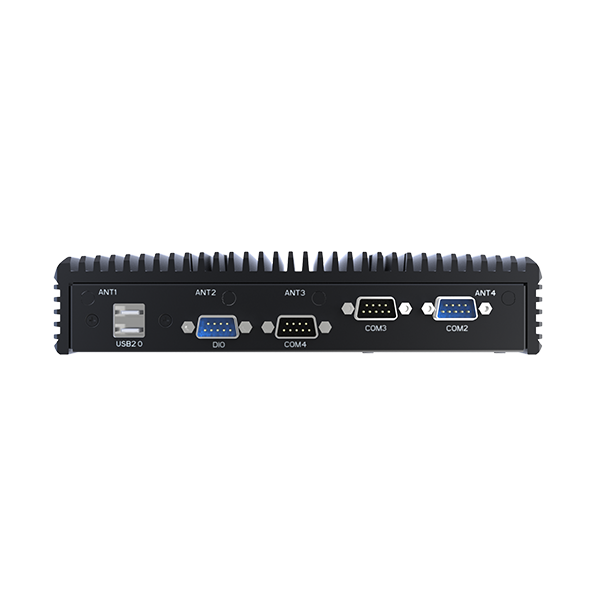

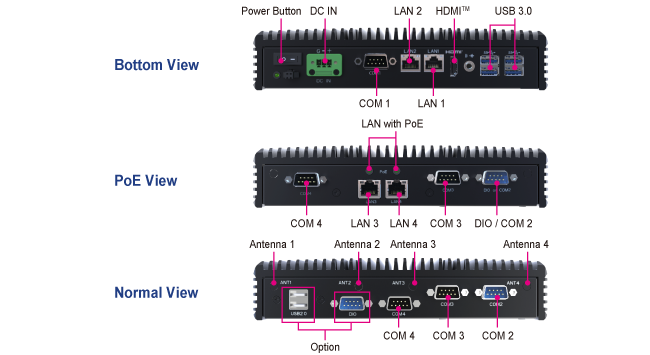

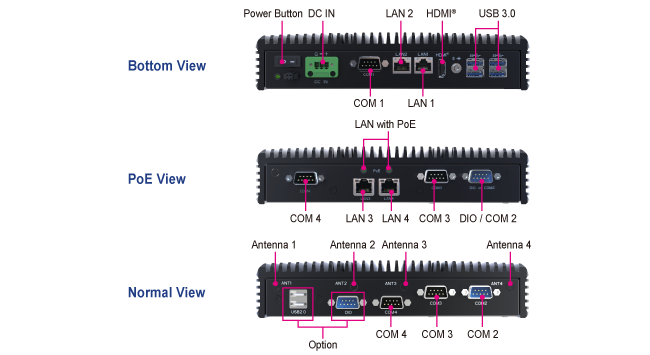

SP-6557-R IO

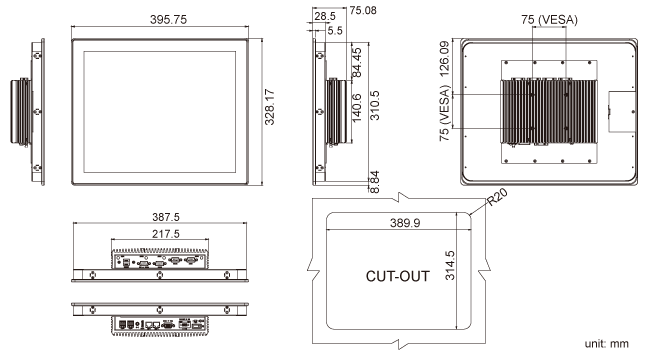

SP-6557-R Dimensions
