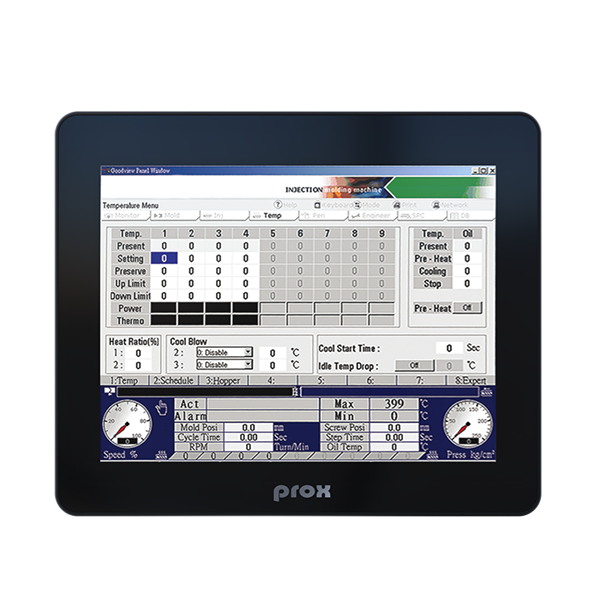

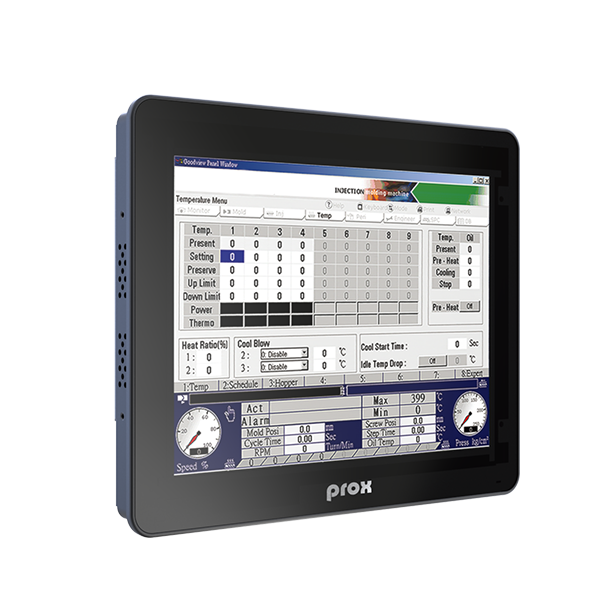

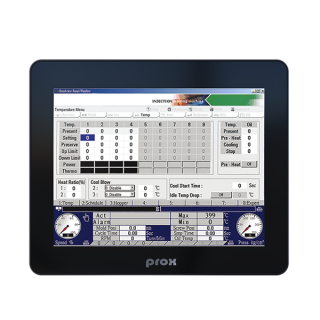

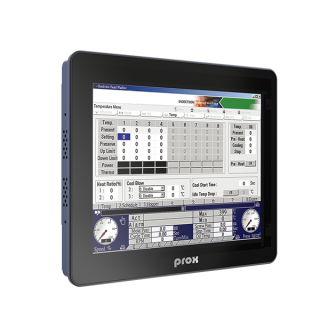

SP-6550-R

10.4" Intel® Celeron Fanless Panel PC
•Intel® Celeron® N3350 / Celeron® J3455
•Fanless and quiet design
•Two or four LAN ports (2 x GIGA LAN with optional 2 x (PoE) GIGA LAN)
•Supports DC 12V and 16~24V power input
•Aluminum front bezel and IP65 design
•5-wire resistive or projected capacitive touchscreen

 System
 CPU Type

Intel® Celeron® N3350 2C, 2.4GHz

Intel® Celeron® J3455 4C, 2.3GHz
 Chipset Intel® SoC
 Memory Support

1 x DDR3L SO-DIMM socket (up to 8GB)
 Watchdog
1~255 seconds watchdog timer selectable
 Storage
1 x 2.5" SATA HDD or SSD
 Front Bezel Aluminum
 Waterproof IP65 (for front panel only)
 Power Input Supports DC 12V and 16~24V power input
 Operating System

Windows 10 IoT LTSC 2019 64bit / Ubuntu 16.04 LTSB
 Dimensions (W x H x D) 260 x 216 x 74 mm
 System Weight 4 kg
 Mounting Support Wall mount / VESA 75 / Panel mount
 Certifications FCC / CE
 I/O Ports
 Display 1 x HDMI®
 USB 4 x USB 3.0
 Audio N/A
 LAN

Dual LAN (2xRJ45 on Rear I/O) Supports Wake-On-LAN

Controller: 2 x Intel I210-IT (MAC+PHY, PCIe interface)
 Serial Ports

4 ports (internal pin header)

COM 1: RS-232

COM 2: RS-232/422/485 selectable under BIOS (Default: RS-232)

COM 3: RS-232 w/ RI/5V/12V (Default jumper setting: RI)

COM 4: RS-232 w/ RI/5V/12V (Default jumper setting: RI)

p/s COM 3/COM 4 current limit 1A @12V
 Storage

1 x 2.5" SATA III HDD or SSD drive space
 Expansion Slots

1 x full-sized mSATA (with SATA and USB signal)

1 x full-sized mPCIe (with PCle and USB signal)
 Antenna Hole

4 x antenna holes(Optional Flat antenna)
 Power On/Off

1 x power button
 LED

1 x HDD (pin header)

1 x power LED (pin header)
 Display
 LCD

10.4” 350nits XGA TFT LCD (LED), optional 1200nits XGA TFT LCD
 Touchscreen

5-wire resistive touchscreen / Projected capacitive touchscreen
 Environment
 Operating Temp.
(Ambient with airflow)

0°C~60°C (32°F~140°F)
 Storage Temp.

-40°C~85°C (-40°F~185°F)
 Humidity 10%~90%

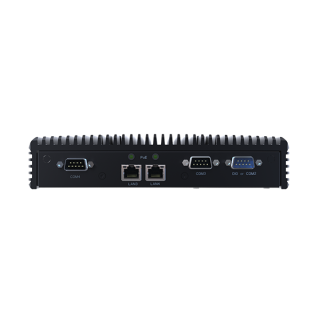

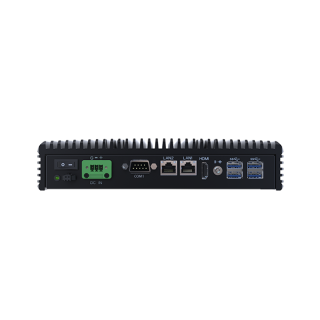

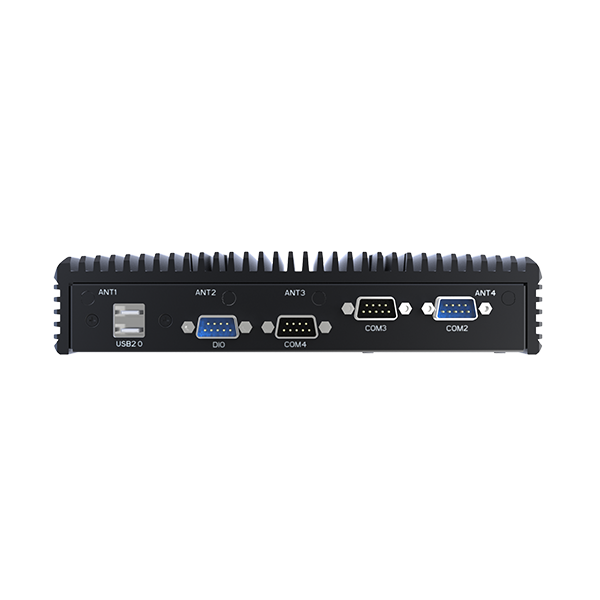

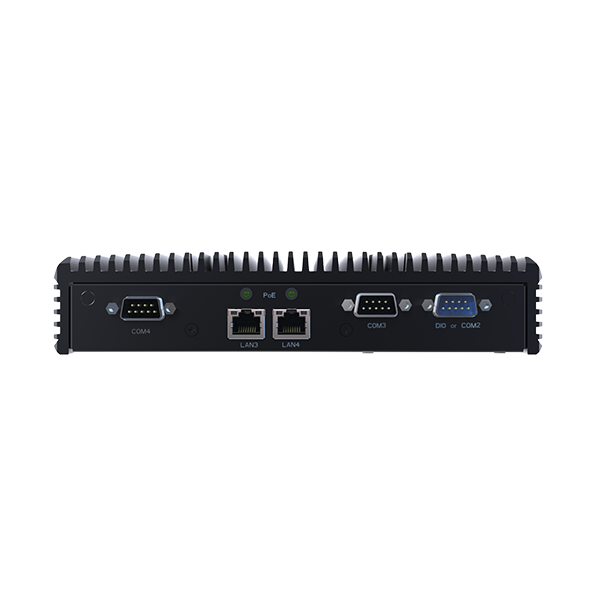

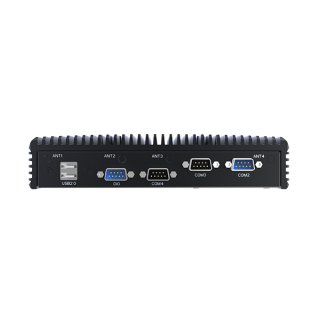

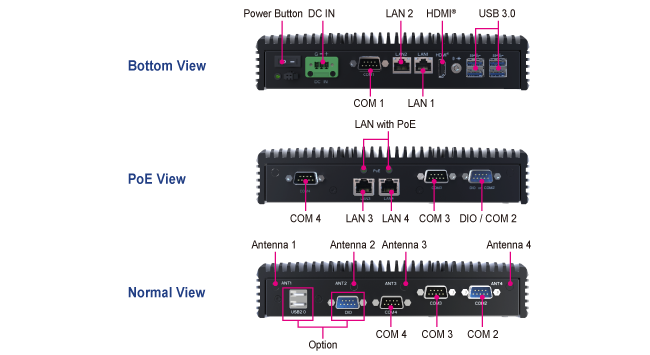

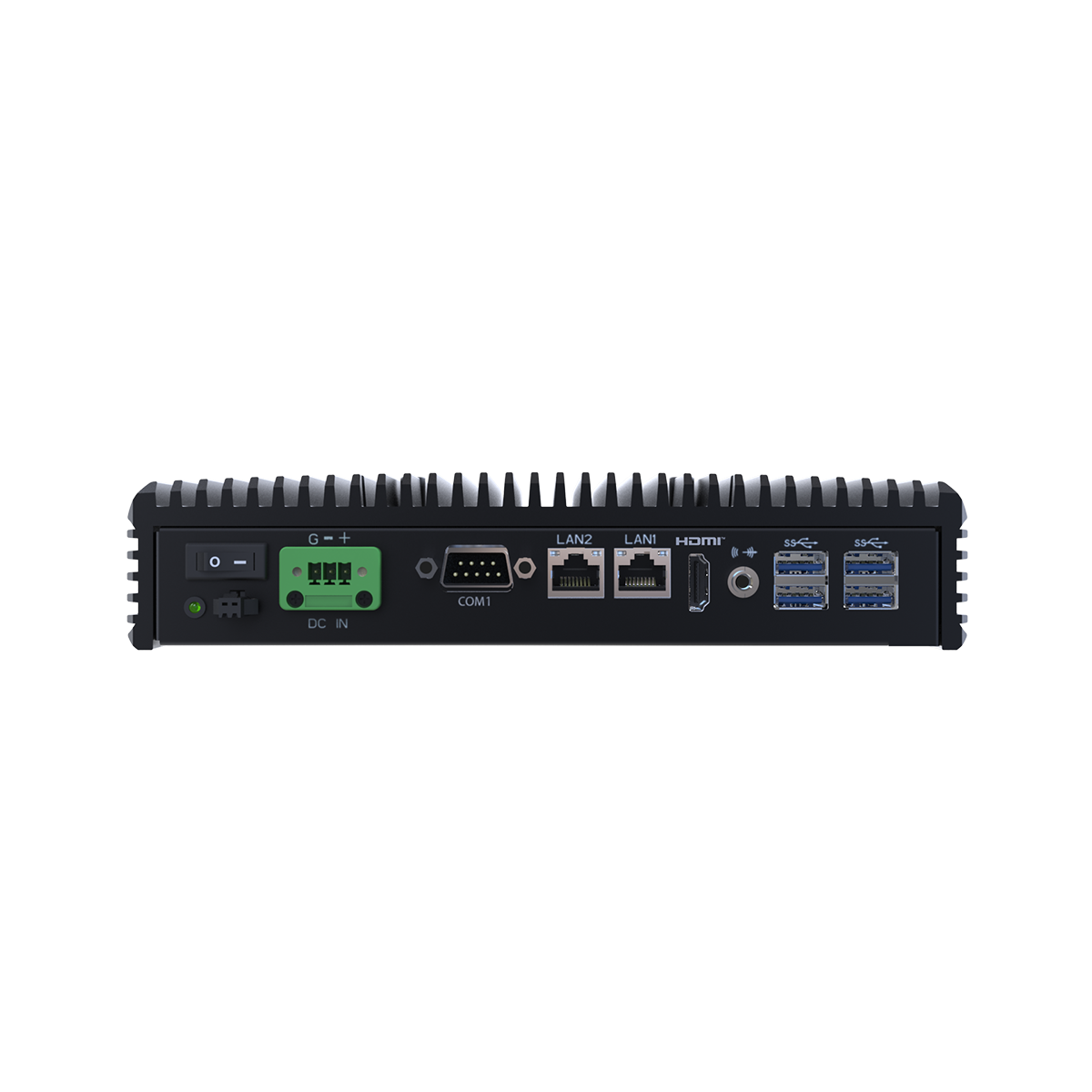

SP-6550-R IO

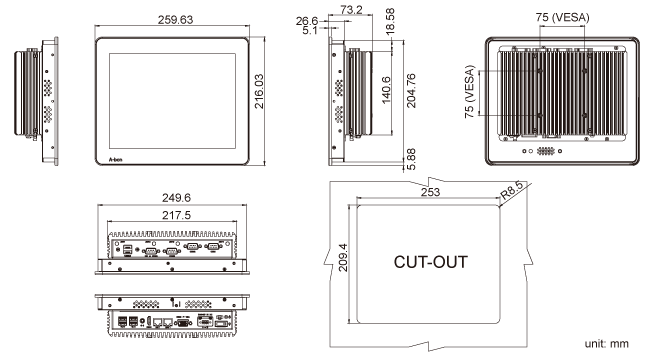

SP-6550-R Dimensions


 SP-6550-R

10.4" Intel® Celeron Fanless Panel PC
 File type File Download
 EDM SP-6550-R_EDM.PDF
 Pictures SP-6550-R_Pictures.ZIP
 Manual
SP-6550-R_Manual.PDF
 QuickGuide
SP-6550-R_QuickGuide.PDF
 Driver README
SP-6550-R_README.PDF
 BIOS SP-6550-R_BIOS.ZIP
 Device
SP-6550-R_Device.ZIP
 Platform
SP-6550-R_Platform.ZIP
 Other SP-6550-R_Other.ZIP
