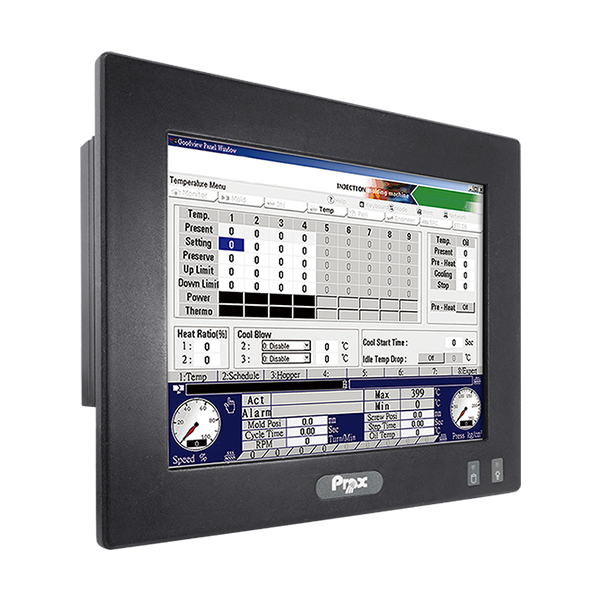

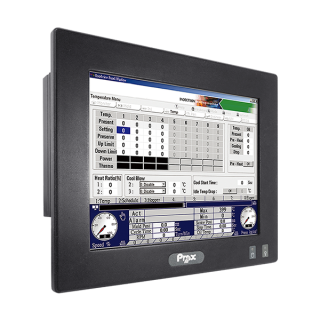

SP-6140
•Fanless and quiet design
•2 x GbE LANs, with PoE as option
•1 x external SD card and 1 x SIM slot
•Optional 3G module
•Optional wireless LAN module
•Supports wide-ranged voltage DC In (12~24V)
•Supports wide-ranged temperature (E3845 only)
•Aluminum front bezel
|
System |
||
| CPU Type |
Intel® Atom® E3845 / J1900 processor |
|
| Chipset | Intel® SoC | |
| Memory Support |
1 x DDR3L SO-DIMM socket (up to 8GB) |
|
| Watchdog |
1~255 seconds watchdog timer selectable
|
|
| Front Bezel | Aluminum | |
| IP65 | Yes (for front panel only) | |
| Power Input | DC In 12~24V | |
| Operating System | Windows 10 IoT LTSB 2016 / Windows 8.1 / WES 8.1 Industry Pro / Windows 7 / WES7 / Ubuntu 14.04 | |
| Dimensions (W x H x D) | 277.6 x 228.8 x 82 mm | |
| System Weight | 3.5 kg | |
| Mounting Support | Wall mount / VESA 75 / VESA 100 | |
| Certifications | FCC / CE | |
| I/O Ports | ||
| Power Input | 1 x 2 pin DC In terminal block, supporting 12~24V DC | |
| Power On/Off | 1 x power on/off button | |
| USB | 2 x USB 2.0 / 1 x USB 3.0 | |
| Audio | 1 x Line Out / 1 x Mic In | |
| Serial Ports |
4 x COM ports (COM 1/2 with RI/5V/12V by jumper setting) COM 1/2 for RS-232/422/485 (selectable under BIOS) COM 3/4 for RS-232 |
|
| LAN with PoE |
2 x GbE LANs with PoE as option, Wake-On-LAN, PXE LAN 1: Intel® I210IT LAN 2: Intel® I210IT 2 x PoE (IEEE 802.3af), max.15.4W for each port |
|
| Display | 1 x DVI-I (DVI-D+VGA) | |
| Storage | 1 x 2.5" SATA II HDD | |
| Expansion Slots |
1 x full-sized Mini PCIe slot (Mini PCIe, USB and SIM signal) 1 x half-sized Mini PCIe slot (Mini PCIe and USB signal) |
|
| SD Card Slot | 1 x external SD card slot with cover | |
| SIM Card Slot | 1 x external SIM card slot with cover (for optional 3G module) | |
| Display | ||
| LCD | 10.4" TFT LCD (LED) resolution XGA 1024 x 768 | |
| Touchscreen | 5-wire resistive touchscreen | |
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
HDD: 0°C~40°C (32°F~104°F) •Wide temp. storage and peripherals: -20°C~55°C (-4°F~131°F) (without Audio and PoE, for E3845 processor) •Wide temp. storage and peripherals: -20°C~50°C (-4°F~122°F) (with PoE, without Audio, for E3845 processor) |
|
| Storage Temp. |
-20°C~80°C (-4°F~176°F) |
|
| Humidity | 20%~90% | |

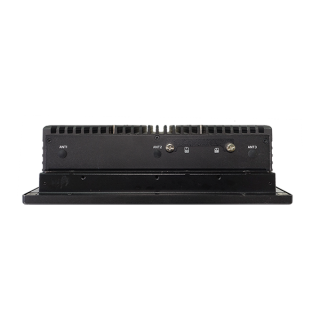

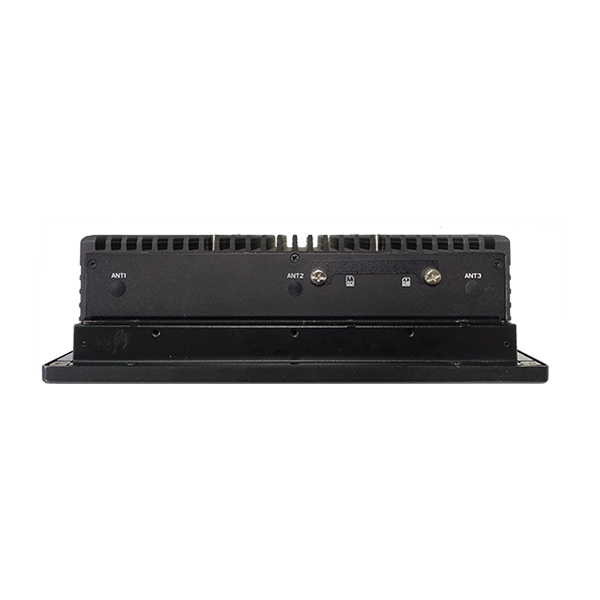

SP-6140 IO
SP-6140 Dimensions
| SP-6140 |
Intel® Atom® E3845 / J1900 Processor Fanless and Low Power 10.4" Panel PC |
