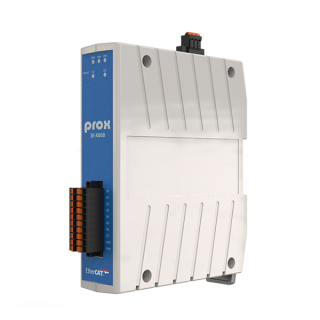

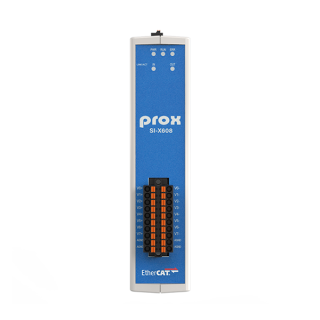

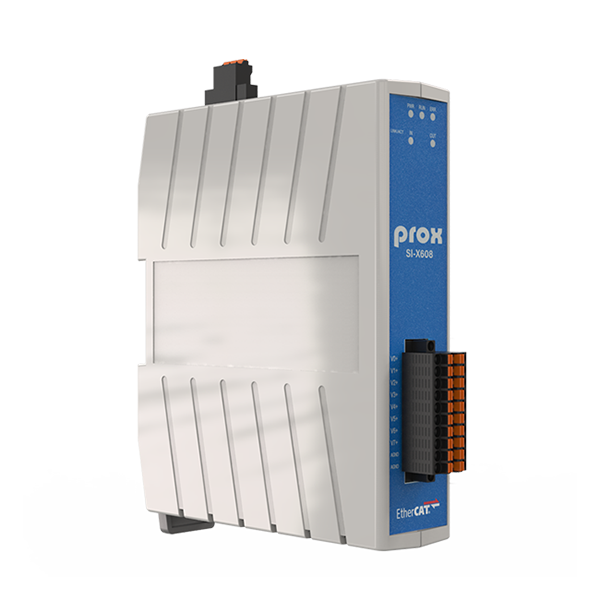

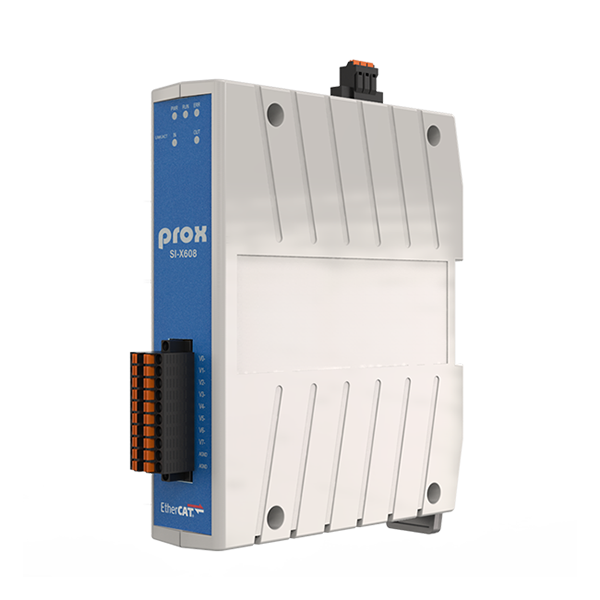

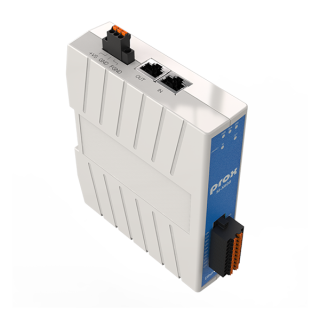

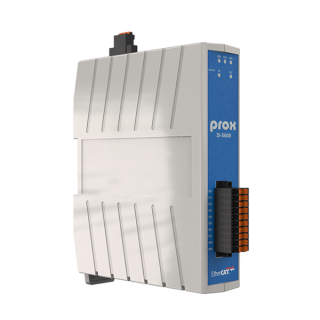

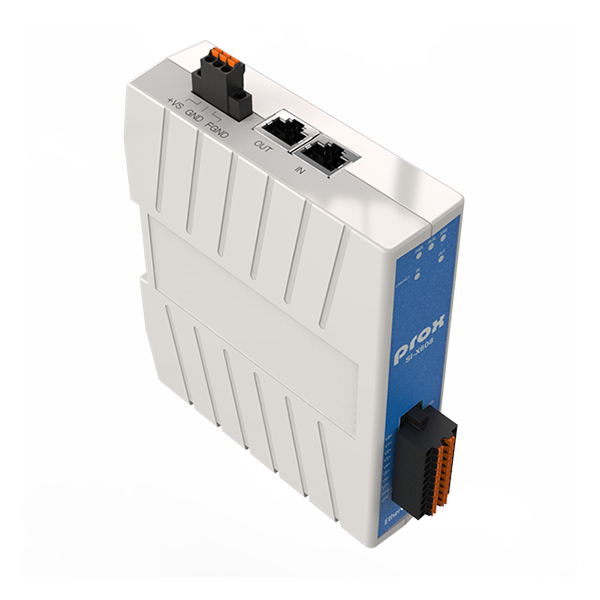

SI-X608

8-Channel Isolated Analog Input EtherCAT Slave I/O Module

•Standard EtherCAT Slave
•8 Channels differential Analog Input
•2 x RJ45 Ethernet Interface
•Support Daisy Chain connection
•Distance between Stations up to 100 m

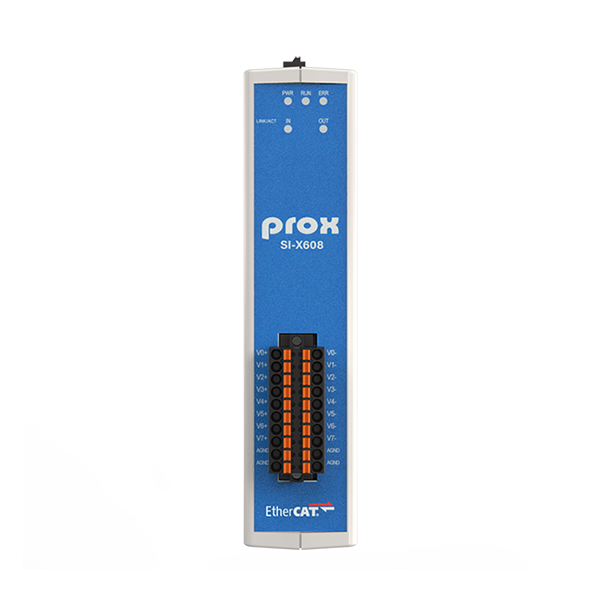

•LED indicators for I/O status
•Support wide operating temperature -25°C~75°C
•Support wide-ranged voltage DC In (9~48V)

Tech Spec
Product Info
Download

System Specifications
Communication Interface
Interface		Ethernet

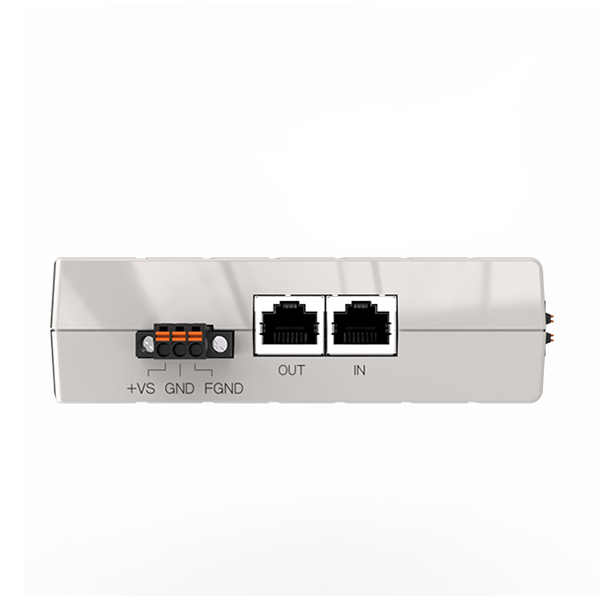

Connector		2 x RJ45 (Support Daisy Chain)
Protocol		EtherCAT
Distance between Stations		Max. 100m, 100 BASE-TX
Power Input
Input Voltage Range		9~48VDC with 3-pin terminal block
System LED Indicator
Power		Green
RUN		Green
Error		Red
LINK/ACT IN/OUT		Green
System Mechanism
System Weight		220 g
Dimensions		139.97 x 116.97 x 33 mm (H x W x D, without connectors)
Installation		DIN-Rail
Certifications		FCC / CE
I/O Specifications
Digital Input
No. of Channel		8
Wire Connection		Differential
Input Type		Voltage, Current (Software Selectable)
Range		0~5V, 0~10V, ±10V, ±5V 0~20mA, ±20mA, 4~20mA
Resolution		16-bit
Sample Rate		1k Hz per channel
Accuracy		< ±0.2% of FSR
Over Voltage Protection		± 35VDC
Environment
Operating Temp. (Ambient with airflow)		-25°C~75°C (-13°F~167°F)
Storage Temp.		-25°C~80°C (-13°F~176°F)
Humidity		20%~90%
