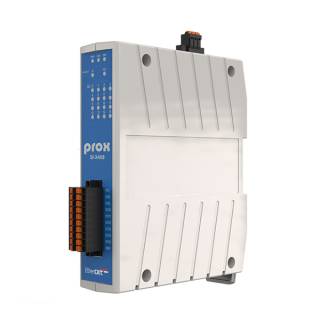

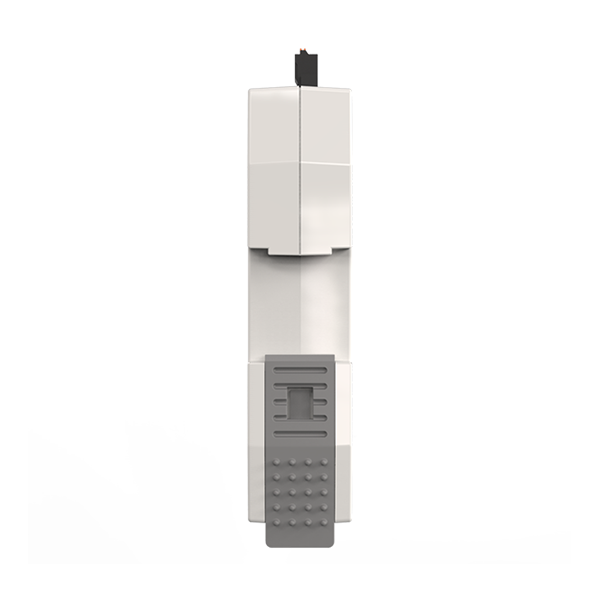

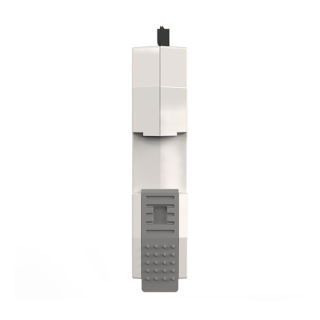

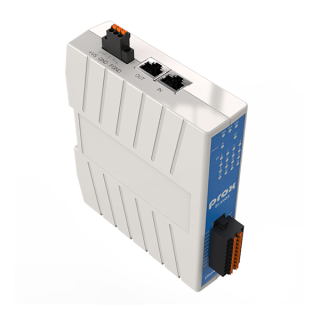

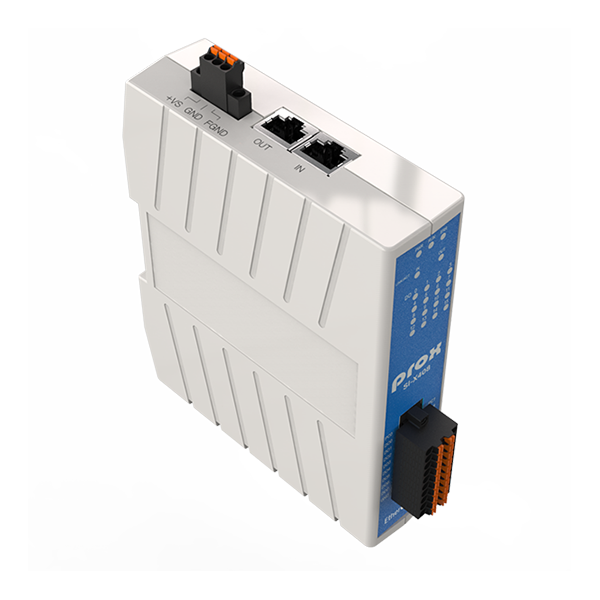

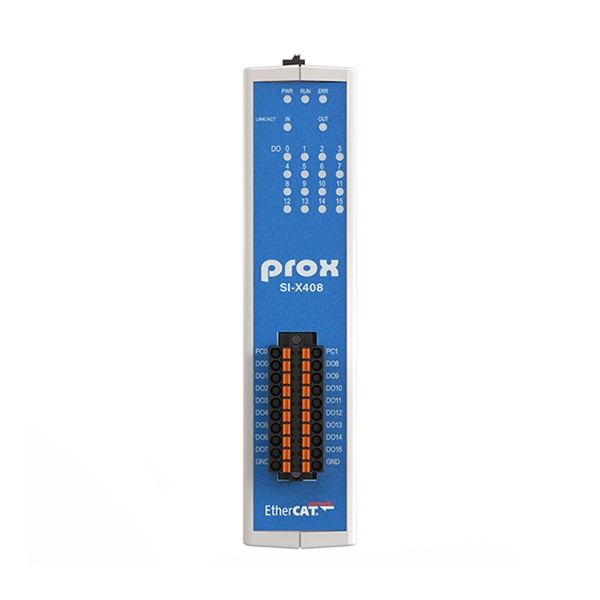

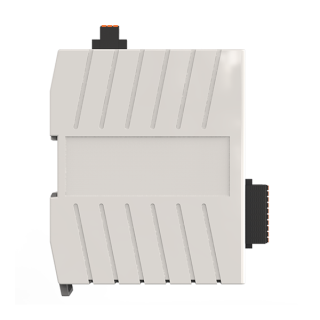

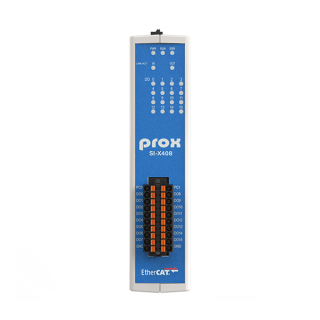

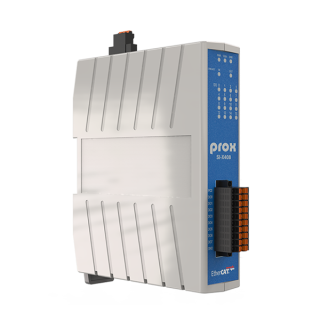

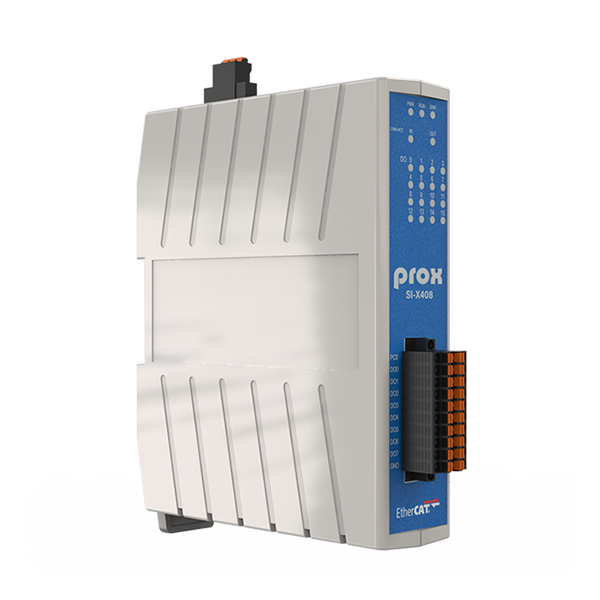

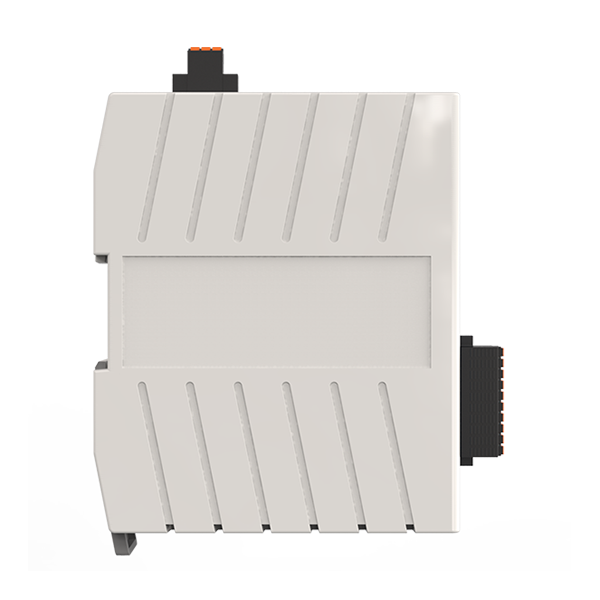

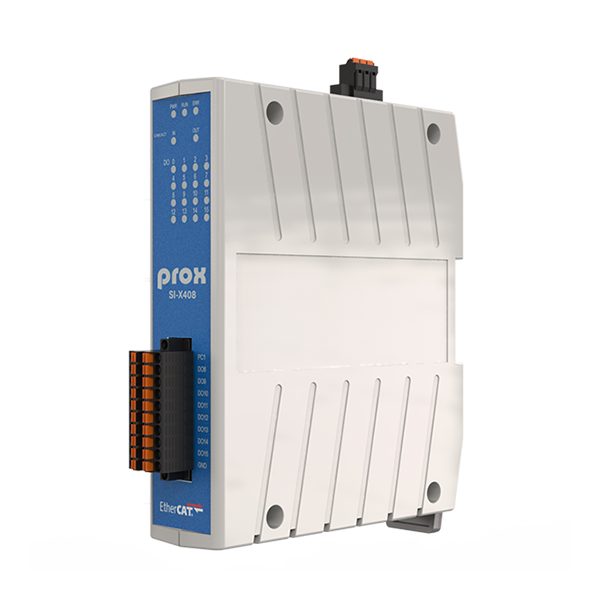

SI-X408
16-Channel Isolated Digital Output EtherCAT Slave I/O Module
•Standard EtherCAT Slave
•16 Channels Digital Output
•2 x RJ45 Ethernet Interface
•Support Daisy Chain connection
•Distance between Stations up to 100 m
•LED indicators for I/O status
•Support wide operating temperature -25°C~75°C
•Support wide-ranged voltage DC In (9~48V)
•16 Channels Digital Output
•2 x RJ45 Ethernet Interface
•Support Daisy Chain connection
•Distance between Stations up to 100 m
•LED indicators for I/O status
•Support wide operating temperature -25°C~75°C
•Support wide-ranged voltage DC In (9~48V)
|
System Specifications |
|||
| Communication Interface | |||
| Interface | Ethernet | ||
| Connector |

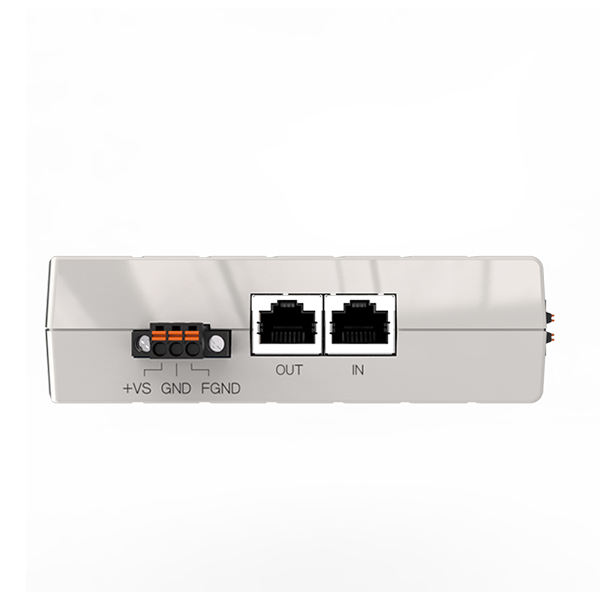

2 x RJ45 (Support Daisy Chain) |
||
| Protocol |
EtherCAT
|
||
| Distance between Stations |
Max. 100m, 100 BASE-TX
|
||
| Power Input | |||
| Input Voltage Range | 9~48VDC with 3-pin terminal block | ||
| System LED Indicator | |||
| Power |
Green |
||
| RUN | Green | ||
| Error | Red | ||
| LINK/ACT IN/OUT | Green | ||
| System Mechanism | |||
| System Weight | 220 g | ||
| Dimensions | 139.97 x 116.97 x 33 mm (H x W x D, without connectors) | ||
| Installation | DIN-Rail | ||
| Certifications | FCC / CE | ||
| I/O Specifications | |||
| Digital Input | |||
| No. of Channel | 16 | ||
| Output Type |
Open Collector (Sink)
|
||
| Load Voltage |
+5~+40VDC |
||
| Max. Load Current |
350mA/ch @ 25°C ; 250mA/ch @ 75°C
|
||
| Photo-Isolation |
3750VDC |
||
| I/O Indicator LED |
ON: R/W OFF: No action |
||
| Environment | |||
| Operating Temp.
(Ambient with airflow)
|
-25°C~75°C (-13°F~167°F)
|
||
| Storage Temp. |
-25°C~80°C (-13°F~176°F)
|
||
| Humidity | 20%~90% | ||
