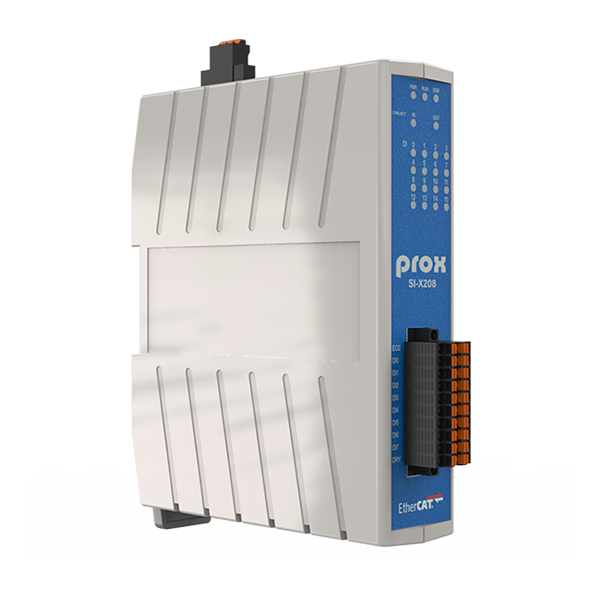

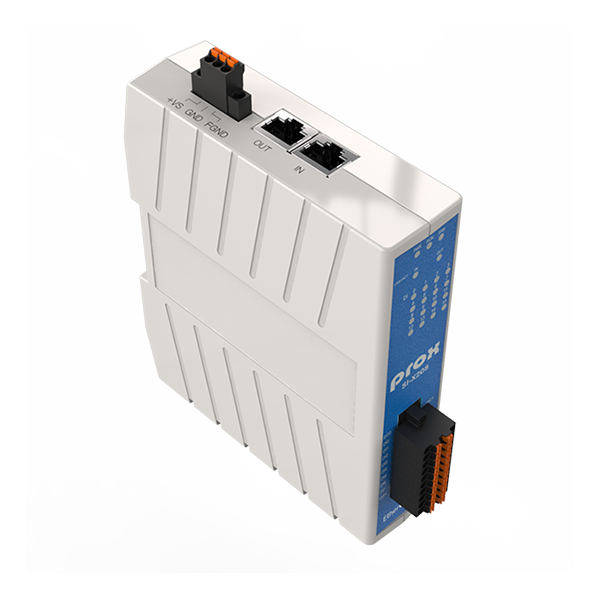

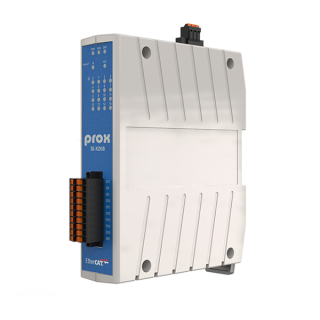

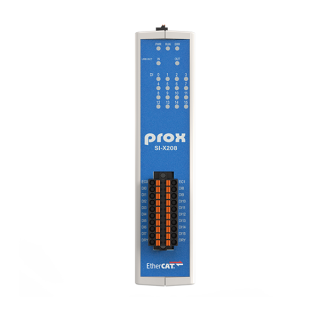

SI-X208

16-Channel Isolated Digital Input EtherCAT Slave I/O Module
•Standard EtherCAT Slave
•16 Channels Digital Input
•2 x RJ45 Ethernet Interface
•Support Daisy Chain connection
•Distance between Stations up to 100 m
•LED indicators for I/O status
•Support wide operating temperature -25°C~75°C
•Support wide-ranged voltage DC In (9~48V)

 System Specifications

 Communication Interface
 Interface Ethernet
 Connector

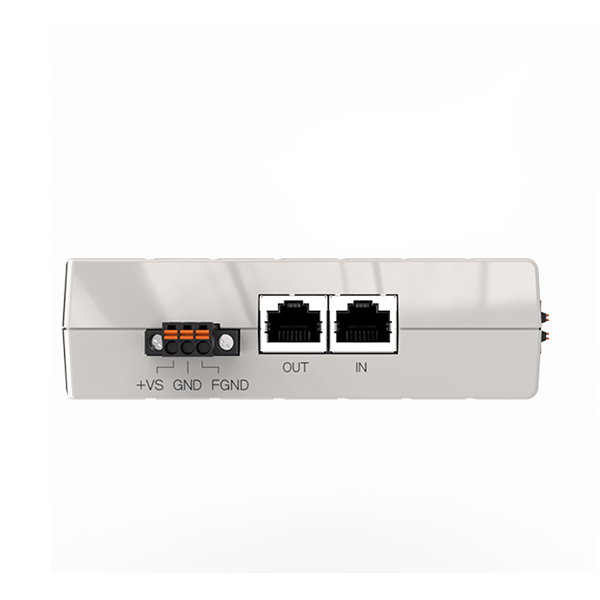

2 x RJ45 (Support Daisy Chain)

 Protocol
EtherCAT
 Distance between Stations
Max. 100m, 100 BASE-TX
 Power Input
 Input Voltage Range 9~48VDC with 3-pin terminal block
 System LED Indicator
 Power

Green

 RUN Green
 Error Red
 LINK/ACT IN/OUT Green
 System Mechanism
 System Weight  220 g
 Dimensions  139.97 x 116.97 x 33 mm (H x W x D, without connectors)
 Installation  DIN-Rail
 Certifications  FCC / CE
 I/O  Specifications
 Digital Input
 No. of Channel 16
 Input Type
Wet (Sink / Source)
 Resolution On Voltage Level, “1”  +10~+30VDC

Off Voltage Level, “0”

 +3VDC Max.

 Photo-Isolation

3750VDC

 I/O Indicator LED

ON: R/W

OFF: No action
 Environment
 Operating Temp.
(Ambient with airflow)
-25°C~75°C (-13°F~167°F)
 Storage Temp.
-25°C~80°C (-13°F~176°F)
 Humidity 20%~90%
