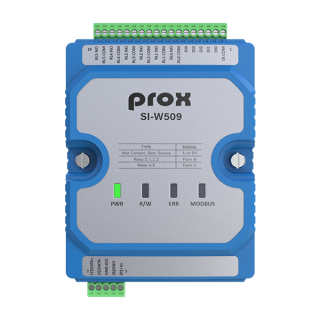

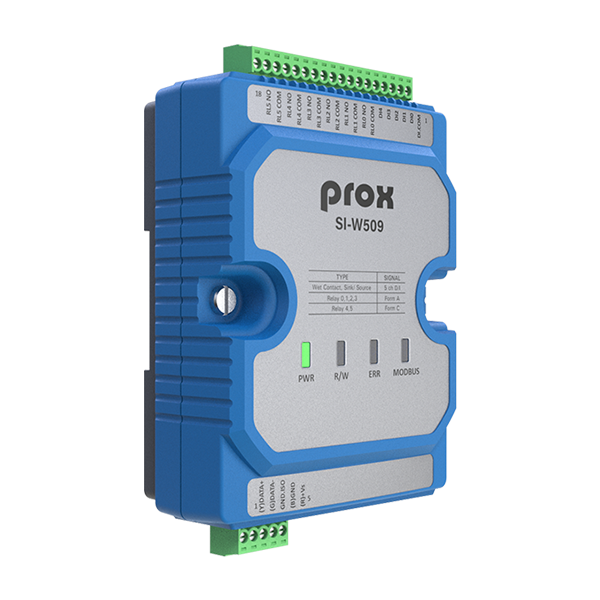

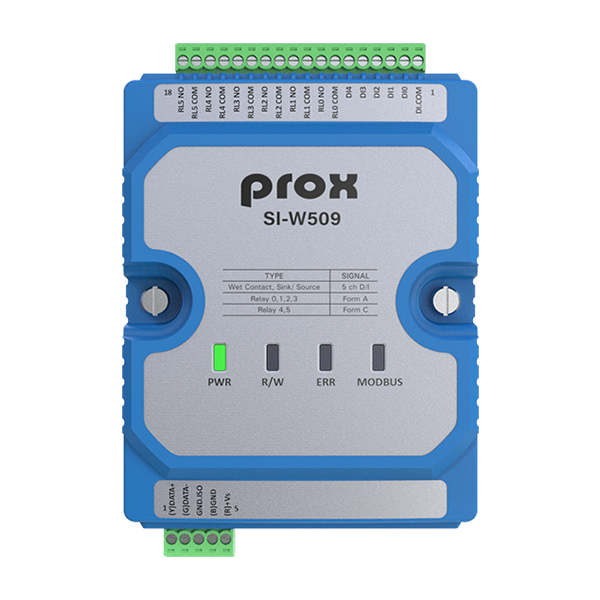

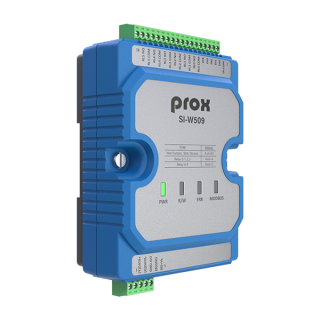

SI-W509
5 Channels Digital Input and 6 Channels Relay Output Remote I/O Module
•5 channels Digital input
•4 channels Power Relay output and 2 channels Signal Relay output
•All Digital input channels can be used as 32 bit counters
•Support over voltage protection
•Support standard Industrial communication protocol
•Support wide operating temperature -25°C~75°C
•Support wide-ranged voltage DC In (9~50V)
•4 channels Power Relay output and 2 channels Signal Relay output
•All Digital input channels can be used as 32 bit counters
•Support over voltage protection
•Support standard Industrial communication protocol
•Support wide operating temperature -25°C~75°C
•Support wide-ranged voltage DC In (9~50V)
|
System Specifications |
||
| Communication Interface |
RS-485
|
|
| Baud Rate | 9600 bps~115,200 bps (Max) | |
| Communication Protocol |
Modbus / RTU |
|
| Intra-module Isolation |
3000V
|
|
| Installation |
DIN-Rail or Wall Mount
|
|
| LED Indicator |
Power LED, Green R/W LED, Orange Error LED, Red Modbus LED, Green |
|
| I²C Interface | Temperature / Humidity sensor module | |
| Power Supply | 9~50VDC In from terminal block | |
| System Weight |
220 g |
|
| Dimensions (W x H x D) | 115 x 90 x 39 mm | |
| Certification | FCC / CE | |
| I/O Specifications | ||
| Digital Input / Counter | ||
| Channels | 5 | |
| Type |
Wet Contact, Sink / Source
|
|
| On Voltage Level | Wet Contact, +3.5~+50VDC | |
| Off Voltage Level | Wet Contact, +1VDC Max. | |
| Input Impedance | 10KΩ, 0.5W | |
| Counter |
Channels: 8 Max. Count: 32 bits (0~4,294,967,285) Max. Input Frequency: 50Hz Min. Pulse Width: 10ms |
|
| Overvoltage Protection | 70VDC | |
| Power-on Value | Yes | |
| Power Relay Output (Form A) | ||
| Channels |
4 |
|
| Contact Rating |
6A @ 35VDC 6A @ 240VAC |
|
| Max. Load Current | 700mA/channel | |
| Min. Contact Load | 100mA @ >= 12V | |
| Contact Material |
AgNi 90/10
|
|
| Operation Time | 5ms (typical) | |
| Release Time | 1ms (typical) | |
| Mechanical Endurance | 30 x 106 ops | |
| Electrical Endurance |
1 x 105 ops |
|
| Power-on Value | Yes | |
| Power-on Value | Yes | |
| Signal Relay Output (Form A) | ||
| Channels | 2 | |
| Contact Rating |
2A @ 30VDC 0.24A @ 220VDC 0.25A @ 250VAC |
|
| Max. Load Current | 700mA/channel | |
| Min. Contact Load | 10mA @ 20mV | |
| Contact Material | AgNi, Gold-covered | |
| Operation Time | 3ms (typical) | |
| Release Time | 4ms (typical) | |
| Mechanical Endurance |
108 ops |
|
| Electrical Endurance |
2 x 105 ops |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
-25°C~75°C (-13°F~167°F)
|
|
| Storage Temp. |
-20°C~80°C (-4°F~176°F) |
|
| Humidity | 20%~90% | |
SI-W509 Pin Assignments
| SI-W509 |
5 Channels Digital Input and 6 Channels Relay Output Remote I/O Module
|
