SG-S232

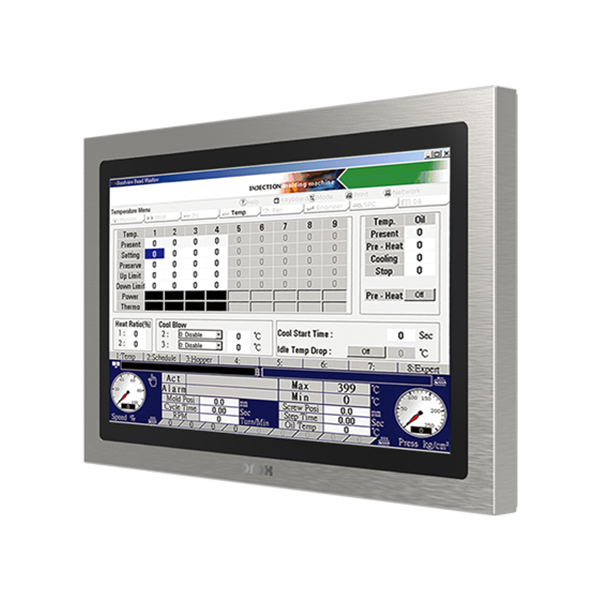

Intel® Celeron® J6412 / Atom® x6425RE Processor Fanless and All-around IP66 / IP69K Stainless 23.8" Panel PC

•Intel® Celeron® J6412/Atom® x6425RE processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66/IP69K mechanical design
•M12 waterproof connectors
•Supports projected capacitive touchscreen
•Easy Maintenance and key parts installation

Tech Spec
Product Info
Download

System
CPU Support		Intel^® Celeron^®J6412 processor Intel^®Atom^® x6425RE processor
Chipset		Intel® SoC
Memory Support		1 x DDR4 3200MHz SO-DIMM socket (up to 32 GB) (non-ECC)
Enclosure		Stainless SUS304
IP Rating		IP66/IP69K
Power Input		DC In 12V/24V
Watchdog		1~255 second watchdog timer selectable
Operating System		Windows 10 IoT LTSC 2021, 64 bit, Windows 11
Dimensions (W x H x D)		635 x 404 x 91.8 mm (w/o Stand) 635 x 463 x 160 mm (with Stand)
System Weight		19 kg
Mounting Support		Wall mount/VESA 100/Stand/Table
Certification		FCC/CE
I/O Ports
Power Input		1 x M12 waterproof connector, supporting 12V/24V DC
USB		2 x USB 2.0 waterproof connectors (4 x USB ports)
Serial Ports		2 x COM waterproof connectors COM 1 for RS-232/422/485
LAN		2 x 2.5 GbE LANs with M12 waterproof connector, Intel® I255-IT; supports Wake-On-LAN
Storage		1 x full-sized Mini PCIe slot
Expansion Slot		1 x Mic in phone jack 1 x Line out phone jack
Display
LCD		23.8" TFT LCD (LED) resolution 1920 x 1080
Touchscreen		Projected capacitive touchscreen
Environment
Operating Temp. (Ambient with airflow)		0°C~50°C(32°F~122°F)
Storage Temp.		-20°C~80°C(-4°F~176°F)
Humidity		20%~90%

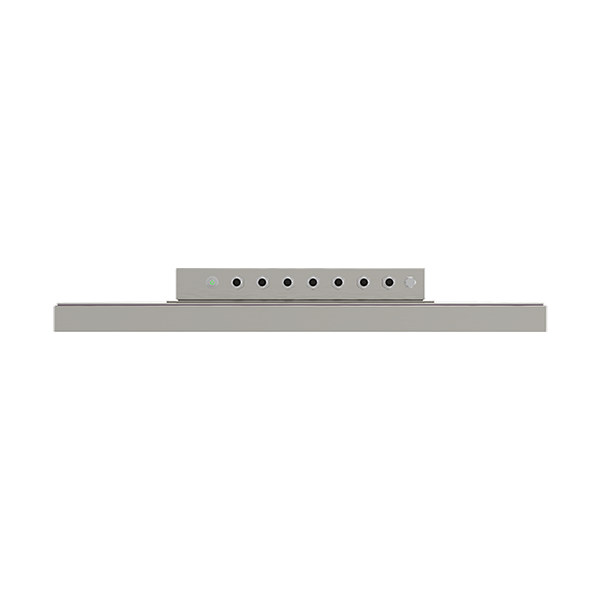

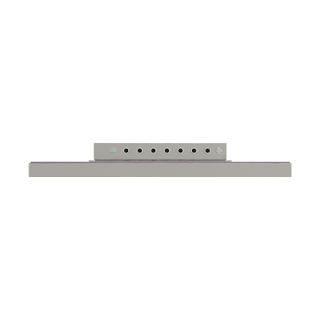

SG-S232 IO

SG-S232 Dimensions
