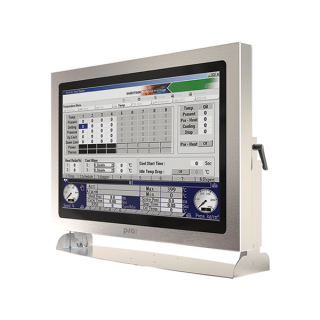

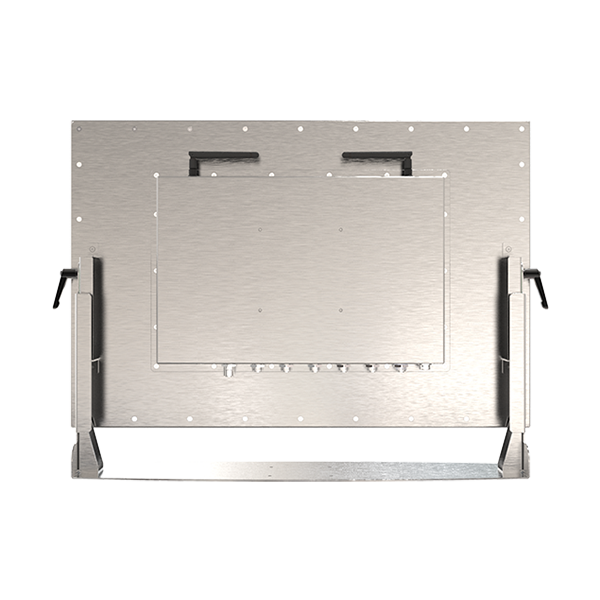

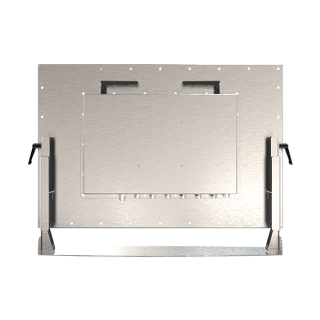

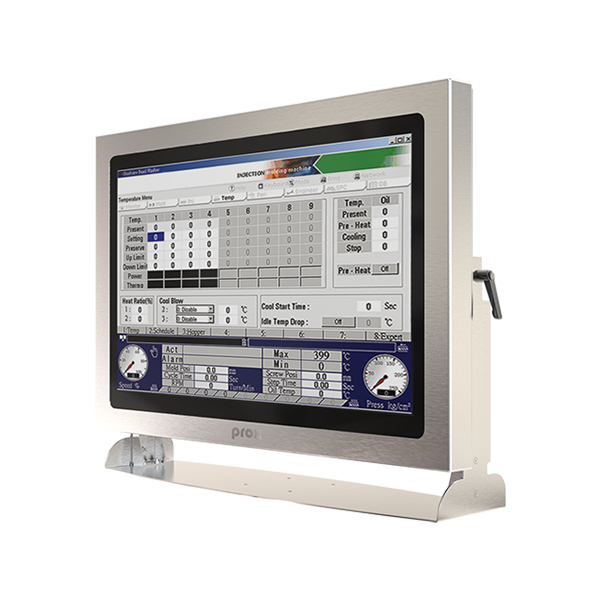

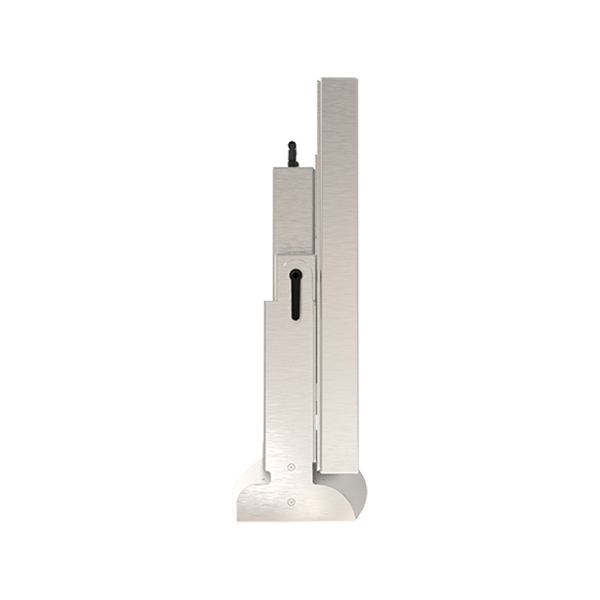

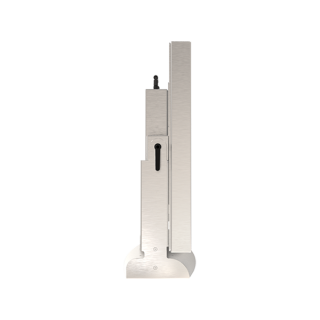

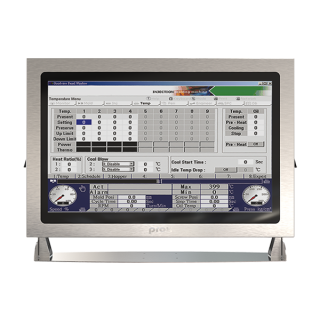

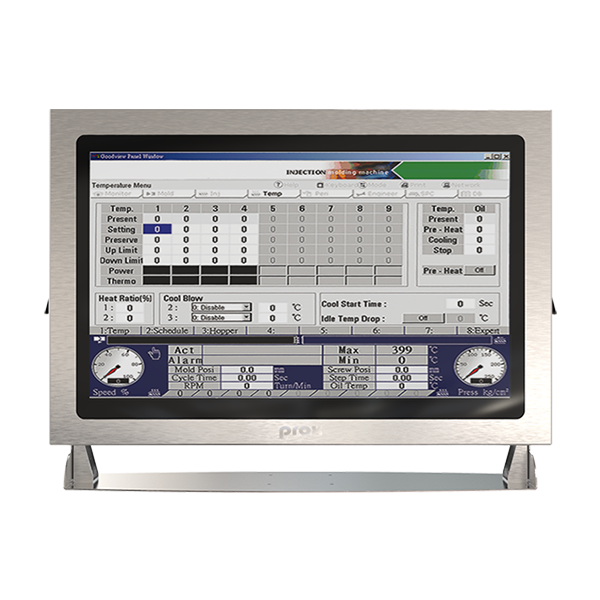

SG-S218
Intel® Core™ i5 / i3 processor Fanless and All-around IP66 / IP69K Stainless 21.5" Panel PC
•Intel® Core™ i5 / i3 processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66/IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
•Easy Maintenance and key parts installation
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66/IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
•Easy Maintenance and key parts installation
| CPU Support |
Intel® Core™ i5-1245UE (15W, 2P+8E, 80EU, vPro) Intel® Core™ i3-1215UE (15W, 2P+4E, 64EU) |
|
| Chipset | Intel® SoC | |
| Memory Support |
1 x DDR5 4800 SO-DIMM sockets (up to 32GB) (non-ECC) |
|
| Enclosure |
Stainless SUS304 |
|
| IP Rating | IP66/IP69K | |
| Power Input | DC In 12V | |
| Watchdog | 1~255 second watchdog timer selectable | |
| Operating System | Windows 10 IoT LTSC 2021, Windows 11 IoT LTSC. | |
| Dimensions (W x H x D) | 590 x 395 x 91mm (w/o Stand)
590 x 447.5 x 160mm (with Stand)
|
|
| System Weight | 17 kg | |
| Mounting Support | VESA 100/Stand/Table | |
| Certification | FCC/CE | |
| I/O Ports | ||
| Power Input | 1 x M12 waterproof connector, supporting 12V DC | |
| USB | 2 x USB 2.0 waterproof connectors (4 x USB ports) | |
| Serial Ports | 2 x COM waterproof connectors, RS-232/422/485 selectable via BIOS. | |
| LAN | 2 x 2.5 GbE LANs with M12 waterproof connector; supports Wake-On-LAN. | |
| Storage |
1 x 2.5" SATA III SSD drive space
|
|
| Expansion Slot |
1 x Mini PCIe (for COM2 sku only); 1 x M.2 E-Key 2230 for wireless module; 1 x M.2 NVMe (PCIeX2), supports 2280 size only; 1 x SIM slot |
|
| Antenna Holes |
4 x antenna holes (for COM2 sku only); 2 x antenna holes (for POE sku only)
|
|
| Power On/Off |
1 x power button with Power LED |
|
| LED |
2 x PoE LED (for POE sku only) |
|
| Digital I/O |
6 in / 6 out (including 2x5V & 2xGND) |
|
| Display | ||
| LCD | 21.5" TFT LCD (LED) resolution 1920 x 1080 | |
| Touchscreen | 5-wire resistive touchscreen or projected capacitive touchscreen | |
| Environment | ||
|
Operating Temp. (Ambient with airflow) |
0°C~50°C (32°F~122°F) with W.T. SSD | |
| Storage Temp. | -20°C~80°C (-4°F~176°F) | |
| Humidity | 20%~90% | |

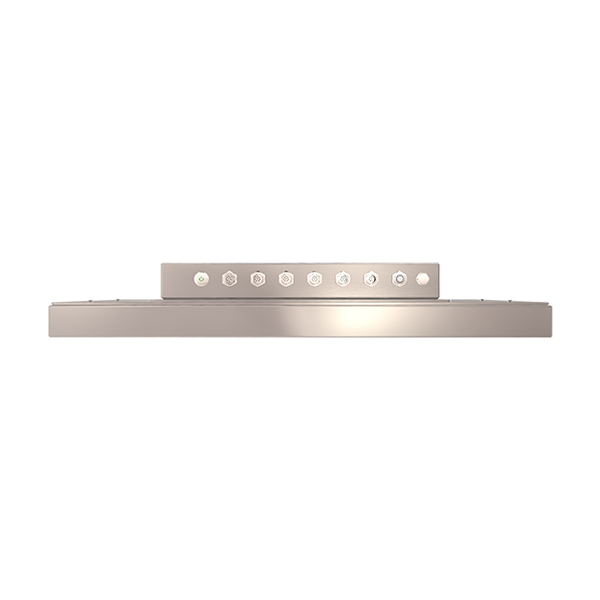

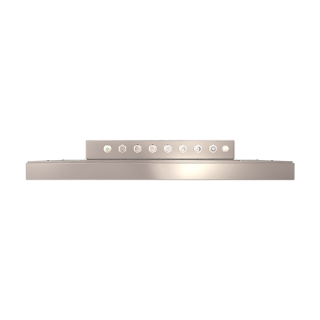

SG-S218 IO
SG-S218 Dimensions
SG-S218 Dimensions
| SG-S218 |
Intel® CoreTM i5 / i3 processor Fanless and All-around IP66 / IP69K Stainless 21.5" Panel PC |
| File type | File Download |
| EDM | SG-S218_EDM.PDF |
| Pictures | SG-S218_Pictures.PDF |
