SG-S212

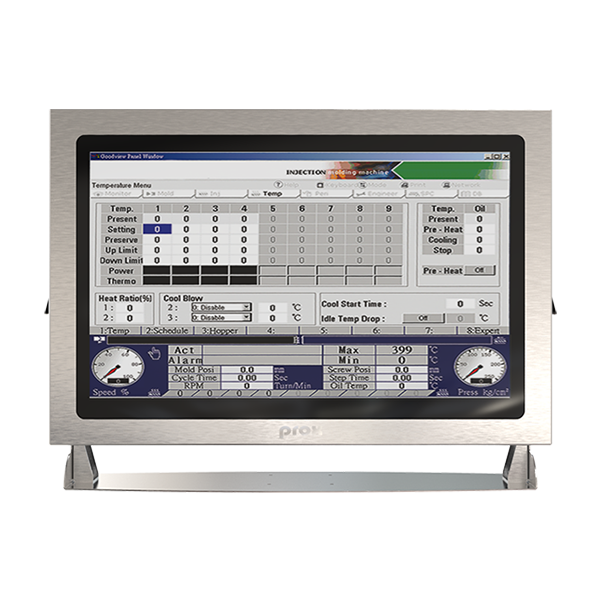

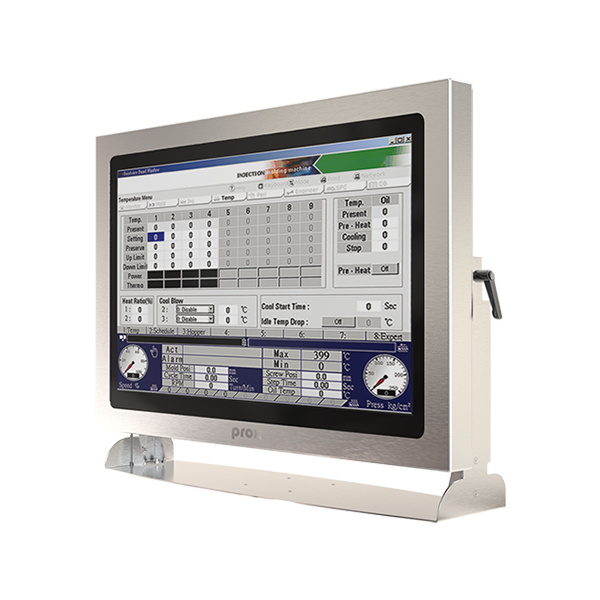

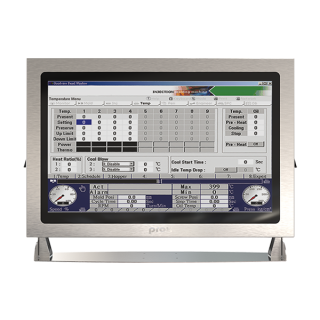

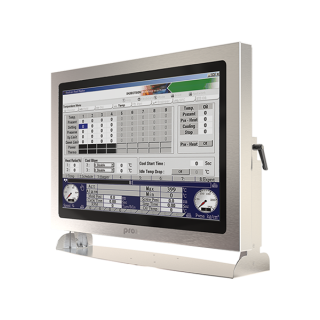

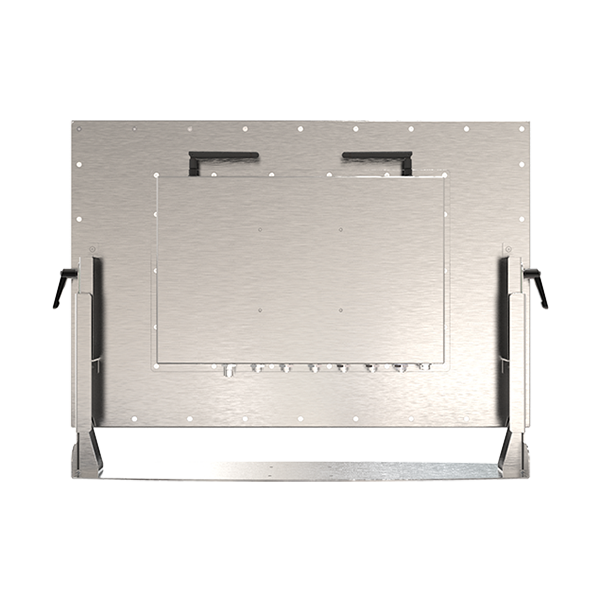

Intel® Elkhart Lake Processor Fanless and All-around IP66 / IP69K Stainless 21.5" Panel PC

•Intel® Celeron® J6412 processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66 / IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
•Easy Maintenance and key parts installation

Tech Spec
Product Info
Download

System
CPU Support		Intel® Celeron® J6412 processor
Chipset		Intel® SoC
Memory Support		1 x DDR4 3200MHz SO-DIMM socket (up to 32GB) (non-ECC)
Enclosure		Stainless SUS304
IP Rating		IP66/IP69K
Power Input		DC In 12V/24V
Watchdog		1~255 second watchdog timer selectable
Operating System		Windows 11, Windows 10 IoT LTSC 64bit, Ubuntu 20.04 (Kernel 5.4)
Dimensions (W x H x D)		590 x 395 x 91 mm (w/o Stand) 590 x 447.5 x 160 mm (with Stand)
System Weight		17 kg
Mounting Support		Wall mount / VESA 100 / Stand
Certification		FCC/CE
I/O Ports
Power Input		1 x M12 waterproof connector, supporting 12V/24V DC
USB		2 x USB 2.0 M12 waterproof connectors (4 x USB ports)
Serial Ports		2 x COM M12 waterproof connectors with RS-232/422/485
LAN		2 x 1GbE LANs with M12 waterproof connectors supports Wake-On-LAN
Storage		1 x 2.5" SATA III SSD
Expansion Slot		1 x full-sized Mini PCIe slot (Mini PCIe and USB signal)
Display
LCD		21.5" TFT LCD (LED) resolution 1920 x 1080
Touchscreen		5-wire resistive touchscreen or projected capacitive touchscreen (USB interface)
Environment
Operating Temp. (Ambient with airflow)		0°C~50°C(32°F~122°F)
Storage Temp.		-20°C~80°C(-4°F~176°F)
Humidity		20%~90%

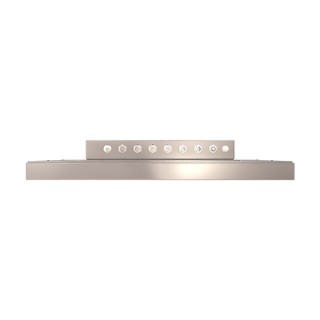

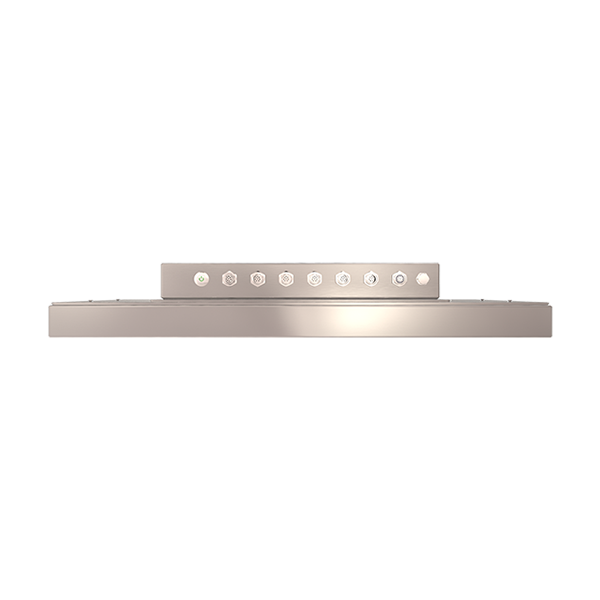

SG-S212 IO

SG-S212 Dimensions

SG-S212	Intel® Elkhart Lake Processor Fanless and All-around IP66 / IP69K Stainless 21.5" Panel PC
File type	File Download
EDM	SG-S212_EDM.PDF
Pictures	SG-S212_Pictures.ZIP
Manual	SG-S212_Manual.PDF
QuickGuide	SG-S212_QuickGuide.PDF
Driver README	SG-S212_README.PDF
BIOS	SG-S212_BIOS.ZIP
Device	SG-S212_Device.ZIP
Platform	SG-S212_Platform.ZIP
Other	SG-S212_Other.ZIP
