SG-S162

Intel® Celeron® J6412 / Atom® x6425RE Processor Fanless and All-around IP66 / IP69K Stainless 15.6" Panel PC
•Intel® Celeron® J6412/Atom® x6425RE processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66/IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
•Easy Maintenance and key parts installation
 System
 CPU Support

Intel® Atom® x6425RE processor

Intel® Celeron® J6412 processor
 Chipset

Intel® SoC

 Memory Support 1 x DDR4 3200MHz SO-DIMM socket (up to 32 GB) (non-ECC)
 Enclosure Stainless SUS304
 Power Input  DC In 12V/24V
 IP Rating IP66/IP69K
 Watchdog 1~255 second watchdog timer selectable
 Operating System Windows 10 IoT LTSC 2021, 64 bit, Windows 11
 Dimensions (W x H x D)

450 x 305 x 91 mm (w/o Stand)

450 x 327.5 x 160 mm (with Stand)
 System Weight

13.2 kg

 Mounting Support

Wall mount/VESA 100/Stand/Table

 Certification

FCC / CE

 I/O Ports

 Power Input

1 x M12 waterproof connector, supporting 12V/24V DC

 USB

2 x USB 2.0 waterproof connectors (4 x USB ports)

 Serial Ports

2 x COM waterproof connectors

COM 1 for RS-232/422/485
 LAN

2 x 2.5 GbE LANs with M12 waterproof connector, Intel® I255-IT; supports Wake-On-LAN

 Storage

1 x 2.5" SATA III SSD

1 x M.2 slot for NVMe SSD (size 2280, PCIeX2)
 Expansion Slot
1 x full-sized Mini PCIe slot
 Display
 LCD

15.6" TFT LCD (LED) resolution 1366 x 768

 Touchscreen

5-wire resistive touchscreen or projected capacitive touchscreen

 Environment
 Operating Temp.
(Ambient with airflow)

0°C~50°C (32°F~122°F)

 Storage Temp.
-20°C~80°C (-4°F~176°F)
 Humidity 20%~90%

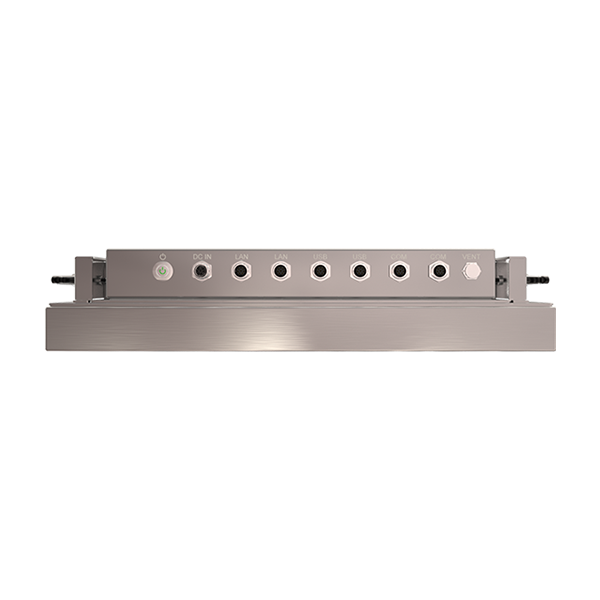

SG-S162 IO


SG-S162 Dimensions
