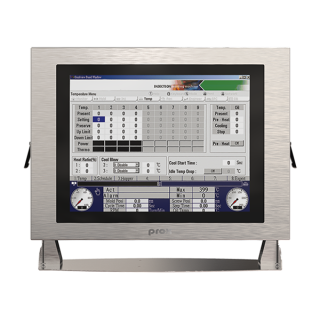

SG-S158

15" XGA Intel® Core™ Processors Fanless Full IP66/69K Panel PC

•Intel® Core™ i5 / i3 processor on board
•Fanless and quiet design
•Stainless steel SUS304
•All-around IP66/IP69K mechanical design
•M12 waterproof connectors
•Supports 5-wire resistive touchscreen or projected capacitive touchscreen
•Easy Maintenance and key parts installation

Tech Spec
Product Info
Download

CPU Type		Intel^® Core™ i5- 1245UE (15W, 2P+8E, 80EU, vPro) Intel^® Core™ i3- 1215UE (15W, 2P+4E, 64EU)
Chipset		Intel® SoC
Memory Support		1 x DDR5 4800 SO-DIMM sockets (up to 32GB) (non-ECC)
Enclosure		Stainless SUS304
IP Rating		IP66/IP69K
Power Input		DC In 12V/ 24V
Watchdog		1~255 second watchdog timer selectable
Operating System		Windows 10 IoT LTSC 2021, Windows 11 IoT LTSC
Dimensions (W x H x D)		450 x 335 x 92.1 mm (w/o Stand) 450 x 387.5 x 160 mm (with Stand)
System Weight		13.2 kg
Mounting Support		VESA 100/Stand/Table
Certification		FCC/CE
I/O Ports
Power Input		1 x M12 waterproof connector, supporting 12V/24V DC
USB		2 x USB 2.0 waterproof connectors (4 x USB ports)
Serial Ports		2 x COM waterproof connectors, RS-232/422/485 selectable via BIOS
LAN		2 x 2.5 GbE LANs with M12 waterproof connector; supports Wake-On-LAN
Storage		1 x 2.5" SATA III SSD
Expansion Slot		Either one: 1 x M.2 B-key, PCIe and USB 2.0 and SIM signal 1 x M.2 E-key, PCIe and USB 2.0 signal
Display
LCD		15" TFT LCD (LED) resolution 1024 x 768
Touchscreen		5-wire resistive touchscreen or projected capacitive touchscreen
Environment
Operating Temp. (Ambient with airflow)		0°C~50°C (32°F~122°F) with W.T. SSD
Storage Temp		-20°C~80°C (-4°F~176°F)
Humidity		20%~90%

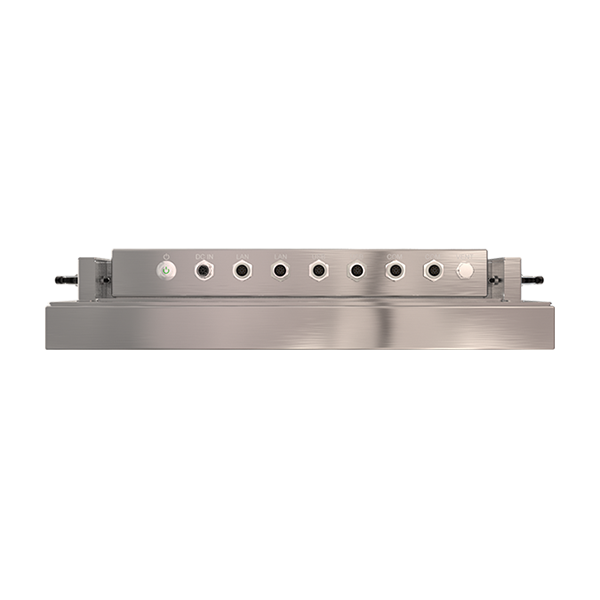

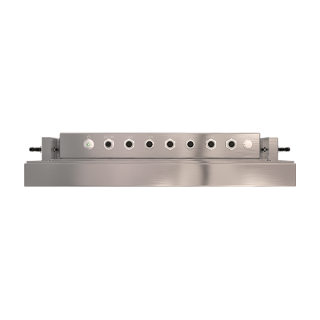

SG-S158 IO

SG-S158 Dimensions

SG-S158	15" XGA Intel® Core™ Processors Fanless Full IP66/69K Panel PC
File type	File Download
EDM	SG-S158_EDM.PDF
Pictures	SG-S158_Pictures.PDF
Manual	SG-S158_Manual.PDF
QuickGuide	SG-S158_QuickGuide.PDF
