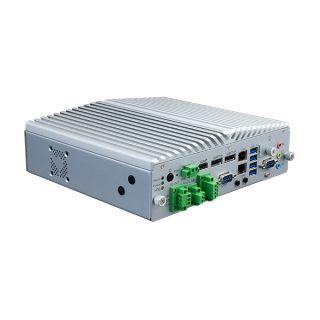

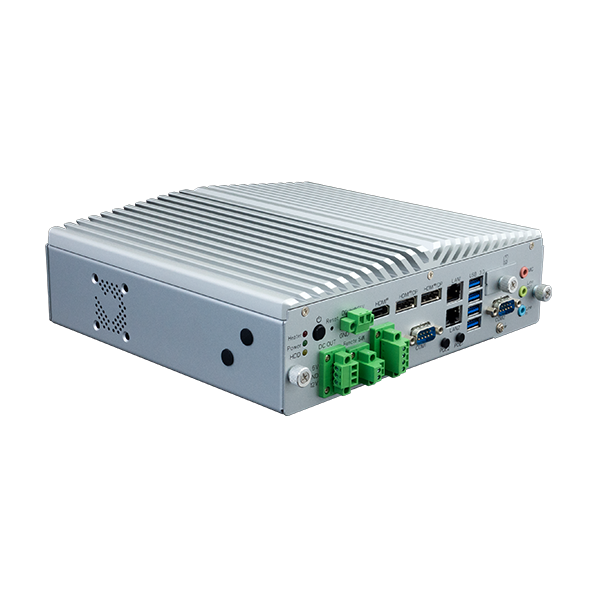

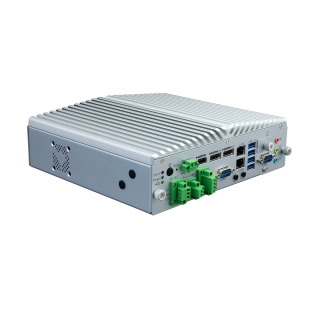

SE-N207

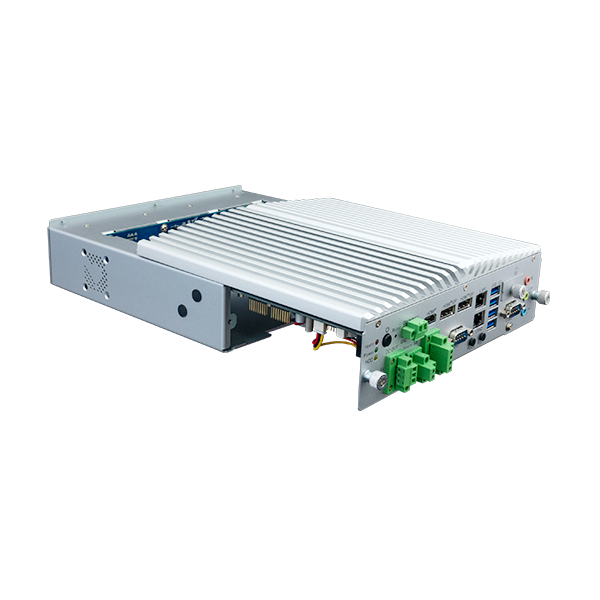

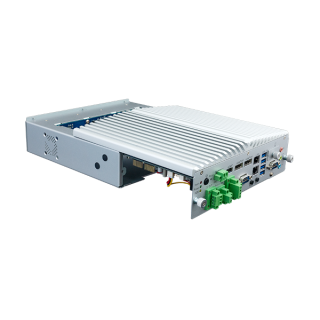

•Storage and Main Board easy maintenance design
•Three independent displays (1 x HDMI® + 2 x HDMI®/DP up to 4K)
•Multiple I/O board (LAN / USB / COM / CANBus / LPT) (Optional)
•PoE function (Support PD / PSE) (Optional)
•Expansion slot (full-sized Mini PCIe / SD slot / M.2)
•Support 4 x antenna holes
•Support power remote switch
•Wide-ranged voltage DC In (9~36V)
•Wide-ranged temperature (Optional)
•TPM module (Optional)
| System | ||
| CPU Support |
Intel® Core™ i7-8665UE (4C) 1.70GHz Intel® Core™ i5-8365UE (4C) 1.60GHz Intel® Core™ i3-8145UE (2C) 2.2GHz Intel®Celeron®4305UE (2C) 2.0GHz |
|
| Memory Support | 2 x DDR4 2400 SO-DIMM socket (memory up to 32GB) | |
| API |
Watchdog / HW monitor / Digit I/O / I²C |
|
| Watchdog Timer | 1~255 seconds | |
| Drive Bay |
1 x 2.5” SATAIII HDD or SSD drive space 1 x M.2 PCIe or SATAIII drive space |
|
| Power Input |
Terminal block 9~36V (for PSE SKU) PoE LAN 54V (for PD SKU)
|
|
| Operating System |
Windows® 10 IoT Enterprise LTSC 2019 64bit Ubuntu18.04 LTS |
|
|
Expansion Slots
|
1 x full-sized Mini PCIe (PCIe+USB 2.0) 1 x M.2 slot (2242-D2-E), PCIe/USB2.0 support (USB 2.0 only for Core™ i) 1 x M.2 slot (2242-D2-B), PCIe/SATA support 1 x SD slot (SD/SDHC/SDXC) 2 x I/O expansion slot TPM 2.0 (FW/HW) (optional) |
|
| System Weight |
3 kg |
|
| Dimensions (W x H x D) |
228.00 x 71.27 x 212.09 mm |
|
| Certifications |
CE / FCC |
|
|

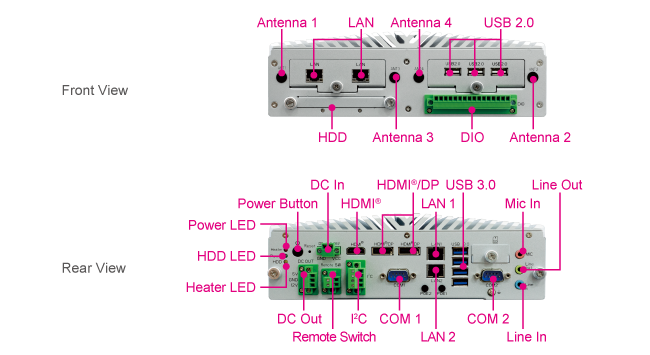

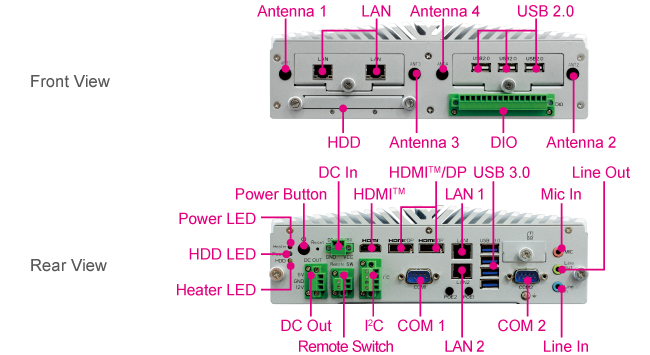

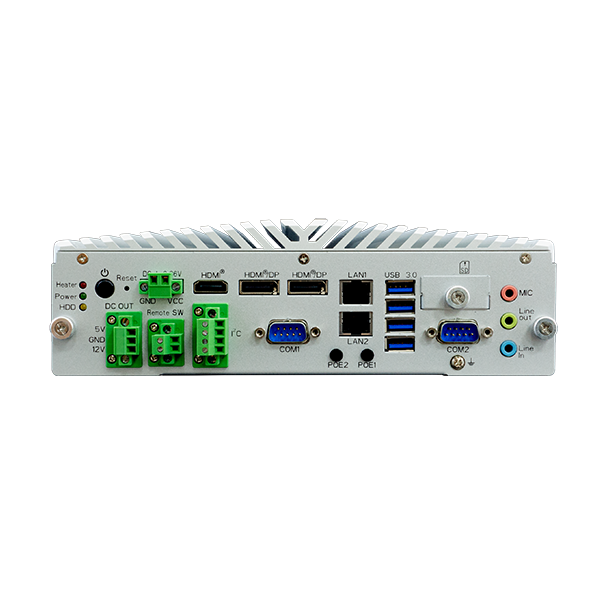

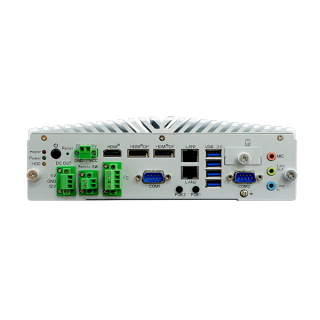

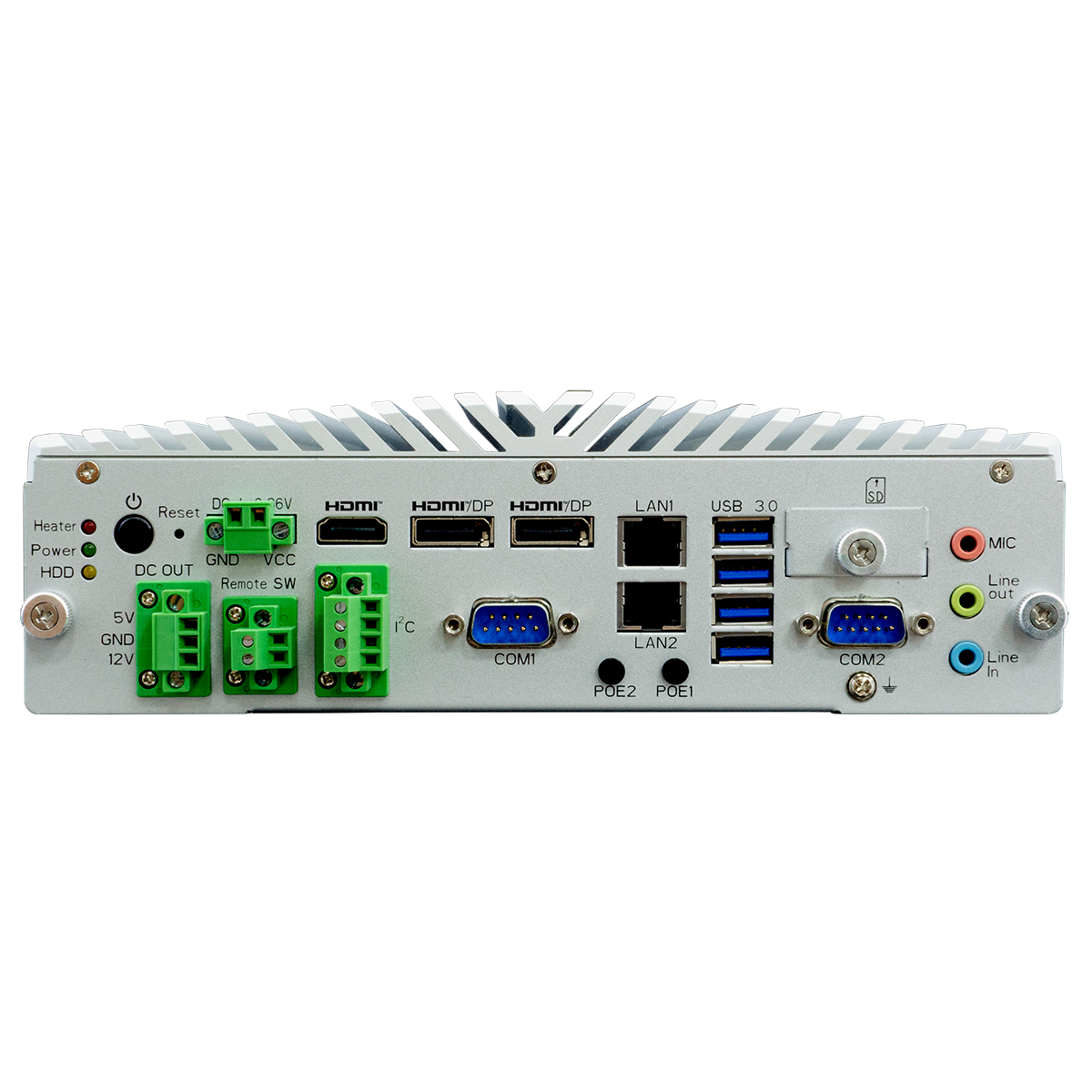

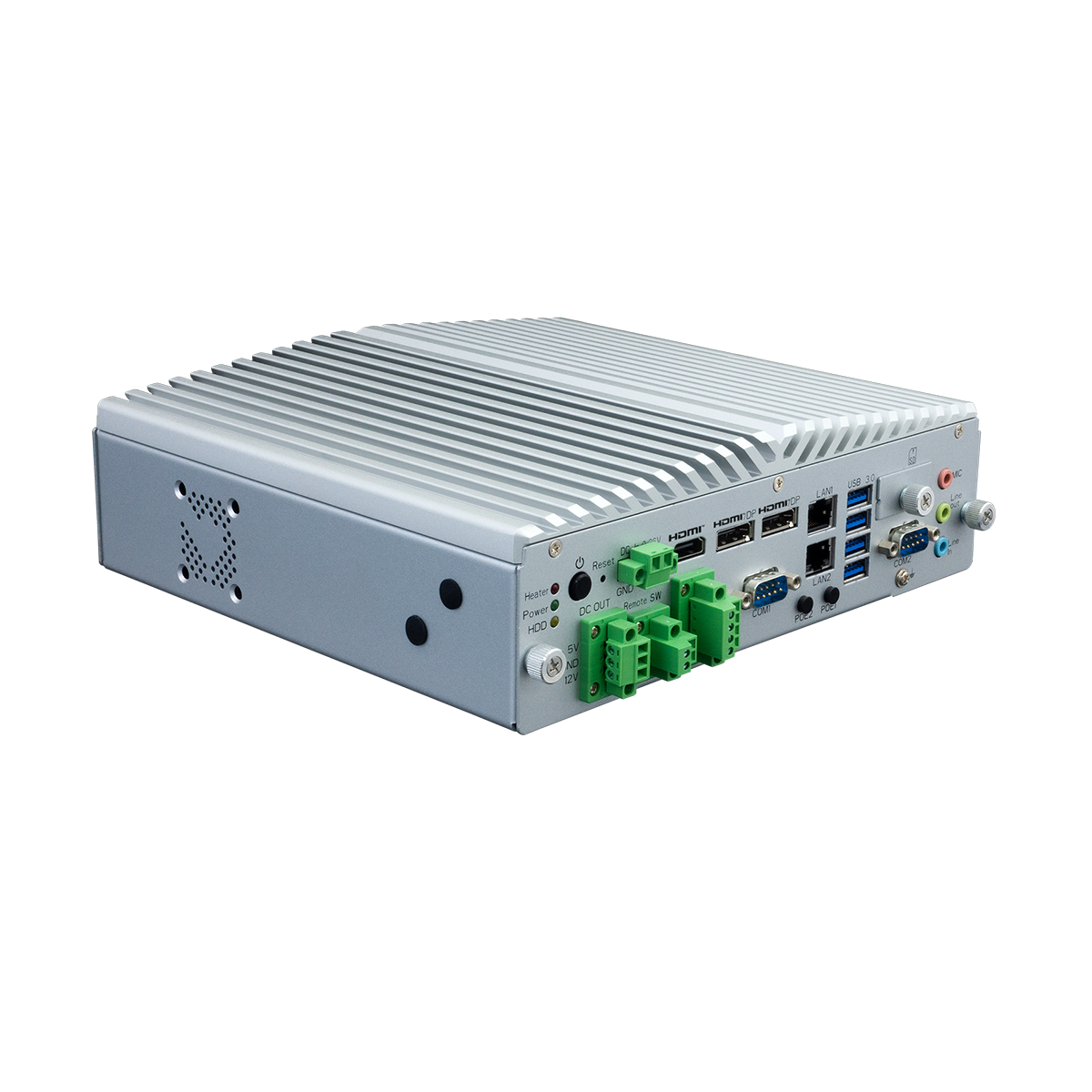

I/O Ports |
||
| USB |
4 x USB 3.1 (Gen2) |
|
| Display |
1 x 4K HDMI limitation: no sound signal, no hot plug) 2 x 4K HDMI/DP (selectable under BIOS)
|
|
| Serial Ports |
2 x COM 1/2 for RS-232/422/485 (selectable under BIOS) [COM 1/2 for +5V/+12V/RI selectable by jumper] #1
|
|
| LAN |
2 x RJ45 connector with PSE/PD, support Wake-On-LAN/PXE # PSE: Output IEEE 802.3 AT 54V/25.5W (each port) (optional) # PD: Input IEEE 802.3 AT 54V/25.5W (each port) (optional) |
|
| LED |
1 x Power On indicator (yellow) 1 x HDD LED indicator (green) 1 x negative temperature indicator (red) 2 x PoE power indicators (red) |
|
| Antenna Holes |
4 x antenna holes |
|
| Drive Bay #2 |
1 x 2.5” SATAIII HDD or SSD drive space 1 x M.2 PCIe or SATAIII drive space
|
|
| Digital I/O |
8 in / 8 out (optional) #1 |
|
| I2C |
1 x 4 pin terminal block (optional) #1 |
|
| DC Out |
1 x 3 pin terminal block (DC 5V/12V/GND) (optional) #1 |
|
| Power Remote Switch |
1 x 2 pin terminal block (optional) |
|
| Audio |
1 x Line Out / 1 x Mic In / 1 x Line In |
|
| Ground |
1 x M3 hole |
|
|

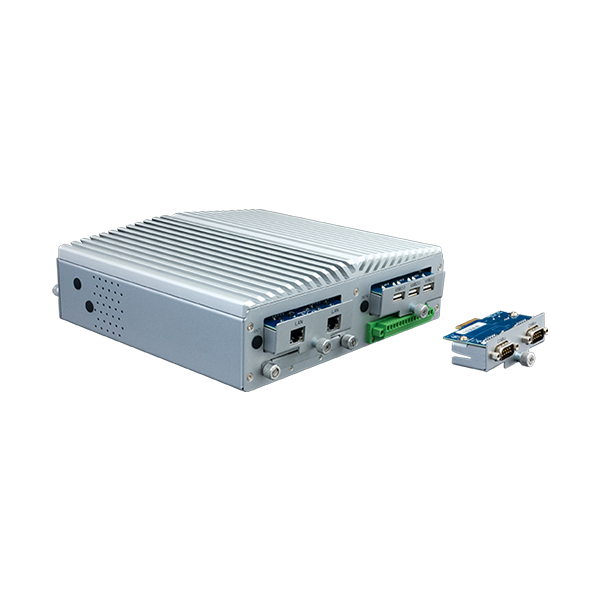

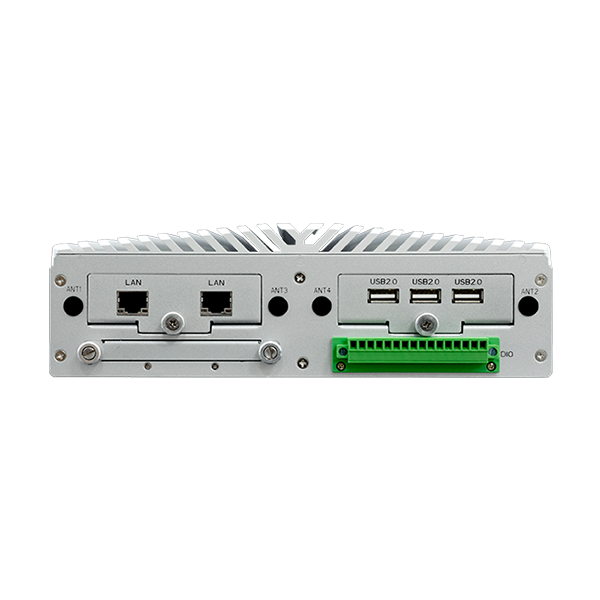

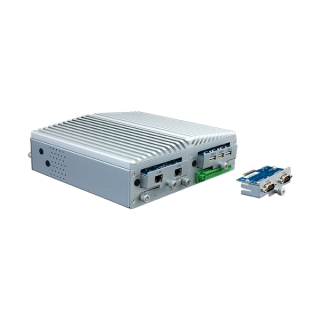

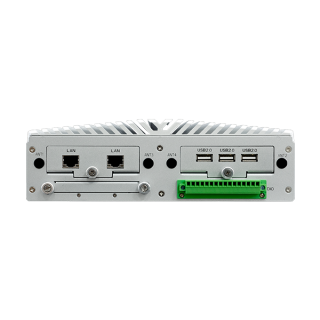

Optional I/O Expansion Ports |
||
| LAN |
2 x RJ45 connector, support Wake-On-LAN/PXE |
|
| COM |
2 x COM port for RS-232/422/485 (selectable under BIOS) |
|
| USB |
3 x USB 2.0 |
|
| Parallel Port |
2 x DSUB 26-pin connector |
|
| CANBus |
2 x DSUB 9-pin connector |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
Non-wide-ranged temperature HDD/SSD: HDD: 0°C~40°C(32°F~113°F) SSD: 0°C~50°C (32°F~122°F)With wide-ranged temperature SSD: 0°C~60°C (32°F~140°F) @humidity 20~95% (w/o heater, PoE) 0°C~70°C (32°F~158°F) @humidity 20~95% (w/o heater, w/o PoE) -40°C~60°C (-40°F~140°F) @humidity 20~95% (w/ heater, PoE) (optional) -40°C~70°C (-40°F~158°F) @humidity 20~95% (w/ heater, w/o PoE) (optional) |
|
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity |
Operating humidity: 20%~90% Storage humidity: 20%~95% |
|
SE-N207 Highlight
| SE-N207 |
Intel® 8th Gen. CoreTM i7 / i5 / i3 / Celeron® Processor Compact and Fanless Embedded PC |
