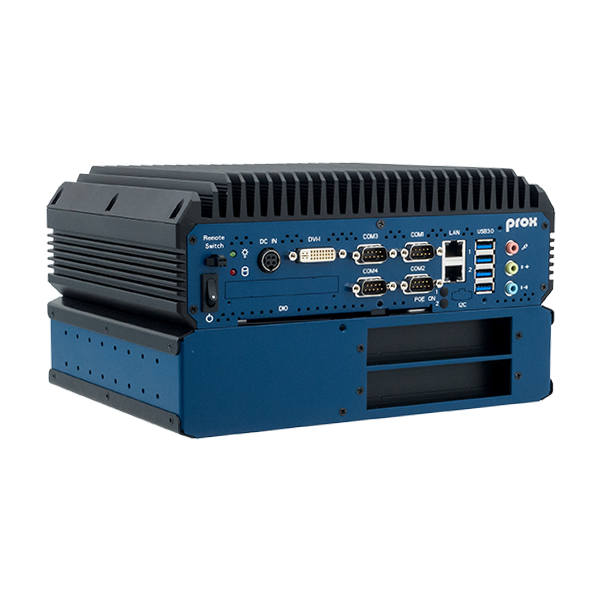

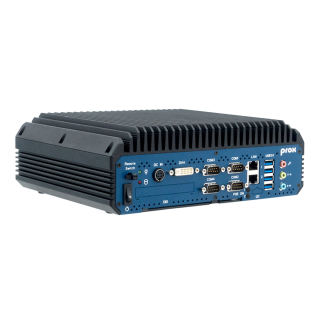

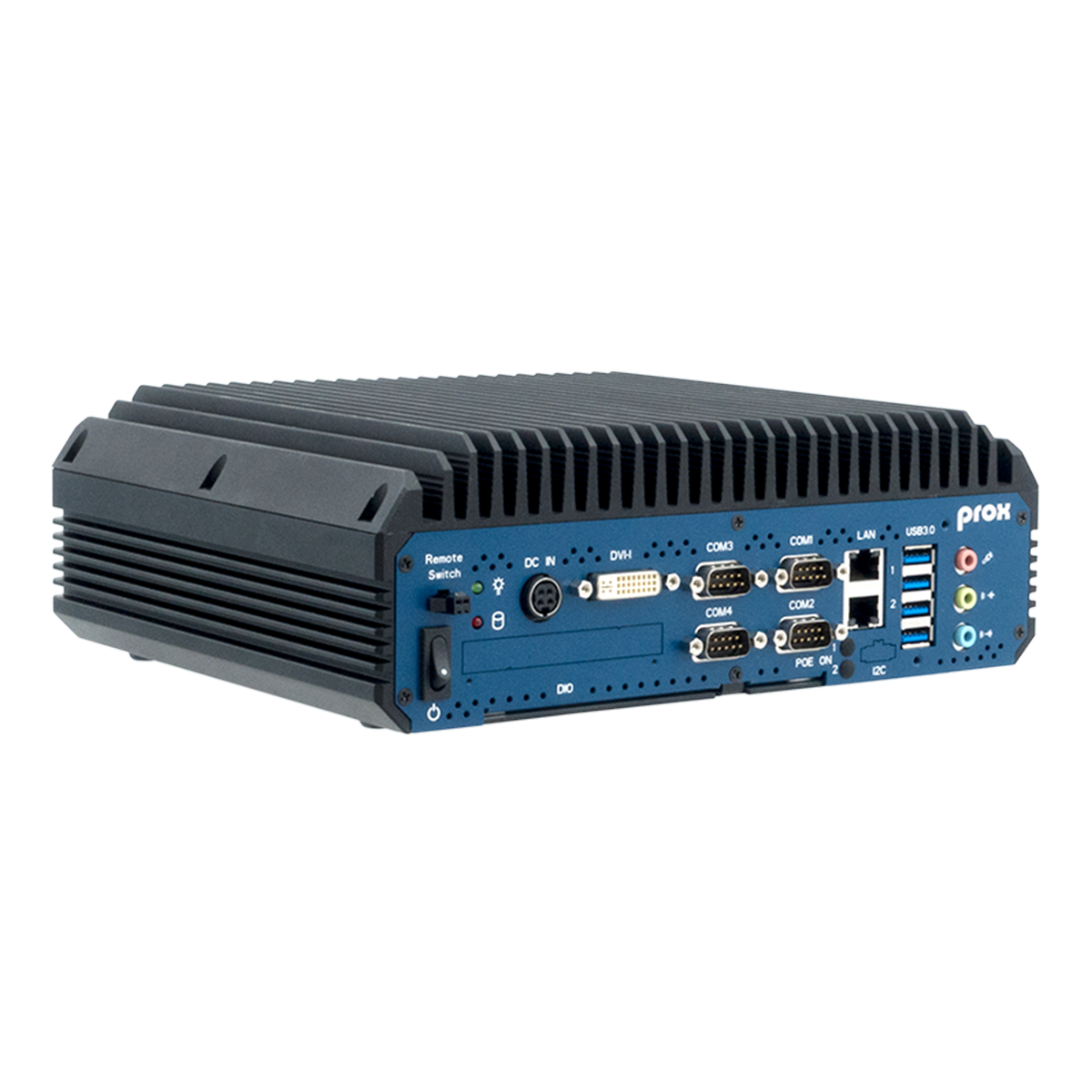

SE-8400
•2 x DDR4 2133MHz SO-DIMM memory up to 32GB
•2 x 2.5" SATA III HDD/SSD with RAID 0/1 (Q170)
•2 x Mini PCIe slots, 1 x PCIe (x4) slot (Q170)
•2 x GbE LAN, PoE as option
•DVI-I & HDMI® for display
•6 x USB 3.0 (in Q170 )
•1 x 8 in / 8 out DIO
•6 x COM ports (2 ports for optional)
•Wide-ranged voltage DC In 9~36V
| System | ||
| CPU Support |
Core™ i7-6700TE, Quad Core, 2.4GHz, 8M cache Core™ i5-6500TE, Quad Core, 2.3GHz, 6M cache |
|
| Chipset |
Intel® Q170/H110 |
|
| Memory Support |
2 x DDR4 2133MHz SO-DIMM up to 32 GB |
|
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Drive Bay |
2 x 2.5" SATAIII HDD/SSD (support RAID 0/1 in Q170 SKU only)
|
|
| Audio |
1 x Line In / 1 x Line Out / 1 x Mic In |
|
| Expansion Slots |
1 x full-sized Mini PCIe (Mini PCIe, USB and SIM signal) 1 x half-sized Mini PCIe (Mini PCIe and USB signal) 1 x SIM card slot 1 x CFast slot |
|
| System Weight |
4.9 kg |
|
| Operating System |
Win10 IoT LTSB 2016 / Windows 8.1 (64bit) / Windows 7 (64bit) / Linux Ubuntu 14.04 (64bit) |
|
| Dimensions (W x H x D) |
260 x 80 x 200 mm |
|
| Power Input |
DC In 9~36V |
|
| Certifications |
FCC / CE |
|
|

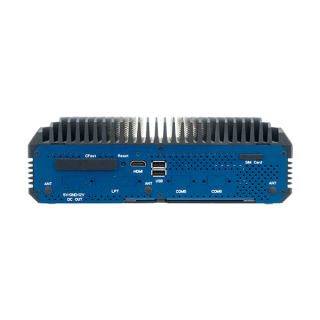

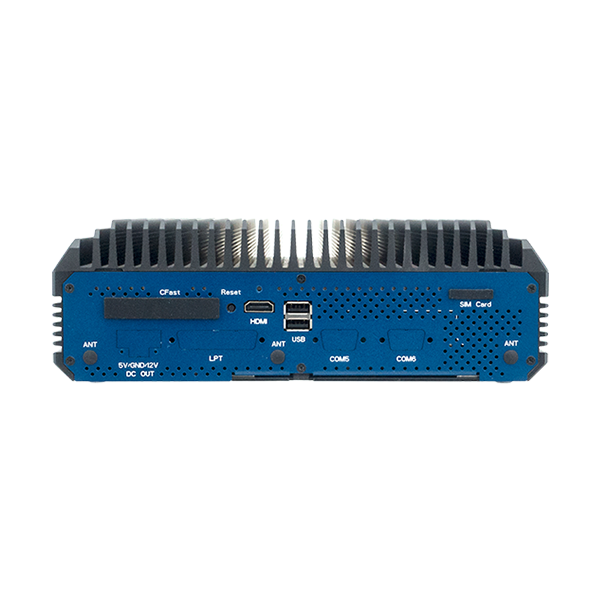

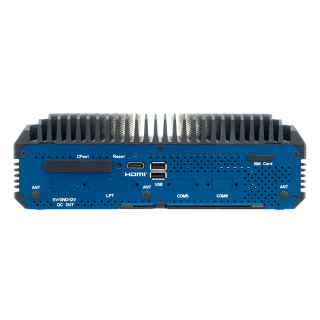

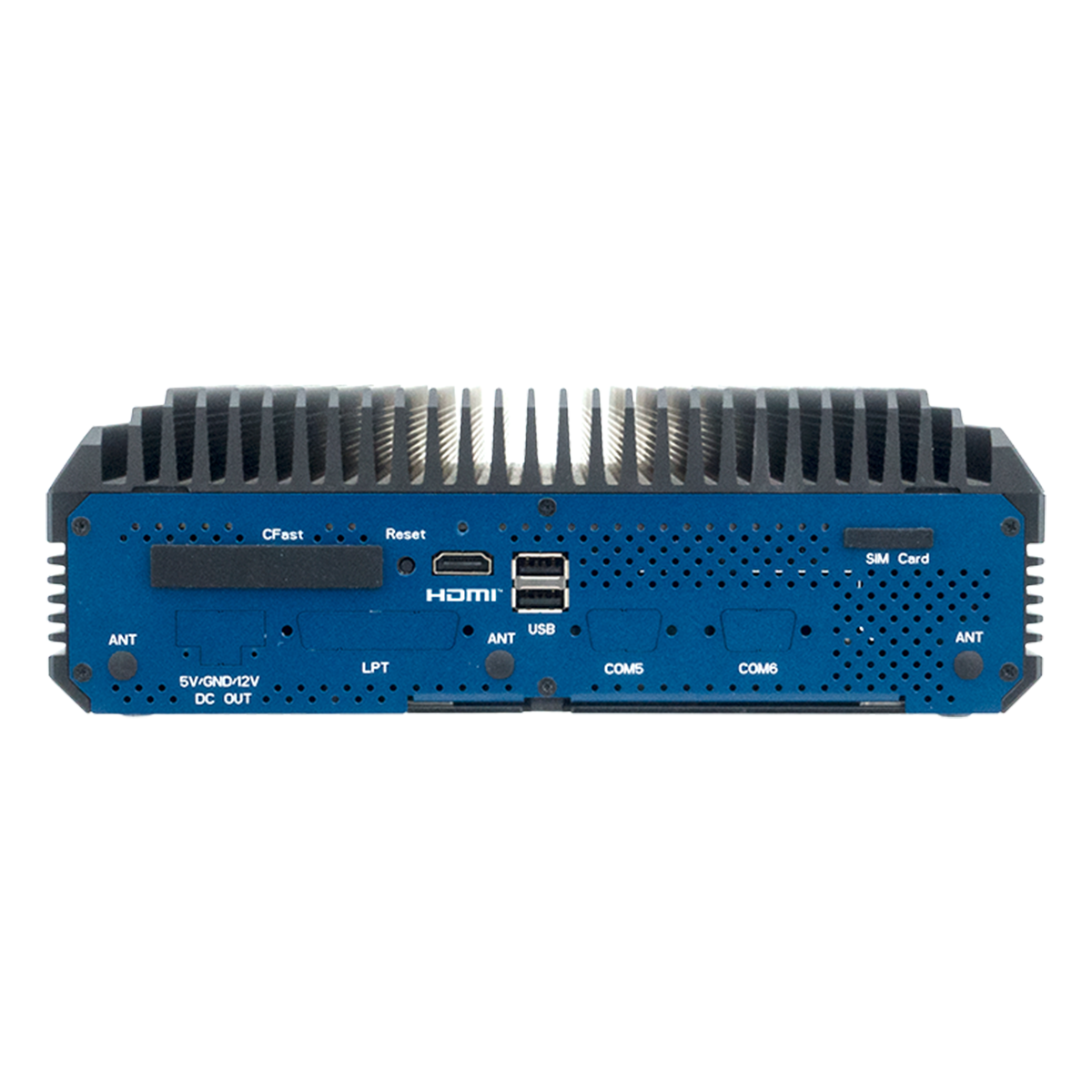

I/O Ports (Front side) |
||
| Display |
1 x HDMI® |
|
| USB |
2 x USB 3.0 (Q170), 2 x USB 2.0 (H110)
|
|
| Serial Ports |
COM 5/6 for RS232 (optional) |
|
| Parallel Port |
1 x LPT port (optional) |
|
| SIM Card |
1 x SIM slot |
|
| CFast Slot |
1 x CFast slot |
|
| Antenna |
3 x antenna hole |
|
| I2C |
1 x I2C port (optional) |
|
| Power Output |
1 x 3 pin terminal block for DC Out 5V/12V (1A max) (optional)
|
|
|

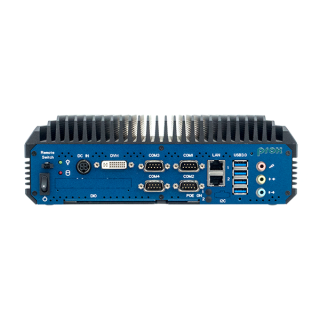

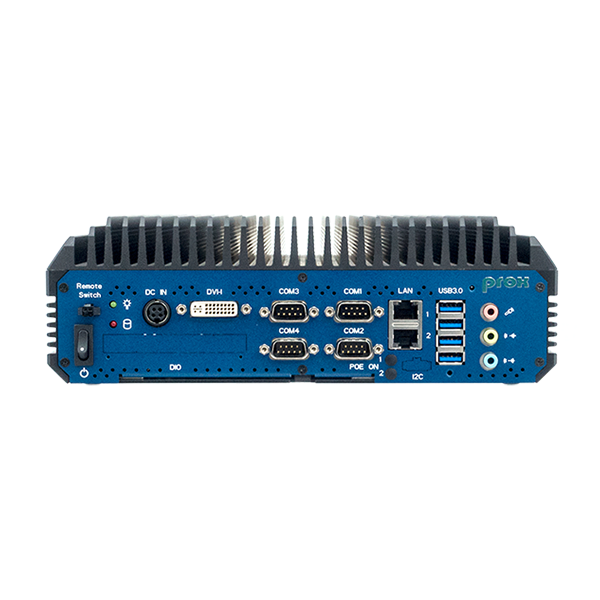

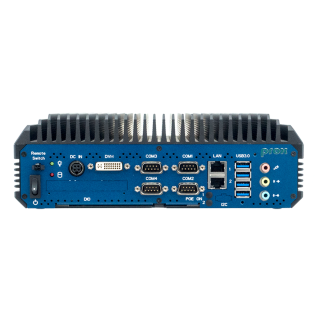

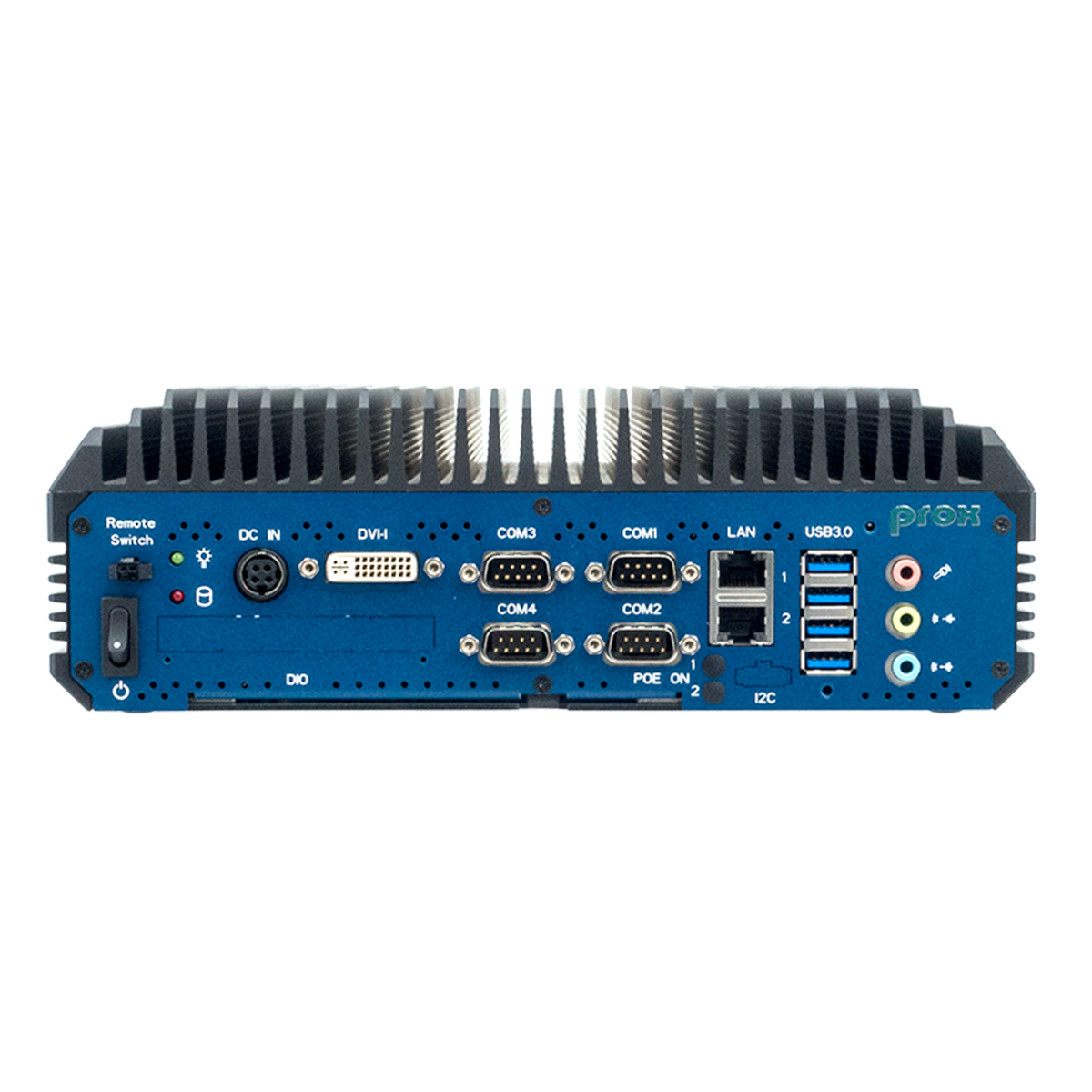

I/O Ports (Rear side) |
||
| Display |
1 x DVI-I (DVI-D+VGA) |
|
| USB |
4 x USB 3.0 |
|
|
Serial Ports
|
COM 3/4 for RS232 COM 1/2 for RS232/422/485 (selectable by BIOS) [COM 1/2 for +5V/+12V/RI selectable by jumper] |
|
| LAN |
2 x GbE LAN, Wake-On-LAN, PXE LAN 1: Intel® PHY 219LM (10/100/1000 Mbps) |
|
| Digital I/O port |
8 in / 8 out
DSUB-25 connector or 16 pin terminal block (optional)
|
|
| Power Input |
DC In 9~36V (DIN type 4 pin connector or 3 pin terminal block)
|
|
| LED |
1 x power LED, 1 x HDD LED, 2 x PoE active LED (optional)
|
|
| Power On/Off |
1 x power button, 1 x remote switch
|
|
|
Environment |
||
| Operating Temp.
(Ambient with airflow)
|
SSD: (w/o PoE) 0°C~50°C (32°F~122°F) (with PoE) 0°C~45°C (32°F~113°F)
|
|
| Storage Temp. | -20°C~80°C (-4°F~176°F) | |
| Humidity |
20%~90% |
|

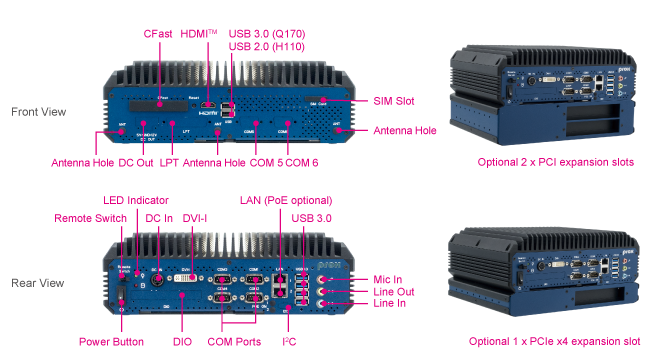

SE-8400 IO
| SE-8400 |
Intel® 7th / 6th Gen. CoreTM Fanless and High Performance Embedded PC |
