SA-N718
Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® Processor Book Size PC
•Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® processor (LGA1200)
•Built-in Intel® HD graphics
•DDR4 2666 memory up to 64GB
•2 x DVI-D / 1 x DP
•6 x COM ports
•1 x Parallel port (option)
•2 x USB 2.0 / 4 x USB 3.0
•Expansion slot selection
1 x PCIe (x16) slot / 2 x PCIe (x8) slot / 2 x PCl slot
1 x M.2 slot for NVMe (up ot PCIeX4) & SATA
•RAID 0/1 (W480E, Q470E)
•Built-in Intel® HD graphics
•DDR4 2666 memory up to 64GB
•2 x DVI-D / 1 x DP
•6 x COM ports
•1 x Parallel port (option)
•2 x USB 2.0 / 4 x USB 3.0
•Expansion slot selection
1 x PCIe (x16) slot / 2 x PCIe (x8) slot / 2 x PCl slot
1 x M.2 slot for NVMe (up ot PCIeX4) & SATA
•RAID 0/1 (W480E, Q470E)
| CPU Support |
Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® processor (LGA1200)
|
|
| Chipset | Intel® H420E/Q470E/W480E | |
| Memory Support |
2 x DDR4 SO-DIMM sockets (up to 64GB) |
|
| Power Supply |
ATX 250W |
|
| Expansion Slots |
1 x PCIe (x16) slot / 2 x PCIe (x8) slot / 2 x PCl slot (Option) 1 x M.2 slot for NVMe (up ot PCIeX4) & SATA, size 2242 |
|
| Drive Bay |
2 x 2.5" SATA HDD or SSD |
|
| Operating System | Windows® 11 / Windows® 10 | |
| System Weight | 5 kg | |
| Dimensions (W x H x D) | 300 x 94 x 270 mm | |
| Certifications | FCC / CE | |
| I/O Ports | ||
| Display | 2 x DVI-D | |
| USB |
4 x USB 3.0 (Rear side) 2 x USB 2.0 (Rear side) 2 x USB 3.0 (Option, front side) |
|
| Serial Ports | Mic In / Line In / Line Out | |
| LAN |
2 x GbE LANs. Wake-On-LAN, PXE LAN 1: Intel® I219LM LAN 2: Intel®I210AT |
|
| Serial Ports |
COM 1 for RS-232/422/485 COM 2/3/4/5/6 for RS-232 (COM 1/2 support +5V/+12V/RI by setting jumper) |
|
| Parallel Port | 1 x parallel port (option) | |
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
HDD: 0°C~40°C (32°F~104°F) | |
| Storage Temp | -20°C~60°C (-4°F~140°F) | |
| Humidity | 20%~90% | |

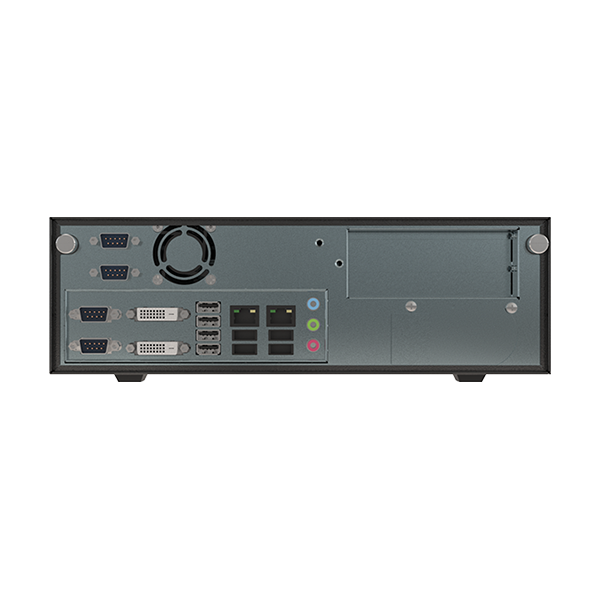

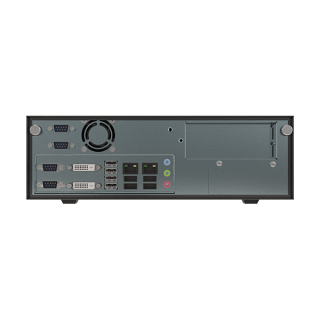

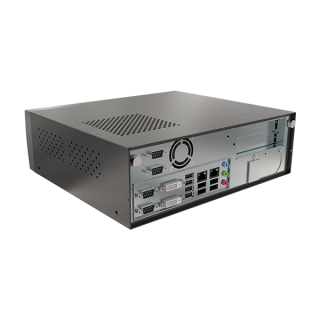

SA-N718 IO
| SA-N718 |
Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® Processor Book Size PC |
| File type | File Download |
| EDM | SA-N718_EDM.PDF |
| Pictures | SA-N718_Pictures.ZIP |
| Manual | SA-N718_Manual.PDF |
| QuickGuide | SA-N718_QuickGuide.PDF |
| README | SA-N718_README.PDF |
| BIOS | SA-N718_BIOS.ZIP |
| Device | SA-N718_Device.ZIP |
| Platform | SA-N718_Platform.ZIP |
| Other | SA-N718_Other.ZIP |
