PA-J690
15.6'' FHD Intel® Processor N Fanless Standalone POS
•Fanless design with Intel® Processor N97
•15.6" LCD display with bezel-free touchscreen
•Thin and light panel appearance
•Versatile design for multiple applications
•MSR / i-Button / 2nd Display / VFD (optional)
•VESA 75 x 75 standard
•15.6" LCD display with bezel-free touchscreen
•Thin and light panel appearance
•Versatile design for multiple applications
•MSR / i-Button / 2nd Display / VFD (optional)
•VESA 75 x 75 standard
| CPU Support |
Intel® Processor N97
|
|
| Memory | 1 x DDR4 SO-DIMM (up to 16GB) | |
| Network |
10/100/1000/2.5G BASE-T Ethernet 1 x M.2 (Key E, 2230)
|
|
| Power Supply | 60W power adapter | |
| Audio | 2W speaker | |
| Weight |
5.2kg (POS + 2nd display, w/o power adapter) 3.3kg (POS) / 1.7kg (PPC) |
|
| Dimensions (W x H x D) |
360 x 260 x 180mm (POS single display 45°) |
|
| O.S. Support |
Windows 11 |
|
| Storage | ||
| M.2 | 1 x M.2 2280 | |
| I/O Ports | ||
| USB | Rear I/O: 2 x USB 2.0 / 2 x USB 3.0 | |
| Serial Ports | 3 x RJ45 | |
| LAN | 1 x Giga LAN | |
| HDMI | 1 x HDMI® | |
| Cash Drawer | 1 x RJ11 (12V/24V selectable) | |
| Power | 1 x 4-pin DC In power jack | |
| Add-ons | ||
| VFD | 20 columns x 2 lines STN LCD display | |
| MSR & i-Button |
ISO I, II, III; JIS II and support information key(USB interface) |
|
| Display | ||
| Size | 15.6" LCD | |
| Resolution | 1920 x 1080 | |
| Brightness | 300 nits | |
| Touchscreen | Bezel-free projected capacitive | |
| Tilt Angle | 0°~45° | |
| Environment | ||
| Certification | CE / FCC | |
| Operating Temperature | 0°C~35°C | |
| Storage Temperature | -20°C~60°C | |
| Storage Humidity | 20%~90% | |

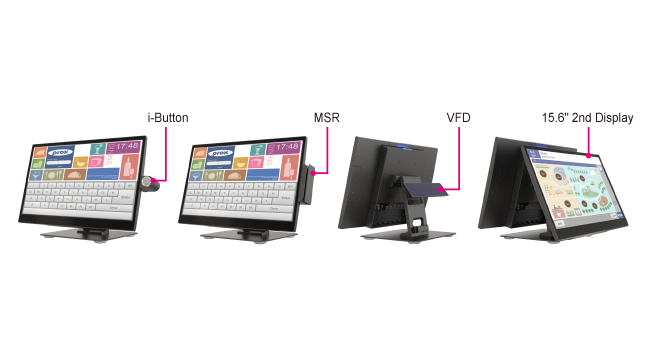

PA-J690 Highlight

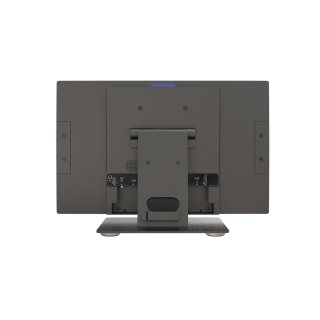

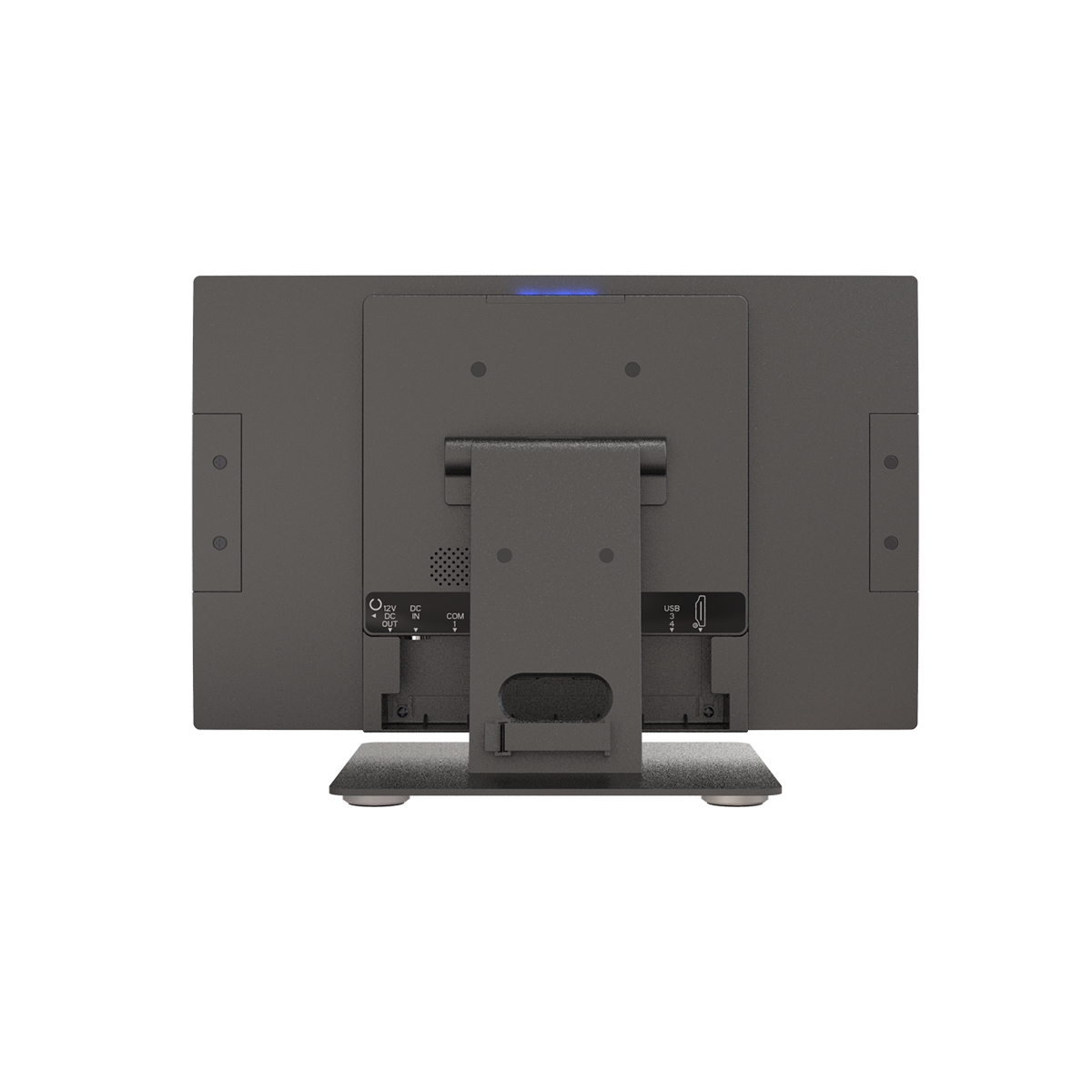

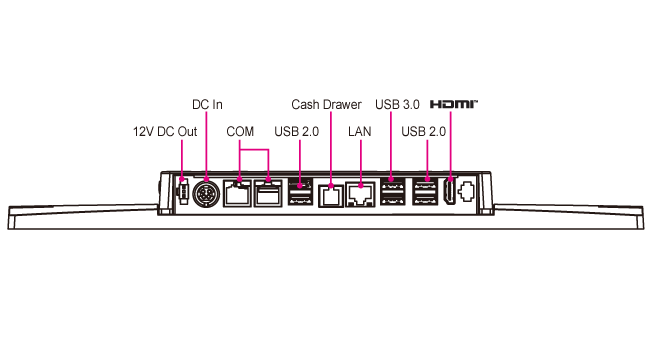

PA-J690 IO

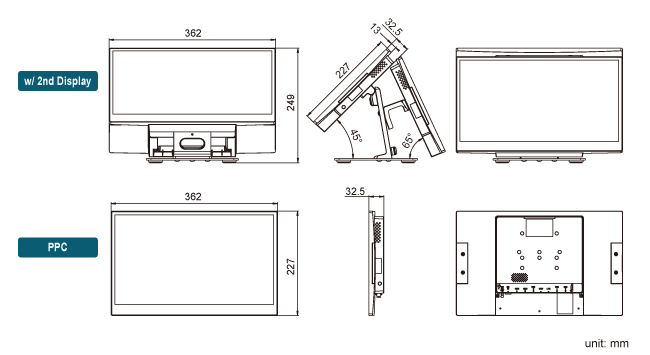

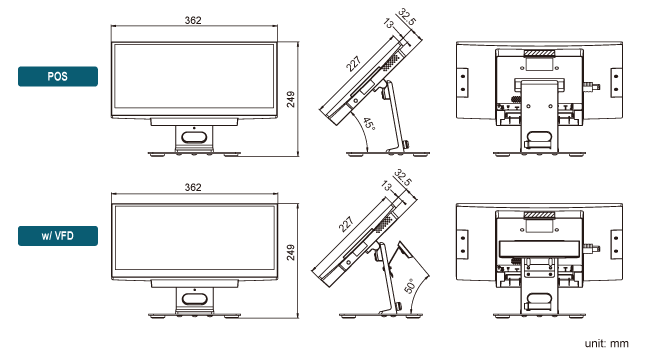

PA-J690 Dimensions
PA-J690 Dimensions
| PA-J690 |
15.6'' FHD Intel® Processor N Fanless Standalone POS |
| File type | File Download |
| EDM | PA-J690_EDM.PDF |
| Pictures | PA-J690_Pictures.ZIP |
