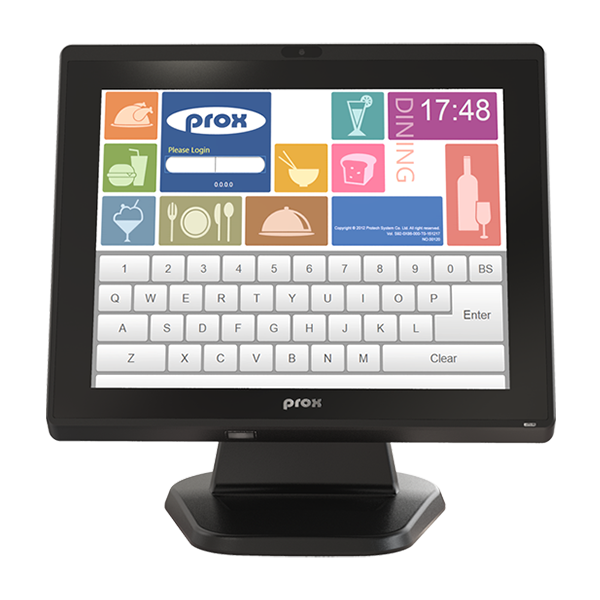

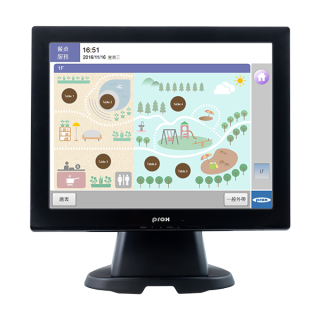

PA-J581
15" Fanless Slim POS Terminal
•Fanless design with Intel® Celeron® J6412 CPU
•15" LCD display with bezel-free touchscreen
•Aluminum die casting back cover
•HDD easy maintenance design
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint / Barcode Scanner / Camera (Optional)
•VESA 100 x 100 standard
•15" LCD display with bezel-free touchscreen
•Aluminum die casting back cover
•HDD easy maintenance design
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint / Barcode Scanner / Camera (Optional)
•VESA 100 x 100 standard
| System | ||
| CPU Support |
Intel® Celeron® J6412 |
|
| Memory | 1 x DDR4 SO-DIMM (up to 16GB) | |
| Network |
10/100/1000/2.5GBASE-T |
|
| Power Supply | 60/90 watt power adapter | |
| Audio | 2W speaker | |
| System Weight | W/o power adapter approx. 5.3 kg (POS+ 2 display) / 4.3 kg (POS) / 3.9 kg (PPC) | |
| Dimensions (W x H x D) |
POS + 2 Display: 342 x 291 x 237 mm (with 45 degree) POS: 342 x 270 x 195 mm (with 45 degree) PPC type: 342 x 270 x 60 mm |
|
| O.S. Support | Windows® 11 IoT Enterprise / Windows® 10 IoT Enterprise | |
| Storage | ||
| SATA | 1 x 2.5" HDD or SSD | |
| I/O Ports | ||
| USB |
Rear: 2 x USB 2.0 / 2 x USB 3.0 + 1 x USB 2.0 (optional) Side: 1 x USB 2.0 |
|
| Serial Ports | 3 + 1 (optional) x RJ45 (all support +5V/12V selectable) | |
| LAN | 1 x RJ45 | |
| HDMI | 1 x HDMI® | |
| Line Out & Mic | 2 x 3.5 mm phone jack (optional) | |
| Cash Drawer | 1 x RJ11 (+12V or +24V selectable) | |
| DC In | 1 x 4-pin DC power jack | |
| Add-ons | ||
| Customer Display |
20 columns x2 lines STN LCD display |
|
| MSR & i-Button |
ISO I,II,III; JIS II and support information key (USB interface)
|
|
| Fingerprint |
Silicon fingerprint module |
|
| Camera |
2.0M pixel CMOS camera module |
|
| Barcode Scanner |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11 2D: PDF417, QR Code, Micro QR, Data Matrix, Chinese sensible code |
|
| Display | ||
| LCD | 15" TFT LCD | |
| Max. Resolution | 1024 x 768 | |
| Brightness | 300 cd/m² | |
| Touchscreen | Bezel-free 5-wire analog resistive or projected capacitive | |
| Tilt Angle | 0~50 degree | |
| EMC & Safety | CE / FCC | |
| Environment | ||
| Operating Temp. | 0°C~35°C | |
| Storage Temp. | -20°C~60°C | |
| Humidity | 20%~90% | |
PA-J581 Highlight

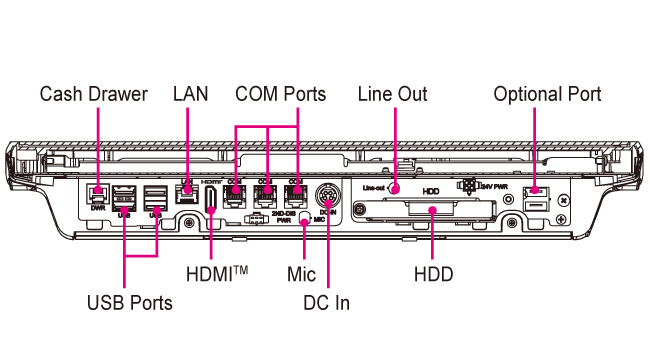

PA-J581 IO
PA-J581 Dimensions
PA-J581 Dimensions
