PA-J510
15" Fanless Slim POS Terminal
•Fanless design with Intel® Celeron® 6305E / Pentium® 7505 CPU
•15" LCD display with bezel-free touchscreen
•Thin and light panel appearance.
•SSD easy maintenance design
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint
/ 2D Barcode Scanner / 2nd Display / VFD (optional)
•VESA 75 x 75 standard
•15" LCD display with bezel-free touchscreen
•Thin and light panel appearance.
•SSD easy maintenance design
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint
/ 2D Barcode Scanner / 2nd Display / VFD (optional)
•VESA 75 x 75 standard
| CPU Support |
Intel® CoreTM i5-1145G7E / i3-1115G4E / Celeron® 6305E / Pentium® 7505 CPU
|
|
| Memory | 1 x DDR4 SO-DIMM (up to 16GB) | |
| Network |
Gigabit 10/100/1000 Base-T Fast Ethernet 1 x M.2 (Key E, 2230) |
|
| Power Supply | 60/90 watt power adapter | |
| Audio | 2W speaker | |
| System Weight | W/o power adapter approx. 5.3 kg (POS+ 2 display) / 4.3 kg (POS) / 3.9 kg (PPC) | |
| Dimensions (W x H x D) | POS + 2 Display: 342 x 291 x 237 mm (with 45 degree)
POS: 342 x 270 x 195 mm (with 45 degree) PPC type: 342 x 270 x 60 mm |
|
| O.S. Support | Windows® 11 IoT Enterprise / Windows® 10 IoT Enterprise | |
| Storage | ||
| M.2 | 1 x M.2 2280 | |
| I/O Ports | ||
| USB |
Rear I/O: 2 x USB 2.0 / 2 x USB 3.1 / 1 x USB Type-C Side I/O: 1 x USB 2.0 |
|
| Serial Ports | 2 x RJ45 (all support +5V/12V selectable) | |
| LAN | 1 x Giga LAN | |
| HDMI | 1 x HDMI® | |
| Cash Drawer | 1 x RJ11 (+12V or +24V selectable) | |
| DC In | 1 x 4-pin DC power jack | |
| Add-ons | ||
| Customer Display | 20 columns x2 lines STN LCD display | |
| MSR & i-Button | ISO I,II,III; JIS II and support information key (USB interface) | |
| Fingerprint | Silicon fingerprint module | |
| Barcode Scanner |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11 2D: PDF417, QR Code, Micro QR, Data Matrix, Chinese sensible code |
|
| Display | ||
| LCD | 15.6" TFT LCD | |
| Max. Resolution | 1024 x 768 | |
| Brightness | 400 cd/m² | |
| Touchscreen | Bezel-free projected capacitive | |
| Tilt Angle | 0~50 degree | |
| Environment | ||
| EMC & Safety | CE / FCC | |
| Operating Temp. | 0°C~35°C | |
| Storage Temp. | -20°C~60°C | |
| Humidity | 20%~90% | |
PA-J510 Highlight

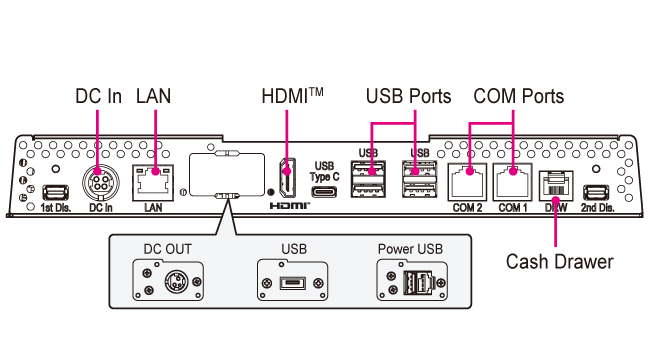

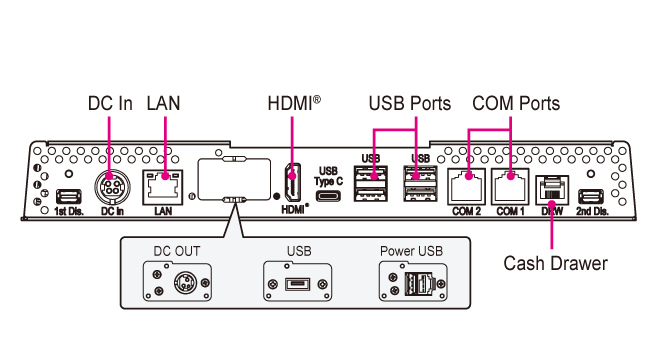

PA-J510 IO
PA-J510 Dimensions
PA-J510 Dimensions
