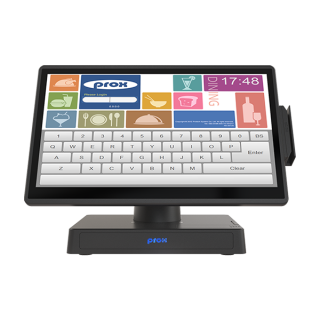

PA-J501

15.6" Fanless Slim POS Terminal

•Fanless design with Intel® Celeron® J6412 CPU
•15.6" LCD display with bezel-free touchscreen
•M.2 SSD easy maintenance design
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint / Scanner
•VESA 75 x 75 standard

Tech Spec
Product Info
Download

System
CPU Support		Intel® Celeron^® J6412 (fanless)
Memory		1 x DDR4 (260-pin) SO-DIMM socket (up to 16GB)
Storage		1 x M.2 2242 1 x M.2 2280
Network		1 x RJ45, Intel^® I225 2.5GbE 1 x M.2 (Key E, 2230)
O.S. Support		Windows^® 11 / Windows^® 10
Primary Display		15.6", 1366 x 768
2nd Display		10.1" monitor with touch
Audio		1 x 2W speaker
I/O Ports
Display		1 x Mini DP for Primary display 1 x Mini DP for 2nd display 1 x HDMI®1.4
USB		Side: 1 x USB 2.0 Rear: 3 x USB 2.0 / 2 x USB 3.1
Serial Ports		2 x RJ-45 (all support 5V/12V selectable under BIOS) RS-232 interface
LAN		1 x 2.5 GbE LAN (RJ45)
Cash Drawer		1 x RJ11 (+12V or +24V selectable) (default at +24V)
DC In		1 x 4-pin DC power jack (4pin, DIN)
Option		USB 2.0 x 1 or 24V Power USB x 1 or DC-out x 1 or RJ-45 x 1 (RS232 interface)
Customer Display		20 columns x 2 lines STN LCD display
MSR		JIS I,II, ISO Track1+2+3 (USB interface)
2nd Display		10.1" with P-cap touch
Fingerprint		Silicon fingerprint module (USB interface)
iButton		iButton fingerprint module (USB / RS232 interface)
Scanner		2D scanner (USB interface)
Environment
EMC & Safety		CE / FCC
Operating Temp.		0°C~35°C
Storage Temp.		-20°C~60°C
Humidity		20%~90%

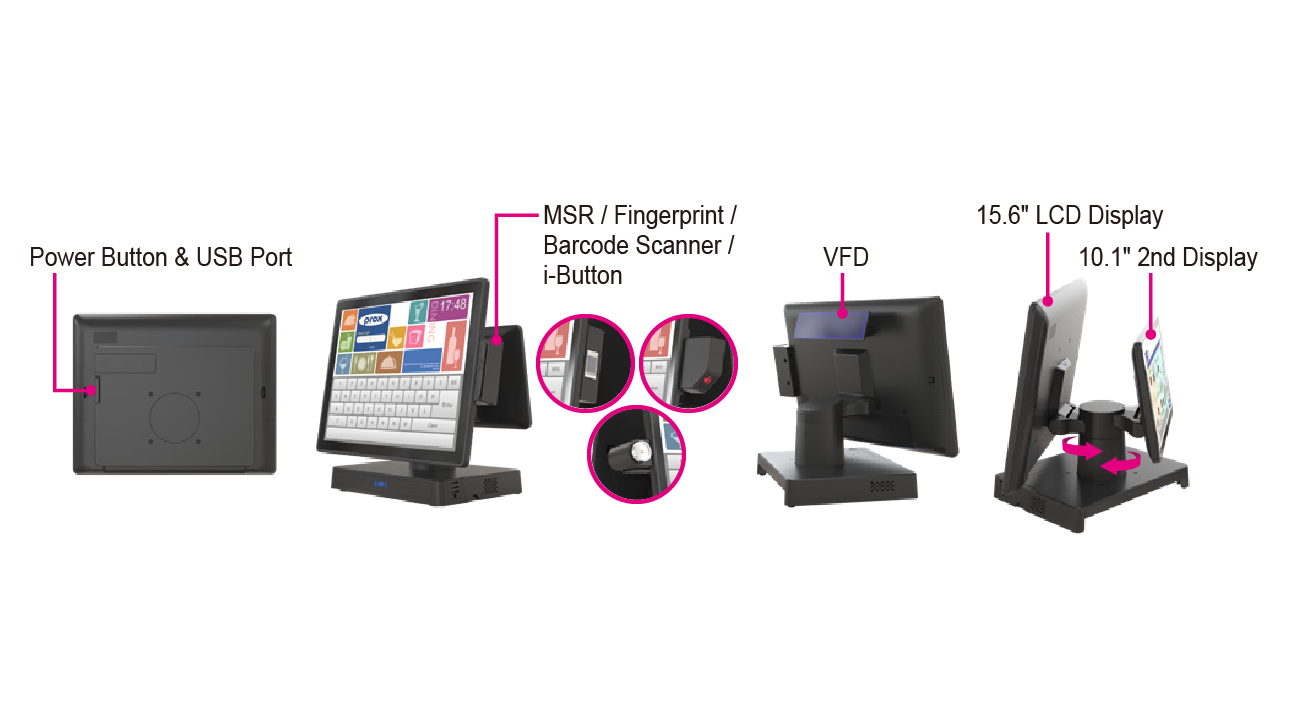

PA-J501 Highlight

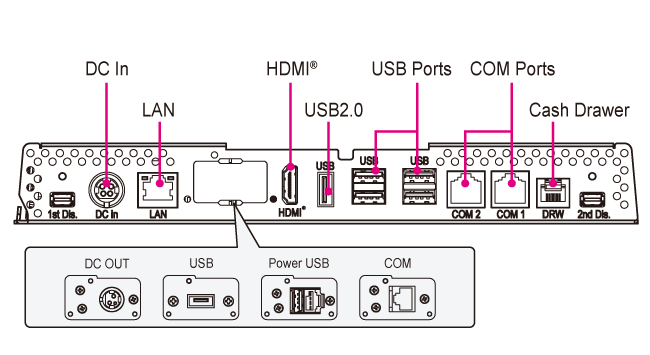

PA-J501 IO

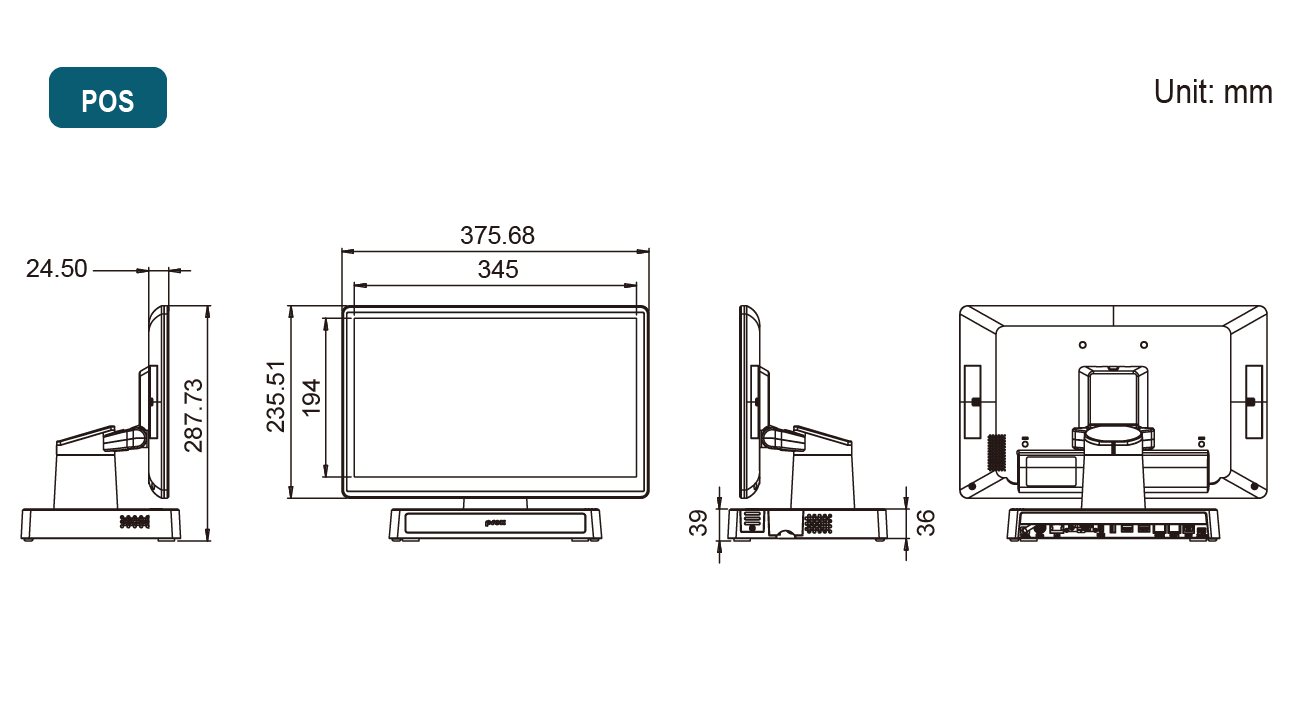

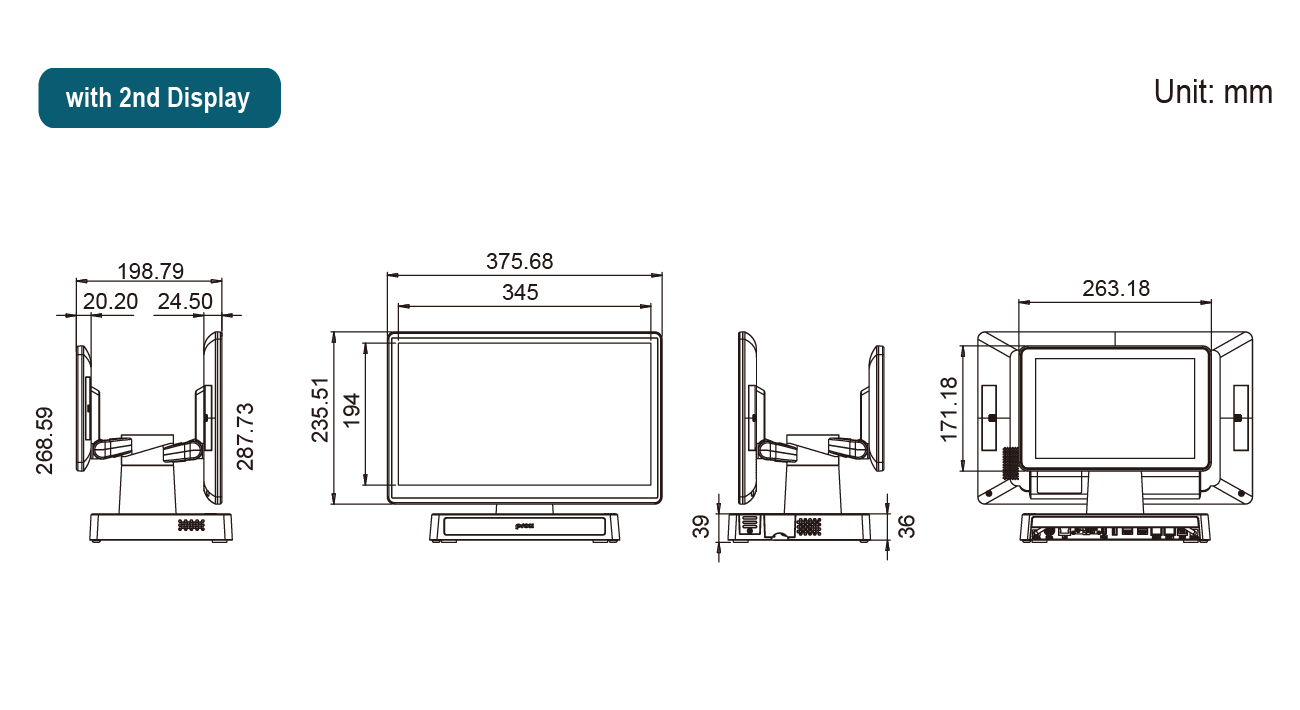

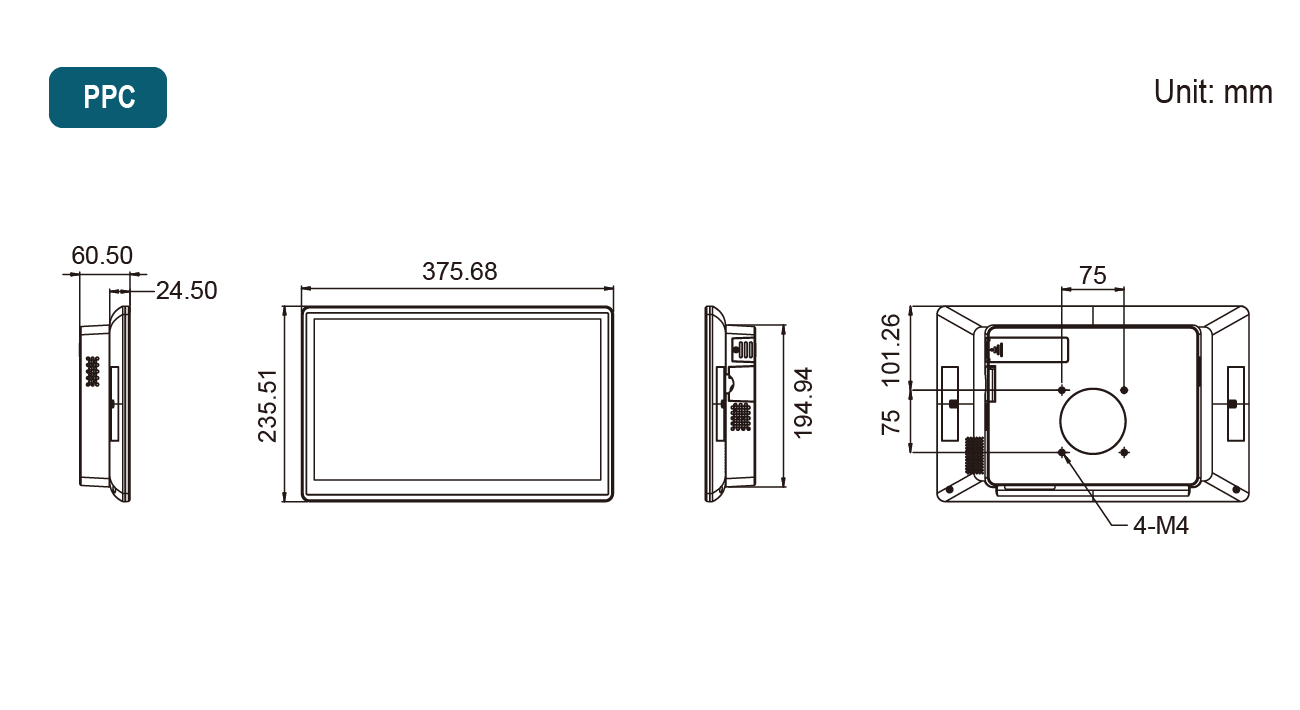

PA-J501 Dimensions

PA-J501 Dimensions

PA-J501 Dimensions
