PA-A903

15.6” All-in-One POS Terminal

•Fanless design with Intel® Celeron® J6412
•15.6’’ LCD display with bezel-free capacitive touch
•Versatile design for multiple applications
•Optional MSR / i-Button / Fingerprint / VFD / RFID / 2” or 3” Thermal Printer / Barcode Scanner / Wireless LAN

Tech Spec
Product Info
Download

System
CPU Support		Intel® Celeron® J6412
Memory		DDR4, 1 x 260-pin SO-DIMM, Max.up to 32GB
Network		10/100/1000/2.5G Mbps
Power Supply		60/90 watt power adapter
Audio		2.5W speaker
System Weight		With power adapter approx. 5 kg
Dimensions (W x H x D)		372 x 169 x 315 mm
O.S. Support		Windows® 11 / Windows® 10
Storage
SATA		SATA III
I/O Ports
USB		Rear: 2 x USB 2.0 / 2 x USB 3.1 Side: 1 x USB 2.0
Serial Ports		3 x RJ-45 (COM1,2 support 5V/12V selectable by jumper), RS232 interface
LAN		1 x 2.5 GbE LAN (RJ45)
HDMI		1 x HDMI®
Cash Drawer		1 x RJ11 (+12V or +24V selectable)
DC In		1 x 4-pin DC power jack
Optional		1 x DB9 RS-232; 1 x DB-15 VGA interface; 1 x Line Out; 1 x Mic In; 1 x RJ11 Cash Drawer port
Add-ons
Customer Display		VFD, 20 columns and 2 lines, each column is 16 x16 dots
Printer		2" or 3" easy loading thermal printer with auto-cutter
MSR & iButton		MSR: JIS I or II, ISO Track1+2+3 (USB interface); iButton: USB
Fingerprint		8 bits, 256 level for Gray Scale
Display
LCD		15.6" TFT LCD
Resolution		1366 x 768
Brightness		220 cd/m²
Touchscreen		15.6" capacitive touch panel, USB interface
Tilt Angle		40 degree
Environment
EMC & Safety		CE / FCC
Operating Temp.		0°C~35°C
Storage Temp		-20°C~85°C
Humidity		20%~90%

PA-A903 Highlight

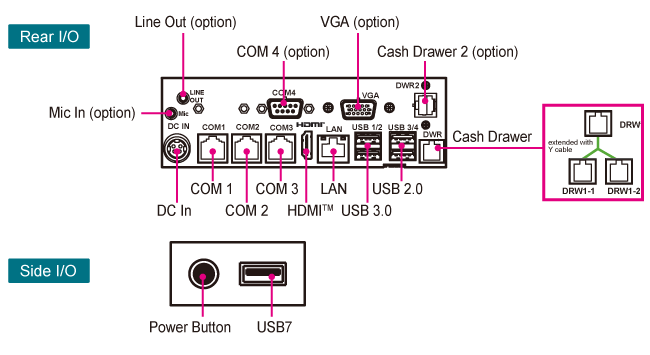

PA-A903 IO

PA-A903 Dimensions

PA-A903	15.6” All-in-One POS Terminal
File type	File Download
EDM	PA-A903_EDM.PDF
EDM	PA-A903_black_EDM.PDF
Pictures	PA-A903_Pictures.PDF
Manual	PA-A903_Manual.PDF
QuickGuide	PA-A903_QuickGuide.PDF
README	PA-A903_README.PDF
API	PA-A903_API.ZIP
BIOS	PA-A903_BIOS.ZIP
Device	PA-A903_Device.ZIP
Platform	PA-A903_Platform.ZIP
