PA-A900

Highly Integrated Fanless All in One 15.6" POS Terminal

•Fanless design with Intel® Celeron® J3455 CPU

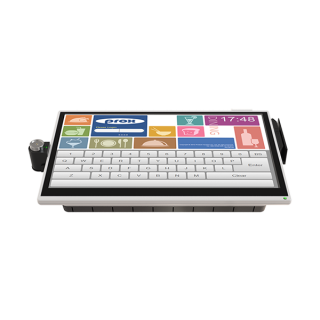

•15.6’’ LCD display with bezel-free capacitive touch
•Versatile design for multiple applications

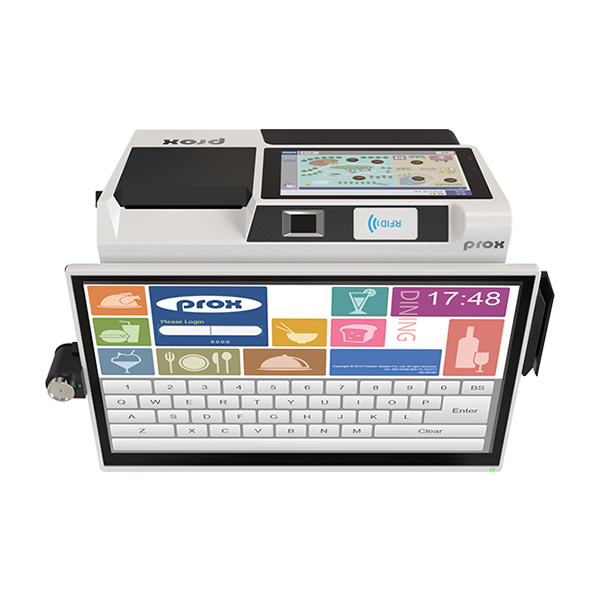

•Optional MSR / i-Button / Fingerprint / VFD / RFID / 2” or 3” Thermal Printer / Barcode Scanner / Wireless LAN

Tech Spec
Product Info
Download

System
CPU Support		Intel® Celeron® J3455 CPU
Memory		1 x DDR3L SO-DIMM slot (up to 8GB)
Network		Gigabit 10/100/1000 Base-T Fast Ethernet
Power Supply		60/90 watt power adapter
Audio		2W speaker
TPM		2.0
System Weight		With power adapter approx. 5 kg
Dimensions (W x H x D)		372 x 169 x 315 mm
O.S. Support		Windows® 10
Storage
SATA		1 x 2.5" HDD or SSD
I/O Ports
USB		Rear: 2 x USB 2.0 / 2 x USB 3.0 ; 1 Power USB (12/24V; optional) Side: 1 x USB 2.0
Serial Ports		3 x RJ45 (all support +5V/12V selectable)+ 1 (optional) x DB9
LAN		1 x RJ45
VGA		1 x DB15 (Optional)
HDMI		1 x HDMI®
Cash Drawer		1 + 1 (option, with Y cable) x RJ11 (+12V or +24V selectable)
DC In		1 x 4-pin DC power jack
Add-ons

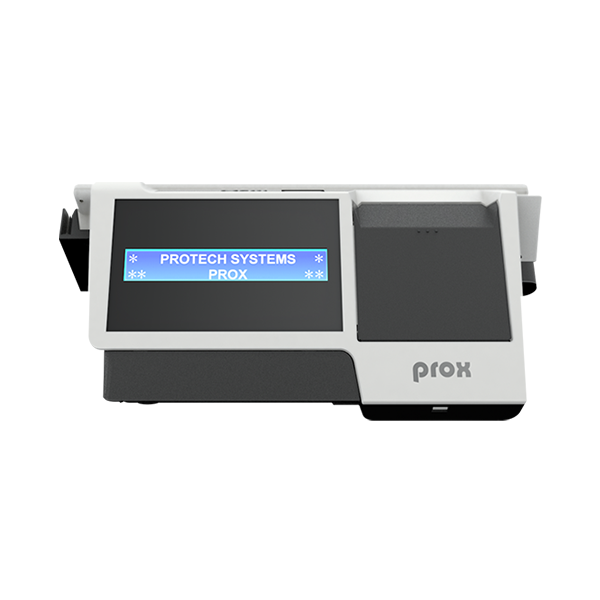

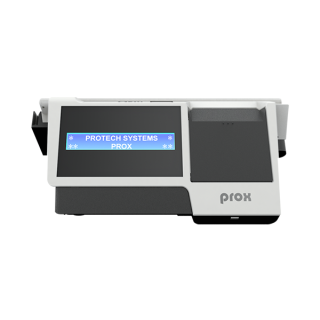

Customer Display		VFD, 20 columns and 2 lines, each column is 16 x16 dots
Printer		2" or 3" easy loading thermal printer with auto-cutter
MSR & iButton		MSR: JIS I or II, ISO Track1+2+3 (USB interface); iButton: USB
Fingerprint		8 bits, 256 level for Gray Scale
Display
LCD		15.6" TFT LCD
Resolution		1366 x 768
Brightness		220 cd/m²
Touchscreen		15.6" capacitive touch panel, USB interface (EETI controller)
Tilt Angle		40 degree
Environment
EMC & Safety		CE / FCC
Operating Temp.		0°C~35°C
Storage Temp.		-5°C~60°C
Humidity		20%~90%

PA-A900 Highlight

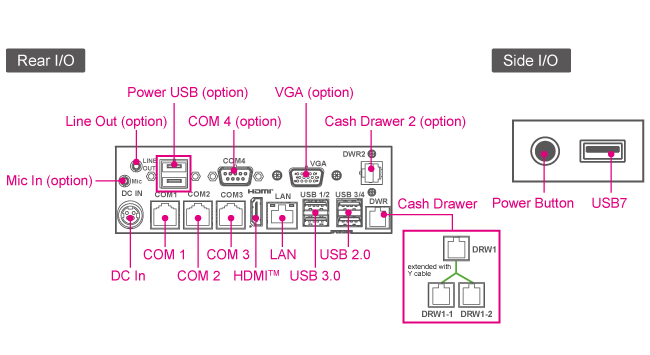

PA-A900 IO

PA-A900 Dimensions

PA-A900	Highly Integrated Fanless All in One 15.6" POS Terminal
File type	File Download
EDM	PA-A900_EDM.PDF
Pictures	PA-A900_Pictures.PDF
README	PA-A900_README.PDF
Manual	PA-A900_Manual.PDF
QuickGuide	PA-A900_QuickGuide.PDF
BIOS	PA-A900_BIOS.ZIP
Device	PA-A900_Device.ZIP
Platform	PA-A900_Platform.ZIP
Other	PA-A900_Other.ZIP
