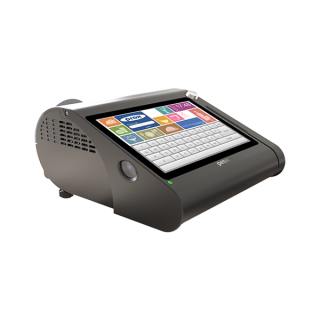

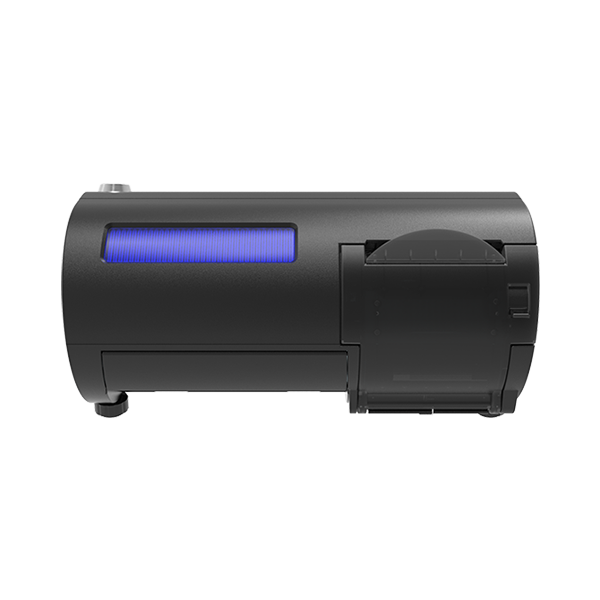

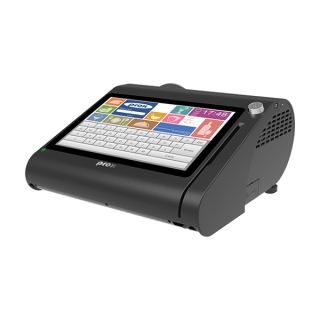

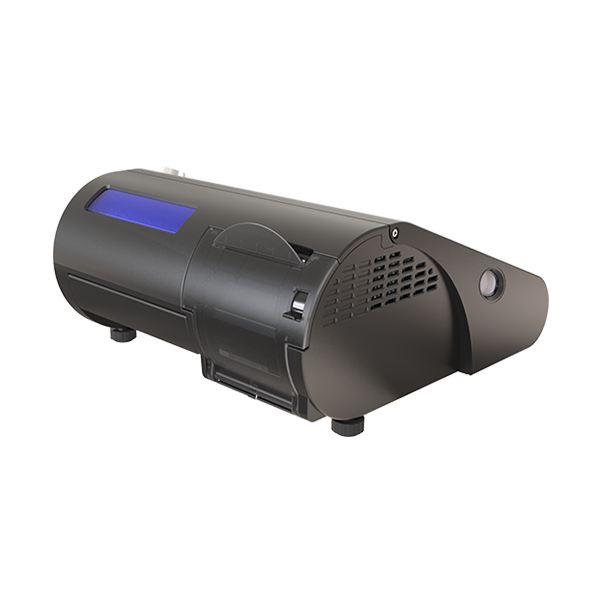

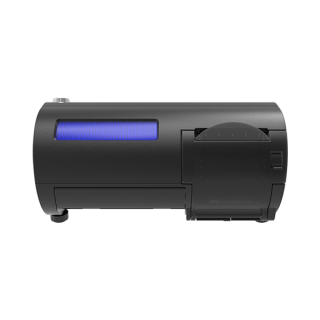

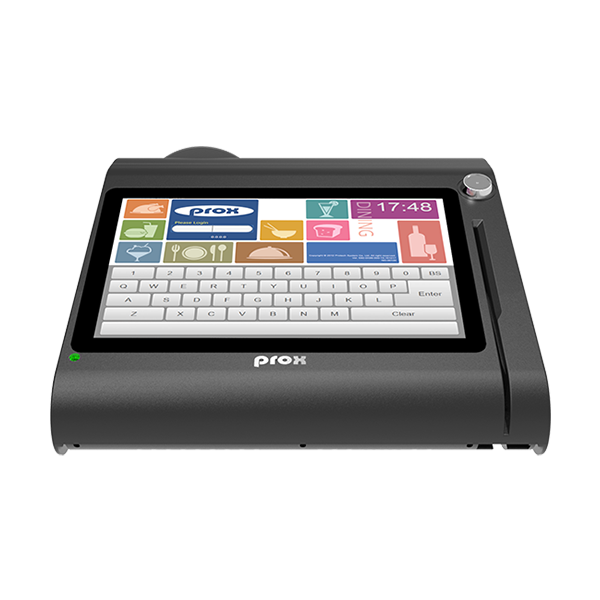

PA-A310

Highly Integrated Fanless All in One 10.1" POS Terminal

•Fanless design with Intel® Celeron® J3455 CPU
•10.1’’ LCD display with bezel-free capacitive touch
•Versatile design for multiple applications
•MSR / i-Button / Fingerprint / VFD / RFID / 2” or 3” thermal printer / barcode scanner
/ wireless LAN (Optional)

Tech Spec
Product Info
Download

System
CPU Support		Intel® Celeron® J3455 CPU
Memory		1 x DDR3L SO-DIMM slot (up to 8GB)
Network		Gigabit 10/100/1000 Base-T Fast Ethernet
Power Supply		60/90 watt power adapter
Audio		2W speaker
System Weight		With power adapter approx. 4 kg
Dimensions (W x H x D)		299 x 148 x 300
O.S. Support		Windows® 10
Storage
SATA		1 x 2.5" HDD or SSD 1 x M.2 2242 (SATAIII interface)
I/O Ports
USB		Rear: 2 x USB 2.0 2 x USB 3.0 + 1 (optional) x power USB (+12V/+24V) Side: 1 x USB 2.0
Serial Ports		3 x RJ45 (all support +5V/+12V selectable) + 1 (optional) x DB9
LAN		1 x RJ45
VGA		1 x DB15
HDMI		1 x HDMI®
Cash Drawer		1 + 1 (option, with Y cable) x RJ11 (+12V or +24V selectable)
DC In		1 x 4 pin DC power jack
Line Out		1 (optional) x phone jack
Add-ons

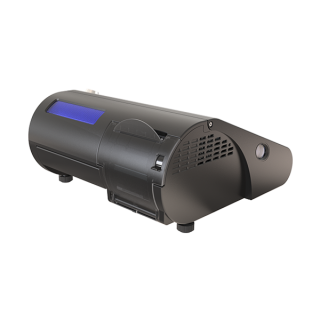

Customer Display		VFD, 20 columns and 2 lines, each column is 5 x 7 dots
Printer		2" or 3" easy loading thermal printer with auto-cutter
MSR & iButton		JIS I or II, ISO Track1+2+3 (PS/2 interface)
Fingerprint		8-bit grayscale reader
Display
LCD		10.1" TFT LCD
Resolution		1280 x 800
Brightness		400 cd/m²
Touchscreen		10.1" capacitive touch panel, USB interface (EETI controller)
Tilt Angle		24~30 degrees
Environment
EMC & Safety		CE / FCC
Operating Temp.		0°C~35°C
Storage Temp.		-5°C~60°C
Humidity		20~90%

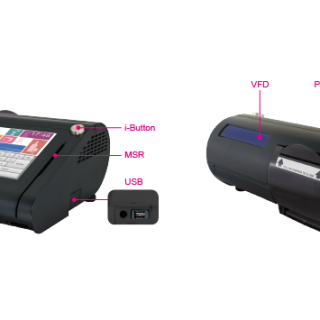

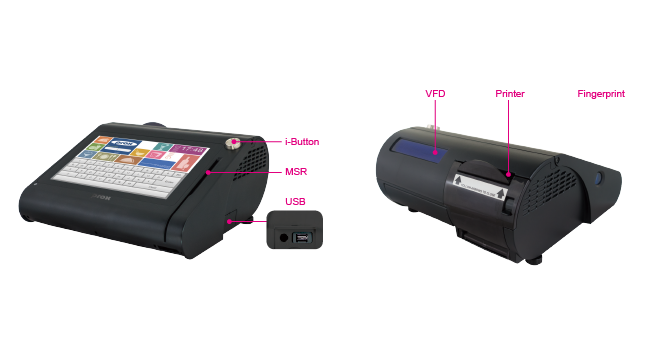

PA-A310 Highlight

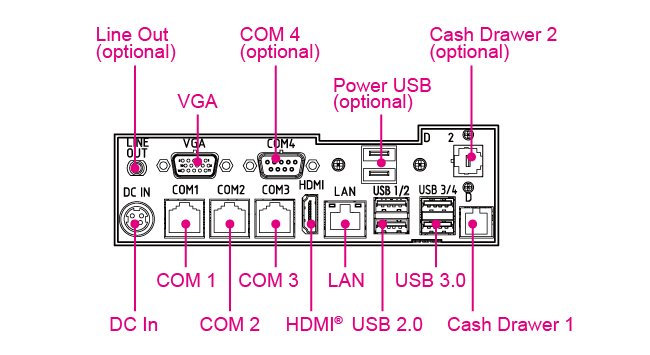

PA-A310 IO

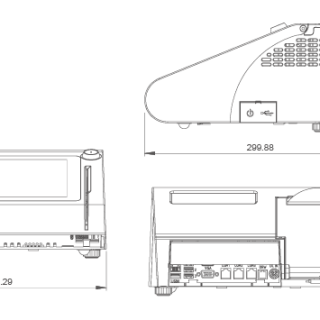

PA-A310 Dimensions

PA-A310	Highly Integrated Fanless All in One 10.1" POS Terminal
File type	File Download
EDM	PA-A310_EDM.PDF
Pictures	PA-A310_Pictures.ZIP
Manual	PA-A310_Manual.PDF
QuickGuide	PA-A310_QuickGuide.PDF
README	PA-A310_README.PDF
BIOS	PA-A310_BIOS.ZIP
Device	PA-A310_Device.ZIP
Platform	PA-A310_Platform.ZIP
