MH-T01T
• High Performance Design with Intel® 11th Gen. Core™ i7/i5/i3/Celeron® Processor and Windows 10 IoT (64 bits)
• Durable Design with IP65 Rating (per IEC 60529) and 1.5 m Drop Test (per MIL-STD-810H)
• Dual-main Battery Design with Hot-swap and up to 8 h operating
• Multi-peripherals and Accessories
• Wide-ranged temperature and Light weight 1.28 kg (Tablet only)
• Integrated with LIPS 3D Camera for Logistics dimension measurement application
| Display Specification | |
| Size | 10.1" |
| Resolution | WUXGA (1920 x 1200 pixels, 16:10) |
| Brightness | 1,000 nits for Sunlight readable |
| Backlight Lifetime |
30,000 hours |
| Touch |
P-CAP Multi-Touch with Anti-Fingerprint and Corning Gorilla Glass (Support Finger/ Stylus/ Glove/ Raindrop) |
| Bonding Technology | LCD Optical Clear Adhesive direct bonding with Touch |
| System Specification | |
| Processor | Intel® Core™ i7-1185GRE (4C) 1.80 GHz
Intel® Core™ i5-1145GRE (4C) 1.50 GHz Intel® Core™ i3-1115GRE (2C) 2.20 GHz Intel®Celeron®6305E (2C) 1.80 GHz |
| Operating System | Windows 10 IoT Enterprise LTSC 2019 OS (64 bits) |
| Memory | 1 x DDR4 3200 SO-DIMM socket (up to 16 GB) |
| Storage | 1 x M.2 NVMe SSD (up to 1TB) |
| Audio | 1 x 2 W Speaker and 1 x Mic |
| Sensor | G-Sensor, Ambient Light Sensor |
| Vibrator | Yes |
| TPM | TPM 2.0 |
| LED Indicators | 1 x tri-color LED (Green/Yellow/Red) for Power/ Battery status indication
1 x Green LED for WiFi/LTE/5G connection indication
|
| Buttons | 6 x Buttons (1 x Power Button, 1 x Home Key, 2 x Function Key, 1 x Volume+,
1 x Volume-, Function Keys are programmable)
|
| Battery |
2 x 10.8 V/ 2330 mAh Li-Ion Battery for Hot-swap and up to 8 hours operating (per Mobilemark 2014) |
| AC Adapter | DC Jack 19V or USB Type-C Power Delivery 20V |

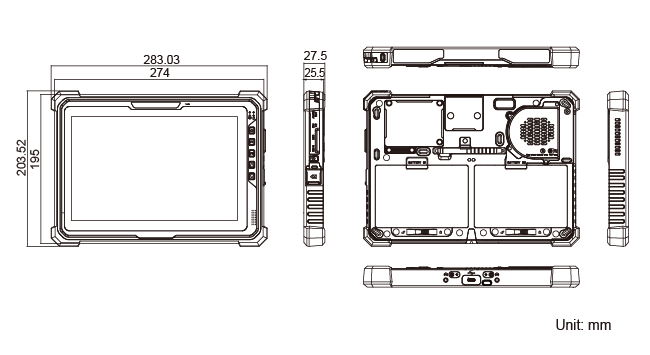

| Dimensions (W x H x D) | 274 x 195 x 22 mm (without 4-corner rubber) |
| Weight | 1.28 kg (Tablet only) |
| I/O Ports | |
| USB | 1 x USB 3.0 Type A
1 x USB 3.0 Type-C for Charging with PD/Data Transmission/Display 1 x USB 3.0 Type A (optional) |
| Audio Jack | 1 x Headset (Headphone out/ Mic-in combo) |
| Nano-SIM Slot | 1 x Dual-Nano-SIM 4G LTE/ 5G |
| Expansion Slots | Expansion Slot 2 for 2D barcode, COM port, USB 3.0 Type A,
MicroSD card, LAN port (optional) Expansion Slot 1 for 3D Camera, Card Reader, Fingerprint, etc (optional) |
| Communications | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac (WiFi 5) or 802.11 a/b/g/n/ac/ax (WiFi 6E) |
| Bluetooth | Bluetooth 5.3 |
| GNSS | GPS, GLONASS (Optional) |
| WWAN | 4G LTE or 5G for North America/ Europe/ Taiwan/ Japan (Optional) |
| Optional Peripherals and Accessories | |
| 1D/2D Barcode | Honeywell N4680 |
| Camera |
2 MP Front Camera (optional, Windows hello Camera) 8 MP Rear Camera (optional) 3D Camera for Logistics dimension measurement application (optional) |
| Hand Strap | Yes |
| Shoulder Strap | Yes |
| Stylus | Capacitive Stylus |
| TP Protector | 9H Glass Touch Panel Protector |
| Cradle | Yes (Optional) |
| Vehicle Cradle | Yes (Optional) |
| Fingerprint Reader | Yes (Optional) |
| Card Reader | Yes (Optional) |
| Reliability and Environment | |
| ESD | Contact +/-8 kV and Air +/- 15 kV |
| EMI | Class B |
| IP Rating | IP65 per IEC 60529 |
| Drop Test | 1.5 m per MIL-STD-810H |
| Tumble Test | 1000 tumbles, 0.5 m per IEC 60068-2-32 |
| Shock | Per MIL-STD-810H |
| Vibration | Per MIL-STD-810H |
| Operating Temp. |
-20°C~60°C (AC mode) and -10°C~50°C (Battery mode) Above 0°C (Boot up) |
| Storage Temp. | -20°C~60°C (-4°F~140°F) |
| Humidity | 10%~90% non-condensing |
| Certification | |
| Certificate | CE, FCC, BSMI, PSE, Battery with UN 38.3 and IEC 62133 |

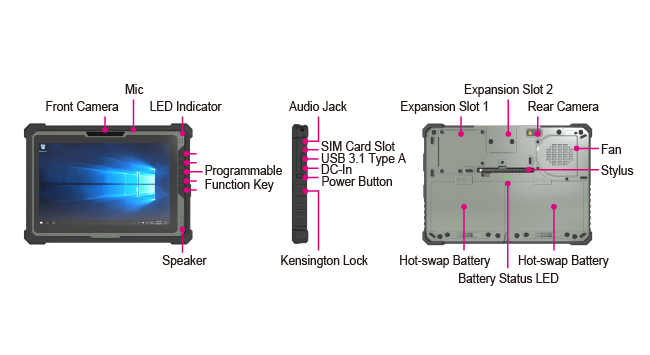

MH-T01T Highlight
MH-T01T IO
Hand Strap
A design:
• 360 degree rotation Easy stand design
• Hand Strap Dimensions : 253 x 190 mm
B design:
• No rotation function
• Hand Strap Dimensions : 253 x 190 mm
Screen Protector
• AF Tempered glass screen protector
Dimensions : 238.3 x 162 x 0.45mm
Hardness : 9H
• AG/AF Tempered glass screen protector
Dimensions : 238.3 x 162 x 0.45mm
Hardness : 9H
• AR/AF Tempered glass screen protector
Dimensions : 238.3 x 162 x 0.45mm
Hardness : 9H
• Anti-UV/AF Tempered glass screen protector
Dimensions : 238.3 x 162 x 0.45mm
Hardness : 9H
Battery Pack
• Battery Type : Li-ion
• Voltage : 10.8V
• Capacity : Typical 2400mAh ; min. 2100 mAh
• Number of cell : 3S1P
• Dimensions : L 119.5 x W 79.2 x H 9.5 mm
• Weight : 150 g
Battery Charger
• DC-In Jack : 1 x DC 19V In
• Battery bays : 2 x Battery bays
• LED Indicator : Bi-color LED x 4 pcs for each bay
Stylus + Tether
• Stylus Dimensions : 90 mm ; Ø7 mm
• Tip size : Ø2.5 mm + Ø5 mm
• spring extension cable Length : 100 mm
Shoulder Strap
• Shoulder Strap Dimension : 1950 mm x 320 mm
• Cable tie : 1 x movable cable tie
Vehicle Cradle
• Power output : 2 x Pogo pin (3A, Ground)
• Power input : 1 x 9-48V Terminal block
(3 pin φ =2.5mm) (with ignition function)
• USB : 4 x USB 2.0(Type A)
• COM : 1 x COM (DB9) (with 12V/5V/RI)
• LAN : 1 x RJ45 (10/100/1000 M bps)
Vehicle Cradle
• HDMI® : 1 x HDMI® connector
• LED : 1 x Logo LED indicator
• Security lock slot :
1 x Kensington lock K type
1 x Metal lock (optional)
• Dimension : L 310.5 x W 100.6 x H 262 mm
VESA : 75 x 75 mm
Desktop Cradle
Charger Only:
• Power output : 2 x Pogo pin (3A, Ground)
• Power input : 1 x DC-In Jack 19V In
• Security lock slot :
1 x Kensington lock K type
1 x Metal lock (optional)
• Dimension : L 190.8 x W 157.5 x H 257.3 mm
Desktop Cradle
• Power output : 2 x Pogo pin (3A, Ground)
• Power input : 1 x DC-In Jack 19V In
• USB : 4 x USB 2.0(Type A)
• COM : 1 x COM (DB9) (with 12V/5V/RI)
• LAN : 1 x RJ45 (10/100/1000 M bps)
• HDMI : 1 x HDMI connector
• LED : 1 x Logo LED indicator
• Security lock slot :
1 x Kensington lock K type
1 x Metal lock (optional)
• Dimension : L 157.5 x W 190.8 x H 257.3 mm
Extension Cable
Cigarette lighter connector :
• 1 x 12V/10A with fuse
• 1 x LED indicator
• Terminal block : 1 x Terminal block (3 pin φ =2.5mm)
• Cable length : 2000 mm
Power Adapter
• Input : 100V-240V, 50-60Hz, 2.0A
• Output : 19V, 3.42A, 65W
• Dimensions : L105.5 x W 46.4 x H 28.3 mm
• Weight : 300g
• Input cable length : 1830 mm
• Output cable length. : 1200 mm
