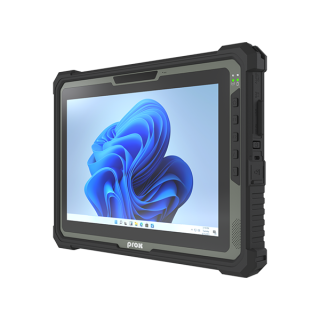

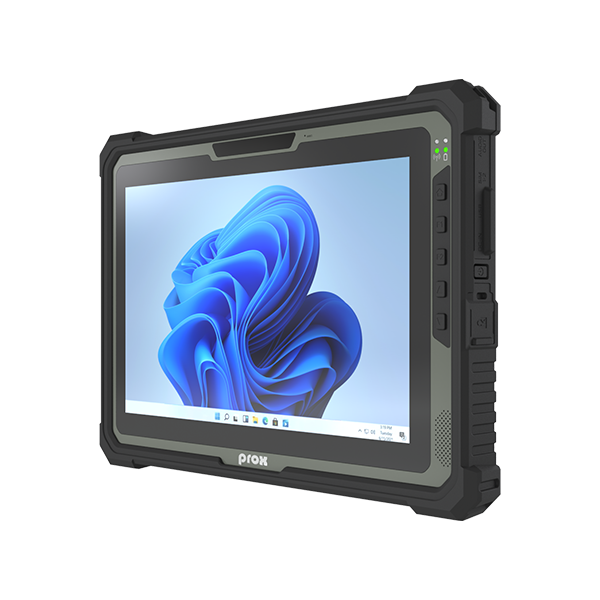

  • MH-T01A_front_45

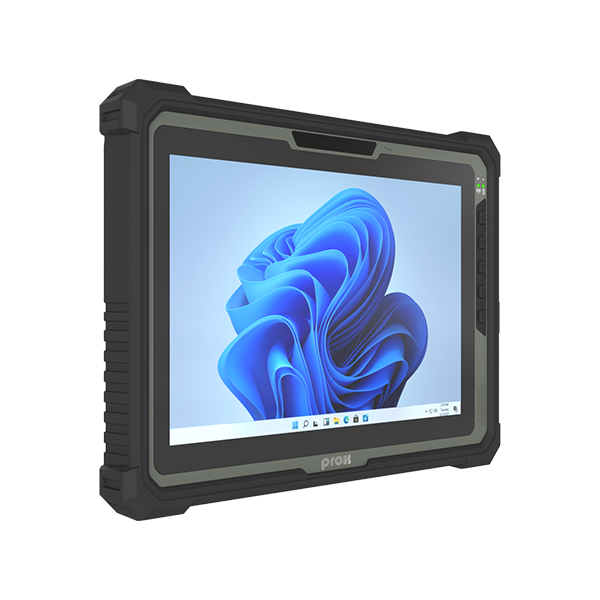

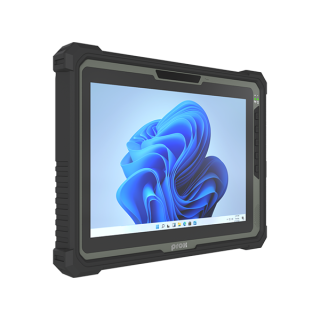

  • MH-T01A_other01

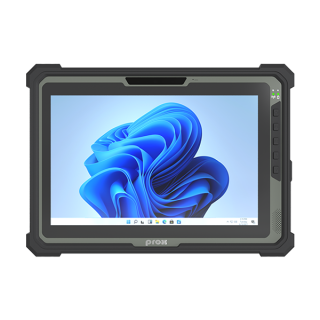

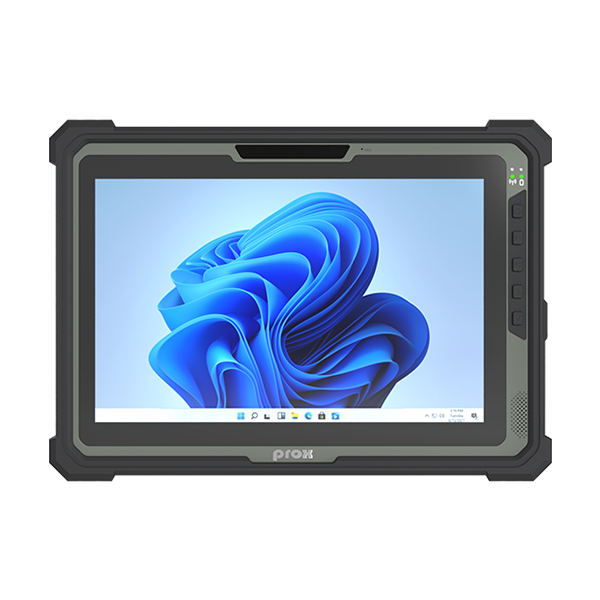

  • MH-T01A_front

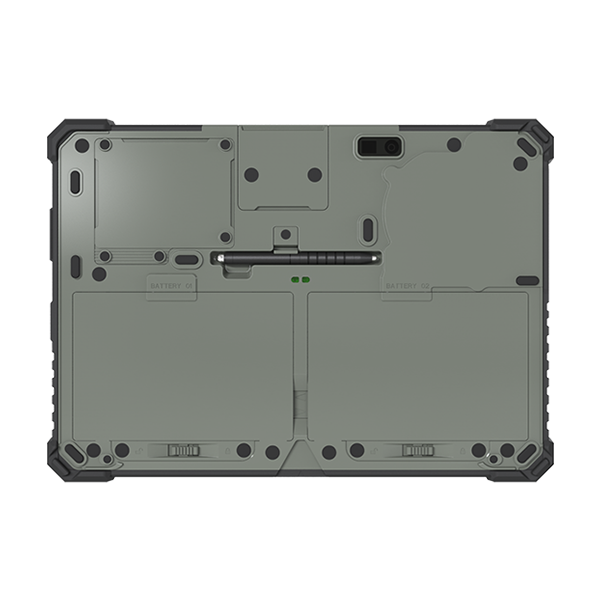

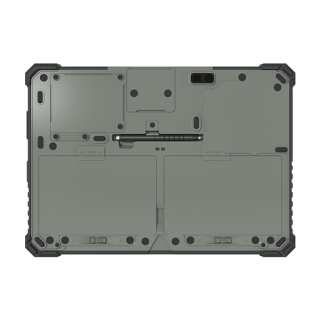

  • MH-T01A_back

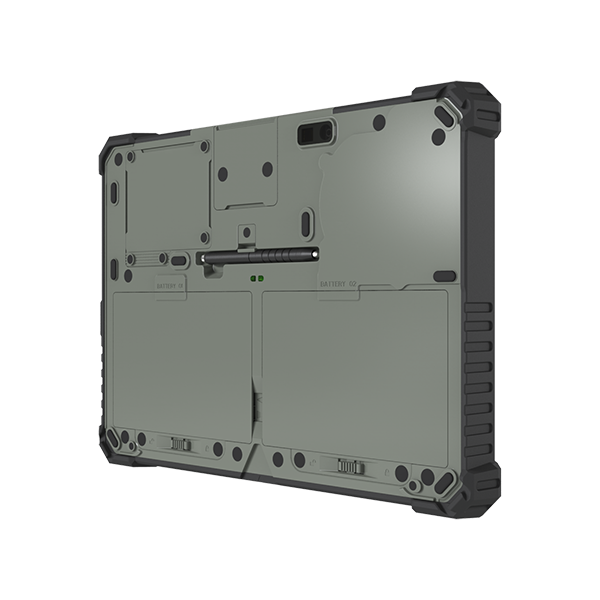

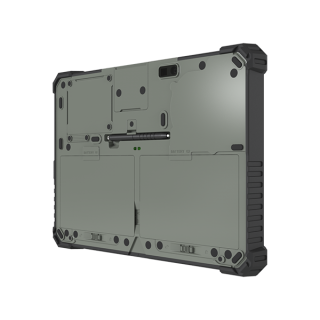

  • MH-T01A_other02
  • MH-T01A_front_45
  • MH-T01A_other01
  • MH-T01A_front
  • MH-T01A_back
  • MH-T01A_other02
MH-T01A_front_45 MH-T01A_other01 MH-T01A_front MH-T01A_back MH-T01A_other02

MH-T01A

10.1" Rugged Tablet with Intel® Alder Lake N Series Processor
•Intel Alder-Lake series with Low power consumption with fan-less design
•10.1" FHD display (1920 x 1200 resolution / 500 nits / 30,000 hrs) optical clear Adhesive with Anti-fingerprint / rugged corning gorilla glass P-Cap touch
•Dual-main battery with Hot-swap design & up to 8 hrs operating
•Multi-peripherals & accessories (Wi-Fi6E+BT 5.2 / 2D barcode scanner / 2D camera / 3D camera / LTE+GNSS / LAN / COM / SD card / smart card reader / fingerprint reader / hand strap / neck strap / stylus / cradle / vehicle cradle… etc)
•IP65 rating & drop test 1.5m design (MIL-810H standard)
•Wide-ranged temperature & light weight 1.0 kg (tablet only)
•Integrated with LIPS 3D camera for logistics dimension measurement application

 Tablet Specifications
 CPU Support

Intel® Alder Lake-N processor N50
Intel® Alder Lake-N processor N200
 Display
10.1" 1920 x 1200
 Brightness

500 cd/m2
 O.S. Support

Windows 11 IoT Enterprise
 Memory LPDDR5 8GB or 16GB
 Storage
1 x M.2 Nvme SSD (up to 1TB)
 Speaker 2W
 Stylus Yes (optional)
 Power Input DC jack 19V, USB Type-C power delivery 20V
 G-Sensor Yes
 Ambient Light Sensor Yes
 Vibrator Yes
 TPM TPM 2.0
 Dimensions (W x H x D) 275 x 194.5 x 21 mm
 Weight 1080 g (tablet only)
 Certifications CE/FCC
 Capacity 2 x Li-Ion battery (11.1V, typical 2100mAh)
 WiFi + BT 802.11 ax, Bluetooth®
 WWAN 4G/5G with GNSS
 Barcode Scanner 2D barcode scanner (optional)
 Camera Front camera 2M pixels (optional, Windows hello camera)

Rear camera 8M pixels

3D camera for dimension measurement application (optional)
 Fingerprint Reader Fingerprint reader (optional)
 Smart Card Reader Smart card reader (optional)
 Tablet I/O Ports
 SD Card 1 x Micro SD (optional)
 USB

1 x USB 3.0 type A

1 x USB type-C (with display port & power delivery)

1 x USB 3.0 type A(optional)
 Expansion Slots Expansion Slot 1 (2D barcode, COM port, USB 3.0 Type-A, SD card, LAN port) (optional)
Expansion Slot 2 (smart card reader, fingerprint, 3D dimensioner camera) (optional)
 Multi-Function Key
6 x Buttons (Windows, power, function key 1, function key 2, volume up, volume down )  ( programmable)
 SIM Card 2 x Micro SIM-card slot
 Audio Jack 1 x Headset (headphone out / mic-in combo)
 DC Jack 1 x DC 19V
 Environment
 Operation Temp. -10°C~50°C (AC) (14°F~122°F)
-10°C~50°C (battery) (14°F~122°F)
 Storage Temp. -20°C~60°C (-4°F~140°F)
 Humidity Operation humidity 10%~90%
Storage humidity 10%~95%
 Vibration  MIL-STD-810H



MH-T01A Highlight

MH-T01A Dimensions

650-355-Hand-Strap-T01A

Hand Strap

• 360° rotatable

• Easy stand design

• Dimensions : 253 x 190 mm

650-355-Screen-Protector-T01A

Screen Protector

AF & AG/AF & AR/AF & Anti-UV/AF Tempered Glass Screen Protector


 • Dimensions : 238.3 x 162 x 0.45mm

 • Hardness : 9H

650-355-Battery-Pack-T01A

Battery Pack

• Battery Type : Li-ion

• Voltage : 10.8V

• Capacity : Typical 2400mAh Min. 2100mAh

• Number of cell : 3S1P

• Dimensions : 119.5 x 79.2 x 9.5 mm

• Weight : 150g

650-355-Battery-Charger-T01A

Battery Charger

• Input: DC In 19V

• 2 x battery bays

• Bi-color LED indicators

650-355-Stylus-TETHER-T01A

Stylus + Tether

• Dimensions : 90 mm ; Ø7 mm

• Tip size : Ø2.5 mm + Ø5 mm

• Spring extension cable Length : 100 mm

650-355-Shoulder-Strap-T01A

Shoulder Strap

• 1 x movable cable tie

• Dimensions: 1950 x 320mm

650-355-Vehicle-Cradle-T01A

Vehicle Cradle

• Output: 2 x pogo pin (3A, GND)

• Input: 1 x 9~48V terminal block (3 pin φ = 2.5mm) (with ignition function)

• Security lock slot :

  1 x Kensington lock

  1 x Metal lock (optional)

• Dimensions: 310.5 x 100.6 x 262mm

• VESA: 75 x 75mm

650-355-Vehicle-Cradle-T01A-2

Vehicle Cradle

• 4 x USB 2.0 Type A

• 1 x COM (DB9) (with 12V/5V/RI)

• 1 x RJ45 (10/100/1000Mbps

• 1 x HDMI®

• 1 x logo LED indicator

650-355-Desktop-Cradle-T01A

Desktop Cradle

Charger Only, No I/O Function:

• Output: 2 x pogo pin (3A, GND)

• Input: 1 x DC In 19V

• Security lock slot :

  1 x Kensington lock

  1 x Metal lock (optional)

• Dimension : 190.8 x 157.5 x 257.3 mm

650-355-Desktop-Cradle-T01A-2

Desktop Cradle

Full I/O Function:

• Output: 2 x pogo pin (3A, GND)

• Input: 1 x DC In 19V

• 4 x USB 2.0 Type A

• 1 x COM (DB9) (with 12V/5V/RI)

• 1 x RJ45 (10/100/1000Mbps)

• 1 x HDMI®

• 1 x logo LED indicator

• Security lock slot :

  1 x Kensington lock

  1 x Metal lock (optional)

• Dimension : 157.5 x 190.8 x 257.3 mm

Extension Cable

Cigarette lighter connector :

• 1 x 12V/10A with fuse

• 1 x LED indicator

• Terminal block : 1 x Terminal block (3 pin φ =2.5mm)

• Cable length : 2000 mm

650-355-Power-adapter-re

Power Adapter

• Output : 19V, 3.42A, 65W

• Input : 100V-240V, 50-60Hz, 2.0A

• Dimensions : 105.5 x 46.4 x 28.3 mm

• Weight : 300g

• Output cable length. : 1200 mm

• Input cable length : 1830 mm
