MH-5108
10.1" Android 9.0 Tablet with Qualcomm® Snapdragon™ S450 Octa Core™ 1.8 GHz
•Aesthetic design of ultra-thin and narrow bezel
•High performance and low power consumption
•OCA Bonding of touch + panel for sunlight readability
•10.1” WUXGA (1920 x 1200) with P-Cap multi-touch panel
•Wi-Fi 802.11 a/b/g/n/ac, Bluetooth® BT2.1+EDR/ 3.0/ 4.2LE
•High capacity battery for extended operating time
•Supports multi-function applications (optional)
- NFC, 2D barcode scanner
- WLAN, BT, 8M camera
•12~24V wide-ranged DC In
•High performance and low power consumption
•OCA Bonding of touch + panel for sunlight readability
•10.1” WUXGA (1920 x 1200) with P-Cap multi-touch panel
•Wi-Fi 802.11 a/b/g/n/ac, Bluetooth® BT2.1+EDR/ 3.0/ 4.2LE
•High capacity battery for extended operating time
•Supports multi-function applications (optional)
- NFC, 2D barcode scanner
- WLAN, BT, 8M camera
•12~24V wide-ranged DC In
| CPU Support |
Qualcomm® Snapdragon™ S450 Octa-core CPU ARM Cortex A53 (1.8GHz)
|
|
| Display | 10.1” WUXGA 1920 x 1200 resolution | |
| Brightness |
450 cd/m2 |
|
| Touch | Multi-touch projected capacitive
Anti-fingerprint OCA Bonding of touch + panel for sunlight readability |
|
| O.S. Support | Android 9.0 | |
| Memory+Storage | 2GB+16GB eMCP | |
| Audio |
1 x 1W speaker 1 x Headphone Jack |
|
| Power Requirement | 1 x DC jack support 12~24V DC In | |
| Sensor | G-sensor, Light sensor | |
| Battery Capacity | 3.85V, 7400mAh (1S2P)(standard) | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac , Bluetooth® BT2.1+EDR/3.0/4.2LE | |
| Barcode Scanner | 1D/2D barcode scanner (optional) | |
| Camera | Front camera FF 8M pixels (optional)
Rear camera AF 8M pixels (optional)
|
|
| NFC | Yes (optional) | |
| Dimensions (W x H x D) | 257 x 169 x 17 mm (with rubber) | |
| Weight | 700 g (Pad only) | |
| Drop Test | Up to 120 cm onto concrete | |
| Certifications | FCC / CE | |
| Tablet I/O Ports | ||
| DC Jack |
1 x DC jack for DC In
|
|
| SD | Micro SD up to 128GB | |
| Audio Jack | Headphone Jack | |
| USB | USB-C for data transmission only (w/o charging function) | |
| Cradle Connectors | 10 pin POGO pin for charging and data transmission | |
| Environment | ||
| Operation Temp. | 0°C~40°C (32°F~104°F)
0°C~35°C (32°F~95°F) when charging
|
|
| Storage Temp. | -20°C~60°C (-4°F~140°F) | |
| Humidity | Operation humidity 10%~90% Storage humidity 10%~95% | |
MH-5108 Video

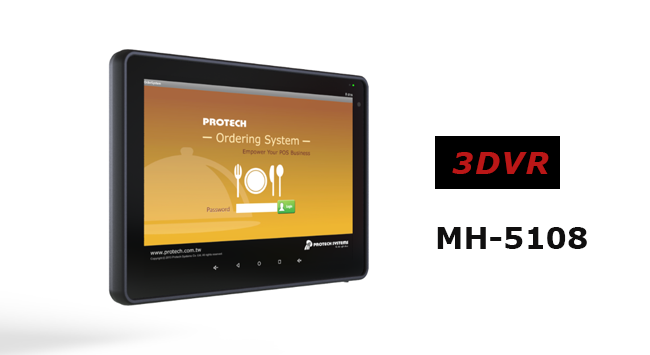

MH-5108 3DVR

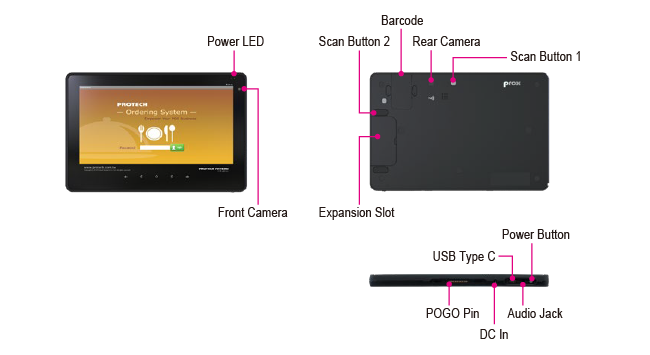

MH-5108 Highlight

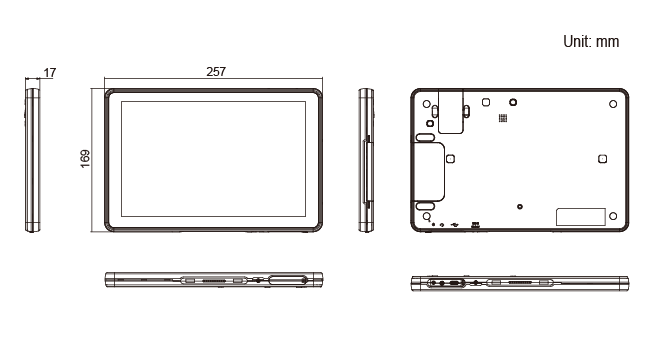

MH-5108 Dimensions
| MH-5108 |
10.1" Android 9.0 Tablet with Qualcomm® Snapdragon™ S450 Octa Core™ 1.8 GHz |
| File type | File Download |
| EDM | MH-5108_EDM |
| Pictures | MH-5108_Pictures.ZIP |
| QuickGuide | MH-5108_QuickGuide.PDF |
