KS-M320
Multi-Functional Kiosk
•1 for 2 design for service ordering and kitchen display
•Lightweight design with aluminum structure
•Cold swappable with Intel ATOM and Core-i
•Payment barcode scanner & thermal printer
•Reserved customized design for credit card and contactless payment
•Lightweight design with aluminum structure
•Cold swappable with Intel ATOM and Core-i
•Payment barcode scanner & thermal printer
•Reserved customized design for credit card and contactless payment
|
System |
||
| CPU Support |
Hi-End: Intel® Core i7-7600U / Core i5-7300U / i3-7100U |
|
| Memory |
Hi-End: 1 x DDR4 SO-DIMM slot (Default: 4GB) Entry: 1 x SO-DIMM socket, supporting 1600/1867 DDR3L memory up to 8G (non-ECC) |
|
| Storage |
1 x 2.5" SATA
|
|
| Network |
1 x Gigabit 10/100/1000 Base-T Fast Ethernet for system 1 x RJ45 reserved for credit card reader |
|
| Power Supply | 100-240V with Miniature Circuit Breaker and Earth Leakage Module Selectable | |
| System Weight | Cashless Ordering Kiosk: 64kg
Kitchen Display: 20.7kg
|
|
| Dimensions (W x H x D) |
Cashless Ordering Kiosk: 500 x 1810 x 500mm (Floor Stand Type) Cashless Ordering Kiosk: 488 x 1141 x 165mm (Wall Mount Type) Kitchen Display: 488 x 800 x 81mm |
|
| O.S. Support | Windows® 10 | |
| Operating Display | ||
| LCD | 32" TFT LCD | |
| Max. Resolution | 1920 x 1080 | |
| Brightness | 400 cd/m² | |
| Touchscreen | Projected Capacitive Touch | |
| Viewing Angle |
Horizontal: (R) 89°/ (L) 89° Vertical: (U) 89°/ (D) 89° |
|
| Add-ons | ||
| Face Camera(optional) | 2.1M FHD Camera | |
| Barcode Scanner(optional) | 1D / 2D Barcode | |
| Thermal Printer(optional) |
2" or 3" Standalone Thermal printer for 80mm paper roll w/ paper near end Resolution 203dpi Printing Speed 170mm/s |
|
| Wi-Fi Module(optional) | Dual-band (2.4/5GHz) IEEE 802.11a/b/g/n/ac 2T/2R MIMO | |
| Environment | ||
| EMC & Safety | CE / FCC / LVD | |
| Operating Temp. | 5°C~35°C | |
| Storage Temp. | 0°C~60°C | |
| Humidity | 20%~85% (no condensation) | |
KS-M320 Video
KS-M320 Video

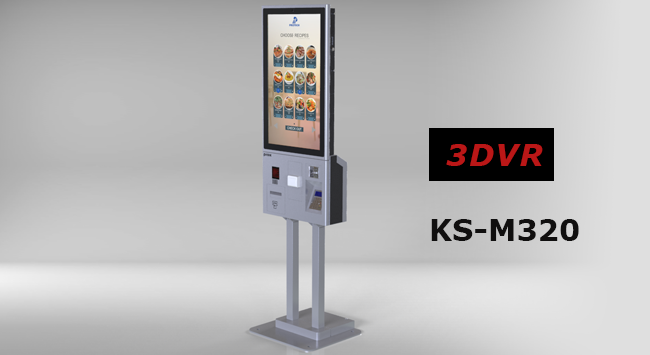

KS-M320 3DVR

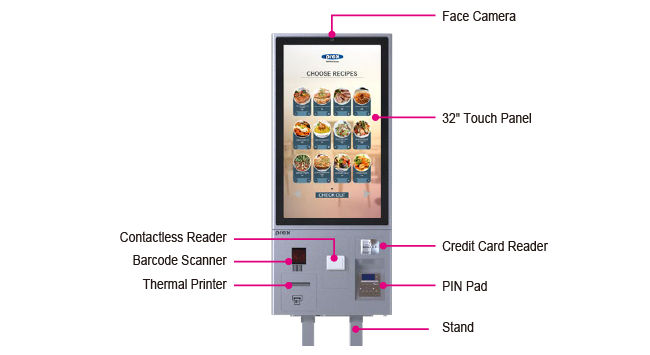

KS-M320 Highlight
KS-M320 Dimensions
| KS-M320 |
Multi-Functional Kiosk |
| File type | File Download |
| EDM | KS-M320_EDM.PDF |
| Pictures | KS-M320_Pictures.PDF |
| Manual | KS-M320_Manual.PDF |
| QuickGuide | KS-M320_QuickGuide.PDF |
| BIOS | KS-M320_BIOS.ZIP |
| Device | KS-M320_Device.ZIP |
| Platform | KS-M320_Platform.ZIP |
| Other | KS-M320_Other.ZIP |
| Modules | KS-M320_Modules.ZIP |
