KS-M220

Multi-Functional Kiosk

•Real modular and flexible with Plug and Go design
•21.5" Full HD TFT-LCD
•Selectable for cost-effective Celeron and performance Core-i CPU.
•Aluminum structure and high texture glossy finish
•Feature-rich devices to fulfill different demands.
•Reserve customized design for credit card and contactless payment.

Tech Spec
Product Info
Download

System
CPU Support		Hi-End: Intel^® Core i5-7300U / i3-7100U / Pentium^® 4415U Entry: Intel^® J3455 CPU
Memory		Hi-End: 1 x DDR4 SO-DIMM slot (Default: 4GB) or Entry: 1 x SO-DIMM socket,supporting 1600/1867 DDR3L memory up to 4G (non-ECC)
Storage		1 x 2.5" SATA HDD (Default: 500GB)
Network		2 x Gigabit 10/100/1000 Base-T Fast Ethernet (RJ45)
Power Supply		100-240V available

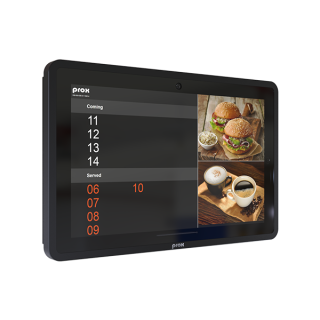

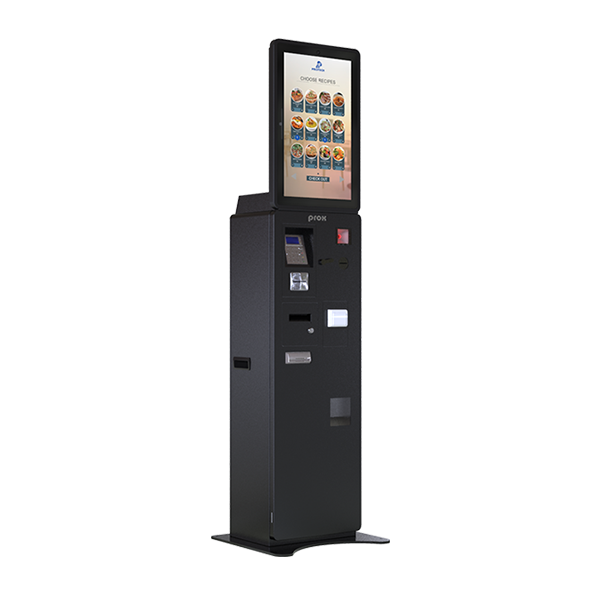

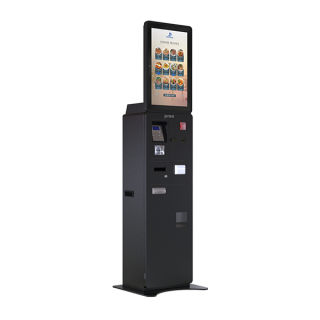

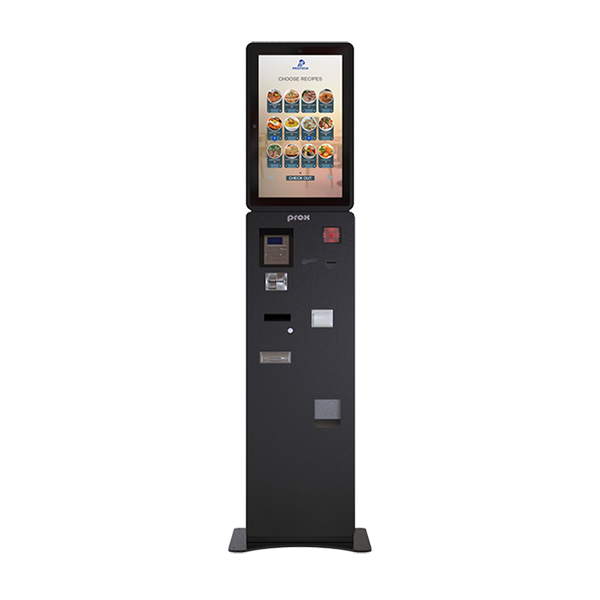

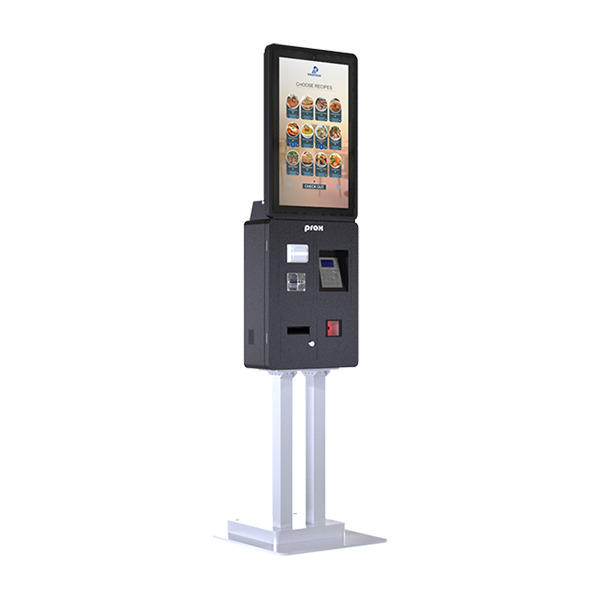

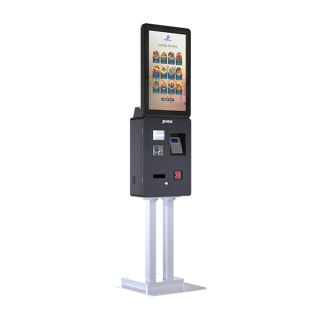

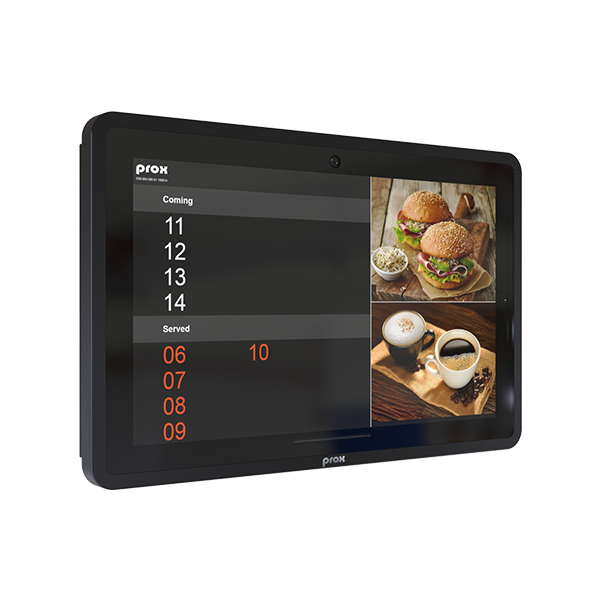

System Weight		KDS: 13.81 kg M-type: 31.71 kg M-type stand: 31.43 kg Cash type: 75.35 kg
Dimensions (W x H x D)		M-type: 377 x 585 x 160 mm (without stand) 450 x 1636 x 450 mm (with stand) KDS: 377 x 585x 70 mm Cash pay: 377 x 1704.6 x 282 mm
O.S. Support		Windows® 10
Operating Display
LCD		21.5" TFT LCD
Max. Resolution		FHD
Brightness		250 cd/m²
Touchscreen		Projected Capacitive Touch
Viewing Angle		Horizontal: (R) 89°/ (L) 89° Vertical: (U) 89°/ (D) 89°
Add-ons
Face Camera(optional)		2.1M FHD Camera, Gotek NC0-O62FR-XF01
Barcode Scanner(optional)		1D / 2D Barcode
Thermal Printer(optional)		2" or 3" Standalone Thermal printer
Wi-Fi Module(optional)		2T2R PCIe Half-Mini Card
Environment
EMC & Safety		CE / FCC
Operating Temp.		5°C~35°C
Storage Temp.		0°C~60°C
Humidity		20%~85% (no condensation)

KS-M220 Video

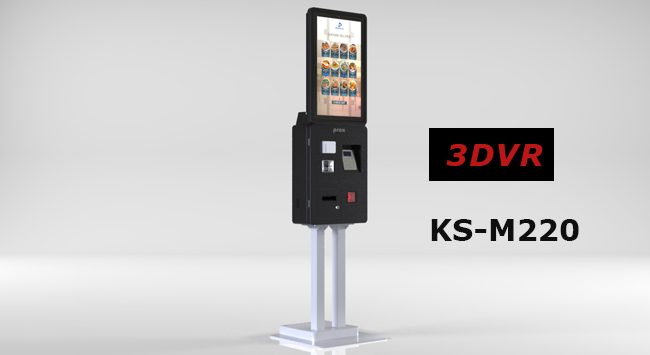

KS-M220 3DVR

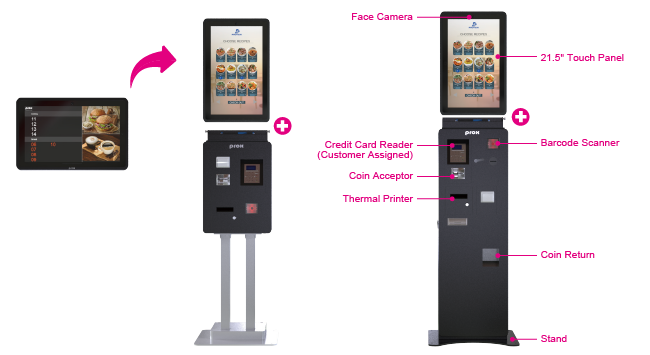

KS-M220 Highlight

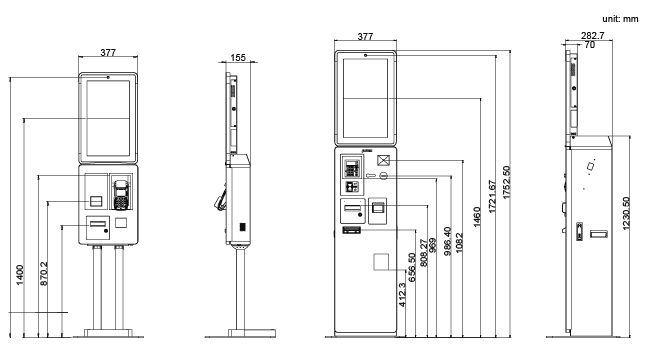

KS-M220 Dimensions

KS-M220	Multi-Functional Kiosk
File type	File Download
EDM	KS-M220_EDM.PDF
Pictures	KS-M220_Pictures.PDF
Manual	KS-M220_Manual.PDF
QuickGuide	KS-M220_QuickGuide.PDF
BIOS	KS-M220_BIOS.ZIP
Device	KS-M220_Device.ZIP
Platform	KS-M220_Platform.ZIP
Other	KS-M220_Other.ZIP
Modules	KS-M220_Modules.ZIP
