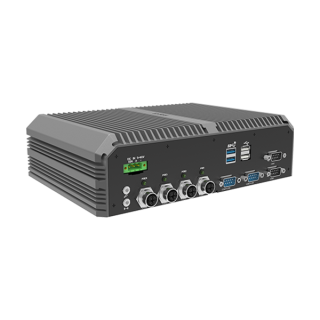

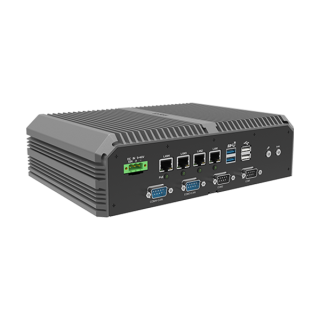

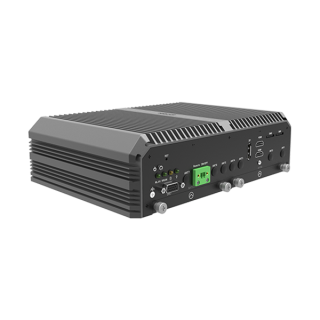

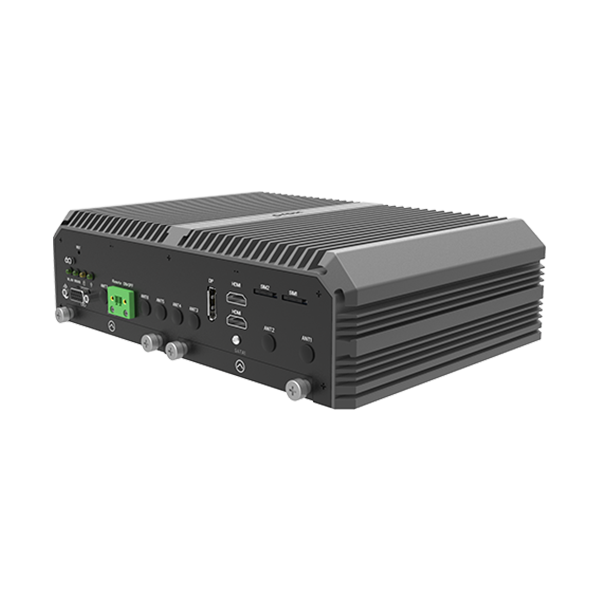

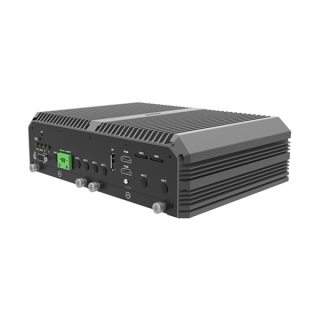

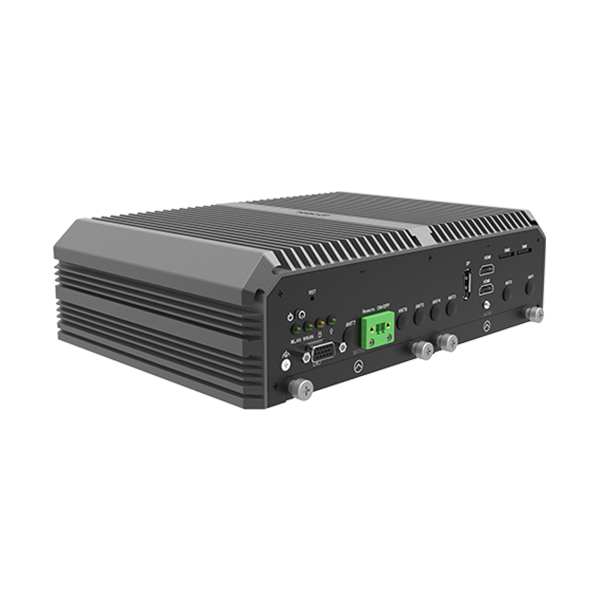

IV-Z318
•Rich I/O interfaces with Isolated DIO and serial ports
•Fastest PCIe Gen4 x 4 M.2 NVMe SSD support
•Smarter Vehicle Power Ignition
•Removable HDD trays
•Secure platform with TPM 2.0 support
•Advanced Wireless solution support LTE/ 5G with Dual SIM Cards, Wi-Fi, BT, GPS Dead Reckoning (optional)
•CAN Bus 2.0B support (optional)
•Wide-ranged temperature: -40°C~70°C
•Wide-ranged voltage DC In 9~48V
•E13 & EN50155 Certified
| System | ||
| CPU Support |
Intel® Core™ i7-1185GRE (15W, 12M Cache, up to 2.80 GHz), WT Intel® Core™ i5-1145GRE (15W, 8M Cache, up to 2.60 GHz), WT Intel®Core™ i3-1115GRE (15W, 6M Cache, up to 3.00 GHz), WT |
|
| Memory Support |
2 x DDR4-3200 SO-DIMM up to 32 GB
|
|
| Graphics |
Intel® Iris® Xe Graphics (for i7 and i5) Intel® UHD Graphics (for i3) |
|
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Power Input | DC In 9~48V (with ignition) | |
| Expansion Slots |
1 x full-sized Mini PCIe slot 1 (USB2.0 and SIM signal) 1 x full-sized Mini PCIe slot 2 (PCIe and USB2.0 signal) 1 x M.2 3042/3052-D2-B slot (PCIe, USB 3.0 and USB 2.0 and SIM signal) 1 x M.2 2230-D2-E slot (PCIe and USB 2.0 signal) 1 x M.2 2280-D2-M slot (PCIe Gen4 x 4 signal) |
|
| TPM | TPM 2.0 | |
| Mounting Support |
Wall-mount VESA-mount (75x75), DIN Rail (optional) |
|
| Operating System | Windows 10 LTSC 2019/2021, Windows 11 IoT Enterprise (GAC), Ubuntu 20.04 LTS | |
| System Weight |
3.2 kg |
|
| Dimensions (W x H x D) |
259.5 x 72 x 184.8 mm |
|
| Certifications |
FCC Class A/ CE/ UKCA/ E13/ EN50155 |
|
|
I/O Ports |
||
| Drive Bay |
2 x 2.5" SATA SSD (Support RAID 0/1) |
|
| USB |
2 x USB 3.2 Gen 2 and 2 x USB 2.0 |
|
| LAN |
4 x RJ45 / M12-X-coded GbE with optional PoE (IEEE 802.3af) Support Wake-On-LAN/PXE |
|
| Serial Ports |
COM 1/2 for RS-232/422/485 with 3KVrms isolation COM 3/4 for RS-232 (optional with CAN Bus)
|
|
| Display |
2 x HDMI® 2.0: Max. resolution 4K @ 60Hz 1 x DP1.4: Max. resolution 4K @ 60Hz |
|
| Audio |
1 x Line Out, 1 x Mic In |
|
| Digital I/O |
4 x in / 4 x out with 3KVrms isolation |
|
| SIM Card Sockets |
2 x Nano SIM card slots |
|
| Antenna Holes |
7 x Antenna holes |
|
| LED |
1 x System LED, 1 x HDD LED, 1 x WWAN LED 1 x WLAN LED, 4 x PoE LED |
|
| Power On/Off |
1 x Power Button 1 x Reset Button 1 x Remote Switch |
|
| Ground |
1 x M3 hole |
|
| Environment | ||
| Operating Temp.
(Ambient with airflow)
|
-40°C~70°C (32°F~158°F) | |
| Storage Temp. | -40°C~85°C (-40°F~185°F) | |
| Humidity | 20%~90% | |
| Vibration (Random) | IEC60068-2-64, random, 5G@5~500Hz, 1hr/axis with SSD | |
| Vibration (Operating) | MIL-STD-810G, 514.6C Procedure 1, Category 4 | |
| Vibration (Storage) | MIL-STD-810G, 514.6E Procedure 1, Category 24 | |
| Shock (Operating) | MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40G | |
| Shock (Non-Operating) | MIL-STD-810G, 516.6 Procedure V, crash hazard shock test=100G | |

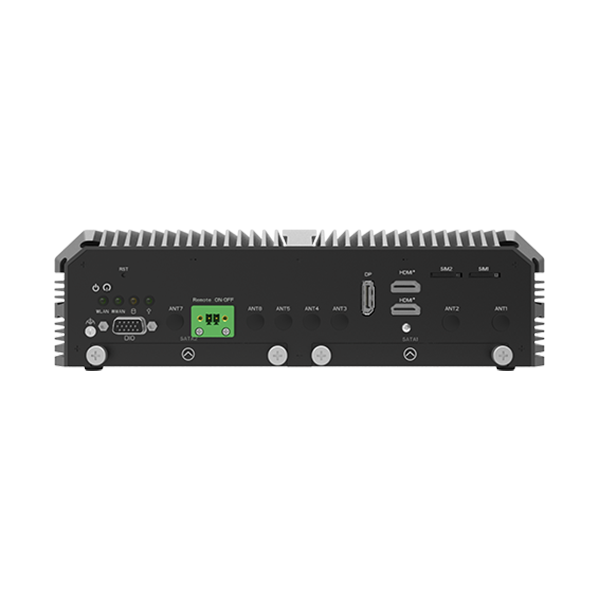

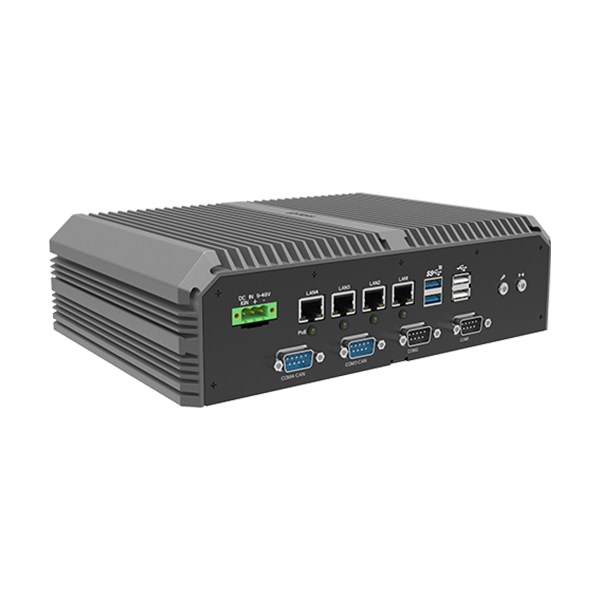

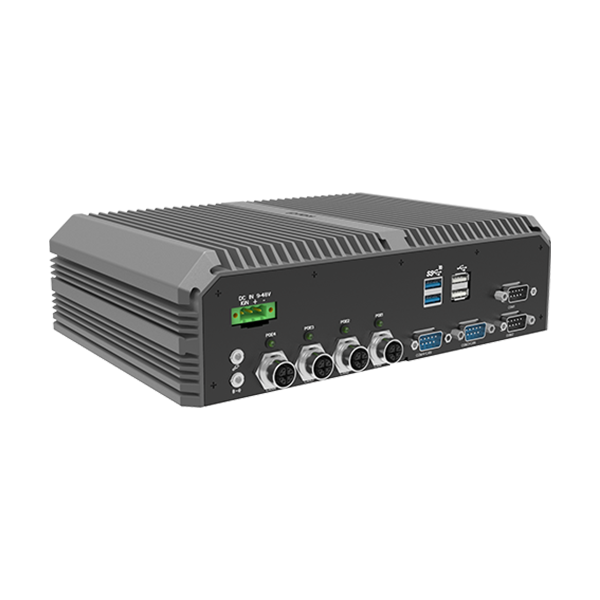

IV-Z318 IO

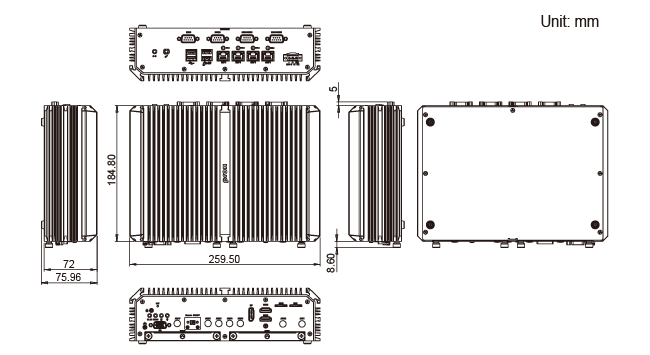

IV-Z318 Dimensions
