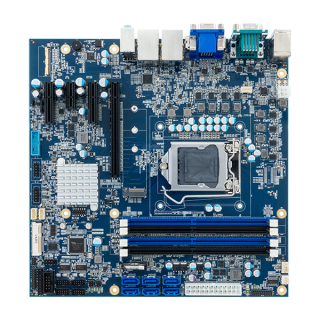

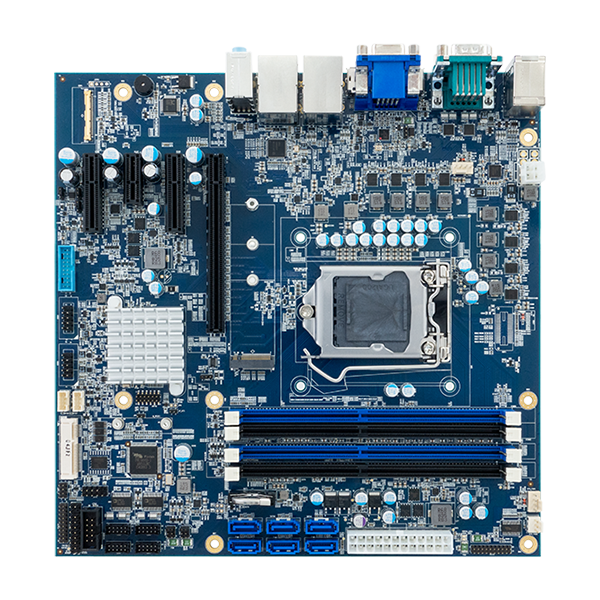

BU-B015
•6 x COM, 2 x LAN, 12 x USB, 1 x PS/2
•1 x VGA, 2 x DP, 1 x eDP (internal)
•6 x SATA, supporting RAID 0/1/5/10
•1 x Mini PCIe slot, 1 x M.2
•1 x PCIe (x16), 2 x PCIe (x4), 1 x PCIe (x1)
| System | ||
| CPU Support | LGA1200 socket for Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® desktop CPU / Xeon® W-1200 server CPU | |
| CPU List |
Xeon®: W-1290E(TE), W-1270E(TE), W-1250E(TE) 9th Gen. Core™: i9-10900E(TE), i7-10700E(TE), i5-10500E(TE), i3-10100E(TE) Pentium®: G6400E, G6400TE Celeron®: G5900E, G5900TE |
|
| Chipset |
Intel® W480E (support Xeon® / Core™ / Pentium® / Celeron® CPU) Intel® Q470E/H420E (support Core™ / Pentium® / Celeron® CPU) |
|
| Memory Support |
W480E/Q470E: 4 x DIMM sockets, support 2933MHz DDR4 up to 64GB; support 2666MHz DDR4 up to 128GB; H420E: 2 x DIMM sockets, support 2666MHz DDR4 up to 64GB. Support ECC (W480E)/non-ECC (all SKU) |
|
| BIOS | AMI UEFI BIOS | |
| Watchdog | 1~255 seconds watchdog timer selectable | |
| Power Supply | Supports ATX power (24+4 pin) | |
| Dimensions | 244 x 244 mm (9.6" x 9.6") | |
| Certifications | CE / FCC | |
| O.S. Support |
Windows 10 IoT Enterprise, Linux
|
|
|
I/O Ports |
||
| SATA Interface |
W480E/Q470E: 6 x SATA 3.0, support RAID 0/1/5/10/01 H420E: 4 x SATA 3.0, without RAID |
|
| Expansion Bus |
W480E/Q470E: 1 x PCIe (x16), 2 x PCIe (x4), 1 x PCIe (x1), 1 x Mini PCIe (colay with LAN 2, select by jumper) 1 x M.2 slot H420E: 1 x PCIe (x16), 1 x PCIe (x4), 1 x PCIe (x1), 1 x Mini PCIe (colay with LAN 2, select by jumper) |
|
| M.2 Slot |
1 x M.2 slot support NVMe (PCIex4) for storage only, 2242/2260/2280
|
|
| LPC |
1 x LPC (2x10 Pin Header) |
|
| Serial Ports |
6 x COM ports COM 1&2: RS232/422/485 auto flow control by BIOS (rear I/O) COM 3&4: Support 5V/12V by jumper selection |
|
| Keyboard/Mouse |
1 x PS/2 Combo connector for keyboard & mouse (rear I/O) |
|
| FAN |
1 x CPU fan, 2 x system fans (internal connector)
|
|
| LAN |
Dual LAN (2 x RJ45 on rear I/O) LAN 1: Intel® PHY 219LM (GbE) LAN 2: Intel® LAN 211AT (GbE) (colay with M_PCIE1, select by jumper) Supports Wake-On-LAN & PXE |
|
| Audio |
Mic In / Line In / Line Out (rear I/O) Internal 2 x 5 wafer, Pitch 2.0 (connected to front panel of chassis) |
|
| Digital I/O |
8 in / 8 out (pin header) |
|
| USB |
W480E/Q470E: 12 ports 2 x external USB 3.1 stacked with LAN (rear I/O) 2 x external USB 3.0 stacked with LAN (rear I/O) 2 x external USB 2.0 stacked with PS/2 Combo connector (rear I/O) 2 x internal USB 3.0 (box header) 4 x internal USB 2.0 (pin header) H420E: 8 ports 2 x external USB 3.0 stacked with LAN (rear I/O) 2 x external USB 2.0 stacked with LAN (rear I/O) 2 x external USB 2.0 stacked with PS/2 Combo connector (rear I/O) 2 x internal USB 3.0 (box header) |
|
| Graphics | ||
| Flexible Display |
W480E/Q470E: 1 x VGA, 2 x DP, 1 x eDP, support triple independent display; H420E: 1 x VGA, 2 x DP, 1 x eDP, support dual independent display |
|
| VGA | 1 x VGA (rear I/O) up to 1920 x 1200 @60Hz (default) | |
| DisplayPort | 2 x DP (rear I/O) up to 4096 x 2304 @60Hz (default) | |
| eDP | 1 x eDP (internal) up to 4096 x 2304 @60Hz (default) | |
| Environment | ||
| Operating Temp. | 0°C~60°C (32°F~140°F) @humidity 20%~90% | |
| Storage Temp. | -40°C~85°C (-40°F~185°F) @humidity 20%~95% | |
BU-B015 Highlight

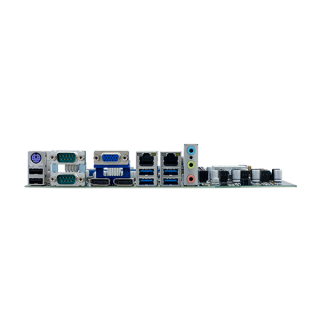

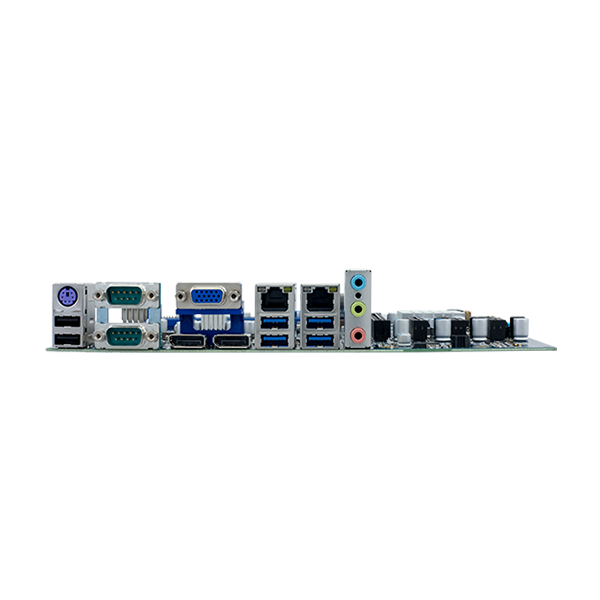

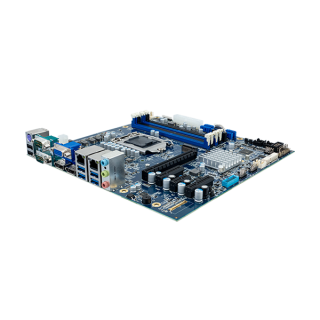

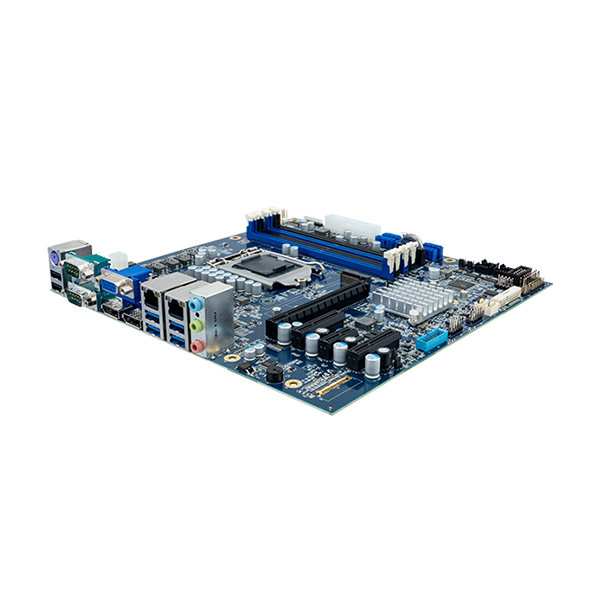

BU-B015 IO
| BU-B015 | Micro-ATX Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® / Xeon® W-1200 CPU |
